Ubiquiti Networks
Ubiquiti Networks Wave Long-Range 60 GHz access point
60 GHz PtMP station with 2 Gbps throughput, 5 GHz backup radio and precision alignment mount
- Frequency BandRF Operating frequency* 57–71 GHz *Depends on regulatory reg
- LEDsPower Flashing white: bootup in progress White: not connecte
- LAN Ports(1) GbE RJ45 port
- Power SupplyPower method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8
- Temperature-40 to 60° C (-40 to 140° F)
- Humidity5 to 95% noncondensing
- 60 GHz PtMP station delivering 2 Gbps total throughput with 1 Gbps duplex
- 5 GHz weatherproof backup radio providing 800 Mbps maximum throughput for link resilience
- Operates in 57–71 GHz band with 2160, 1080, 540 MHz channel bandwidth options
- Precision alignment mount enables links up to 8 km to Wave AP
- Powered via passive PoE 44–54 V DC with included 48 V 0.65 A gigabit adapter
60 GHz PtMP Station with 5 GHz Backup
The Ubiquiti Networks Wave Long-Range operates as a point-to-multipoint station in the 57–71 GHz band, delivering up to 2 Gbps total throughput with 1 Gbps duplex. A 5 GHz weatherproof backup radio provides up to 800 Mbps to maintain the link during adverse conditions. The unit includes a 48 V DC, 0.65 A gigabit PoE adapter and mounts on the supplied precision alignment bracket.
Installers Needing Licensed-Free High Capacity
This station suits network builders who require multi-gigabit links over distances up to 8 km without licensed spectrum. It is not for teams that lack clear line of sight, because 60 GHz signals do not penetrate foliage or structures. Buyers needing standalone omnidirectional coverage or mesh roaming should evaluate other form factors.
Pole Mount with App-Assisted Alignment

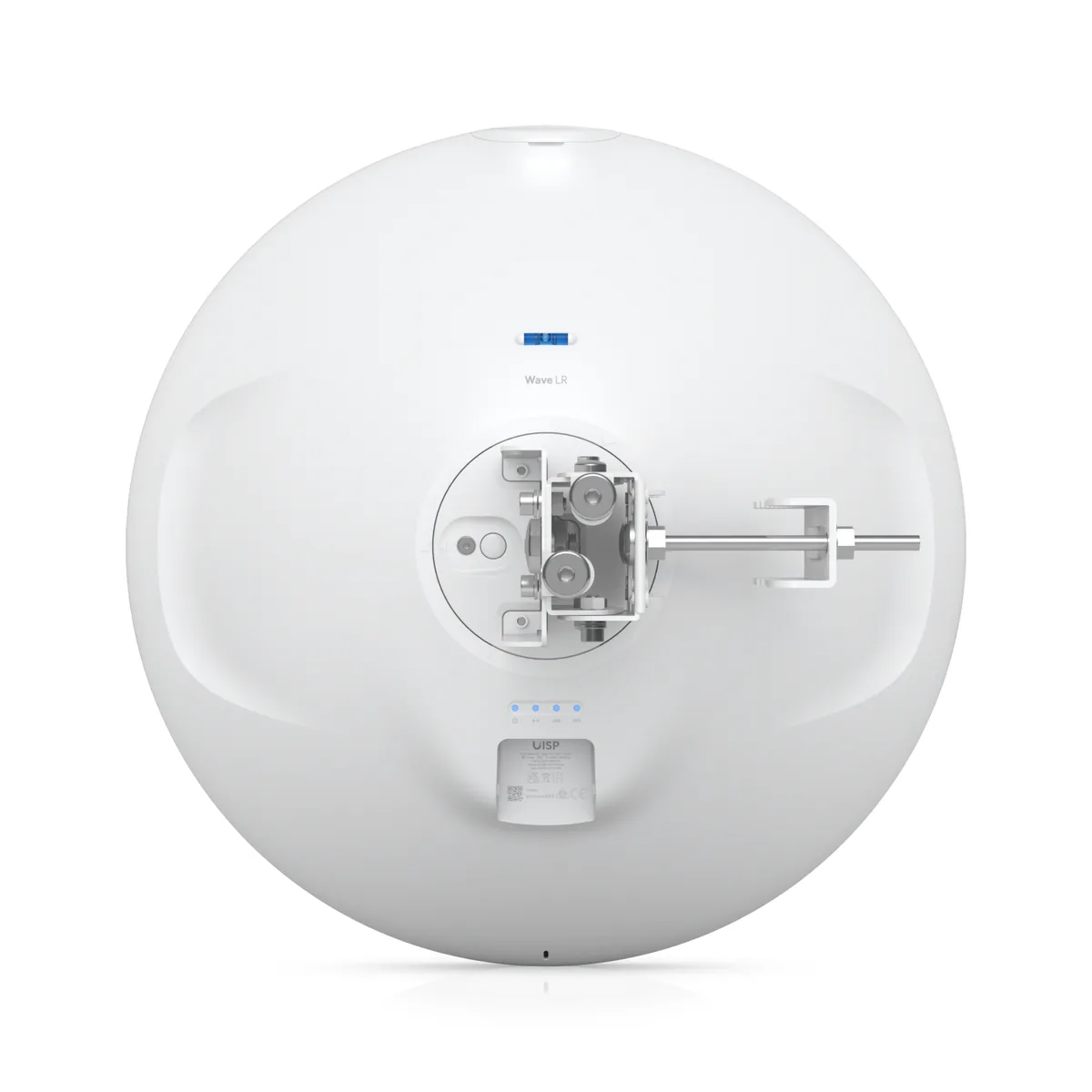

The included precision mount bolts to a mast and allows fine azimuth and elevation adjustment. Initial configuration is performed over Bluetooth using the UISP Mobile app, which reports real-time signal quality to speed up aiming. The single GbE RJ45 port accepts passive PoE on either four or two pairs, so existing cabling often works without recabling.
Highlights
- 60 GHz PtMP station delivering 2 Gbps total throughput with 1 Gbps duplex
- 5 GHz weatherproof backup radio providing 800 Mbps maximum throughput for link resilience
- Operates in 57–71 GHz band with 2160, 1080, 540 MHz channel bandwidth options
- Precision alignment mount enables links up to 8 km to Wave AP
- Powered via passive PoE 44–54 V DC with included 48 V 0.65 A gigabit adapter
Specifications
| Brand | Ubiquiti Network |
|---|---|
| Series | Wave 60 GHz |
| Model | Wave-LR |
| Frequency Band | RF Operating frequency* 57–71 GHz *Depends on regulatory region. Channel bandwidth 2160, 1080, 540* MHz *FW version 3.3.0 and later. Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. Modulation 16QAM, QPSK Antenna gain 46 dBi Polarization Vertically linear Beamwidth Azimuth: 3 dB 1° Elevation: 3 dB 1° Back-Up RF WiFi standard 802.11ax (WiFi 6) Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depe |
| LEDs | Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet Flashing blue: Ethernet traffic detected GPS Blue: receiving at least (4) GPS satellite signal Links White: 5GHz link Blue: 60GHz link |
| LAN Ports | (1) GbE RJ45 port |
| Power Supply | Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only Power supply 48V DC, 0.65A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch Supported voltage range 44–54V DC 22–27V DC |
| Temperature | -40 to 60° C (-40 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | Ø424.4 x 166.2 mm (Ø16.7 x 6.5") |
| Weight | Without mount: 2.6 kg (5.7 lb) With mount: 3.8 kg (8.4 lb) |
| Features | Hardware Processor Dual-core ARM® Cortex®-A53 at 1 GHz Memory DDR3L 512 MB Software Operating mode PtMP station, PtP* *FW version 3.2.0 and later. Ubiquiti specific features Wave AI, discovery protocol Services UISP, ping watchdog, NTP client, SNMP Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. Network Bridge/Router* mode *Router is available in PtMP station mode only. Application requirements UISP: Version 1.4.5 and later System Total throughput 2 Gbps (1 Gbps duplex) Max. range 8+ km Encryption WPA2- |
| Shipping weight | 2.63 kg |
| Package size | 508 × 490 × 295 mm |
Questions about this item
Does the Wave-LR include a PoE injector, or must I supply one?
A 48 V DC, 0.65 A gigabit PoE adapter is included in the box.
Will the 5 GHz backup radio link to my existing 5 GHz APs?
The backup radio provides up to 800 Mbps throughput and is designed to pair with a Wave AP for failover.
Which LED pattern tells me the unit has joined UISP?
A solid blue LED means the Wave-LR is connected to the UISP application.
