Ubiquiti Networks
Ubiquiti Networks Wave AP 60 GHz PtMP access point
Outdoor 60 GHz PtMP access point delivers up to 5.4 Gbps total throughput with 30° sector coverage, 24 client capacity, and 5 GHz backup radio
- # of Users31
- WiFi GenerationWi-Fi 6
- Frequency BandRF Operating frequency* 57–71 GHz *Depends on regulatory reg
- Mounting LocationOutdoor
- Operating RangeOutdoor : Up to 8km
- LEDsPower Flashing white: bootup in progress White: not connecte
- 4 Gbps total throughput via Wave 60 GHz technology
- 7 Gbps full-duplex capacity over 8 km links
- 30° sector covers up to 24 Wave clients
- 5 GHz backup radio delivers 800 Mbps failover
- 5 GbE plus 10G SFP+ ports for high-speed backhaul
60 GHz PtMP access point for outdoor links
The Ubiquiti Networks Wave AP is a 60 GHz point-to-multipoint access point built for outdoor wireless backhaul. It uses Wave technology to deliver up to 5.4 Gbps total throughput with 2.7 Gbps duplex capacity. The sector antenna provides 30° coverage and supports links up to 8 km. A 5 GHz weatherproof backup radio adds up to 800 Mbps redundancy.

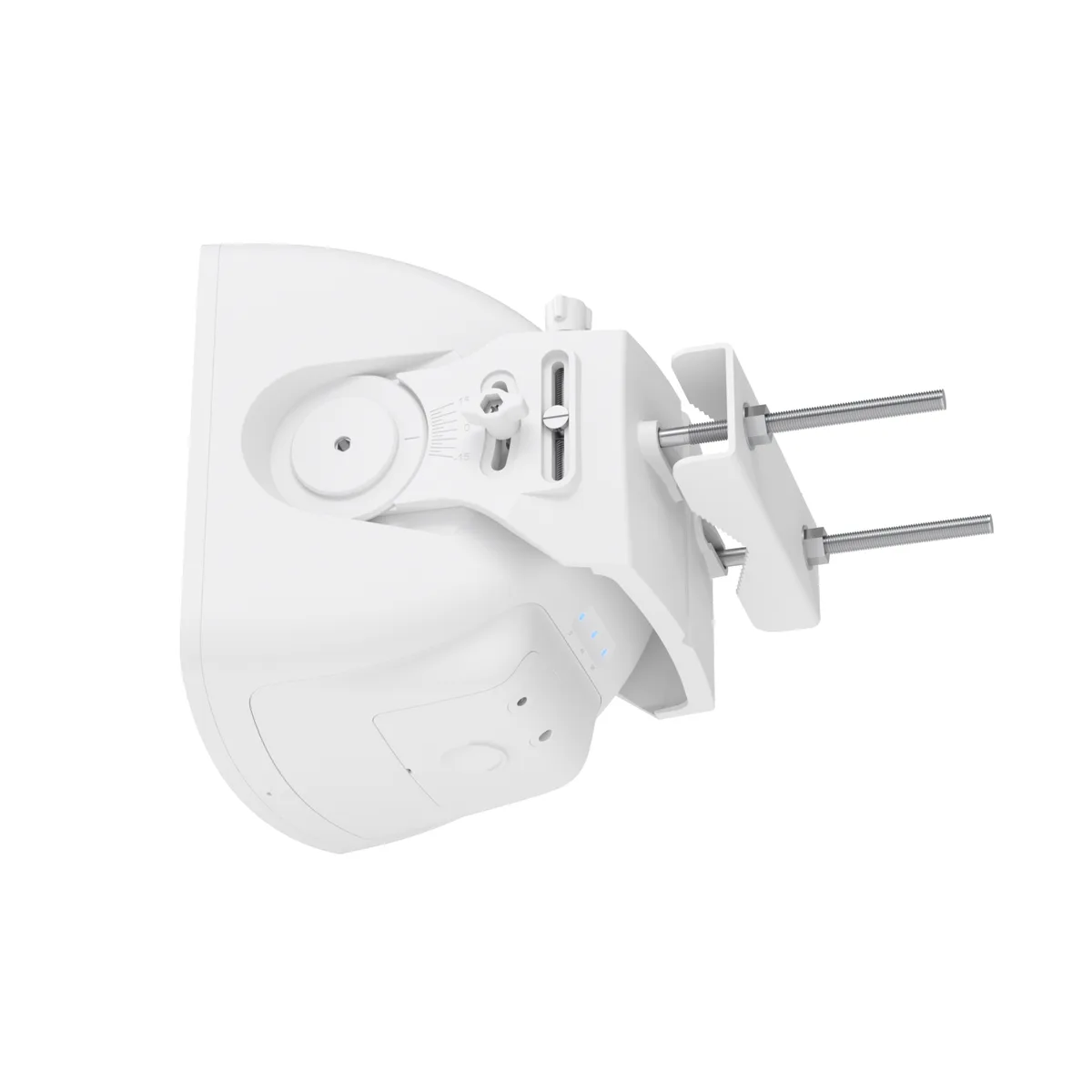

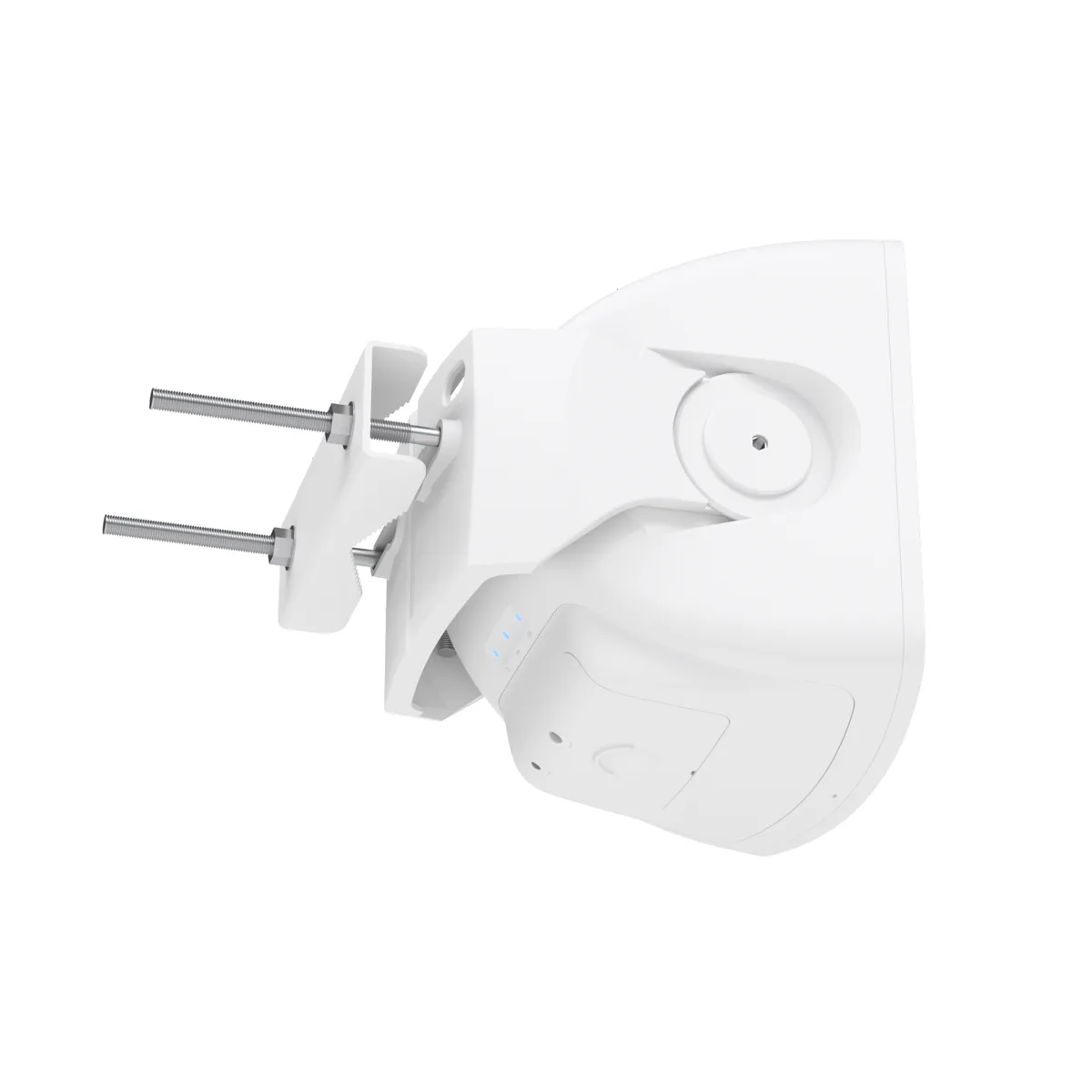

Fits a pole-mount build with 2.5 GbE and 10G SFP+
The unit mounts on a pole and connects to the network through a 2.5 GbE RJ45 port and a 10G SFP+ port. Power comes from the included 48 V DC passive PoE adapter using either four-pair or two-pair wiring. A quad-core ARM Cortex-A53 processor at 1.4 GHz with 512 MB DDR3L memory runs the UISP management stack. The 24-client capacity serves Wave Pro and Wave Long-Range stations.
Operates from -40 to 60 °C with 24 W maximum draw

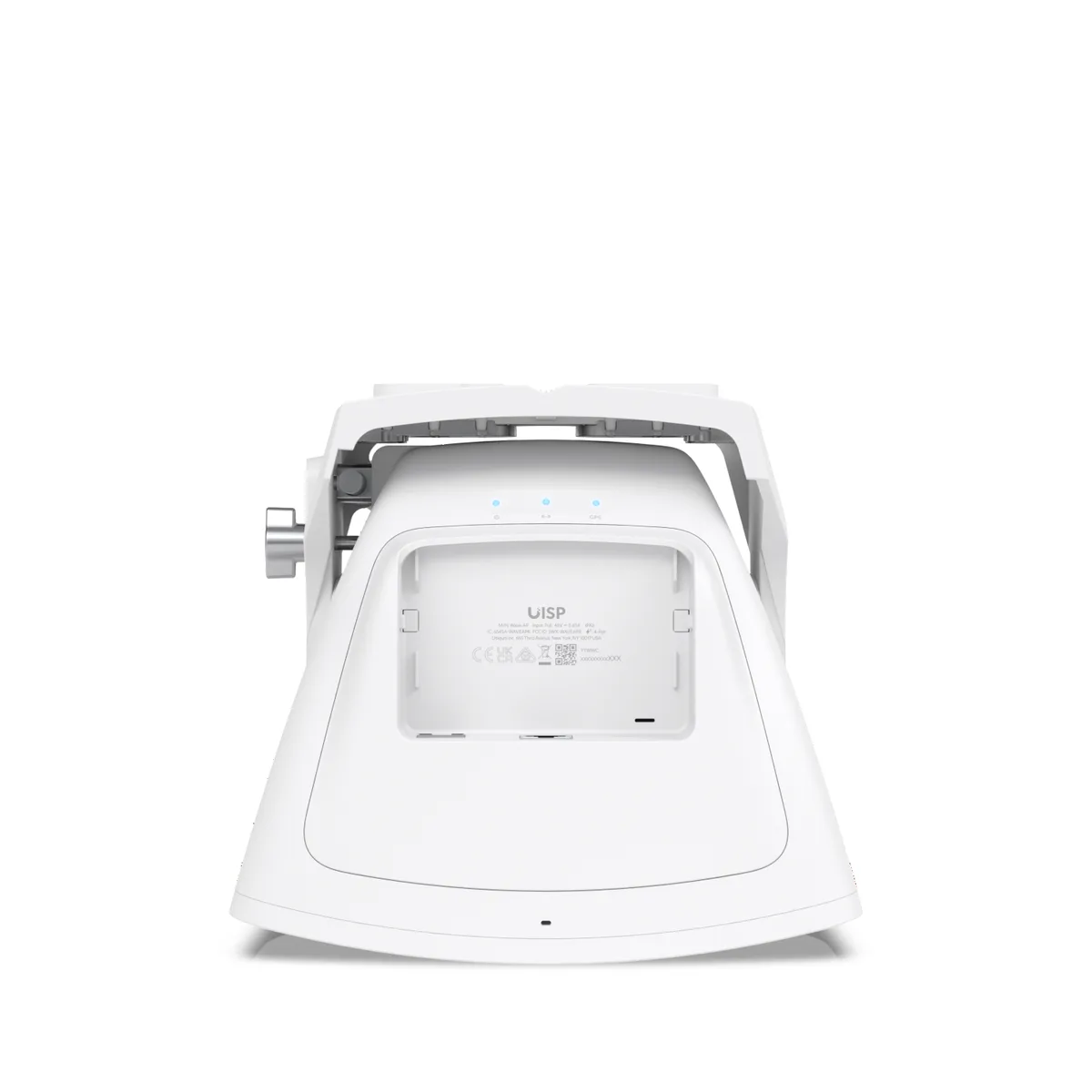

Maximum power consumption is 24 W across the supported 44–54 V DC range. The UV-stabilised polycarbonate and aluminium enclosure is rated for outdoor temperatures from -40 to 60 °C and humidity up to 95 % non-condensing. LEDs show power, Ethernet and UISP connection status. A factory-reset button is accessible on the housing.
Highlights
- 4 Gbps total throughput via Wave 60 GHz technology
- 7 Gbps full-duplex capacity over 8 km links
- 30° sector covers up to 24 Wave clients
- 5 GHz backup radio delivers 800 Mbps failover
- 5 GbE plus 10G SFP+ ports for high-speed backhaul
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | Wave 60 GHz |
| Model | Wave AP |
| Part Number | WAVE-AP |
| # of Users | 31 |
| WiFi Generation | Wi-Fi 6 |
| Frequency Band | RF Operating frequency* 57–71 GHz *Depends on regulatory region. Channel bandwidth 2160, 1080, 540* MHz *FW version 3.3.0 and later. Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. Modulation 16QAM, QPSK Antenna gain 24 dBi Polarization Vertically linear Beamwidth Azimuth: 3 dB 30° Elevation: 3 dB 3° Electrical downtilt 0° Back-Up RF WiFi standard 802.11ax (WiFi 6) Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 M |
| Mounting Location | Outdoor |
| Operating Range | Outdoor : Up to 8km |
| LEDs | Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected GPS Blue: receiving at least (4) GPS satellite signal |
| Buttons | Factory reset |
| LAN Ports | (1) 2.5GbE RJ45 port (100/1000/2500)* (1) 10G SFP+ port (1/10) |
| Power Supply | Max. power consumption 24W Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only Power supply 48V DC, 0.65A 2.5GbE PoE adapter (Included) Supported voltage range 44–54V DC 22–27V DC |
| Temperature | -40 to 60° C (-40 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | 212 x 205 x 187 mm (8.3 x 8.1 x 7.4") |
| Weight | 2.3 kg (5.1 lb) |
| Features | Hardware Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz Memory DDR3L 512 MB Software Operating mode PtMP access point Ubiquiti specific features Wave technology Services UISP, ping watchdog, NTP client, SNMP Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. Network Bridge mode Application requirements UISP: Version 1.5.7 and later System Total throughput 5.4 Gbps (2.7 Gbps duplex) Supported clients count 24* *FW version 3.3.0 and later. Max. range Connecting to a Wave Pro: up to 8 km Connecting to a Wave |
| Shipping weight | 4.05 kg |
| Package size | 290 × 290 × 244 mm |
Questions about this item
How many clients can the Wave AP serve before the sector reaches its limit?
The PtMP access point supports up to 24 clients, with a system maximum of 31 users per unit.
What is the maximum power draw when the radio runs continuously outdoors?
Peak consumption is 24 W, supplied by the included 48 V 0.65 A PoE adapter over passive PoE.
Which wired uplinks must already be in place for the 2.5 GbE and 10G SFP+ ports to connect?
You need a 2.5 GbE RJ45 link and a 10 Gbps SFP+ module or direct-attach cable on your switch or router.
