Silver 1U rack-mount gateway with front RJ45 and SFP+ ports and status LEDs

Ubiquiti Networks

Ubiquiti Networks UXG-Pro firewall appliance

SKU CH-CY1A-WB8NQ

Next-generation gateway with dual WAN and LAN ports at 1 GbE and 10G SFP+, quad-core 1.7 GHz processor, enterprise DPI and IPS/IDS, rack-mountable 1U chassis

  • LAN PortsLAN: (1) 1 GbE RJ45 port (1) 10G SFP+ port WAN: (1) 1 GbE RJ
  • LEDsEthernet Green/amber SFP+ White/green AC outlet/ RPS Blue
  • Temperature-10 to 40° C (14 to 104° F)
  • Humidity5 to 95% noncondensing
  • FeaturesProcessor Quad-core ARM® Cortex®-A57 at 1.7 GHz Memory infor
  • Dimensions442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
  • Quad-core 1.7 GHz ARM processor powers enterprise-grade DPI and IPS/IDS inspection
  • Dual WAN ports with 1 GbE RJ45 and 10G SFP+ enable automatic failover
  • SmartPower outlet supplies 125V AC at up to 2 A for external modem backup
  • Redundant DC input accepts 11.5V at 2.87 A from USP RPS for uninterrupted operation
  • Operating range spans -10 to 40 °C and 5 to 95 % non-condensing humidity

Network gateway for small enterprise sites

The Ubiquiti Networks UXG-Pro is a 1U rack-mountable firewall appliance designed for businesses that need managed routing, deep packet inspection and intrusion prevention in a single unit. A quad-core ARM Cortex-A57 processor at 1.7 GHz with 2 GB DDR4 memory runs the UniFi OS management plane. Redundant power input and a SmartPower outlet for an external modem simplify deployment in wiring closets.

Dual 10G SFP+ ports for WAN and LAN

The decisive specification is the combination of one 1 GbE RJ45 and one 10G SFP+ port on both the WAN and LAN sides, providing symmetrical ten-gigabit uplinks and downlinks. Failover between the two WAN interfaces is supported in software. Builders who need more than two WAN connections or additional 10G LAN ports must look at larger gateway models.

Rack ears and RPS readiness change installation

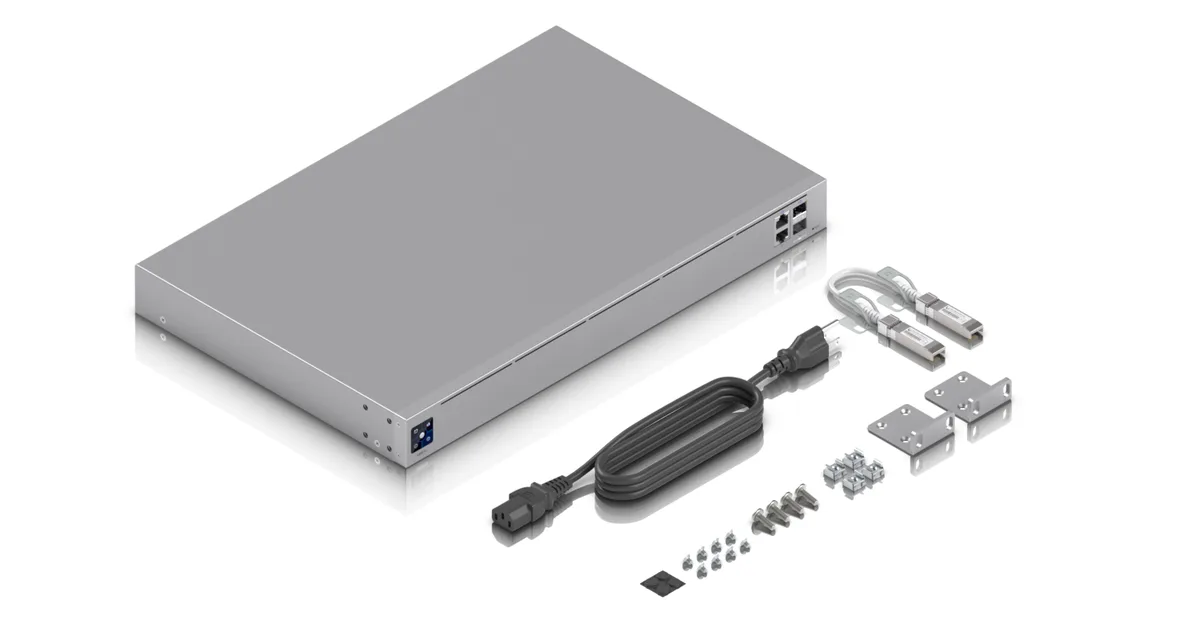

The package includes 1U rack-mount brackets so the unit fits standard cabinets without extra hardware. A DC input for the USP RPS or USP RPS Pro enables power redundancy, but the redundant supply is sold separately. The SmartPower outlet delivers up to 2 A at 125 V AC to keep a modem alive during mains loss. No console cable or SFP+ transceivers are bundled.

Highlights

  • Quad-core 1.7 GHz ARM processor powers enterprise-grade DPI and IPS/IDS inspection
  • Dual WAN ports with 1 GbE RJ45 and 10G SFP+ enable automatic failover
  • SmartPower outlet supplies 125V AC at up to 2 A for external modem backup
  • Redundant DC input accepts 11.5V at 2.87 A from USP RPS for uninterrupted operation
  • Operating range spans -10 to 40 °C and 5 to 95 % non-condensing humidity

Specifications

BrandUbiquiti Networks
SeriesGateway
ModelUXG-Pro
LAN PortsLAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
WAN:
(1) 1 GbE RJ45 port
(1) 10G SFP+ port
LEDsEthernet Green/amber
SFP+ White/green
AC outlet/ RPS Blue
Temperature-10 to 40° C (14 to 104° F)
Humidity5 to 95% noncondensing
FeaturesProcessor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Power method US:
(1) Universal AC input, 125V AC, 2.7A Max., 60 Hz
(1) RPS DC input, 11.5V DC, 2.87A
Worldwide:
(1) Universal AC input, 200–240V AC, 1.7A Max., 50/60 Hz
(1) RPS DC input, 11.5V DC, 2.87A
Power supply AC/DC, internal, 50W
Max. power consumption 30W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Button Factory reset
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-ba
Dimensions442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight3.4 kg (7.5 lb)
Shipping weight4.54 kg
Package size521 × 413 × 127 mm

Questions about this item

What does the 1.7 GHz quad-core processor deliver in daily gateway use?

The ARM Cortex-A57 CPU runs at 1.7 GHz with four cores, providing enough compute for enterprise-class DPI, IPS/IDS and layered firewall rules while managing two 10 GbE links and the SmartPower outlet.

What throughput ceiling does the 10G SFP+ WAN/LAN port impose?

Each SFP+ port operates at 10 Gigabit Ethernet line rate, so the appliance can pass up to 10 Gbps of inspected traffic per port when the firewall and DPI engines are active.

What rack space and mounting hardware does the 1U chassis require?

The unit measures 442.4 mm wide, 43.7 mm high and 285.6 mm deep, fitting a standard 1U rack slot; integrated mounting ears are included for front installation.
