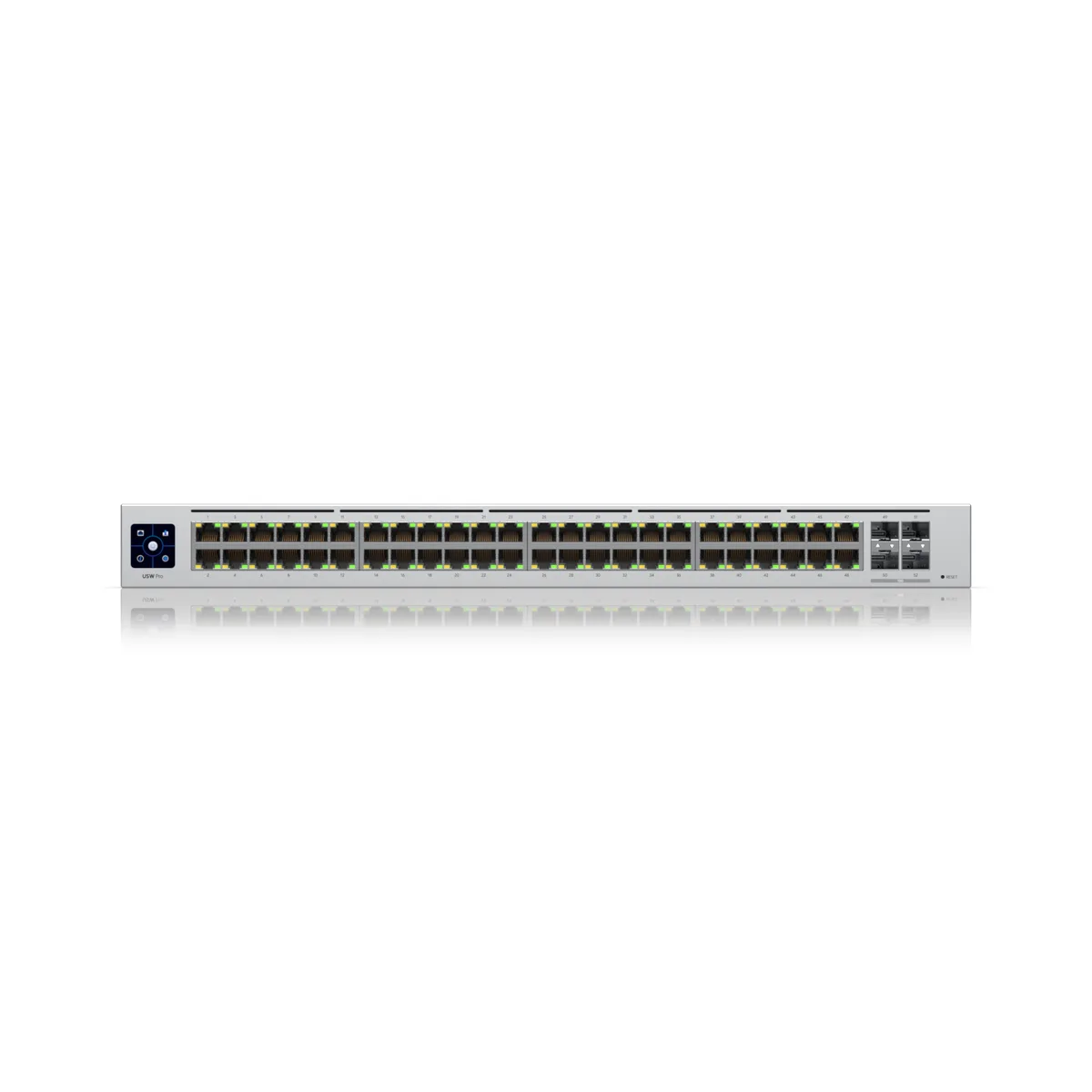

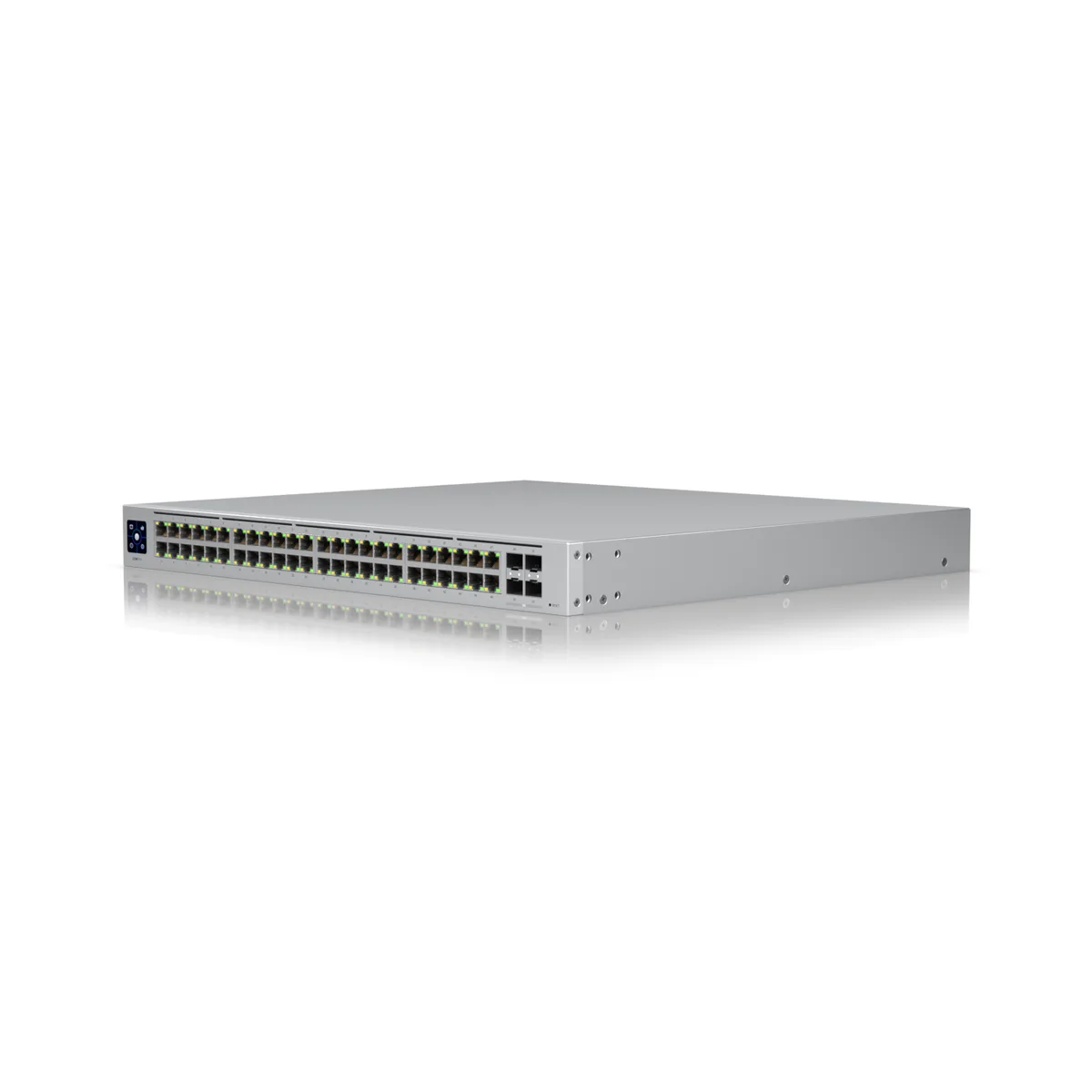

Silver rackmount network switch with 48 RJ45 ports and four SFP+ uplinks

Ubiquiti Networks

Ubiquiti Networks USW-Pro-48 48-port Layer 3 network switch

SKU CH-SEPH-EYTQG MPN USW-Pro-48

A managed 48-port Layer 3 switch with four 10G SFP+ uplinks, 176 Gbps switching capacity and fanless cooling for silent rack deployment

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports48 x RJ45 + 4 x SFP+
  • Primary Port SpeedTotal non-blocking throughput 88 Gbps Switching capacity 176
  • Primary Port Type(48) GbE RJ45 ports (4) 1/10G SFP+ ports
  • PoENo

Model Pro 48

Struck-through versions exist but are not stocked here.

  • 48 Gigabit RJ45 ports provide high-density copper connectivity
  • Four 10G SFP+ uplinks deliver 10 Gbps backbone speed
  • Layer 3 routing enables inter-VLAN traffic and static routes
  • Fanless cooling ensures silent operation in noise-sensitive areas
  • 176 Gbps switching capacity handles heavy aggregate throughput

48-port Layer 3 managed switch

The USW-Pro-48 is a rack-mountable, managed switch designed for networks that require Layer 3 routing between VLANs and high-density copper connectivity. It targets administrators building aggregation or core layers where silent operation and 10 Gbps uplinks are needed.

88 Gbps non-blocking throughput

The switch provides 48 GbE RJ45 downlinks and four 1/10G SFP+ uplinks with a total non-blocking throughput of 88 Gbps and a switching capacity of 176 Gbps. Fanless cooling limits the operating temperature range to 45 °C, so airflow in the rack must handle the 60 W maximum power draw without active assistance.

Replaces 24-port or PoE-only aggregation

Moving from a 24-port Layer 2 edge switch doubles port density and adds static routing, DHCP services and inter-VLAN forwarding without a separate router. The upgrade is worthwhile when the network needs 10 Gbps backbone links, Pro AV port profiles or DC backup power input, but not when PoE endpoints must be powered directly.

Highlights

  • 48 Gigabit RJ45 ports provide high-density copper connectivity
  • Four 10G SFP+ uplinks deliver 10 Gbps backbone speed
  • Layer 3 routing enables inter-VLAN traffic and static routes
  • Fanless cooling ensures silent operation in noise-sensitive areas
  • 176 Gbps switching capacity handles heavy aggregate throughput

Specifications

BrandUbiquiti Networks
SeriesNetwork Switch
ModelPro 48
Part NumberUSW-Pro-48
FormatRackmount
Network Management TypeManaged
Primary Ports48 x RJ45 + 4 x SFP+
Primary Port SpeedTotal non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Primary Port Type(48) GbE RJ45 ports
(4) 1/10G SFP+ ports
PoENo
Layer3
Layer 2 FeaturesLACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Layer 3 FeaturesDHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)
LEDsSystem
Status
Ethernet Speed/link/activity
SFP+
Link/activity
RPS Status
PowerPower method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 5.22A
Power supply AC/DC, internal, 60W
Supported voltage range 100—240V AC
Max. power consumption 60W
Dimensions442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
WeightWithout mounting brackets: 4 kg (8.8 lb)
With mounting brackets: 4.1 kg (9 lb)
Temperature-5 to 45° C (23 to 113° F)
Humidity10 to 90% noncondensing
Shipping weight3.63 kg
Package size533 × 406 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 48-port Pro 48 or the 24-port Pro 24 for my rack?

The Pro 48 provides 48 GbE RJ45 ports plus four 10G SFP+ uplinks in a 1U rackmount chassis, while the Pro 24 halves the downlink count to 24 GbE ports with the same four 10G SFP+ uplinks and identical depth.

What does the 176 Gbps switching capacity mean for daily traffic?

It represents the total non-blocking fabric bandwidth; the switch can simultaneously forward up to 88 Gbps of real-world throughput across all 48 GbE downlinks and four 10G SFP+ uplinks without head-of-line blocking.

How do the four SFP+ ports limit uplink design?

Each SFP+ port accepts 1G or 10G transceivers, capping any single uplink at 10 Gbps and the aggregate uplink bandwidth at 40 Gbps when all four are populated with 10G modules.
