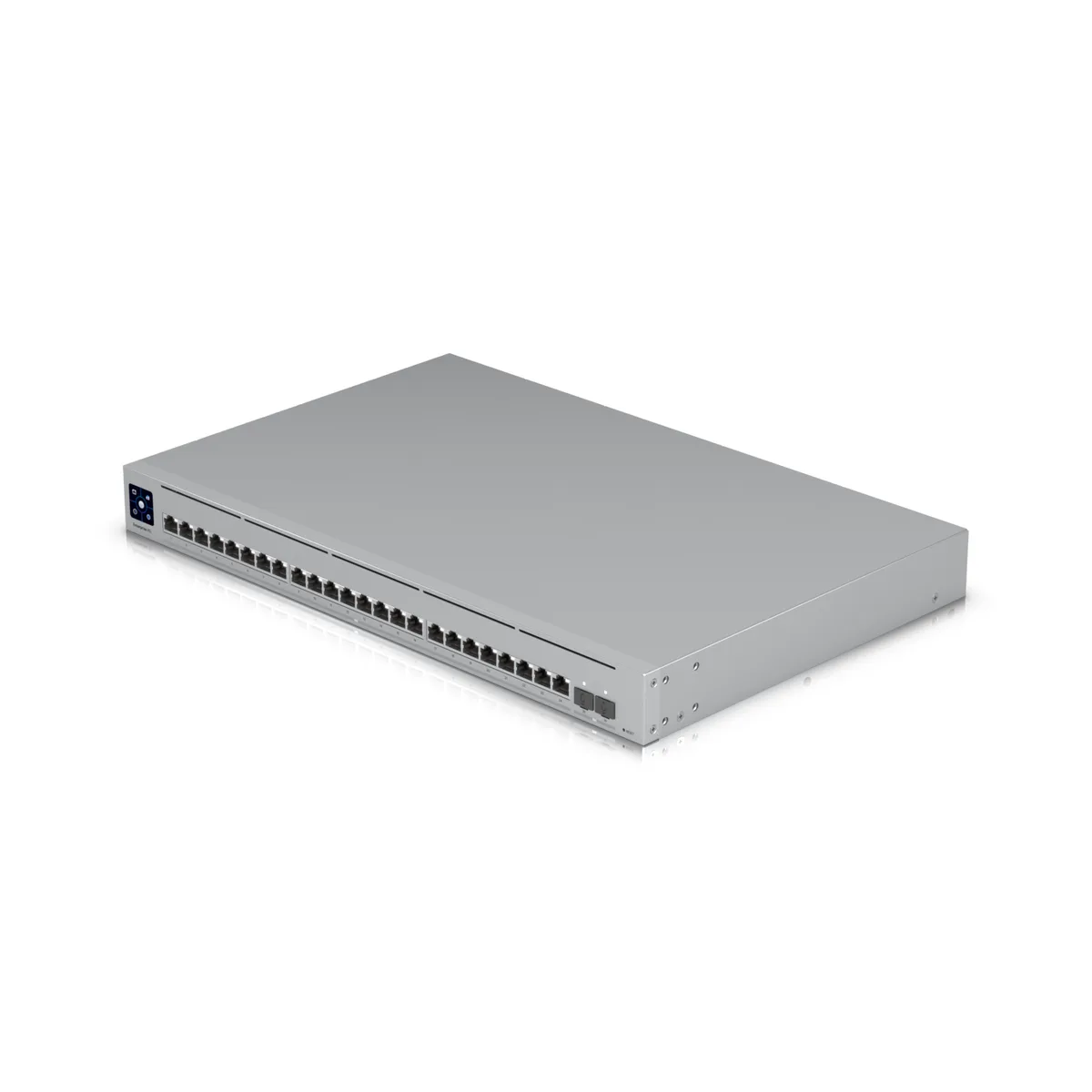

Silver 1U rackmount switch with 24 RJ45 ports and two SFP28 cages

Ubiquiti Networks

Ubiquiti Networks USW-EnterpriseXG-24 24-port 10G network switch

SKU CH-CFSY-NGAA9 MPN USW-EnterpriseXG-24

A managed Layer 3 switch with 24 10GbE RJ45 ports and two 25G SFP28 uplinks for high-density 10G connectivity

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports24 x RJ45 + 2 x SFP
  • Primary Port SpeedTotal non-blocking throughput 290 Gbps Switching capacity 58
  • Primary Port Type(24) 1/2.5/5/10 GbE ports (2) 25G SFP28 ports* *Don't suppor
  • Management InterfaceEthernet In-Band

Model Enterprise XG 24

  • 24-port 10 GbE RJ45 density for high-speed copper connectivity
  • Two 25G SFP28 uplinks enable 25 Gbps fibre aggregation
  • Layer 3 routing with static routes and DHCP relay
  • 290 Gbps non-blocking throughput handles heavy traffic loads
  • Redundant AC and DC power inputs protect uptime

24-port 10G Layer 3 switch

The Ubiquiti USW-EnterpriseXG-24 is a managed rackmount switch built for networks that need 10 GbE density across copper and fibre. Twenty-four RJ45 ports handle 1, 2.5, 5 and 10 GbE speeds while two SFP28 ports add 25G uplinks. Full Layer 3 routing, VLANs and ACLs make it suited for core or aggregation roles in business environments.

Installation notes and common issues

The unit mounts in a standard rack and powers from 100—240V AC or an optional 11.5V DC USP-RPS input for redundancy. Management runs in-band over Ethernet, so a reachable IP must be configured before remote access works. A known constraint: enabling 25 Gbps on one SFP28 port forces the second port to the same speed, preventing mixed-rate uplinks.

Throughput headroom and limits

Non-blocking throughput reaches 290 Gbps with a 580 Gbps switching capacity and 431.52 Mpps forwarding rate, giving ample headroom for 24 active 10G connections plus dual 25G uplinks. The 100W internal supply covers the full port load without PoE budget concerns. Networks requiring PoE, more than two 25G uplinks or mixed 25G/10G uplink combinations will need a different platform.

Highlights

  • 24-port 10 GbE RJ45 density for high-speed copper connectivity
  • Two 25G SFP28 uplinks enable 25 Gbps fibre aggregation
  • Layer 3 routing with static routes and DHCP relay
  • 290 Gbps non-blocking throughput handles heavy traffic loads
  • Redundant AC and DC power inputs protect uptime

Specifications

BrandUbiquiti
SeriesNetwork Switch
ModelUSW-EnterpriseXG-24
Part NumberUSW-EnterpriseXG-24
FormatRackmount
Network Management TypeManaged
Primary Ports24 x RJ45 + 2 x SFP
Primary Port SpeedTotal non-blocking throughput 290 Gbps
Switching capacity 580 Gbps
Forwarding rate 431.52 Mpps
Primary Port Type(24) 1/2.5/5/10 GbE ports
(2) 25G SFP28 ports*
*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps.
Management InterfaceEthernet In-Band
VLAN SupportYes
Jumbo FramesYes
PoENo
LayerFull Layer 3
Layer 2 FeaturesIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 FeaturesDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Port MirroringYes
LEDsSystem Status
Ethernet Link/activity
PoE Ports1.7" x 17.4" x 11.2"
PowerPower method (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Max Power Consumption100W
Dimensions442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
WeightWithout mounting brackets: 4.5 kg (9.9 lb)
With mounting brackets: 4.6 kg (11 lb)
CertificationCE, FCC, IC
System RequirementUniFi Network Version 6.1.67 and later
Temperature-5 to 40° C (23 to 104° F)
Humidity10 to 95% noncondensing
FeaturesInformation Not Available
Package ContentsInformation Not Available
Shipping weight4.72 kg
Package size521 × 394 × 102 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the USW-EnterpriseXG-24 is operating correctly after installation?

The system status LED and the 24 Ethernet link/activity LEDs show power, connectivity and traffic on each 10 GbE RJ45 and 25G SFP28 port.

What ships with the USW-EnterpriseXG-24 and what must I source separately?

The switch includes an internal 100 W AC power supply for 100—240 V AC input and a USP-RPS DC input for 11.5 V DC backup; SFP28 modules for the two 25G uplink ports are not included.

Which port configuration should I choose for 10 GbE density versus 25 GbE uplinks?

The fixed layout provides 24 RJ45 ports at 1/2.5/5/10 GbE plus two 25G SFP28 ports; the SFP28 ports do not support mixed speed at 25 Gbps mode.
