Compact white desktop switch with eight RJ45 ports and two SFP cages

Ubiquiti Networks

Ubiquiti Networks US-8-150W-US 8-port PoE+ network switch

SKU CH-XT12-7BMRZ MPN US-8-150W-US

Managed 8-port Gigabit PoE+ switch with two SFP uplinks, 150 W budget, fanless operation and 20 Gbps switching capacity

  • FormatDesktop-Mountable
  • Network Management TypeManaged
  • Primary Ports8 x RJ45 + 2 x SFP
  • VLAN SupportYes
  • PoEYes
  • LEDsRJ45 Data Ports PoE, Speed / Link / Activity

Class 8 Port 150W

  • 24 Port 250W
  • 24 Port 500W
  • 48 Port 500W
  • 8 Port 150W
  • 8 Port 60W

Struck-through versions exist but are not stocked here.

  • Fanless design keeps operation silent
  • 150 W total PoE budget powers eight devices
  • Managed switching with VLAN and port isolation
  • Two SFP ports add fiber uplink flexibility
  • Compact desktop or wall-mount form factor

Compact Managed PoE+ Switch

The Ubiquiti US-8-150W-US is a desktop-mountable managed switch designed for small networks that need powered ports. It provides eight Gigabit RJ45 interfaces and two SFP uplinks in a fanless chassis. The unit operates silently from a 100-240V AC supply. It suits offices or home labs requiring centralised UniFi management.

150W PoE Budget Across Eight Ports

The internal 150W power supply shares its budget across all eight RJ45 ports. Each port can deliver IEEE 802.3af/at PoE+ or configurable 24V passive PoE to attached devices. Total consumption including PoE output reaches 150W. Builders needing more simultaneous high-power devices must plan for a larger budget.

Mounting Kit Enables Flexible Placement

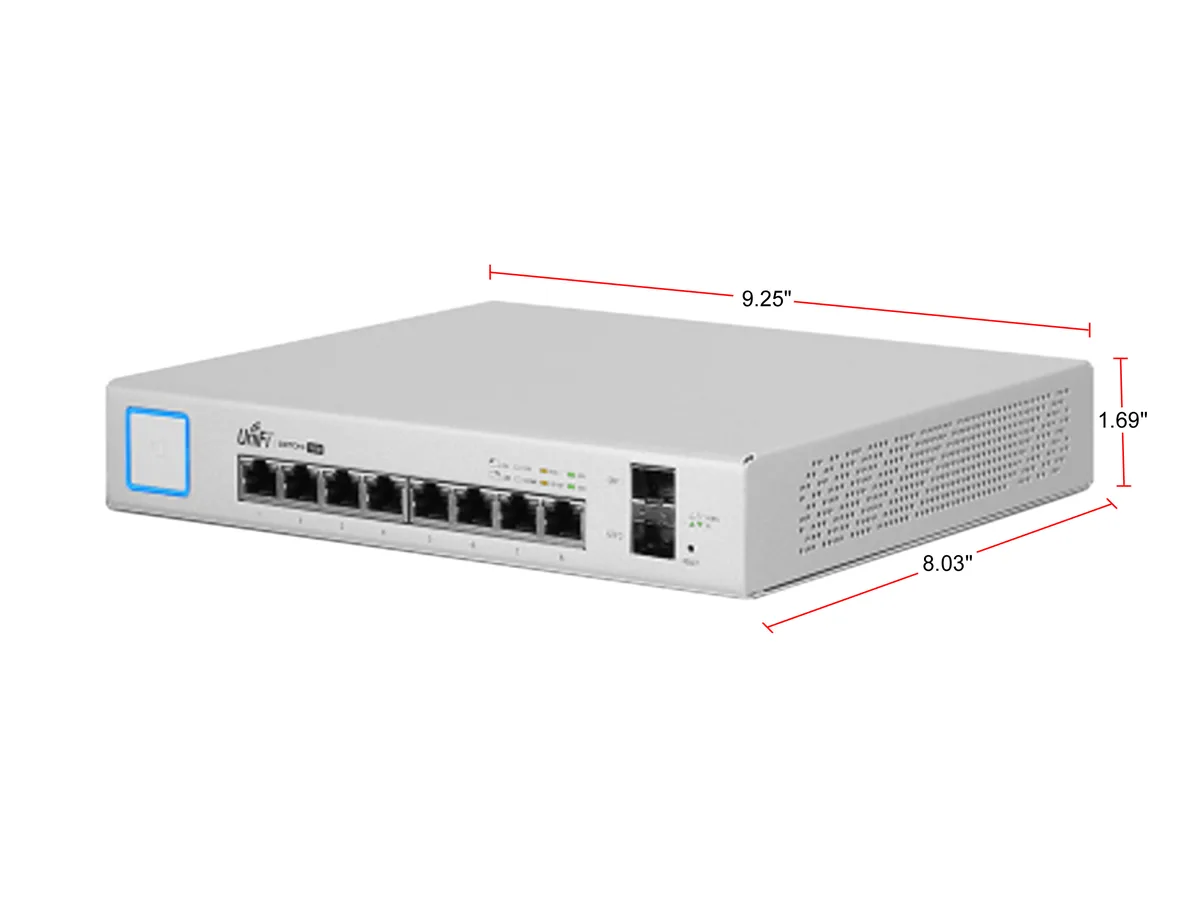

Included mounting accessories support wall installation in any orientation as well as desk or shelf placement. The compact dimensions of 1.69" x 9.25" x 8.03" allow discreet positioning. UniFi Controller software integration adds centralised configuration, VLAN tagging, port isolation and guest control features.

Highlights

  • Fanless design keeps operation silent
  • 150 W total PoE budget powers eight devices
  • Managed switching with VLAN and port isolation
  • Two SFP ports add fiber uplink flexibility
  • Compact desktop or wall-mount form factor

Specifications

BrandUbiquiti
ModelUS-8-150W-US
FormatDesktop-Mountable
Network Management TypeManaged
Primary Ports8 x RJ45 + 2 x SFP
VLAN SupportYes
PoEYes
LEDsRJ45 Data Ports
PoE, Speed / Link / Activity
PowerPower Method: 100-240V AC / 50-60 Hz, Universal Input
Power Supply: AC / DC, Internal, 150W DC
Max. Power Consumption:
Including PoE Output: 150W
Features(8) Gigabit RJ45 Ports
(2) SFP Ports
Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Maximum Power Consumption: 150W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Quiet, Fanless Operation
Rackmountable with Rack-Mount Brackets (Included)
Desktop-Mountable (Do not physically stack the US-8-150W.)
Dimensions1.69" x 9.25" x 8.03"
Weight3.67 lbs.
TemperatureOperating Temperature: -5 to 40 degree C (23 to 104 degree F)
Humidity5% - 95%, Non-condensing
Shipping weight2.36 kg
Package size338 × 236 × 76 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 150 W PoE budget mean when the switch is fully loaded?

The 150 W budget is the total power available across all eight RJ45 ports; the actual draw per port depends on the connected device and cannot exceed the 802.3at limit.

What speed does the SFP uplink support and what limits it?

Each SFP port operates at 1 Gbps, so the uplink is capped at 1 Gbps regardless of the module used.

What mounting options are included for the 9.25-inch wide desktop case?

The included accessories support wall mounting in any orientation as well as desk or shelf placement.
