Small square white network converter with SFP and RJ45 ports

Ubiquiti Networks

Ubiquiti Networks UF-AE SFP to RJ45 converter

SKU CH-91KT-Z03FF

Converts an SFP or SFP+ module to a 10/100/1000 Mbps RJ45 port at up to 1 Gbps, powered by 802.3af or 24 V passive PoE, and operates from -40 to 60 °C

  • Device TypeConverter
  • Ports(1) 1 Gbps SFP Port; (1) 10/100/1000 Mbps RJ45 Port
  • LEDs(1) Ethernet (1) Optical Signal (1) Power
  • TemperatureOperating Temperature: -40 to 60° C (-40 to 140° F)
  • HumidityOperating Humidity: 10 to 90% Noncondensing
  • FeatureModule Compatibility The versatile UF-AE connects any SFP or
  • Connect any SFP or SFP+ module at 1 Gbps maximum speed
  • Power via 802.3af PoE or 24V passive PoE without separate supply
  • Operates from -40 to 60 °C and 10 to 90 % humidity
  • Intuitive LEDs show Ethernet, optical signal and power status
  • Compact 3.01" x 3.01" x 1.06" design with included wall-mount bracket

Fiber-to-Ethernet media converter

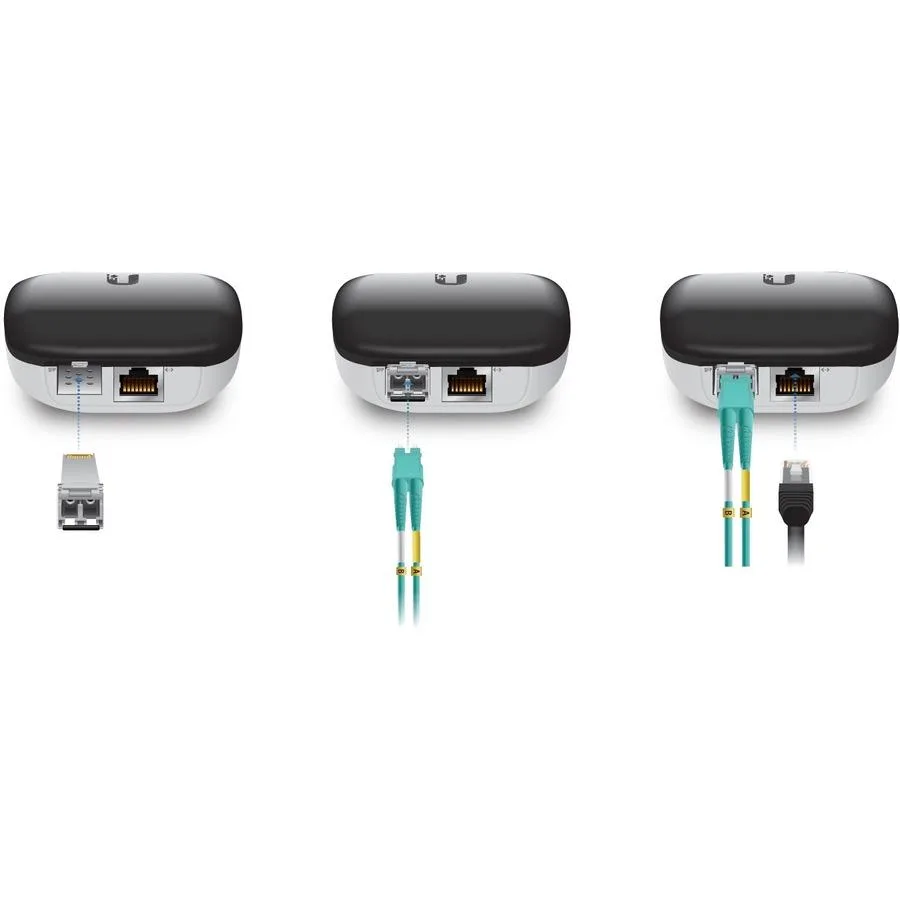

The Ubiquiti Networks UF-AE converts a 1 Gbps SFP or SFP+ module to a 10/100/1000 Mbps RJ45 port. It suits installers who need a copper handoff from fiber in home or small-business networks. All UFiber SFP and SFP+ modules are supported at the full 1 Gbps line rate. Buyers who require multi-gigabit copper speeds will need a different solution.

Rugged indoor enclosure with flexible PoE

The compact housing measures 3.01" x 3.01" x 1.06" and weighs 2.47 oz. An included wall-mount bracket allows quick indoor installation on any flat surface. The unit draws up to 1.5 W and accepts 802.3af active PoE or 24 V passive PoE across a 16 to 57 V input range. Three status LEDs show Ethernet link, optical signal and power at a glance. Operating limits span -40 to 60° C and 10 to 90% non-condensing humidity.

Bracket and PoE flexibility in the box

A wall-mount bracket is supplied so the converter can be secured without extra hardware. No external power supply is included because the device is designed to be powered entirely through the Ethernet cable via either PoE standard. This reduces cable count and eliminates the need for a nearby mains socket. The package contains only the converter and the mounting bracket.

Highlights

  • Connect any SFP or SFP+ module at 1 Gbps maximum speed
  • Power via 802.3af PoE or 24V passive PoE without separate supply
  • Operates from -40 to 60 °C and 10 to 90 % humidity
  • Intuitive LEDs show Ethernet, optical signal and power status
  • Compact 3.01" x 3.01" x 1.06" design with included wall-mount bracket

Specifications

BrandUbiquiti Networks
ModelUF-AE
Device TypeConverter
Ports(1) 1 Gbps SFP Port; (1) 10/100/1000 Mbps RJ45 Port
LEDs(1) Ethernet
(1) Optical Signal
(1) Power
TemperatureOperating Temperature: -40 to 60° C (-40 to 140° F)
HumidityOperating Humidity: 10 to 90% Noncondensing
FeatureModule Compatibility
The versatile UF-AE connects any SFP or SFP+ module at the maximum speed of 1 Gbps. All UFiber SFP
or SFP+ modules are supported.
PoE Convenience
The UF-AE is powered by 24VDC passive PoE or 802.3af active PoE.
Supported Speeds
1 Gbps fiber uplink speeds and 10/100/1000 Ethernet speeds are supported.

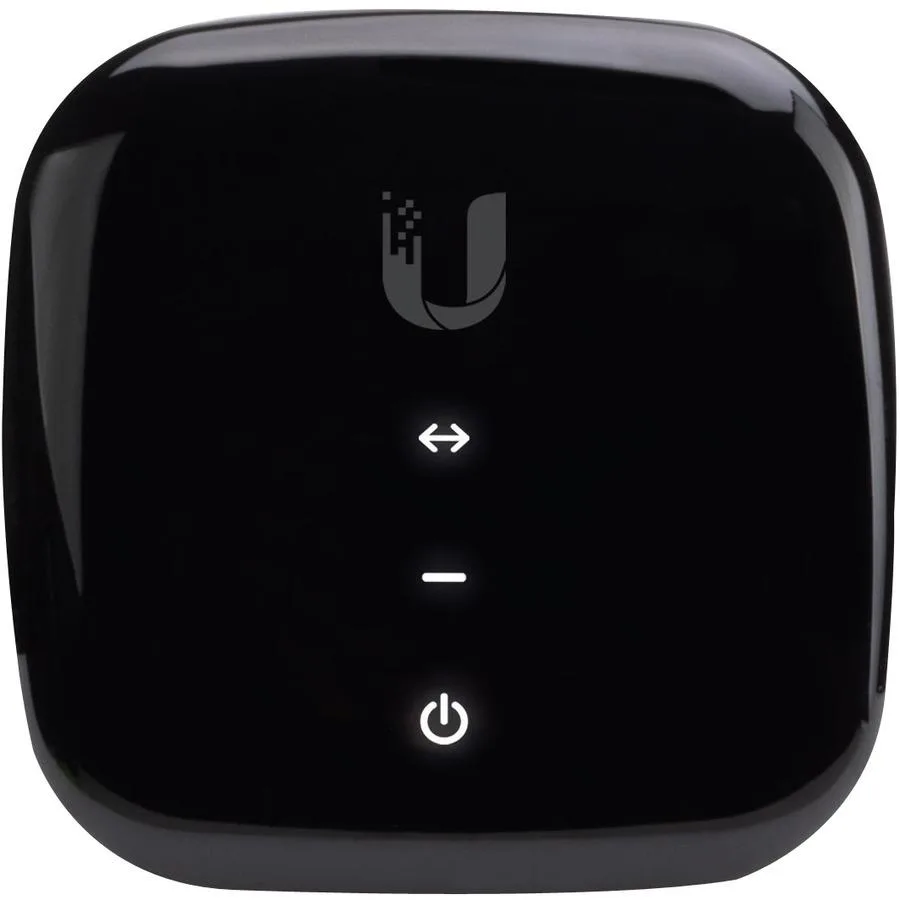

Status LEDs
Intuitive LEDs indicate link and speed status.
Indoor Installation
Use the included bracket to easily mount the UF-AE on a wall.
Power Method:
802.3af PoE: (Pins 1, 2+; 3, 6-)
24V Passive PoE: (Pins 4, 5+; 7, 8-)
Power Supply: 802.3af PoE or 24V Passive P
Dimensions3.01" x 3.01" x 1.06"
Weight2.47 oz.
Shipping weight0.16 kg
Package size127 × 102 × 76 mm

Questions about this item

What maximum speed does the 1 Gbps SFP port cap the link at in practice?

The SFP port accepts any SFP or SFP+ module but limits the fiber uplink to 1 Gbps, while the RJ45 port negotiates 10/100/1000 Mbps Ethernet.

What physical space and mounting hardware does the 3.01" x 3.01" x 1.06" converter need?

It measures 3.01 by 3.01 by 1.06 inches, weighs 2.47 oz, and includes a bracket for wall mounting indoors.

How is the UF-AE powered and which PoE wiring step is often missed?

It draws up to 1.5 W from 802.3af PoE (pins 1,2+; 3,6-) or 24 V passive PoE (pins 4,5+; 7,8-) within a 16–57 V range; the supply is not included.
