Two white disc-shaped wireless bridges with mounting arms, sold as a pair

Ubiquiti Networks

Ubiquiti Networks UBB Building-to-Building Bridge 2-pack

SKU CH-96ZR-EG78A

A 60 GHz point-to-point wireless bridge pair with 5 GHz redundancy, reaching 500 m range and managed via UniFi Console

  • Standards802.11a/b/g/n/ac
  • Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
  • SecurityWPA2 AES (Always On)
  • Antenna5 GHz 2 x 2
  • Transmitted Power5 GHz 25 dBm
  • Interface(1) GbE RJ45 port
  • Reliable link up to 500 m range
  • Dual 60 GHz and 5 GHz radios add redundancy
  • Powered by included 48 V PoE adapters
  • LED alignment aids speed up installation
  • Managed through UniFi Console or server

60 GHz 2-pack wireless bridge

The Ubiquiti Networks UBB is a 60 GHz wireless point-to-point bridge sold as a matched 2-pack. It delivers up to 867 Mbps over 802.11ac and 300 Mbps over 802.11n with a maximum range of 500 m. The units are designed for building-to-building links and require management by a UniFi Console or self-hosted server.

PoE-powered installation with LED alignment

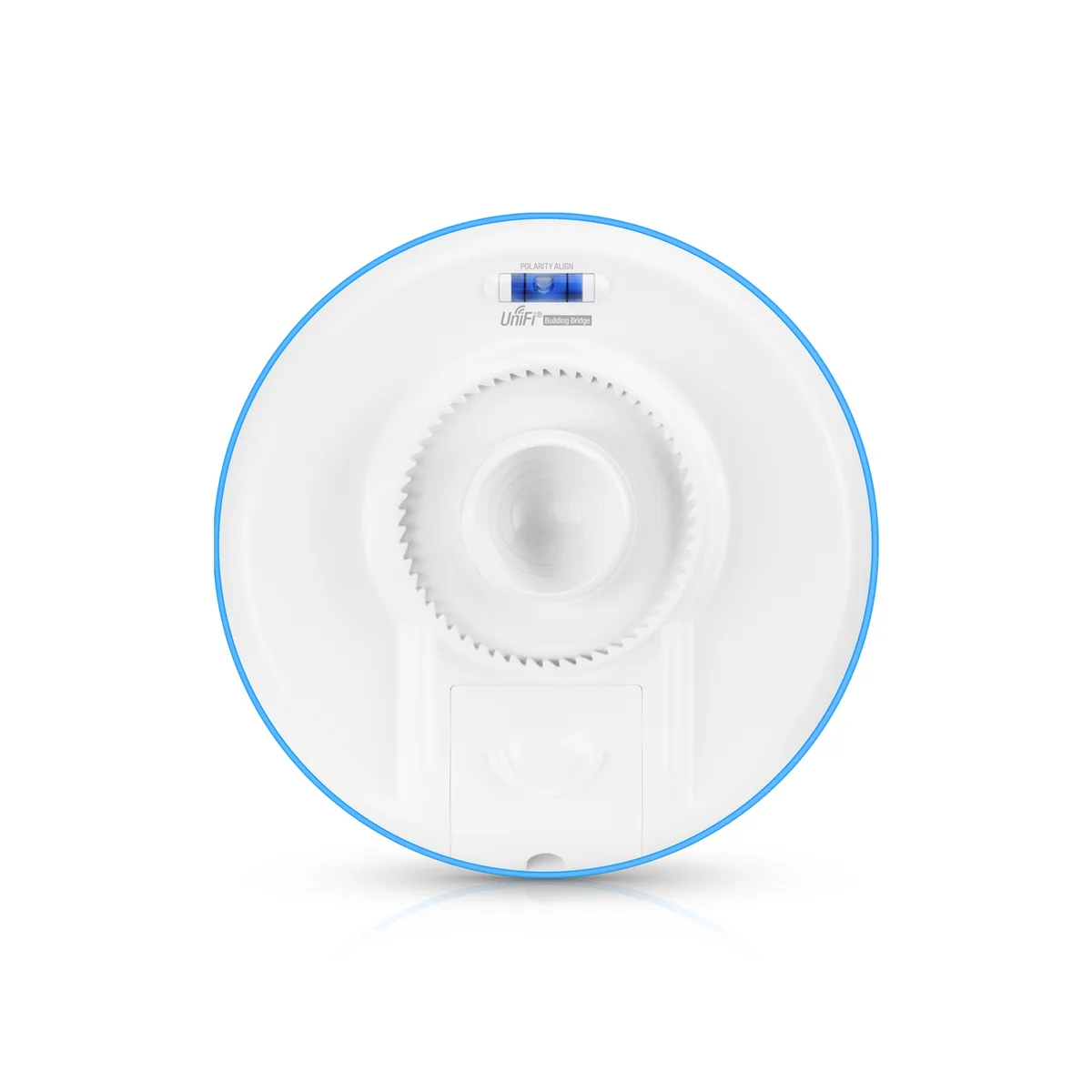

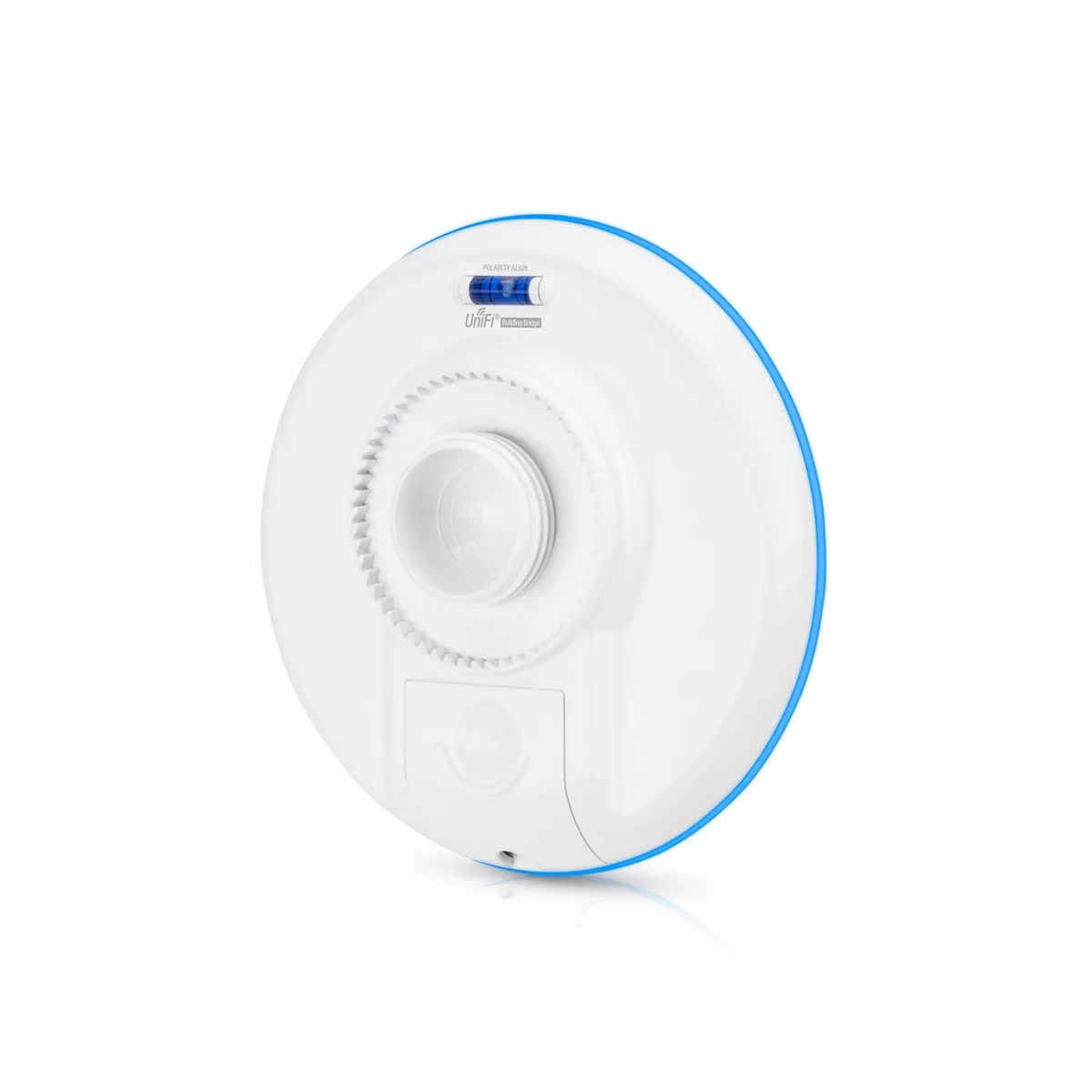

Each unit draws a maximum of 11 W and is powered via 48 V passive PoE using the included Gigabit PoE adapters. A single GbE RJ45 port handles both data and power. Built-in LED alignment indicators simplify aiming the directional antennas during mounting.

UniFi management and environmental limits

The bridge cannot operate standalone; a UniFi Console, official UniFi Hosting, or a self-hosted UniFi Network Server is mandatory for configuration. Verify that the deployment site stays within the -40 to 70 °C operating temperature range and 5 to 95 % non-condensing humidity tolerance.

Highlights

  • Reliable link up to 500 m range
  • Dual 60 GHz and 5 GHz radios add redundancy
  • Powered by included 48 V PoE adapters
  • LED alignment aids speed up installation
  • Managed through UniFi Console or server

Specifications

BrandUbiquiti Networks
SeriesWIFI Access points
ModelUBB
Standards802.11a/b/g/n/ac
Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40))
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
SecurityWPA2 AES (Always On)
Antenna5 GHz 2 x 2
Transmitted Power5 GHz 25 dBm
Interface(1) GbE RJ45 port
LAN Ports(1) GbE RJ45 port
Power SupplyPower method PoE
Passive PoE, 48V
Power supply UniFi PoE switch
48V, 0.32A Gigabit PoE adapter (Included)
Max. power consumption 11W
Temperature-40 to 70° C (-40 to 158° F)
Humidity5 to 95% noncondensing
DimensionsØ140 x 90 mm (Ø5.5 x 3.5")
Weight376 g (13.3 oz)
Shipping weight1.61 kg
Package size216 × 173 × 168 mm

Questions about this item

How do I confirm the UBB bridge link is operating correctly after mounting both units?

The built-in LED alignment indicators on each unit show signal quality; a solid or strong pattern means the 60 GHz link is established and the 5 GHz redundancy radio is active.

What accessories are included in the 2-pack and what must I provide separately?

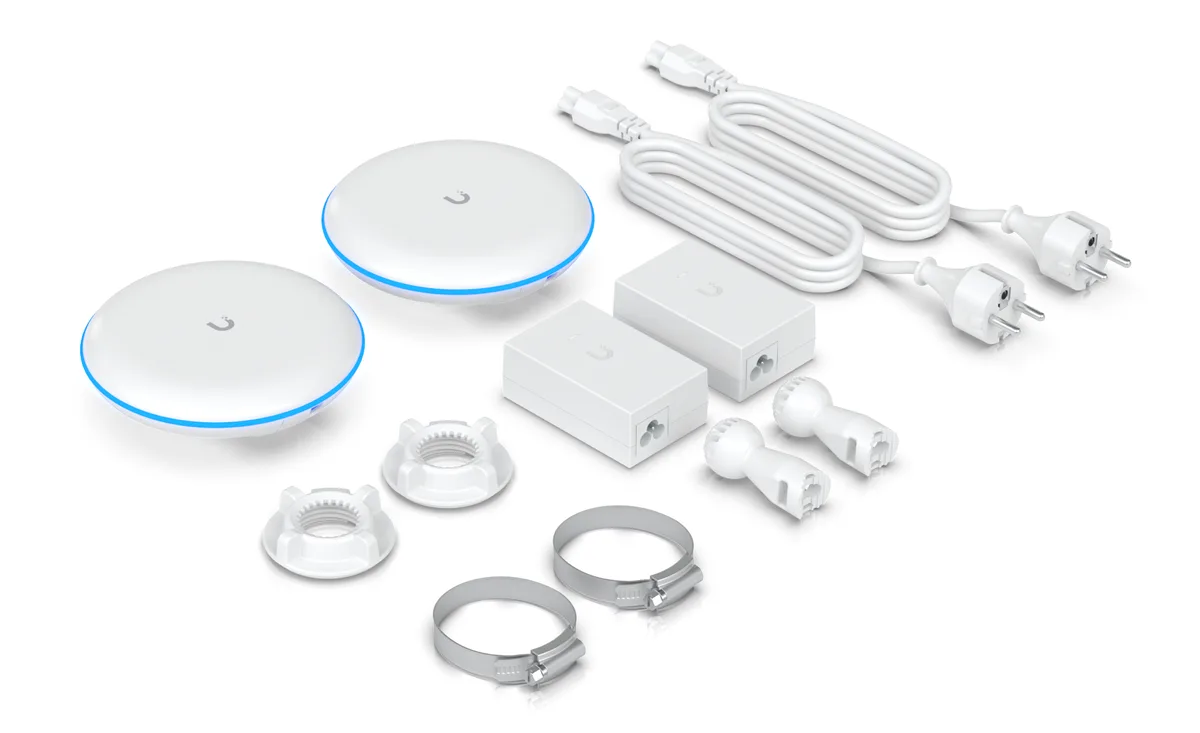

Two UBB radios and two 48 V 0.32 A Gigabit PoE adapters are included; you must supply a UniFi Console, official UniFi hosting, or a self-hosted UniFi Network Server for management.

Should I choose the 2-pack or a single unit for a new building-to-building link?

The UBB is sold only as a 2-pack because a point-to-point bridge requires a radio at each endpoint.
