Ubiquiti Networks
Ubiquiti Networks UAP-XG Wireless Access Point
A tri-band 4x4 MU-MIMO wireless access point with a dedicated security radio, 10 Gigabit Ethernet and 802.3bt PoE delivering up to 4.2 Gbps aggregate throughput
- Standards802.11 a/b/g/n/r/k/v/ac/ac-wave2
- Wireless Data RatesUp to 4.2Gbps
- SecurityWEP, WPA-PSK, WPA-Enterprise (WPA / WPA2, TKIP / AES), 802.1
- Frequency Band2.4 GHz / 5 GHz / 5 GHz
- Antenna2.4 GHz: 2 x Dual-Port, Dual-Polarity Antennas, 6 dBi each 5
- Interface1 x 10/100/1000 Ethernet Port 1 x 1/10 Gbps ICM Ethernet Por
- Tri-band 4×4 MU-MIMO serves many users at once
- Dedicated security radio monitors threats continuously
- 10 Gbps Ethernet uplink removes wired bottlenecks
- 3bt PoE powers the unit over a single cable
- Operates from -10 °C to 60 °C in humid environments
Enterprise Wi-Fi Access Point

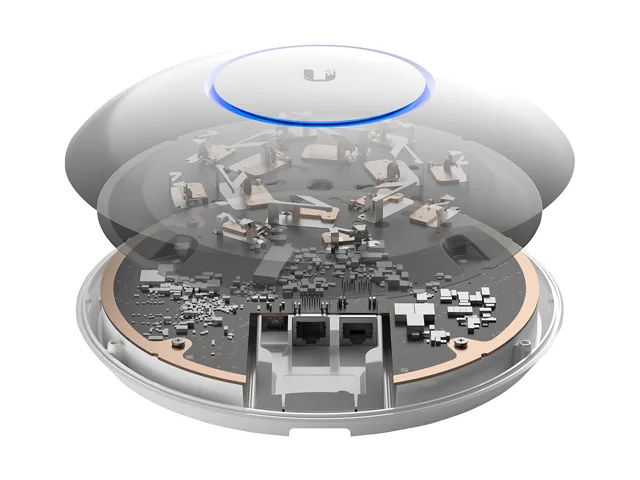

The Ubiquiti UAP-XG is a tri-band 4x4 MU-MIMO access point built for high-density enterprise environments. It delivers simultaneous operation across 2.4 GHz and dual 5 GHz radios with a dedicated security radio for persistent threat management. The unit supports wireless data rates up to 4.2 Gbps and integrates with the UniFi Controller for centralised management. It is designed for system integrators deploying scalable wireless networks of any size.
PoE Powered Wall or Ceiling Mount
The access point draws up to 31 W via 802.3bt PoE from the included 50 V DC, 1.2 A injector, requiring no local power outlet. A single 10/100/1000 Ethernet port and a 1/10 Gbps ICM Ethernet port provide wired uplinks. The junction-box form factor includes mounting kits for wall, ceiling or junction-box installation. Operating temperature spans -10 to 60 °C with humidity tolerance of 5 to 95 % non-condensing.
10 Gigabit Uplink and Wave 2 Limits
The 10 Gbps ICM port enables high-throughput backhaul, while the 5 GHz radios combine for 3.466 Gbps and the 2.4 GHz radio reaches 800 Mbps. Clients must support 802.11ac Wave 2 and MU-MIMO to achieve these rates. Environments requiring 802.11ax or multi-gigabit client links beyond 1 Gbps will not benefit from newer standards on this hardware.
Highlights
- Tri-band 4×4 MU-MIMO serves many users at once
- Dedicated security radio monitors threats continuously
- 10 Gbps Ethernet uplink removes wired bottlenecks
- 3bt PoE powers the unit over a single cable
- Operates from -10 °C to 60 °C in humid environments
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Model | UAP-XG |
| Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Wireless Data Rates | Up to 4.2Gbps |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA / WPA2, TKIP / AES), 802.11 w/PMF |
| Frequency Band | 2.4 GHz / 5 GHz / 5 GHz |
| Antenna | 2.4 GHz: 2 x Dual-Port, Dual-Polarity Antennas, 6 dBi each 5 GHz: 2 x Dual-Port, Dual-Polarity Antennas, 8 dBi each |
| Interface | 1 x 10/100/1000 Ethernet Port 1 x 1/10 Gbps ICM Ethernet Port |
| Buttons | Reset |
| Power Supply | Power Method: 802.3bt PoE Supported Voltage Range: 44 to 57V DC Power Supply: PoE Injector 50V DC, 1.2A Gigabit Power Save: Supported Maximum Power Consumption: 31W |
| Temperature | Operating Temperature: -10 ~ 60 degree Celsius (14 ~ 140 degree Fahrenheit) |
| Humidity | Operating Humidity: 5% ~ 95% non-condensing |
| Dimensions | 8.98" x 8.98" x 1.97" |
| Weight | 2.65 lbs. 2.98 lbs. (With Mounting Kits) |
| Features | 10 Gigabit Ethernet Support 4x4 MU-MIMO Quad-Radio: 3 x client, 1 x Security Dual 5 GHz 802.11ac Wave 2 Radios 3.466 Gbps Combined Radio Rate in 5 GHz 800 Mbps Radio Rate in 2.4 GHz Dedicated Security Radio with Persistent Threat Management 1,500 Client Association Limit 802.3bt Power Injector Included |
Questions about this item
What does the 10 Gbps ICM Ethernet port actually cap the wired backhaul at?
The 1/10 Gbps ICM port supports up to 10 Gbps wired throughput, while the standard Gigabit port is limited to 1 Gbps.
What mounting hardware is included for the 8.98" square form factor?
The package includes wall, ceiling and junction-box mounting kits; the unit weighs 2.65 lbs alone and 2.98 lbs with all kits attached.
How is the AP powered and which PoE standard must the injector meet?
It requires 802.3bt PoE at 44 to 57 V DC; the supplied injector delivers 50 V DC at 1.2 A and the AP draws up to 31 W maximum.
