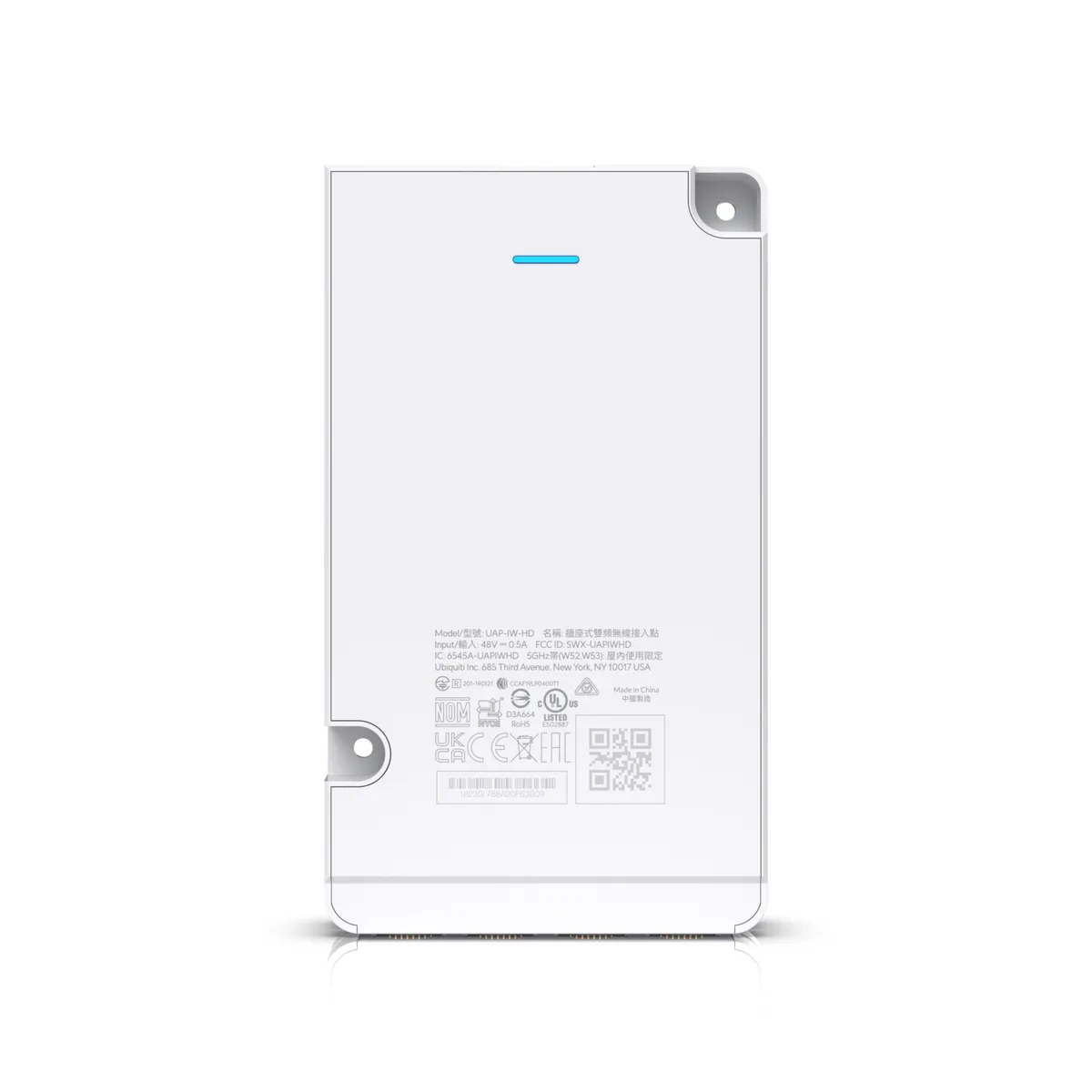

White rectangular in-wall Wi-Fi access point with four Ethernet ports and PoE pass-through

Ubiquiti Networks

Ubiquiti Networks UAP-IW-HD-US in-wall access point

SKU CH-GB2W-9CDWE

An in-wall dual-band 802.11ac Wave 2 access point with 4x4 MU-MIMO on 5 GHz and four switched Gigabit Ethernet ports, one supporting 802.3at PoE pass-through

  • Four-stream 802.11ac Wave 2 delivers up to 1733 Mbps on 5 GHz
  • Four switched Gigabit ports with PoE pass-through on port one expand wired connectivity
  • 3af powers the AP; 802.3at enables PoE pass-through for downstream devices
  • Compact in-wall design at 139.7 x 86.7 x 25.75 mm fits standard wall boxes
  • UniFi Controller centralises management of guest access, filtering and monitoring

In-wall Wi-Fi access point

The Ubiquiti Networks UAP-IW-HD-US converts a standard Ethernet wall jack into a simultaneous dual-band 802.11ac Wave 2 access point. It delivers 4x4 MU-MIMO on 5 GHz with a 1733 Mbps maximum PHY rate and 2x2 MIMO on 2.4 GHz at 300 Mbps. Designed for high-density environments such as hotels and meeting rooms, it also provides four Gigabit Ethernet LAN ports for wired bridging. Management is centralised through the UniFi Controller utility software.

Passive cooling and PoE power

The unit operates without fans, relying on its compact 139.7 x 86.7 x 25.75 mm enclosure for silent heat dissipation. It weighs 210 g and draws power via 802.3af PoE for base functionality; 802.3at PoE+ is required only when the pass-through port is used to supply a downstream device. No separate power supply is needed in either case.

Five Gigabit ports and wall-mount fit

Five 10/100/1000 Ethernet ports are built in: one PoE input and four switched LAN outputs, with port one configurable for PoE pass-through when powered by 802.3at. The shallow 25.75 mm depth fits standard in-wall boxes, leaving the front surface flush with the wall. Builders who need ceiling mounting, outdoor ratings or additional radio bands should consider other form factors.

Highlights

  • Four-stream 802.11ac Wave 2 delivers up to 1733 Mbps on 5 GHz
  • Four switched Gigabit ports with PoE pass-through on port one expand wired connectivity
  • 3af powers the AP; 802.3at enables PoE pass-through for downstream devices
  • Compact in-wall design at 139.7 x 86.7 x 25.75 mm fits standard wall boxes
  • UniFi Controller centralises management of guest access, filtering and monitoring

Specifications

BrandUbiquiti Networks
Shipping weight0.44 kg
Package size159 × 104 × 43 mm

Questions about this item

How is the UAP-IW-HD-US mounted and which step is often missed?

It fits a standard single-gang wall box; the step often missed is connecting the in-wall Ethernet cable to the WAN PoE port before snapping the faceplate on.

What maintenance or replacement will the in-wall AP need later?

No user-serviceable parts inside; firmware updates via UniFi Controller keep it current, and only the PoE injector or switch would need replacement if power delivery fails.

What limit appears first under sustained heavy client load?

The 2.4 GHz radio tops out at 300 Mbps PHY rate, so that band saturates before the 5 GHz 1733 Mbps radio or the Gigabit Ethernet uplinks.
