Ubiquiti Networks
Ubiquiti Networks UAP-AC-PRO-US Wi-Fi 5 access point
Ceiling-mounted Wi-Fi 5 access point with dual-band 3x3 MIMO, 140 m range and PoE power for up to 250+ devices
- # of Users250+
- Standards802.11 a/b/g/n/ac
- WiFi GenerationWi-Fi 5
- Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
- SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- Antenna2.4 GHz 3 x 3 (DL MU-MIMO) 5 GHz 3 x 3 (DL MU-MIMO)
- Handles 250+ simultaneous users for dense deployments
- Wi-Fi 5 with six spatial streams increases total throughput
- Dual gigabit Ethernet ports provide wired backhaul flexibility
- Powered via 802.3af PoE with adapter included
- Indoor coverage up to 140 metres in open space
Ceiling-mounted Wi-Fi 5 access point
The Ubiquiti Networks UAP-AC-PRO-US is a ceiling-mounted Wi-Fi 5 access point designed for high-density indoor environments. It supports up to 250 connected devices across dual 3x3 MIMO radios. The unit includes a 48V PoE adapter and mounts on a standard ceiling grid. Management is handled through the UniFi Controller software.
250-plus devices and 140-metre range
Each radio delivers up to 1.3 Gbps on 5 GHz and 450 Mbps on 2.4 GHz using 6 spatial streams. Practical throughput scales with client count and channel width; the radio chain saturates before the dual GbE uplinks in dense deployments. Coverage extends to 140 metres indoors under clear line of sight. Environments with heavy co-channel interference or thick walls will see reduced effective range.

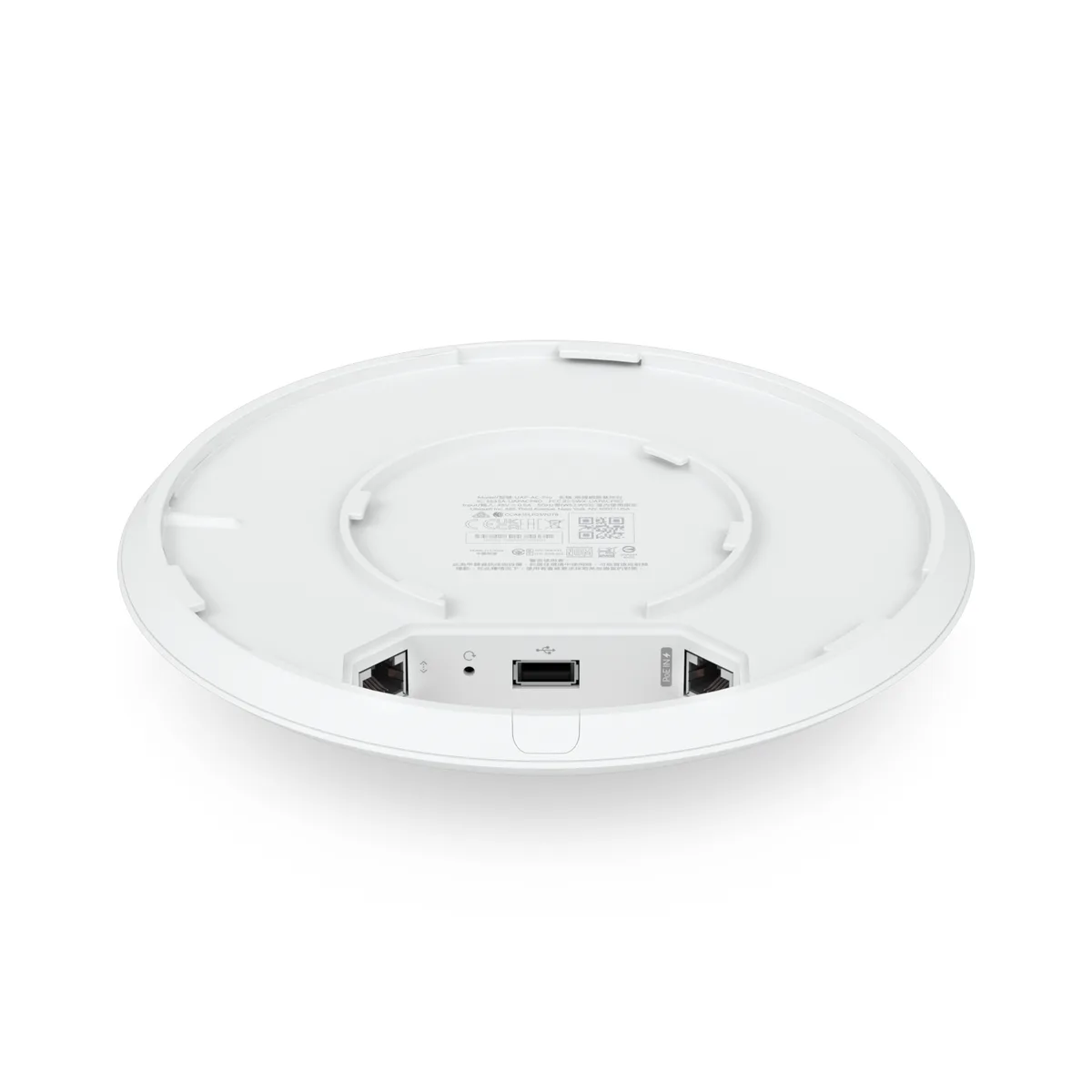

Dual GbE RJ45 PoE uplink
The access point provides two Gigabit Ethernet RJ45 ports powered by 802.3af PoE or the included 48V adapter. Both ports operate at line rate, so aggregate wired throughput is limited to 1 Gbps per port. Networks requiring link aggregation or multi-gigabit uplinks must use a different model. The second port can daisy-chain another PoE device but does not increase uplink bandwidth.
Highlights
- Handles 250+ simultaneous users for dense deployments
- Wi-Fi 5 with six spatial streams increases total throughput
- Dual gigabit Ethernet ports provide wired backhaul flexibility
- Powered via 802.3af PoE with adapter included
- Indoor coverage up to 140 metres in open space
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | WIFI Access points |
| Model | AC Pro |
| Part Number | UAP-AC-PRO-US |
| # of Users | 250+ |
| Standards | 802.11 a/b/g/n/ac |
| WiFi Generation | Wi-Fi 5 |
| Wireless Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) 802.11ac 6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| Antenna | 2.4 GHz 3 x 3 (DL MU-MIMO) 5 GHz 3 x 3 (DL MU-MIMO) |
| Transmitted Power | 2.4 GHz 22 dBm 5 GHz 22 dBm |
| Mounting Location | Indoor |
| Operating Range | Indoor: Up to 140m, Outdoor: Up to 140m |
| Interface | (2) GbE RJ45 ports |
| LAN Ports | (2) GbE RJ45 ports |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter (Included)* |
| Temperature | -10 to 70° C (14 to 158° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | Ø196.7 x 35 mm (Ø7.7 x 1.4") |
| Weight | Without mount: 350 g (12.4 oz) With mount: 450 g (15.9 oz) |
| Features | BSSID 4 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Power save Supported WMM Voice, video, best effort, and background Concurrent clients 250+ |
| Shipping weight | 1.13 kg |
| Package size | 298 × 251 × 97 mm |
Questions about this item
Will the dual GbE RJ45 ports on this AP link at full speed with an older Cat5e patch panel?
Yes, both ports are gigabit Ethernet and will negotiate 1 Gbps over Cat5e cabling.
How can I confirm the 3x3 MIMO radios are active after mounting the UAP-AC-PRO-US?
In the UniFi Controller check the radio table — each band should show three spatial streams and a PHY rate up to 1.3 Gbps on 5 GHz.
Does the box contain the 48 V 0.5 A PoE adapter or must I order it separately?
The 48 V 0.5 A PoE adapter is included with single-unit purchases; no separate power supply is needed.
