Ubiquiti Networks

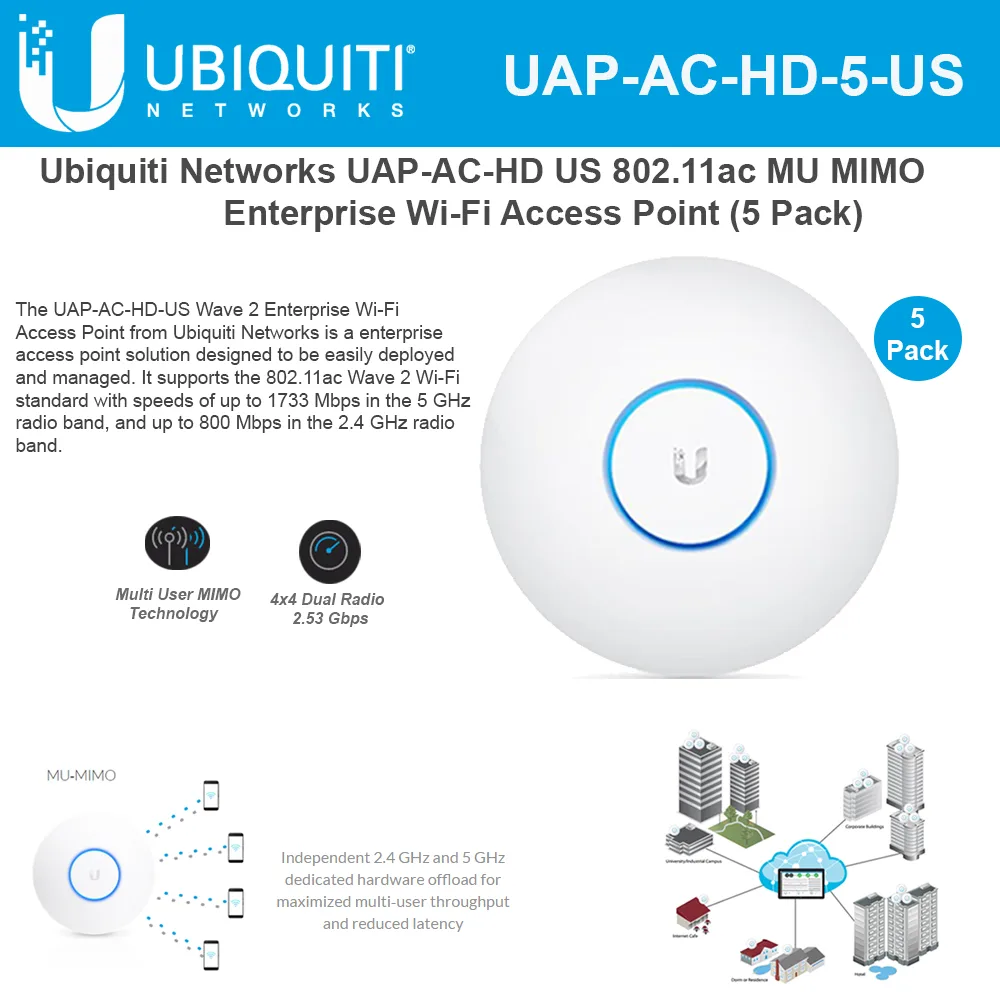

Ubiquiti Networks UAP-AC-HD-5-US 5-pack access point
A five-pack of enterprise 802.11ac Wave 2 access points with 4x4 MU-MIMO, dual-band operation and 2.53 Gbps throughput for high-density deployments
- Standards802.11 a/b/g/n/ac/ac-wave2
- SecurityWEP, WPA-PSK, WPA-Enterprise (WPA / WPA2, TKIP / AES) 802.11
- Antenna(2) Dual-Port, Dual-Polarity Antennas, 3 dBi each (2) Dual-P
- Interface2 x 10/100/1000 Ethernet Ports
- ButtonsReset
- Power SupplyPower Method: Passive Power over Ethernet (48V), 802.3at PoE
- Supports 500+ simultaneous client connections with MU-MIMO technology
- Four-stream 802.11ac Wave 2 delivers 2.53 Gbps aggregate throughput
- Dual-band 4x4 Multi-User MIMO serves multiple devices at once
- Two gigabit Ethernet ports provide wired backbone flexibility
- 3at PoE+ and passive 48 V PoE simplify installation
Five-pack enterprise access point
The Ubiquiti Networks UAP-AC-HD-5-US supplies five 802.11ac Wave 2 access points built for high-density environments such as venues, campuses or open-plan offices. Each unit delivers simultaneous dual-band 4x4 MU-MIMO operation and supports 500-plus concurrent client connections. Management is handled through the UniFi Controller software for a single unified network view.
Sustained high-density throughput
Four-stream 802.11ac Wave 2 technology provides a combined 2.53 Gbps radio rate while serving many clients at once rather than in short bursts. The dual-polarity antennas rated at 3 dBi and 4 dBi maintain consistent coverage under heavy load. Passive 48 V PoE and 802.3at PoE+ keep power delivery stable with a maximum draw of 17 W per unit across the operating range of -10 to 70 °C.
Ceiling mount with PoE cabling
Installation uses the integrated omni antennas and a single Ethernet cable carrying both data and power, so no separate mains wiring is required. Two gigabit Ethernet ports allow a wired uplink and a downstream device if needed. The reset button is recessed; a paper clip or similar tool is required to trigger a factory reset without damaging the housing.
Highlights
- Supports 500+ simultaneous client connections with MU-MIMO technology
- Four-stream 802.11ac Wave 2 delivers 2.53 Gbps aggregate throughput
- Dual-band 4x4 Multi-User MIMO serves multiple devices at once
- Two gigabit Ethernet ports provide wired backbone flexibility
- 3at PoE+ and passive 48 V PoE simplify installation
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Model | UAP-AC-HD-5-US |
| Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Security | WEP, WPA-PSK, WPA-Enterprise (WPA / WPA2, TKIP / AES) 802.11 w/ PMF |
| Antenna | (2) Dual-Port, Dual-Polarity Antennas, 3 dBi each (2) Dual-Port, Dual-Polarity Antennas, 4 dBi each |
| Interface | 2 x 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Power Supply | Power Method: Passive Power over Ethernet (48V), 802.3at PoE+ Supported Power Supply: 48V, 0.5A PoE Gigabit Adapter Maximum Power Consumption: 17W |
| Temperature | Operating Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit) |
| Humidity | 5 to 95% Noncondensing |
| Dimensions | 1.89" x 8.66" x 8.66" |
| Weight | 1.54 lbs. |
| Features | Simultaneous Dual-Band 4x4 Multi-User MIMO Four-Stream 802.11AC Wave 2 Technology 802.3at Poe+ Compatibility 2 x 10/100/1000 Ethernet Ports UniFi Controller Software Integrated Omni Antennas Guest Portal / Hotspot Support Passive Power over Ethernet 500+ Concurrent Clients Reset Button CE, FCC, IC Certified |
| Shipping weight | 5.48 kg |
| Package size | 290 × 259 × 251 mm |
Questions about this item
How much power does the UAP-AC-HD draw when it runs continuously?
Maximum power consumption is 17W supplied through 48V passive PoE or 802.3at PoE+.
What cabling and power gear must I already have to install one of these access points?
You need a Cat5e or better Ethernet run to each unit and a 48V 0.5A PoE injector or an 802.3at PoE+ switch port.
Will the dual Gigabit ports negotiate down to 100 Mbps on my older switches?
Yes, the two 10/100/1000 ports auto-negotiate so they work with 100 Mbps infrastructure.
