Ubiquiti Networks
Ubiquiti Networks RP-5AC-GEN2-US access point
5 GHz basestation for point-to-multipoint or point-to-point links with airPrism filtering, GPS sync, and 500+ Mbps throughput
- Frequency BandOperating Frequency (MHz) Worldwide 5150–5875 MHz USA U-NII-
- LEDs(4) Signal strength: software-adjustable to correspond to cu
- LAN Ports(1) GbE RJ45 port
- Power SupplyPower method Passive PoE 2-pair (4, 5+; 7, 8 return) Power s
- Temperature-40 to 80° C (-40 to 176° F)
- Humidity5 to 95% noncondensing
- 500+ Mbps throughput for high-capacity PtMP or PtP links
- airPrism active RF filtering reduces interference in noisy environments
- 50+ concurrent client capacity supports dense deployments
- Integrated GPS synchronisation improves co-location performance
- Passive PoE 24 V 1 A adapter included for simple powering
High-performance 5 GHz basestation for PtMP
The Ubiquiti Networks Rocket 5AC Prism is a high-performance 5 GHz basestation built for point-to-multipoint and point-to-point links. It delivers up to 500 Mbps data throughput with 450 Mbps sustained capacity and supports 50-plus concurrent clients. The integrated GPS sync and dedicated spectral analysis radio enable precise co-location and interference monitoring for ISP and enterprise deployments.
5 GHz airPrism active RF filtering
Operating worldwide from 5150 to 5875 MHz, the radio uses proprietary airPrism active RF filtering to reject noise in congested spectrum. Channel sizes of 10, 20, 30, 40, 50, 60 and 80 MHz are available in PtP mode, while PtMP mode supports 10, 20, 30 and 40 MHz channels. A dedicated management radio at 2412–2472 MHz worldwide provides UISP mobile app access for setup and monitoring without disrupting the main link.
Passive PoE power with industrial temperature rating
The unit draws a maximum of 9.5 W and ships with a 24 V, 1 A gigabit PoE adapter, accepting 18–27 V DC via passive PoE on pairs 4,5+ and 7,8 return. A single GbE RJ45 port handles data and power. The die-cast aluminium casing operates from -40 to 80 °C (-40 to 176 °F) at 5–95 % non-condensing humidity, making it suitable for harsh outdoor mast installations.
Highlights
- 500+ Mbps throughput for high-capacity PtMP or PtP links
- airPrism active RF filtering reduces interference in noisy environments
- 50+ concurrent client capacity supports dense deployments
- Integrated GPS synchronisation improves co-location performance
- Passive PoE 24 V 1 A adapter included for simple powering
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | Wireless |
| Model | RP-5AC-Gen2 |
| Frequency Band | Operating Frequency (MHz) Worldwide 5150–5875 MHz USA U-NII-1: U-NII-2A: U-NII-2C: U-NII-3 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz Management Radio (MHz) Worldwide 2412–2472 MHz USA 2412–2462 MHz |

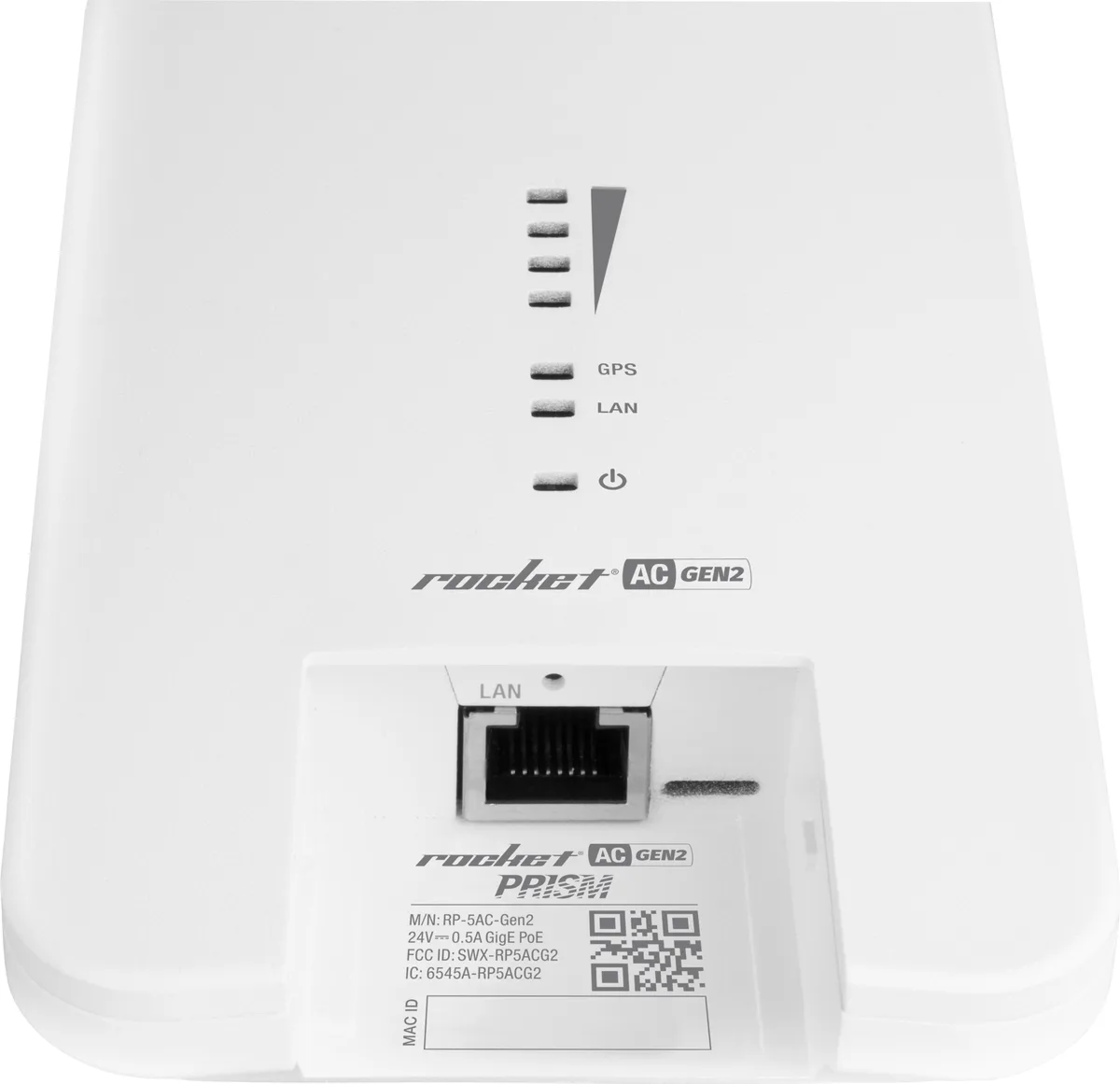

| LEDs | (4) Signal strength: software-adjustable to correspond to custom RSSI levels GPS, LAN, power |
| LAN Ports | (1) GbE RJ45 port |
| Power Supply | Power method Passive PoE 2-pair (4, 5+; 7, 8 return) Power supply 24V, 1A gigabit PoE adapter (Included) Supported voltage range 18—27V DC Max. power consumption 9.5W |
| Temperature | -40 to 80° C (-40 to 176° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Features | Software Modes Access Point, station Channel sizes PtP mode PtMP mode 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz Services Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing Utilities airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test Distance adjustment Dynamic Ack and Ackless mode Power adjustment Software adjustable UI or CLI Security WPA2 AES only QoS Supports packet level classification WMM and user customer level: High/Medium/Low Statistical reporting Up time, packet errors, data rates, wireless d |
| Shipping weight | 1.05 kg |
| Package size | 292 × 122 × 91 mm |
Questions about this item
Will the single GbE RJ45 port connect to my existing gigabit switch without a speed mismatch?
Yes, the unit has one GbE RJ45 port that negotiates at gigabit speed, so it links directly to a gigabit switch without a bottleneck.
Which LEDs confirm the link is healthy after I mount the radio?
Four signal-strength LEDs show RSSI, plus dedicated GPS, LAN and power LEDs; all are software-adjustable so you can set custom thresholds for each.
Does the box include the PoE injector or do I need to buy a 24 V passive PoE adapter separately?
A 24 V, 1 A gigabit passive PoE injector is included; the radio accepts 18–27 V DC over the same 2-pair PoE wiring.
