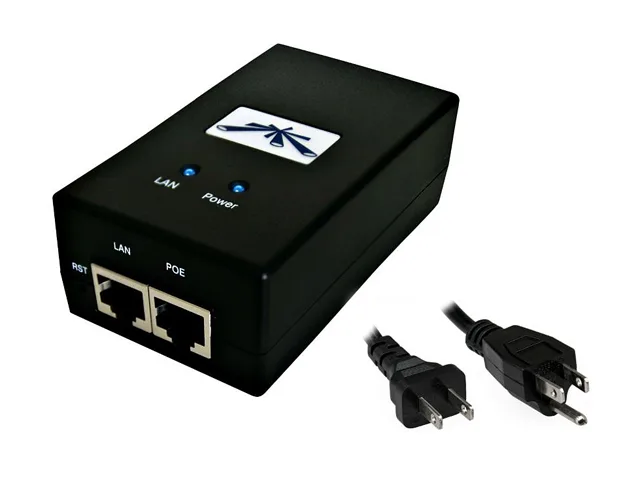

Black rectangular PoE adapter with Ethernet ports

Ubiquiti Networks

Ubiquiti Networks POE-24-30W 24V 30W PoE Adapter wireless accessory

SKU CH-4WZZ-2NJMX MPN POE-24-30W

Delivers 24 V DC at 1.25 A over Gigabit Ethernet with 83% efficiency and built-in surge protection

  • TypePoE Adapter
  • ColorBlack
  • SpecificationsOutput Voltage: 24V DC @ 1.25A Gigabit LAN Port: Yes Rated V
  • FeaturesProvides Earth Grounding and Surge Protection Helps Protect
  • Delivers 24V DC at 1.25A for compatible devices
  • Single cable carries power and data reducing clutter
  • 83%+ efficiency lowers energy waste during operation
  • Earth grounding and surge protection guards against ESD
  • Wide 100-240V AC input suits global voltage standards

Purpose and audience

The POE-24-30W is a passive Power over Ethernet adapter that delivers 24V DC at 30W for Ubiquiti BaseStation equipment and other compatible devices. It suits installers who need to run both power and data over a single cable to outdoor radios or access points.

Thermals noise and power

The unit operates from 100-240V AC at 50/60 Hz with an input current of 0.6A at 120V or 0.4A at 240V and achieves 83+% efficiency. Inrush current stays below 60A peak at 120V and below 120A peak at 230V. No active cooling is fitted so the adapter runs silently.

Build integration

A Gigabit LAN port passes data while injecting power onto the same Ethernet run, reducing cable count and easing placement of remote radios. The adapter includes earth grounding and surge protection to guard against ESD events when paired with shielded cable. It supplies 24V DC at 1.25A only, so devices that require a different voltage or higher wattage cannot be powered from this unit.

Highlights

  • Delivers 24V DC at 1.25A for compatible devices
  • Single cable carries power and data reducing clutter
  • 83%+ efficiency lowers energy waste during operation
  • Earth grounding and surge protection guards against ESD
  • Wide 100-240V AC input suits global voltage standards

Specifications

BrandUBiQuiTi
ModelPOE-24-30W
TypePoE Adapter
ColorBlack
SpecificationsOutput Voltage: 24V DC @ 1.25A
Gigabit LAN Port: Yes
Rated Voltage: 100-240V AC @ 50/60 Hz
Input Current: 0.6A @ 120V AC, 0.4A @ 240V AC
Inrush Current: <60A Peak @ 120V AC, <120A Peak @ 230V AC
Efficiency: 83+%
Output Ripple: 1% Max.
Switching Frequency: 65 kHz
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -30 to 70°C (-22 to 158°F)
Operating Humidity: 35 to 95% Noncondensing
Dimensions: 3.70" x 2.36" x 1.30"
Weight: 0.34 lb.
FeaturesProvides Earth Grounding and Surge Protection
Helps Protect Against ESD Events
Powers Ubiquiti PoE Devices
Shipping weight0.32 kg
Package size173 × 99 × 43 mm

Questions about this item

How do I install the POE-24-30W and what step is often missed?

Connect the LAN port to your switch or router and the PoE port to the device using a shielded Ethernet cable; the step often missed is bonding the cable's shield to the adapter's grounding terminal for surge protection.

What maintenance or replacement will the POE-24-30W need later?

The adapter itself has no user-serviceable parts; plan to replace the Ethernet cable if its shield or conductors degrade, and verify the AC inlet remains free of dust to maintain the 83% efficiency rating.

What limit appears first when the POE-24-30W runs continuously at full load?

The 30 W output ceiling at 24 V DC and 1.25 A is reached before thermal limits, so any connected device drawing more than 30 W will cause the adapter to shut down or voltage to sag.
