Silver rackmount network switch with 48 RJ45 ports and four SFP uplinks

Ubiquiti Networks

Ubiquiti Networks ES-48-500W network switch

SKU CH-2DA0-ATAMF MPN ES-48-500W

Managed 48-port Gigabit PoE+ switch with two SFP+ uplinks and a 500W power budget

  • FormatRackmount
  • Network Management TypeManaged
  • Uplink PortsYes
  • Uplink InterfaceSFP
  • Uplink SpeedSFP
  • Primary Ports48 x RJ45
  • Powers 48 devices with 500W PoE+ budget
  • Delivers 70 Gbps non-blocking throughput across all ports
  • Manages traffic with Layer 2/3 switching and routing
  • Connects uplinks via two 10G SFP+ and two 1G SFP ports
  • Configures easily through web UI or CLI over SSH

Rackmount Layer 3 PoE+ Switch

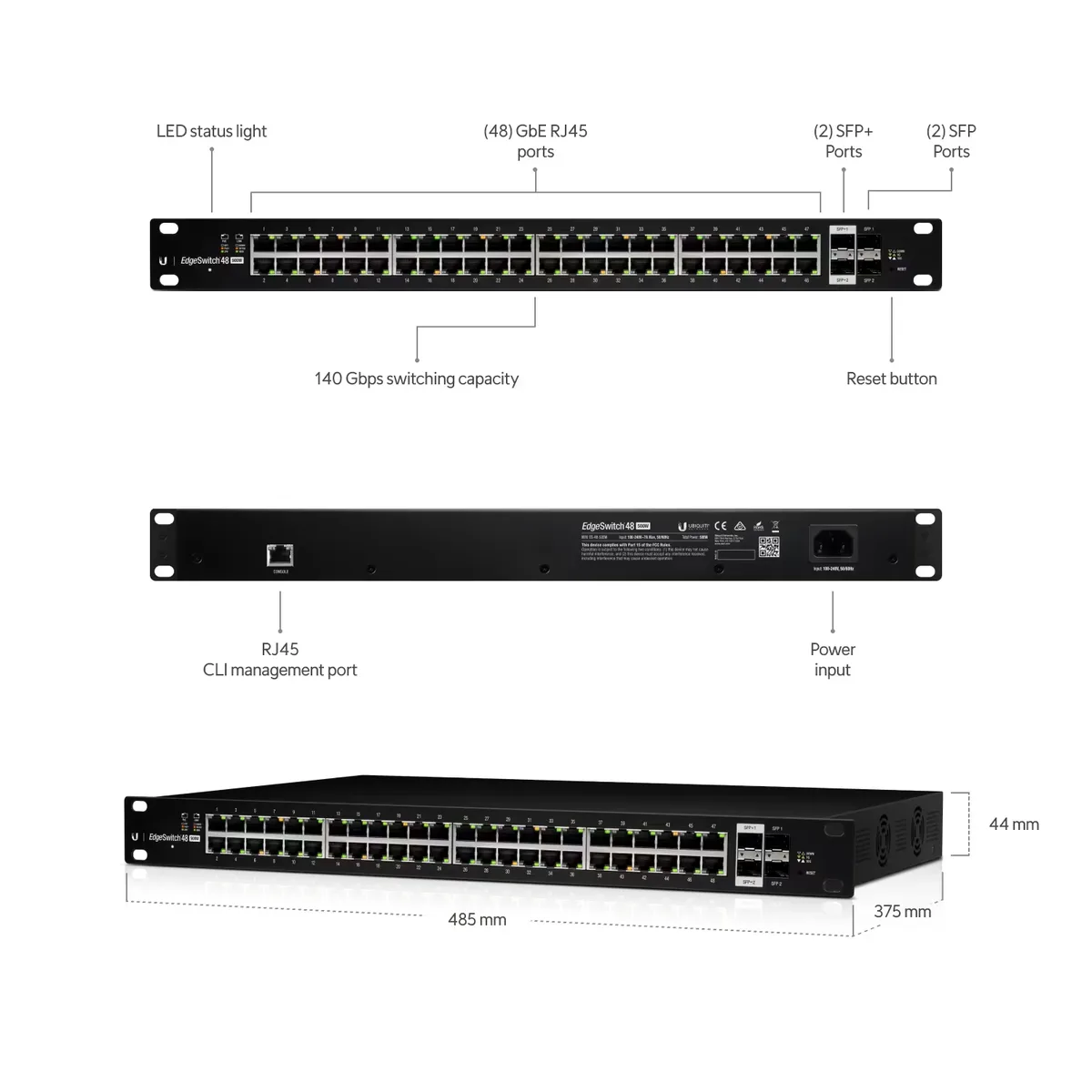

The Ubiquiti EdgeSwitch ES-48-500W is a fully managed Layer 2/3 switch built for rackmount deployment. It provides 48 Gigabit RJ45 ports, two SFP+ ports for 10 Gbps uplinks and two SFP ports for 1 Gbps uplinks. It is suited for network administrators who need intelligent switching and high-density PoE in a single managed unit.

48 PoE+ Ports With 500W Budget

Every RJ45 port supports IEEE 802.3af/at PoE+ up to 34.2W and 24V passive PoE up to 17W, drawing from a shared 500W budget. The switch consumes 64W itself, leaving the remainder for attached devices such as access points, cameras or VoIP phones. SFP and SFP+ uplinks free the copper ports for endpoint connections while linking aggregation or core switches.

70 Gbps Non-Blocking Throughput

The 48-port model delivers up to 70 Gbps total non-blocking throughput, allowing line-rate traffic on all ports simultaneously. The 500W PoE budget supports many powered devices, though high-draw PoE+ endpoints will reduce the total port count available at maximum wattage. Buyers needing more than 48 powered ports or uplinks beyond 10 Gbps should plan for additional switching infrastructure.

Highlights

  • Powers 48 devices with 500W PoE+ budget
  • Delivers 70 Gbps non-blocking throughput across all ports
  • Manages traffic with Layer 2/3 switching and routing
  • Connects uplinks via two 10G SFP+ and two 1G SFP ports
  • Configures easily through web UI or CLI over SSH

Specifications

BrandUbiquiti Networks
SeriesEdgeMAX Switching
ModelEdgeSwitch 48 PoE (500W)
Part NumberES-48-500W
FormatRackmount
Network Management TypeManaged
Uplink PortsYes
Uplink InterfaceSFP
Uplink SpeedSFP
Primary Ports48 x RJ45
Primary Port Speed10/100/1000Base-T 1000Base-X 10GBase-X
Primary Port Type(48) GbE RJ45 ports
(2) 1/10G SFP+ ports
(2) 1G SFP ports
Management Interface(1) RJ45 serial port, Ethernet In/Out-Band
ProtocolsTCP/IP
PoEYes
Layer3
LEDsEthernet ports: PoE, speed/link/activity
SFP/SFP+ ports: speed/link/activity
ButtonFactory reset
PoE Ports(48) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-)
(48) 24V DC passive PoE 2-pair (Pins 4, 5+; 7, 8-)
PoE Power BudgetMax. power consumption: 64W (Excludes PoE output)
Total PoE available: 500W
Max. PoE wattage per portby PSE: PoE+: 34.2W / Passive PoE: 17W
Voltage range PoE mode: PoE+: 50–57V / Passive PoE: 20–27V
Power100-240V AC, universal input, 50/60 Hz
Max Power Consumption64W (Excludes PoE output)
Dimensions18.9 in x 13.7 in x 1.8 in
Weight16.03
Shipping weight7.26 kg
Package size566 × 422 × 91 mm

Questions about this item

What is the total PoE power budget available for all 48 ports on the ES-48-500W?

The switch provides a total PoE budget of 500W shared across all 48 RJ45 ports.

How much power does the switch itself consume when running continuously without PoE load?

Maximum power consumption is 64W when PoE output is excluded.

Which management interfaces are built into the ES-48-500W for configuration?

An RJ45 serial console port and an Ethernet management port supporting in-band and out-of-band access are included.
