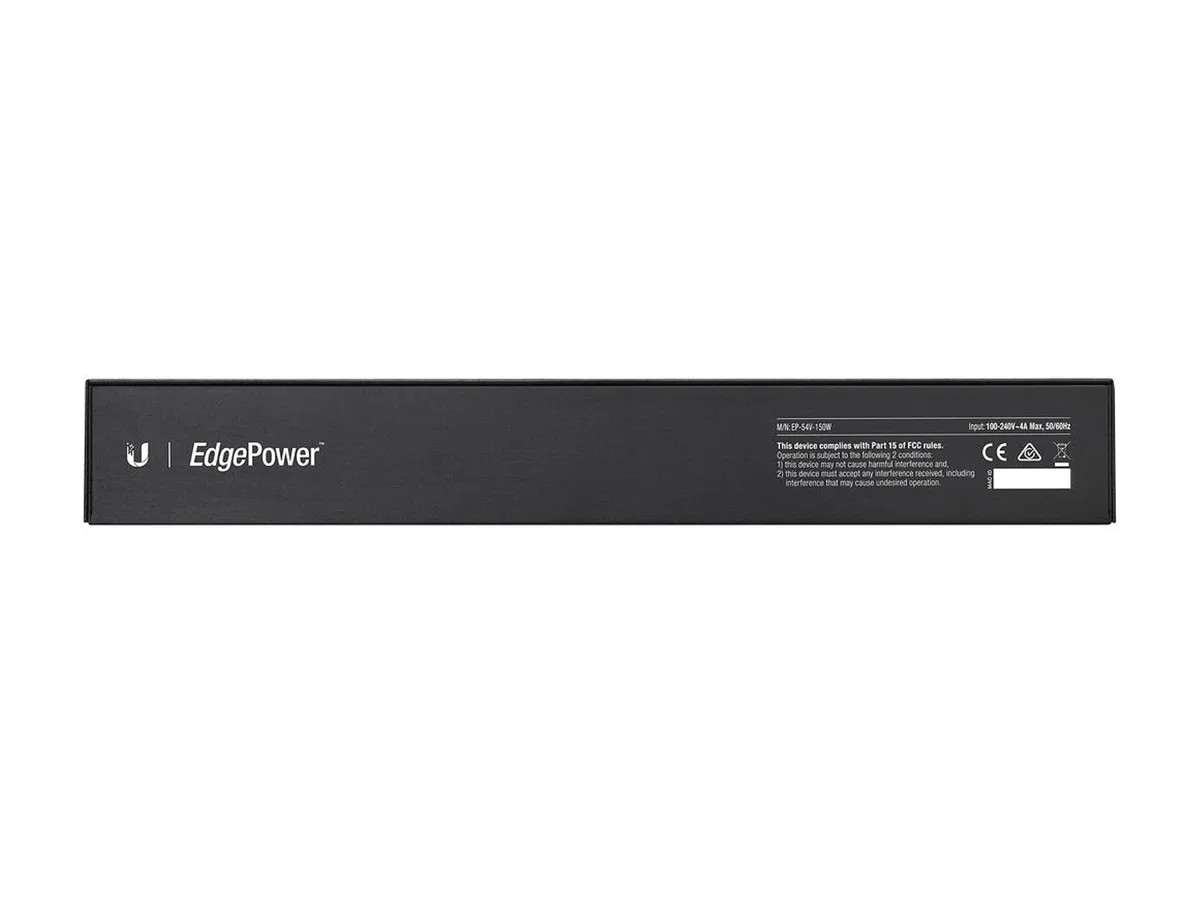

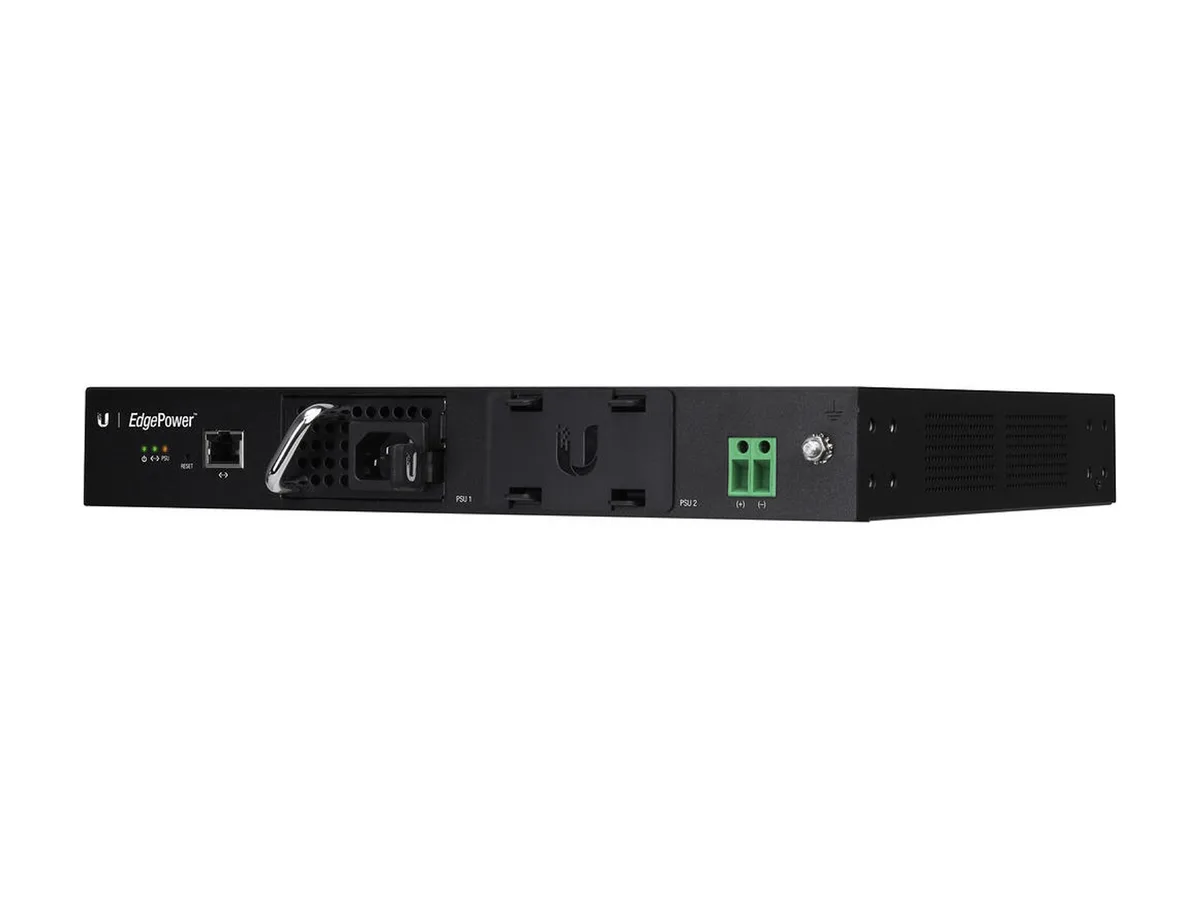

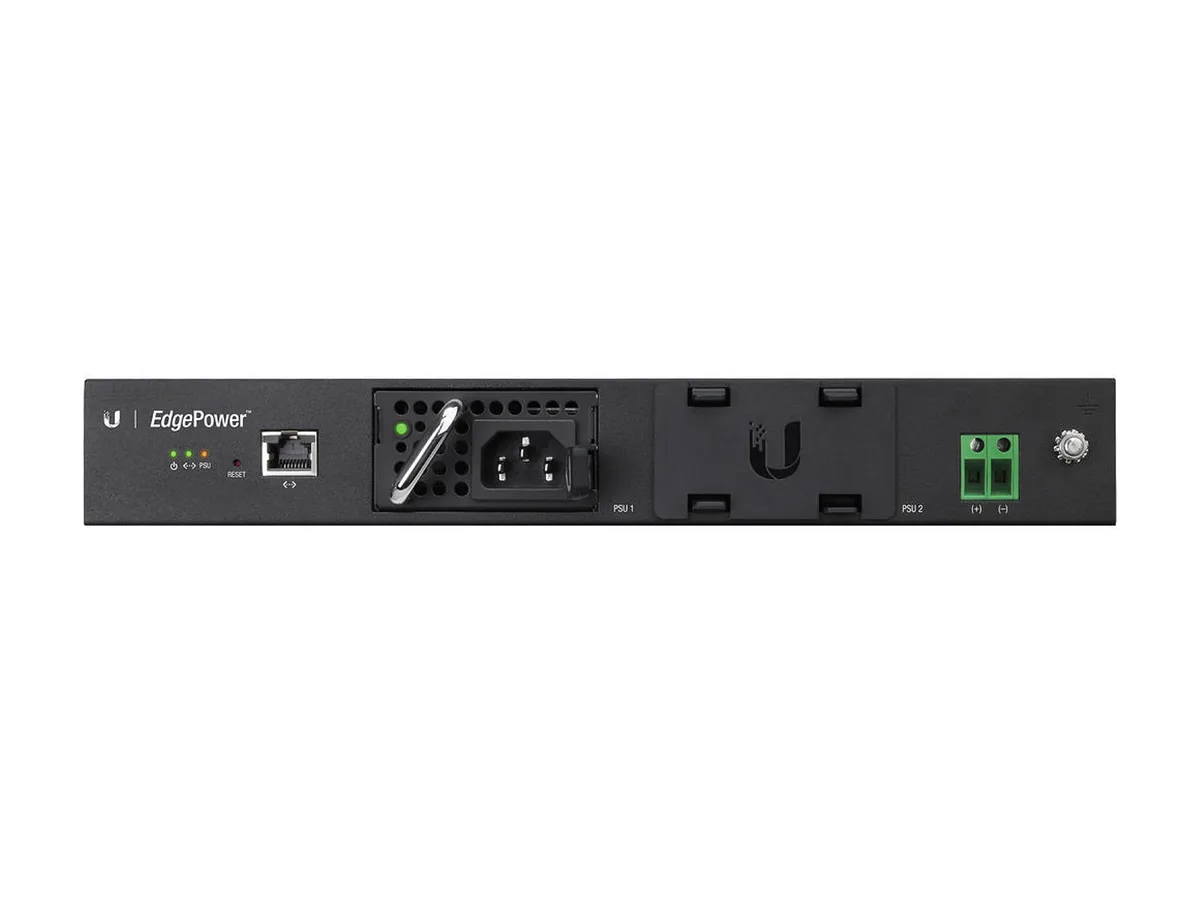

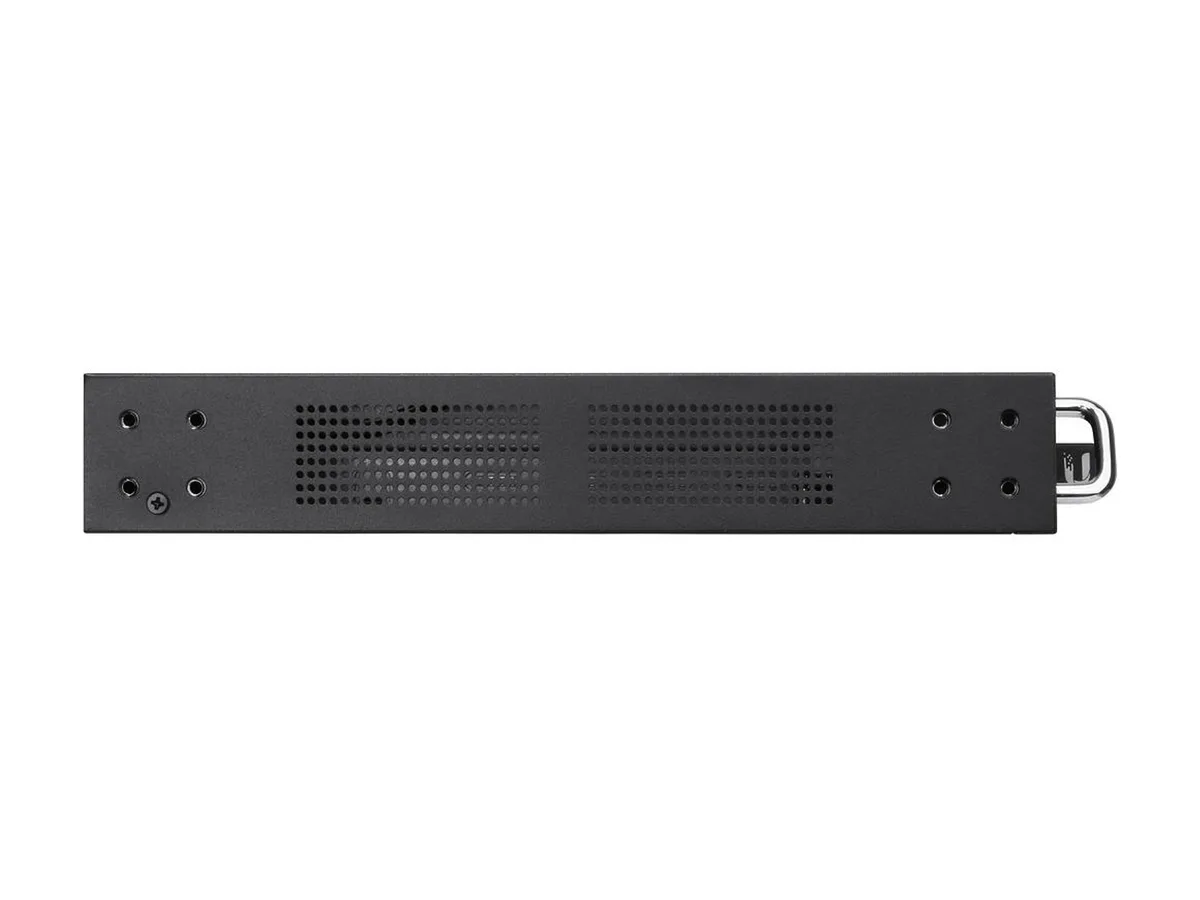

Grey rectangular 1U rack-mount power supply module with front LEDs

Ubiquiti Networks

Ubiquiti Networks EP-54V-150W 54V 150W modular DC power supply

SKU CH-VV72-YRWM1 MPN EP-54V-150W

A 54V 150W modular AC-DC power supply with a second bay for optional 150W module or backup, delivering up to 300W total for EdgePoint routers and PoE devices

  • TypePower Supply
  • ColorGrey
  • SpecificationsPower Method: 100-240V AC / 50-60 Hz, Universal Input Power
  • FeaturesFlexible, Modular PSU Design Supports up to Two 150W PSU Mod
  • Delivers 54V DC power to PoE devices
  • Modular design accepts up to two 150W PSU modules
  • Secondary bay enables 300W total output or automatic backup
  • Universal 100-240V AC input at 50-60 Hz
  • 1U rack-mount form factor with status LED indicators

Modular 54V 150W DC supply

The Ubiquiti Networks EP-54V-150W is a modular AC-to-DC power supply that delivers 54 volts at 150 watts. It accepts a universal 100-240V input at 50-60 Hz and installs in a 1U rack-mount EdgePower chassis. Grey coloured unit with LED indicators for power, Ethernet and PSU status.

Redundant dual-PSU upgrade

The chassis holds two PSU bays; one 150W module is included and a second module can be added to reach 300W total output. The secondary bay also accepts an optional AC-DC or DC-DC module for redundant backup, automatically activating if the primary unit fails.

Rack-mount PoE backbone

Designed to power EdgePoint routers and switches that feed PoE devices, the supply fits a standard 1U rack space and frees the second bay for capacity growth or failover. Remote configuration interface allows administrators to monitor and manage power behaviour without local access.

Highlights

  • Delivers 54V DC power to PoE devices
  • Modular design accepts up to two 150W PSU modules
  • Secondary bay enables 300W total output or automatic backup
  • Universal 100-240V AC input at 50-60 Hz
  • 1U rack-mount form factor with status LED indicators

Specifications

BrandUBiQuiTi
ModelEP-54V-150W
TypePower Supply
ColorGrey
SpecificationsPower Method: 100-240V AC / 50-60 Hz, Universal Input
Power Supply:
54V, 150W AC/DC
Installed in PSU 1
Maximum Power Output:
150W (1 PSU module)
300W (2 PSU modules @ 150 W each)
LEDs:
Power: System on / off
Ethernet: Management port link
PSU: PSU1+PSU2, PSU1 / PSU2
Networking Interface: 1 x RJ-45 Fast Ethernet port
Rack Mount: Yes, 1U high
ESD/EMP Protection: Air +/- 24 kV; Contact +/- 24 kV
FeaturesFlexible, Modular PSU Design
Supports up to Two 150W PSU Modules
Secondary AC-DC or DC-DC PSU Option
Power / Ethernet / PSU LED Indicators
1U Rack Mount Design
Shipping weight3.63 kg
Package size711 × 508 × 203 mm

Questions about this item

What rack-mount form factor does the EP-54V-150W use?

The chassis uses a 1U rack-mount form factor, taking up one rack unit of vertical space in a standard cabinet.

How is the included 54V 150W module installed in the EdgePower chassis?

The module ships pre-installed in the PSU 1 bay; the step often missed is fully seating the latch until it clicks so the unit registers the PSU and lights the Power LED.

When does the optional second PSU module need to be added or replaced?

Add the second module to reach 300W total output or to enable automatic backup mode; replace any module if its Power LED stays off while the system is on.
