Ubiquiti Networks
Ubiquiti Networks BulletAC-IP67-US access point
Weatherproof 460 Mbit/s access point for 2.4 GHz and 5 GHz PtP or PtMP links with selectable channel widths up to 80 MHz
- Wireless Data Rates460 Mbit/s
- Frequency Band2.4 GHz / 5 GHz
- DimensionsHeight: 7.5" Width: 1.8" Depth: 1.8"
- Weight7.51 oz
- 460 Mbit/s wireless throughput for high-capacity links
- Dual-band 2.4 GHz / 5 GHz operation for flexible deployment
- IP67-rated enclosure withstands harsh outdoor environments
- airMAX ac protocol with selectable channel widths up to 80 MHz PtP
- Compact 7.5" x 1.8" form factor weighs only 7.51 oz
Outdoor wireless access point

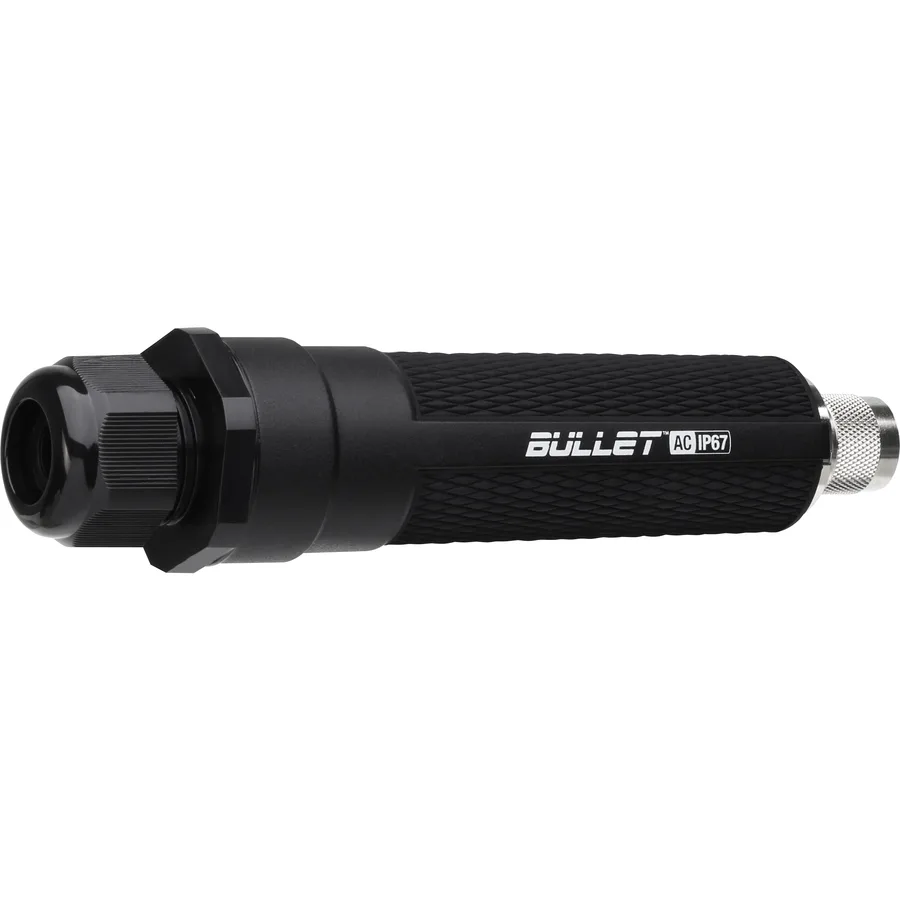

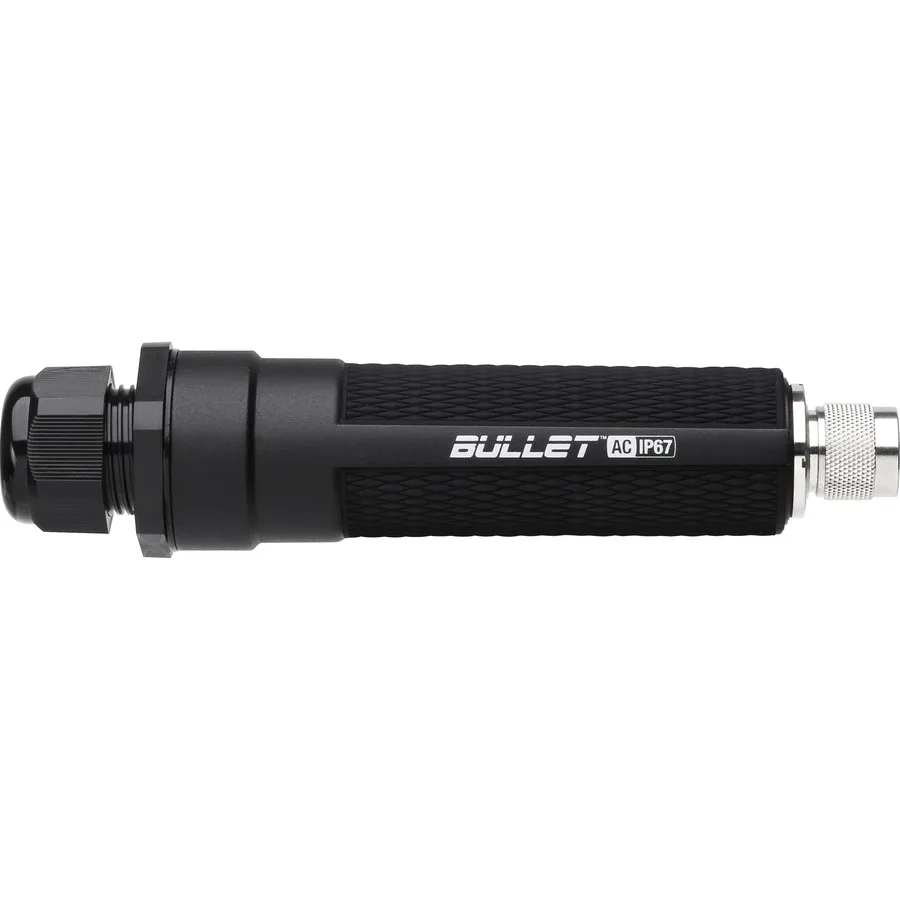

The BulletAC-IP67-US is a compact outdoor wireless access point built for point-to-point and point-to-multipoint links. It delivers up to 460 Mbit/s across 2.4 GHz and 5 GHz bands using the airMAX ac protocol. The IP67-rated enclosure suits fixed wireless ISPs and network integrators deploying long-range backhaul or customer premises connections.
Mounting and power requirements

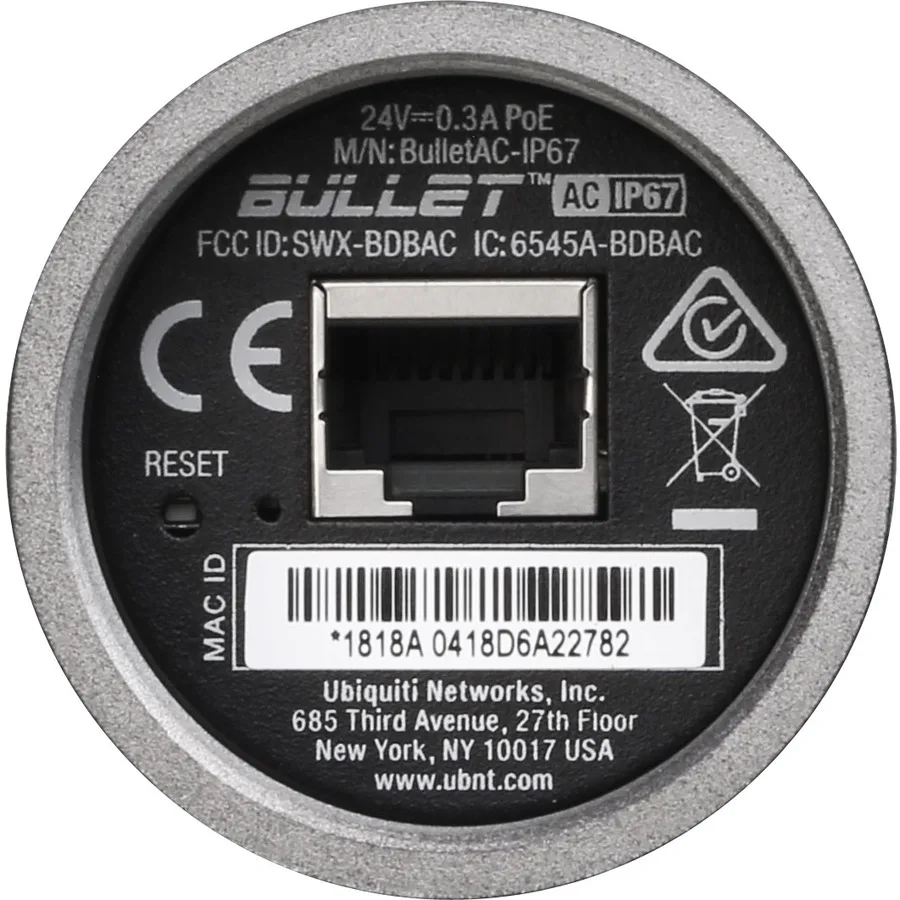

Verify that a suitable pole or wall mount is available for the 7.5-inch tall by 1.8-inch diameter cylindrical body. The unit weighs 7.51 oz and requires passive Power over Ethernet; confirm your PoE injector or switch port supplies the correct voltage. Ensure line-of-sight clearance for the intended link distance and that local regulations permit operation on the selected 2.4 GHz or 5 GHz channels.
Thermals noise and power draw
The sealed IP67 housing relies on passive convection across the metal body for cooling; no internal fan is present, so acoustic output is effectively zero. Power consumption scales with the chosen channel width — options include 10, 20, 30, 40, 50, 60 and 80 MHz for point-to-point or 10, 20, 30 and 40 MHz for point-to-multipoint — and remains modest under typical outdoor ambient temperatures.
Highlights
- 460 Mbit/s wireless throughput for high-capacity links
- Dual-band 2.4 GHz / 5 GHz operation for flexible deployment
- IP67-rated enclosure withstands harsh outdoor environments
- airMAX ac protocol with selectable channel widths up to 80 MHz PtP
- Compact 7.5" x 1.8" form factor weighs only 7.51 oz
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Model | BulletAC-IP67 |
| Part Number | BulletAC-IP67-US |
| Wireless Data Rates | 460 Mbit/s |
| Frequency Band | 2.4 GHz / 5 GHz |
| Dimensions | Height: 7.5" Width: 1.8" Depth: 1.8" |
| Weight | 7.51 oz |
| Shipping weight | 0.36 kg |
| Package size | 254 × 76 × 76 mm |
Questions about this item
What comes in the box with the BulletAC-IP67-US and what must be purchased separately?
The BulletAC-IP67-US access point is supplied as the main unit only. Mounting hardware, PoE injector, Ethernet cable and any sector or dish antenna are sold separately.
Which channel-width settings should I select for a PtP link versus a PtMP sector?
For point-to-point links choose 10, 20, 30, 40, 50, 60 or 80 MHz. For point-to-multipoint sectors the selectable widths are 10, 20, 30 or 40 MHz.
What does the 460 Mbit/s wireless data rate mean for real-world throughput?
The 460 Mbit/s figure is the maximum PHY rate under ideal conditions. Actual user throughput will be lower due to overhead, interference and the chosen channel width.
