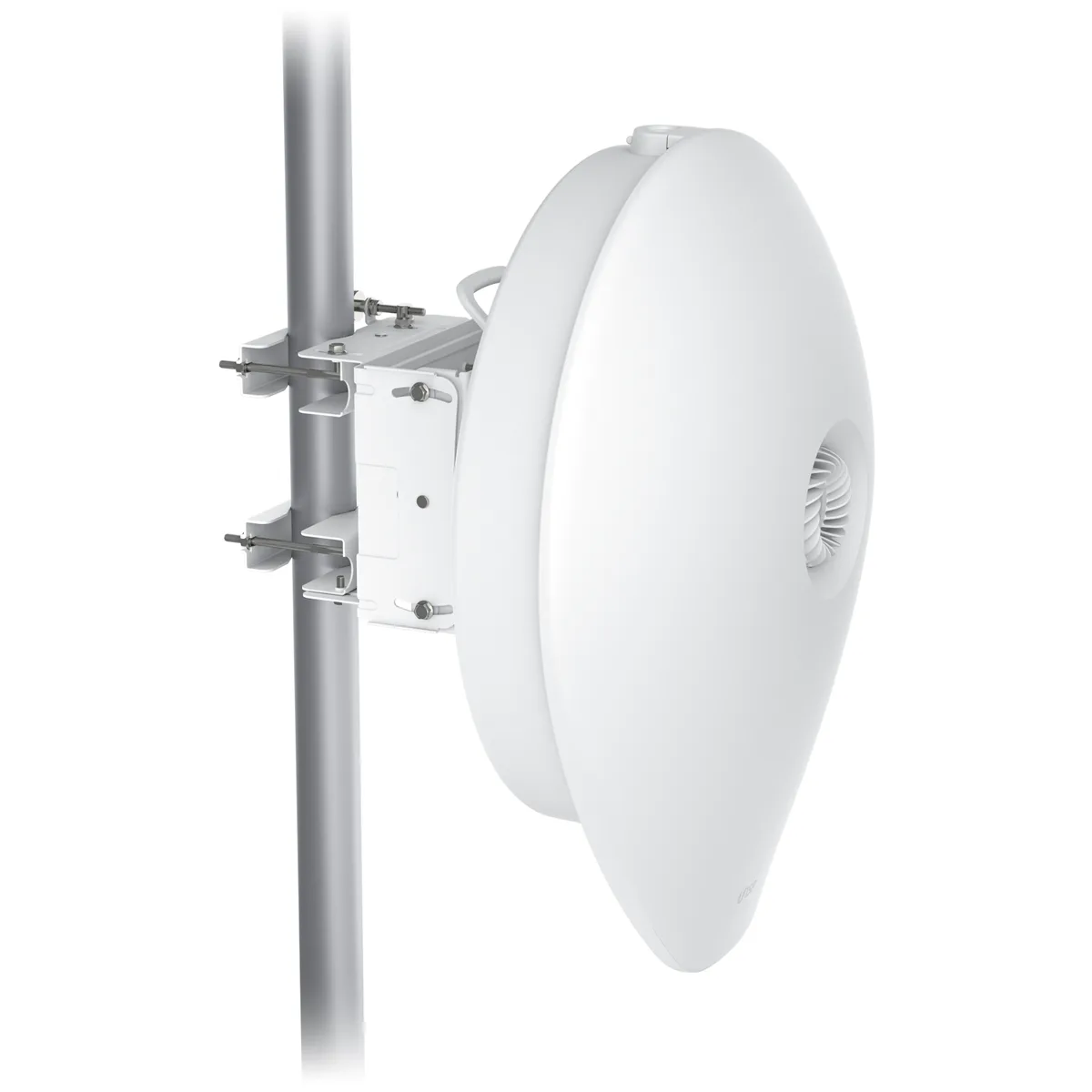

White rectangular 60 GHz radio unit with precision alignment mount and integrated dish antenna

Ubiquiti Networks

Ubiquiti Networks AF60-XG-US 60 GHz access point

SKU CH-RV5Q-8CBNS MPN AF60-XG-US

60 GHz point-to-point bridge delivering up to 6 Gbps with 10G SFP+ and 5 GHz 800 Mbps backup radio

  • Frequency BandRF Operating frequency* 57–66 GHz * Depends on regulatory re
  • LEDsPower Flashing white: bootup in progress White: not connecte
  • ButtonsFactory reset
  • LAN Ports(1) GbE RJ45 port (1) 1/10G SFP+ port
  • Power SupplyMax. power consumption 31.2W Power method Passive PoE 4-pair
  • Temperature-40 to 55° C (-40 to 131° F)
  • Multi-gigabit bridge reaching 4+ km over 60 GHz
  • 6 Gbps peak throughput for high-capacity links
  • 5 GHz backup radio delivers 800+ Mbps resilience
  • Precision alignment mount simplifies long-range installation
  • Dual ports: 1 GbE RJ45 and 10G SFP+ connectivity

60 GHz PtP Bridge With SFP+

The Ubiquiti Networks AF60-XG-US is a licensed-band 60 GHz point-to-point radio delivering up to 6 Gbps throughput over 4+ km. A quad-core ARM Cortex-A72 processor at 1.6 GHz with 2 GB DDR4 runs the link, while a 5 GHz backup radio provides 800+ Mbps weather resilience. The unit ships with a precision alignment mount and a 48 V 0.65 A PoE adapter.

Installers Needing 10G Uplink And GPS Sync

This radio suits network operators who require a 10G SFP+ port for fibre-speed backhaul and integrated GPS for TDD synchronisation. It is not for buyers who need point-to-multipoint distribution, Wi-Fi access, or a second SFP+ cage. The PtP-only firmware and single 10G uplink limit mesh or sector deployments.

57–66 GHz Operating Band And 2160/4320 MHz Channels

The radio operates in the 57–66 GHz range with 2160 MHz or 4320 MHz channel bandwidths on seven centre frequencies from 58320 to 64800 MHz. Regulatory region determines which channels are available, so confirm local licensing before ordering. No other frequency bands are supported for the primary link.

Highlights

  • Multi-gigabit bridge reaching 4+ km over 60 GHz
  • 6 Gbps peak throughput for high-capacity links
  • 5 GHz backup radio delivers 800+ Mbps resilience
  • Precision alignment mount simplifies long-range installation
  • Dual ports: 1 GbE RJ45 and 10G SFP+ connectivity

Specifications

BrandUbiquiti Network
SeriesWave 60 GHz
ModelAF60-XG
Frequency BandRF
Operating frequency* 57–66 GHz
* Depends on regulatory region.
Channel bandwidth 2160 MHz/4320 MHz (With channel bonding enabled)
Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depends on the channel bandwidth.
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.6°
Elevation: 3 dB 1.6°
Back-Up RF
Operating frequency*
US/CA
U-NII-1 5150 - 5250 MHz
U-NII-3 5725 - 5850 MHz
Worldwide 5150–5875 MHz
*Depends on regulatory region.
Channel bandwidth 20/40/80 MHz
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 5°
Elevation: 3 dB 5°
LEDsPower Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console
Ethernet Flashing blue: ethernet activity
GPS Blue: receiving at least (4) GPS satellite signals
60G Blue: active connection
5G Blue: active connection
ButtonsFactory reset
LAN Ports(1) GbE RJ45 port
(1) 1/10G SFP+ port
Power SupplyMax. power consumption 31.2W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A Gigabit PoE adapter (Included)
Supported voltage range 44–54V DC
22–27V DC
Temperature-40 to 55° C (-40 to 131° F)
Humidity5 to 95% noncondensing
Dimensions779 x 664 x 383 mm (30.68 x 26.14 x 15.06")
WeightWithout mount: 8.6 kg (19 lb)
With mount: 13 kg (28.7 lb)
FeaturesHardware
Processor Quad-Core ARM® Cortex® A72 at 1.6 GHz
Memory 2 GB DDR4
Software
Operating mode PtP only
Services UISP, ping watchdog, NTP client, system log
Utilities Antenna alignment tool, discovery utility, ping, speed test
Management application UISP web: Version 1.4.3 and later
UISP iOS™ and Android™: Version 2.19 and later
System
Max. throughput 5 GHz: 866.6 Mbps
60 GHz: 3.8 Gbps/6 Gbps (with channel bonding enabled)
Max. range 4 km
Encryption WPA2-PSK (AES)
Shipping weight8.17 kg
Package size787 × 762 × 457 mm

Questions about this item

What is the maximum power draw of the AF60-XG-US during continuous operation?

The unit draws up to 31.2 W and is powered by the included 48 V 0.65 A passive PoE adapter.

How much heat must be dissipated when the radio runs all day in a 55 °C ambient environment?

The 31.2 W maximum consumption becomes heat; the chassis is rated for -40 to 55 °C with no active cooling specified.

Which mounting hardware and cabling are required before the link can be commissioned?

The box includes a precision alignment mount; you must supply a pole or tower, plus a Cat5e or better Ethernet cable for the GbE or SFP+ port.
