Ubiquiti Networks
Ubiquiti Networks AF60-LR 60 GHz access point
A 60 GHz point-to-point radio delivering up to 2 Gbps over 12 km links with a precision alignment mount
- Frequency BandRF Operating frequency* 57–71 Ghz * Depends on regulatory re
- LEDsPower Flashing white: bootup in progress White: not connecte
- LAN Ports(1) GbE RJ45 port
- Power SupplyPower method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8
- Temperature-40 to 60° C (-40 to 140° F)
- Humidity5 to 95% noncondensing
- 12+ km link range for long-distance backhaul
- 2 Gbps maximum throughput for high-capacity links
- 6° narrow beamwidth focuses signal precisely
- Quad-core ARM Cortex-A7 processor handles traffic
- Passive PoE with included 48V adapter simplifies power
Long-range 60 GHz radio system

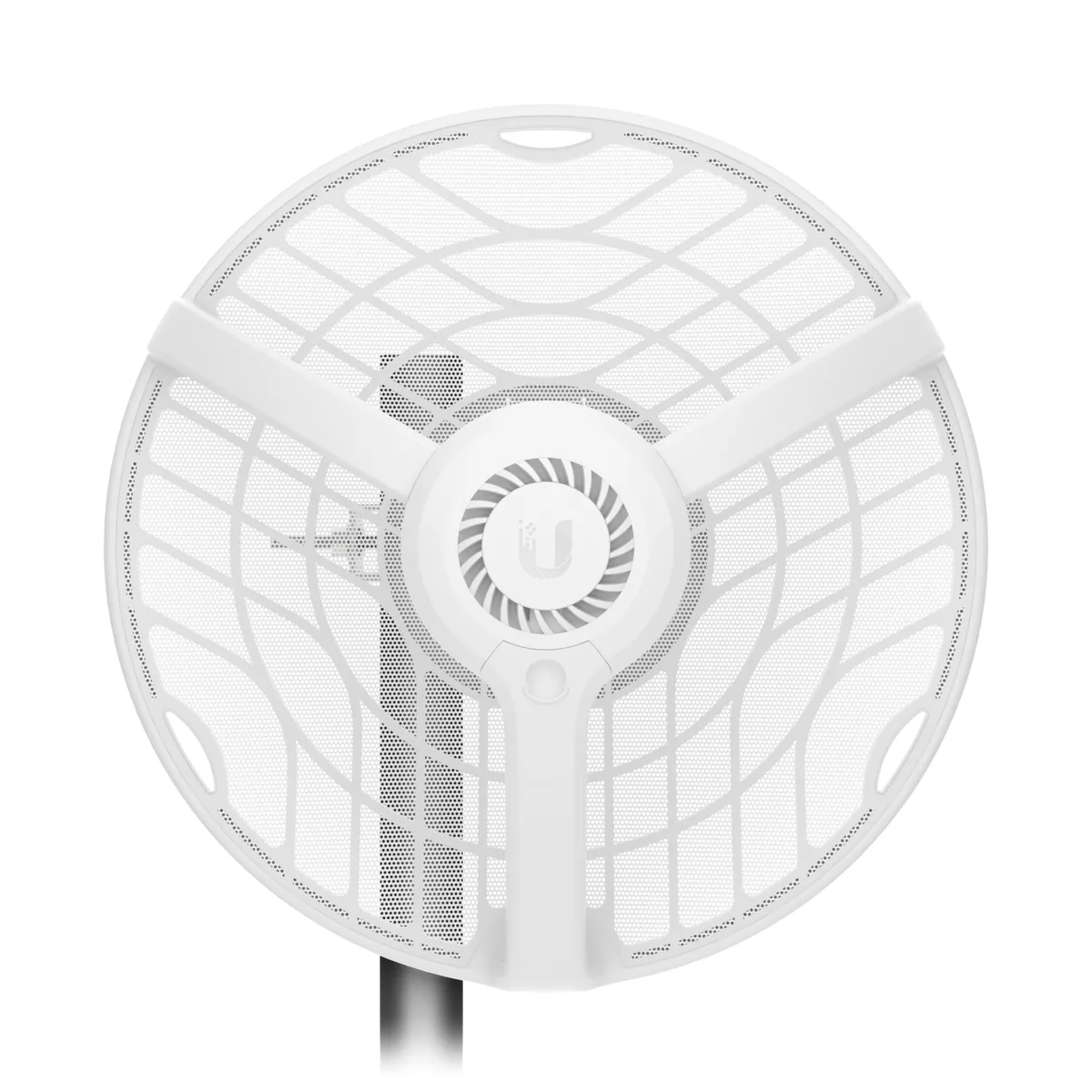

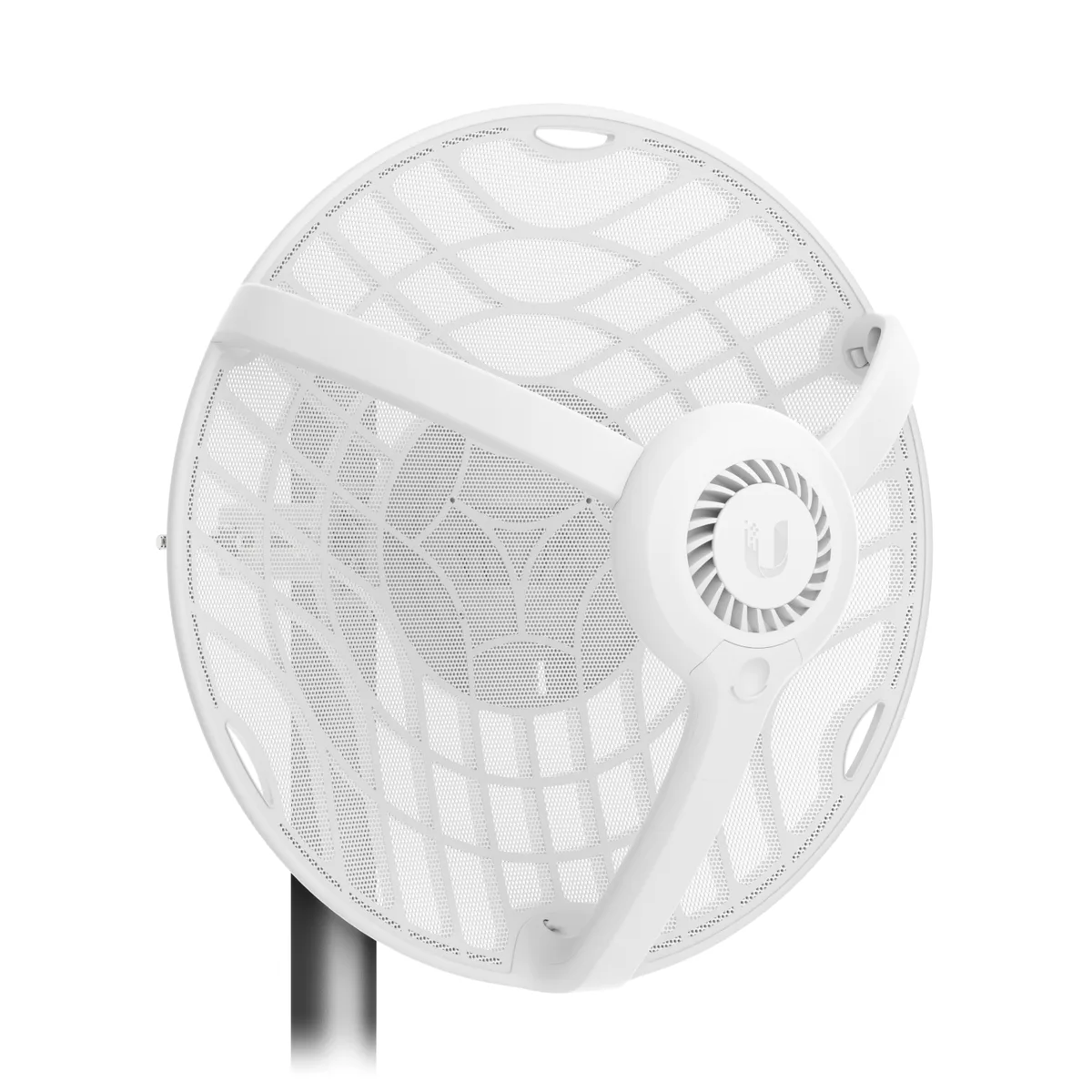

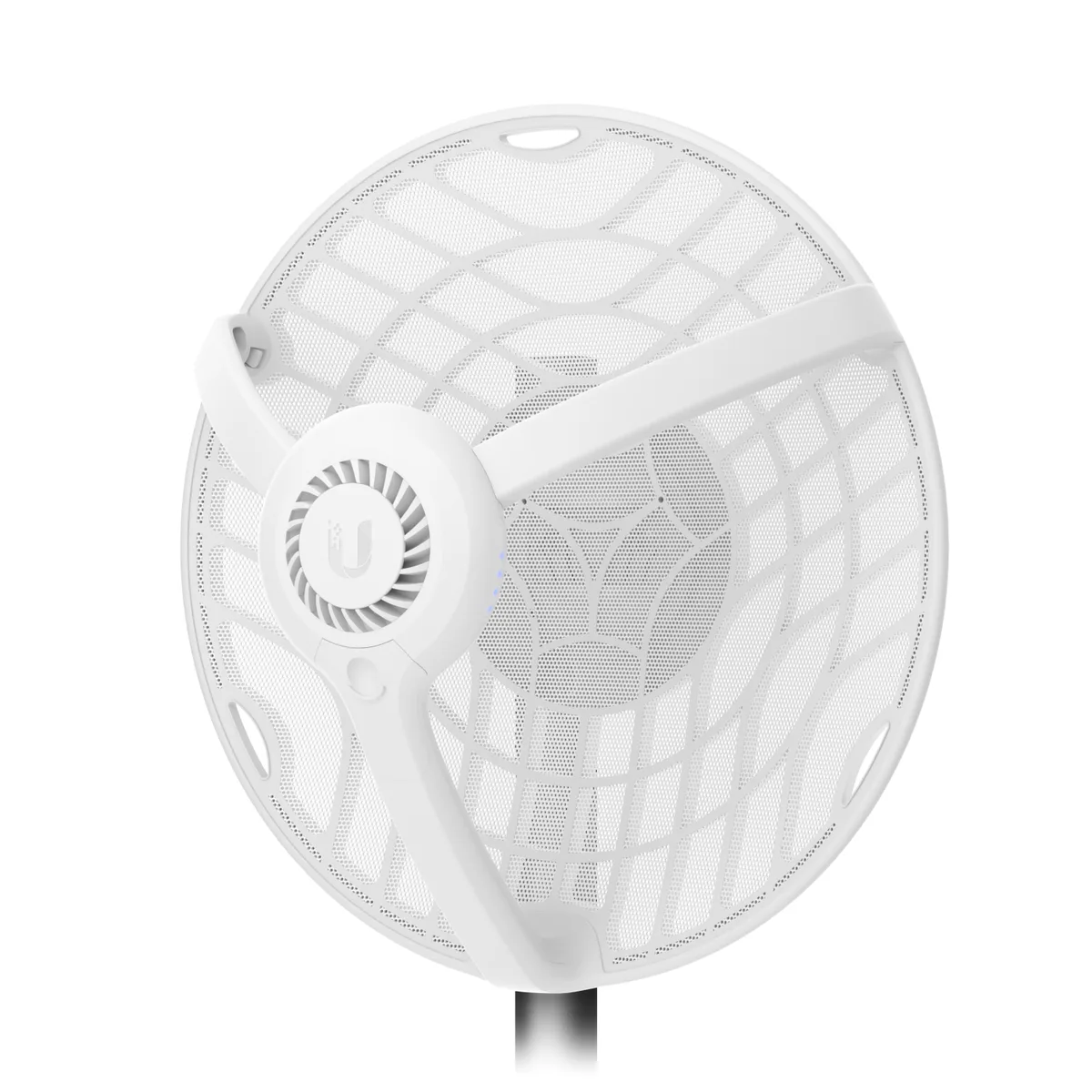

The Ubiquiti Networks AF60-LR is a long-range 60 GHz radio system designed for point-to-point links up to 12 km or as a client station in point-to-multipoint deployments with a Wave AP. It delivers up to 2 Gbps total throughput through a single GbE RJ45 port and operates in the 57–71 GHz band with vertically linear polarisation and a 1.6° beamwidth. The unit includes a precision alignment mount and integrated GPS for simplified aiming.
Precision alignment mount and PoE power

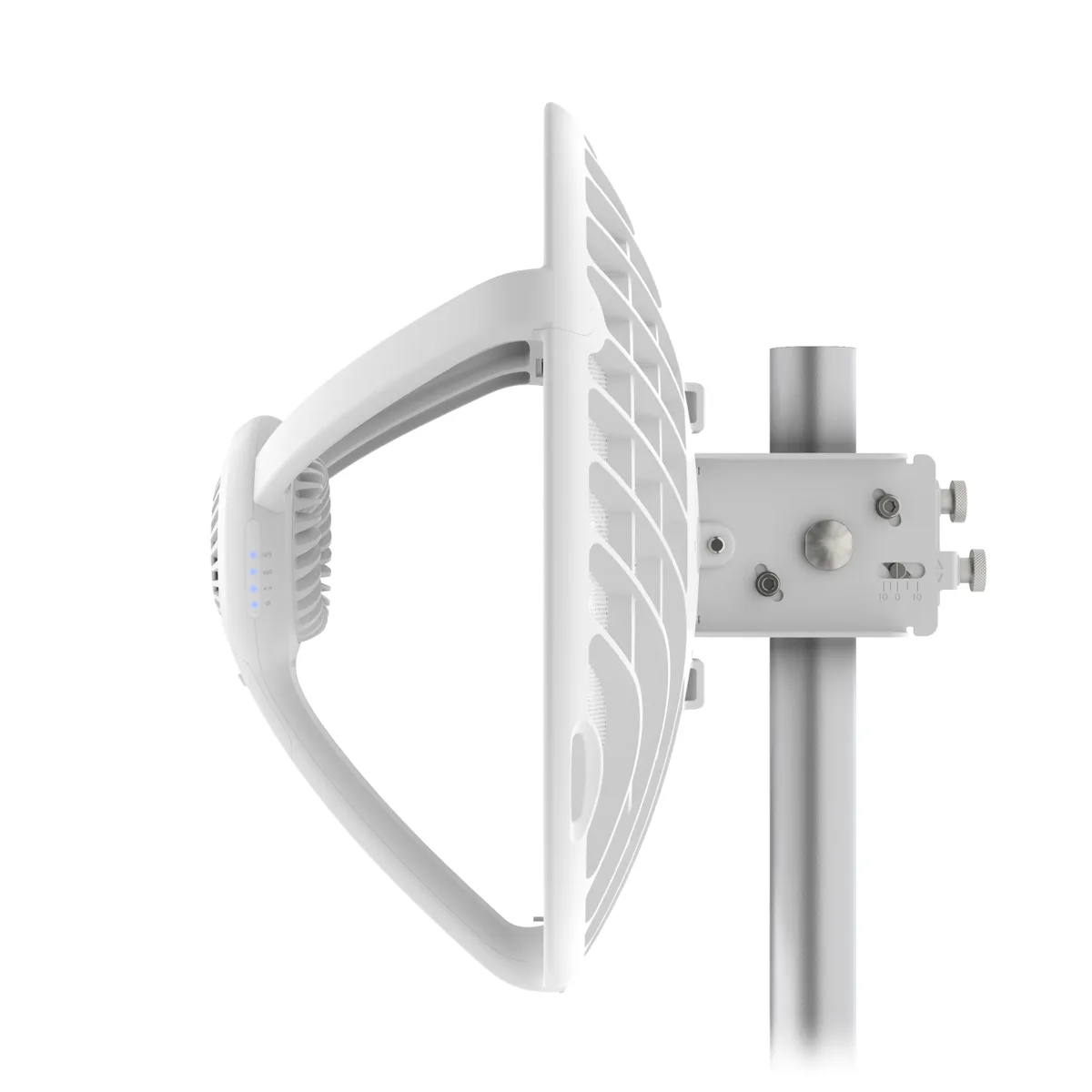

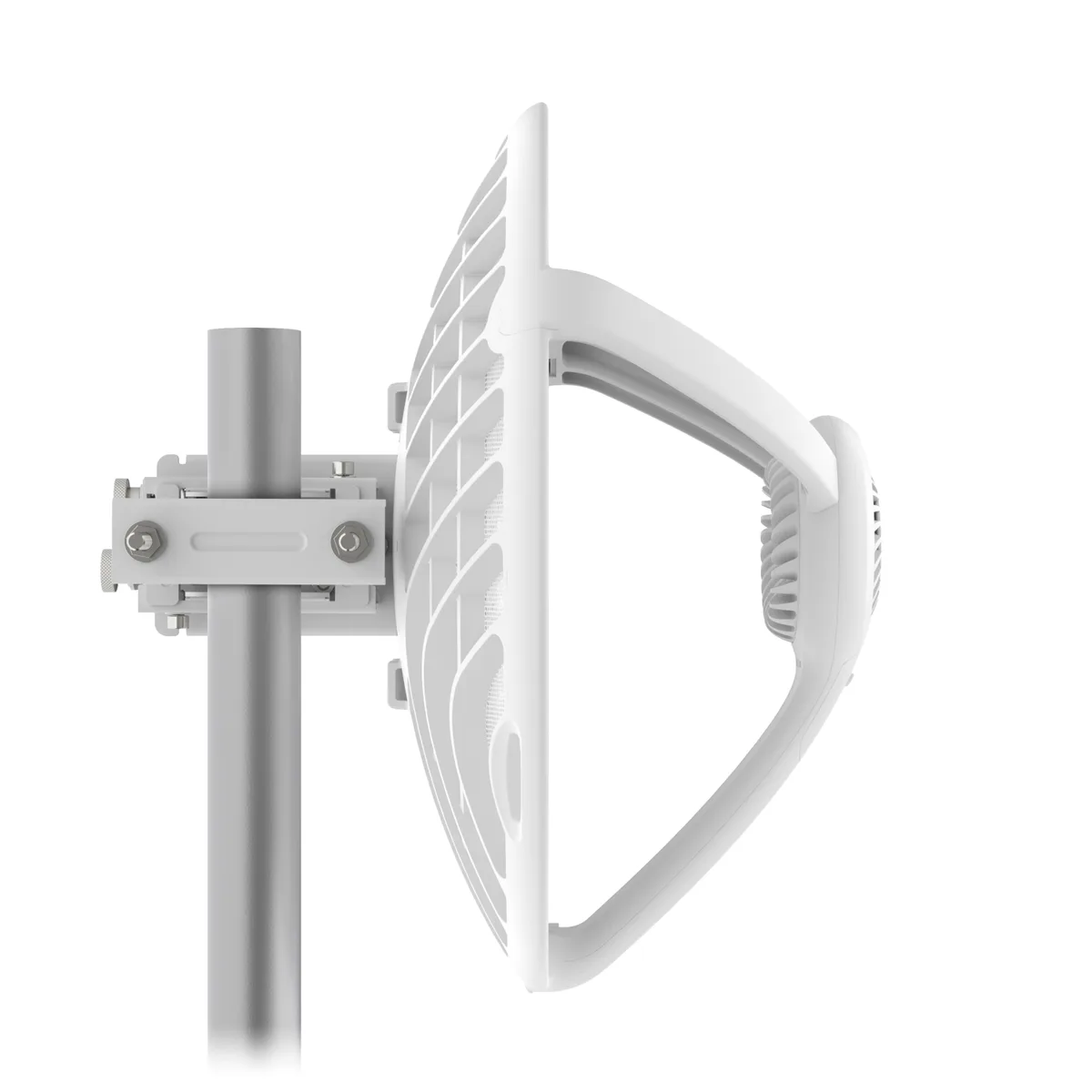

Installation uses the supplied precision alignment mount for fine azimuth and elevation adjustment while monitoring the 60G LED and GPS status indicators. Power is provided through the included 48 V DC 0.65 A gigabit passive PoE adapter using either four-pair or two-pair wiring on the single RJ45 port. The narrow 1.6° beamwidth means accurate aiming is critical; misalignment is the most common cause of link instability or failure to establish a connection.
Clear line of sight and UISP management
Before ordering verify that a clear optical line of sight exists between the two endpoints because 60 GHz signals do not penetrate obstacles or tolerate heavy rain fade over long distances. The device operates in the 57–71 GHz band subject to local regulatory limits and requires the UISP application for configuration and monitoring. A 44–54 V DC passive PoE source is needed; the included adapter satisfies this requirement. The operating temperature range spans -40 to 60 °C.
Highlights
- 12+ km link range for long-distance backhaul
- 2 Gbps maximum throughput for high-capacity links
- 6° narrow beamwidth focuses signal precisely
- Quad-core ARM Cortex-A7 processor handles traffic
- Passive PoE with included 48V adapter simplifies power
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | Wave 60 GHz |
| Model | AF60-LR |
| Frequency Band | RF Operating frequency* 57–71 Ghz * Depends on regulatory region. Channel bandwidth 2160, 1080 MHz Polarization Vertically linear Beamwidth Azimuth: 3 dB 1.6° Elevation: 3 dB 1.6° |
| LEDs | Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Ethernet Flashing blue: Ethernet activity GPS Blue: receiving at least (4) GPS satellite signals 60G Blue: active connection |
| LAN Ports | (1) GbE RJ45 port |
| Power Supply | Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only Power supply 48V DC, 0.65A gigabit PoE adapter (Included) Supported voltage range 44–54V DC 22–27V DC |
| Temperature | -40 to 60° C (-40 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | Ø413 x 360 mm (Ø16.3 x 14.2") |
| Weight | Without mount: 1.5 kg (3.3 lb) With mount: 2.7 kg (6 lb) |
| Features | Hardware Processor Quad-Core ARM® Cortex® A7 Memory 256 MB DDR3 Networking interface (1) GbE RJ45 port Software Operating mode PtP only Ubiquiti specific features Wave technology, discovery utility Network Bridge mode Services UISP, ping watchdog, NTP client Tools Antenna alignment, discovery utility, ping, trace route, speed test Software management Bluetooth management for easy setup over UISP app WEB UI Minimum software requirements Any modern web browser/iOS™ or Android™ based smartphone System Max. throughput 1.95 Gbps Max. range 12+ km Encryption WPA2-PSK (AES) |
| Shipping weight | 3.63 kg |
| Package size | 457 × 457 × 406 mm |
Questions about this item
How do I confirm the AF60-LR is linked and passing data after installation?
The Power LED shows solid blue when connected to the UISP application, the Ethernet LED flashes blue during traffic, the GPS LED turns blue once at least four satellites are acquired, and the 60G LED lights blue when the 60 GHz radio link is active.
What accessories are included in the box and what must I source separately?
The package contains the radio unit, a precision alignment mount and a 48 V DC 0.65 A gigabit PoE adapter; you must supply the Ethernet cable and any pole-mounting hardware for the 413 mm dish.
Which AF60-LR variant should I choose for a 12 km point-to-point link?
The AF60-LR is a single model delivering up to 2 Gbps total throughput over 12+ km in PtP mode; select it when you need the long-range 60 GHz dish with integrated GPS and the 1.6° beamwidth.
