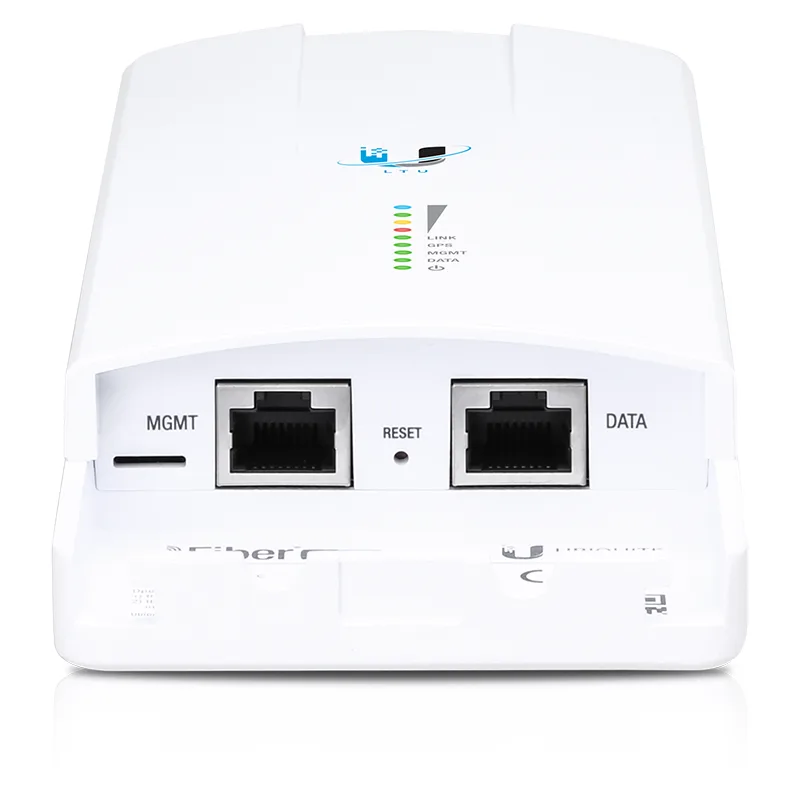

White rectangular outdoor radio unit with two RJ45 ports and integrated GPS module

Ubiquiti Networks

Ubiquiti Networks AF-5XHD-US access point

SKU CH-FJT9-VKQXG MPN AF-5XHD-US

5 GHz point-to-point radio delivering 1+ Gbps throughput over 100+ km links with selectable channel bandwidth up to 100 MHz and integrated GPS synchronisation

  • Frequency BandMax. TX power* 29 dBm *Depends on regional regulations. Freq
  • LAN Ports(2) GbE RJ45 ports
  • Power SupplyPower method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8
  • Temperature-40 to 55° C (-40 to 131° F)
  • Dimensions224 x 82 x 48 mm (8.8 x 3.2 x 1.9")
  • Weight0.4 kg (0.8 lb)
  • 1+ Gbps maximum throughput for high-capacity links
  • 100+ km range capability for long-distance deployments
  • Dedicated spectral analysis radio for interference monitoring
  • Integrated GPS synchronisation for precise frequency accuracy
  • IP67 upgrade kit included for outdoor durability

Built for WISP backhaul

The Ubiquiti Networks AF-5XHD-US is a 5 GHz point-to-point radio designed for wireless internet service providers who need licensed-band performance in unlicensed spectrum. It delivers 1+ Gbps throughput over distances up to 100 km using proprietary TDMA technology and a dedicated spectral analysis radio. The unit operates as a PtP master or slave and includes integrated GPS synchronisation for ±0.2 ppm frequency accuracy across sector deployments.

Passive PoE with wide voltage range

Power is supplied through a 24 V 1 A gigabit PoE adapter using either 2-pair or 4-pair passive PoE on the two GbE RJ45 ports, accepting 18–54 V DC input. Maximum power consumption is 24 W with a typical draw of 18 W, and the radio is rated for continuous operation from –40 °C to 55 °C without active cooling. AES-256 encryption and 2+ Mpps packet processing add minimal latency to the data path.

Compact IP67-ready form factor

The radio measures 224 x 82 x 48 mm and weighs 0.4 kg, mounting directly to compatible Ubiquiti airFiber X or RocketDish antennas for a complete outdoor link. An included IP67 upgrade kit seals the Ethernet and GPS connections against dust and water ingress. Dual GbE ports allow a wired backhaul or management path without extra switching hardware, and selectable channel bandwidths from 10 MHz to 100 MHz let the installer match spectrum availability.

Highlights

  • 1+ Gbps maximum throughput for high-capacity links
  • 100+ km range capability for long-distance deployments
  • Dedicated spectral analysis radio for interference monitoring
  • Integrated GPS synchronisation for precise frequency accuracy
  • IP67 upgrade kit included for outdoor durability

Specifications

BrandUbiquiti Networks
SeriesWireless
ModelAF-5XHD
Frequency BandMax. TX power* 29 dBm
*Depends on regional regulations.
Frequency accuracy ± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable
Programmable Uplink and Downlink duty cycles
Operating Frequency (MHz)
Worldwide 4800 - 6200 MHz*
*Depends on regional regulations.
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz
LAN Ports(2) GbE RJ45 ports
Power SupplyPower method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-)
Power supply 24V, 1A gigabit PoE adapter (Included)
Supported voltage range 18—54V DC
Max. power consumption 12W
Temperature-40 to 55° C (-40 to 131° F)
Dimensions224 x 82 x 48 mm (8.8 x 3.2 x 1.9")
Weight0.4 kg (0.8 lb)
FeaturesSoftware
Modes PtP Master/Slave
Max. throughput 1+ Gbps
Max. range* 100+ km
*Throughput and range values may vary depending on the environmental conditions.
Encryption AES-256
Shipping weight1.36 kg
Package size311 × 260 × 198 mm

Questions about this item

How do I mount the AF-5XHD and align it, and what step do installers often miss?

Mount the radio on a compatible Ubiquiti 5 GHz antenna using the included bracket, then aim precisely using the built‑in alignment tone; the step often missed is enabling GPS sync before final torque so frequency accuracy reaches ±0.2 ppm instead of ±2.5 ppm.

What component will need replacement first on a long‑term PtP link?

The passive PoE injector (24 V, 1 A) is the only field‑replaceable part; the radio itself has no moving components or user‑serviceable modules, so plan to swap the injector if power delivery degrades after years of outdoor exposure.

At what sustained throughput does the link hit its first hard limit?

The radio’s processing ceiling is 2+ Mpps; at maximum 100 MHz channel width this translates to the advertised 1+ Gbps throughput, so sustained traffic above that packet rate will queue or drop before any thermal or power limit is reached.
