Compact rail-mountable 8-port PoE switch with dual DC power inputs

Tycon Power

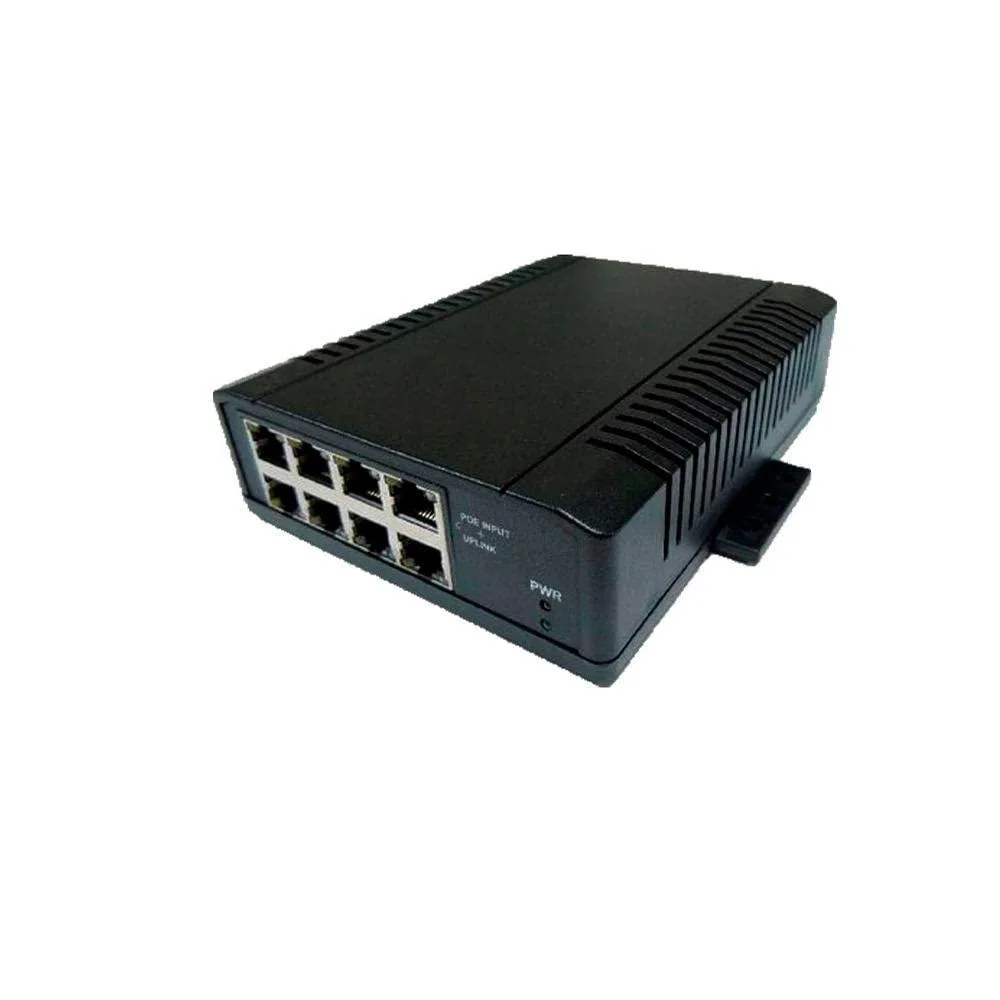

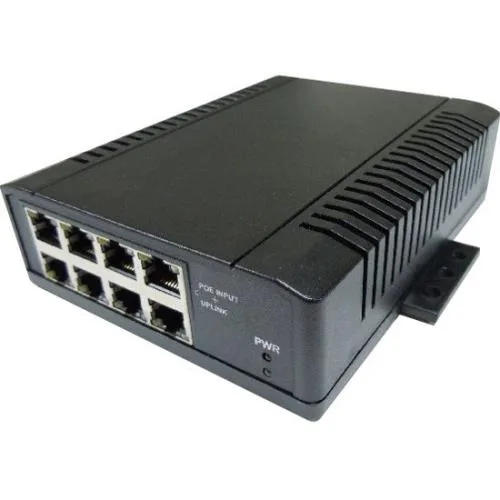

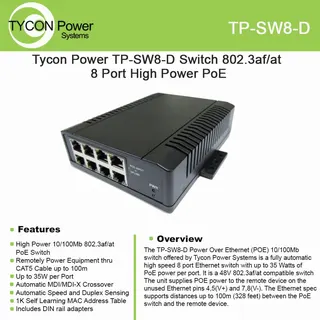

Tycon Power TP-SW8-D 8 Port 10/100 POE Switch

SKU CH-RFEC-4QFH1

Eight-port 10/100 PoE switch delivering up to 35 watts per port with dual 46–57 V DC inputs for redundant power

  • FormatRail-mountable
  • Network Management TypeEthernet Switch
  • Uplink PortsNo
  • Uplink InterfacePoE
  • Primary Ports8 x Fast Ethernet Network Fast Ethernet
  • Primary Port Speed10/100Base-T
  • Up to 35 W PoE per port powers devices
  • 8 Fast Ethernet ports connect up to eight endpoints
  • 48 V 802.3af compliant for wide device compatibility
  • Dual 46–57 V DC inputs provide redundant power
  • 100 m / 328 ft cable reach per port

Eight-port 10/100 PoE switch

The Tycon Power TP-SW8-D delivers eight Fast Ethernet ports with Power over Ethernet for cameras, access points and other remote devices. Each port supplies up to 35 watts under the 802.3af standard, and the unit accepts 46 V to 57 V DC from primary and secondary sources. Rail-mount format suits equipment cabinets and industrial enclosures.

35 W per port and 100 m reach

Every port can provide 35 W, giving comfortable headroom for most 802.3af-class endpoints such as VoIP phones and basic IP cameras. Devices requiring 802.3at Class 4 power above 35 W will exceed the per-port budget, and the 10/100 link caps throughput at 100 Mbps for bandwidth-heavy loads. The 100 m distance limit applies to standard copper cabling.

Dual DC inputs for redundancy

Two power terminals let installers connect a primary and a backup 46–57 V source, so a single supply failure does not drop connected devices. Power is injected on pins 4,5 and 7,8, leaving data pairs untouched. No management software or uplink ports are included, so the switch operates as a transparent, unmanaged segment.

Highlights

  • Up to 35 W PoE per port powers devices
  • 8 Fast Ethernet ports connect up to eight endpoints
  • 48 V 802.3af compliant for wide device compatibility
  • Dual 46–57 V DC inputs provide redundant power
  • 100 m / 328 ft cable reach per port

Specifications

BrandTycon Power
SeriesTP-SW8
ModelTP-SW8-D
Part NumberTP-SW8-D
FormatRail-mountable
Network Management TypeEthernet Switch
Uplink PortsNo
Uplink InterfacePoE
Primary Ports8 x Fast Ethernet Network Fast Ethernet
Primary Port Speed10/100Base-T
Primary Port TypePoE
Power,
Weight1 pounds
Temperature,

Questions about this item

Will the 10/100Base-T PoE ports slow down my existing Gigabit router or NVR?

The switch runs at 10/100 Mbps, so any device connected to it will negotiate at that speed; your Gigabit uplink will simply step down for those links.

How can I confirm each port is delivering up to 35 W of PoE after installation?

Check the port-status LEDs — a solid PoE indicator means the switch has detected an 802.3af/at device and is supplying power on pins 4,5 and 7,8.

Does the box include the 46–57 V DC power supply or must I source it separately?

The unit ships without a power supply; you must provide a 46 V to 57 V DC source for the dual redundant inputs.
