Compact metal DIN-rail switch with five Ethernet ports and status LEDs

Tycon Power

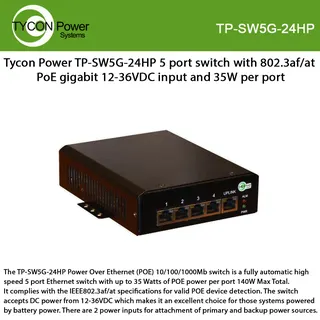

Tycon Power TP-SW5G-24HP 5 port 10/100/1000BASE-T PoE switch

SKU CH-XSRW-26AP7

A 5-port Gigabit PoE switch delivering 140 W total power from a 12-36 VDC input, DIN-rail mountable with a metal housing

  • FormatDIN Rail Mount
  • LEDsLink (Green On), Activity (Green Blinking ); PoE Detect (Yel
  • Dimensions159 x 118 x 40mm (6.3 x 4.6 x 1.6”) (HP version has metal ho
  • Weight383g (13.5oz)
  • TemperatureStorage Temperature -55 to +85°C (-67 to +185°F)
  • Total 140 W PoE budget powers multiple devices
  • 11-36 V DC input suits industrial power systems
  • IEEE 802.3 af/at delivers standard 48 V PoE
  • DIN rail metal housing fits rugged enclosures
  • Wide -55 to +85 °C storage range handles harsh environments

Industrial DIN-rail PoE switch

The Tycon Power TP-SW5G-24HP is a five-port Gigabit switch that delivers IEEE 802.3 at/af power over Ethernet from an 11-36VDC supply. It is built for integrators who need to run cameras, access points or sensors from a single low-voltage feed inside cabinets or enclosures.

Outdoor installers and mobile power users

Technicians running 12V or 24V battery banks can power the unit directly without an extra converter. Sites that require AC mains input, fiber uplinks or more than five powered devices should look at a different platform.

140W total PoE budget

The switch provides up to 140W of combined PoE output across its copper ports at 48V. If the connected load exceeds this figure the unit will not supply enough power for all ports simultaneously.

Highlights

  • Total 140 W PoE budget powers multiple devices
  • 11-36 V DC input suits industrial power systems
  • IEEE 802.3 af/at delivers standard 48 V PoE
  • DIN rail metal housing fits rugged enclosures
  • Wide -55 to +85 °C storage range handles harsh environments

Specifications

BrandTycon Power Systems
SeriesTP-SW5
ModelTP-SW5G-24HP
FormatDIN Rail Mount
LEDsLink (Green On), Activity (Green Blinking ); PoE Detect (Yellow On), PoE Detect Error (Yellow Blinking) Power On (Green On), Power On Alarm (Red On)
Dimensions159 x 118 x 40mm (6.3 x 4.6 x 1.6”) (HP version has metal housing)
Weight383g (13.5oz)
TemperatureStorage Temperature -55 to +85°C (-67 to +185°F)

Questions about this item

How much total PoE power can the switch deliver before ports start dropping?

The TP-SW5G-24HP supplies up to 140 W of combined PoE output across its five gigabit ports.

Does the metal housing stay cool enough for continuous DIN-rail mounting?

Rated for storage from -55 °C to +85 °C, the aluminium case passively dissipates heat without fans.

What DC voltage source is required to power the switch itself?

The unit accepts 11 V to 36 V DC input to generate the 48 V PoE output.
