Tycon TP-POE-HP-48Dx2 PoE injector dual 56 VDC 50 W

Tycon Power Systems

Tycon Power Systems TP-POE-HP-48Dx2 PoE injector dual 56 VDC 50 W

SKU CH-5D4M-Q8QAC

Dual 802.3af/at outputs deliver 25 W per port from a single 120/240 VAC inlet with isolated 56 VDC power and full surge protection

  • DisclaimerNote: this ad is selling single units (not 2 pack)
  • Powers two devices from one injector with dual 802.3af/at outputs
  • Delivers 50 W total or 25 W per port for high-power equipment
  • Accepts 120/240 VAC input with North American power cord included
  • Built-in surge protection on all eight wires guards against ESD and lightning
  • Isolated input and output voltage prevents grounding and negative-voltage issues

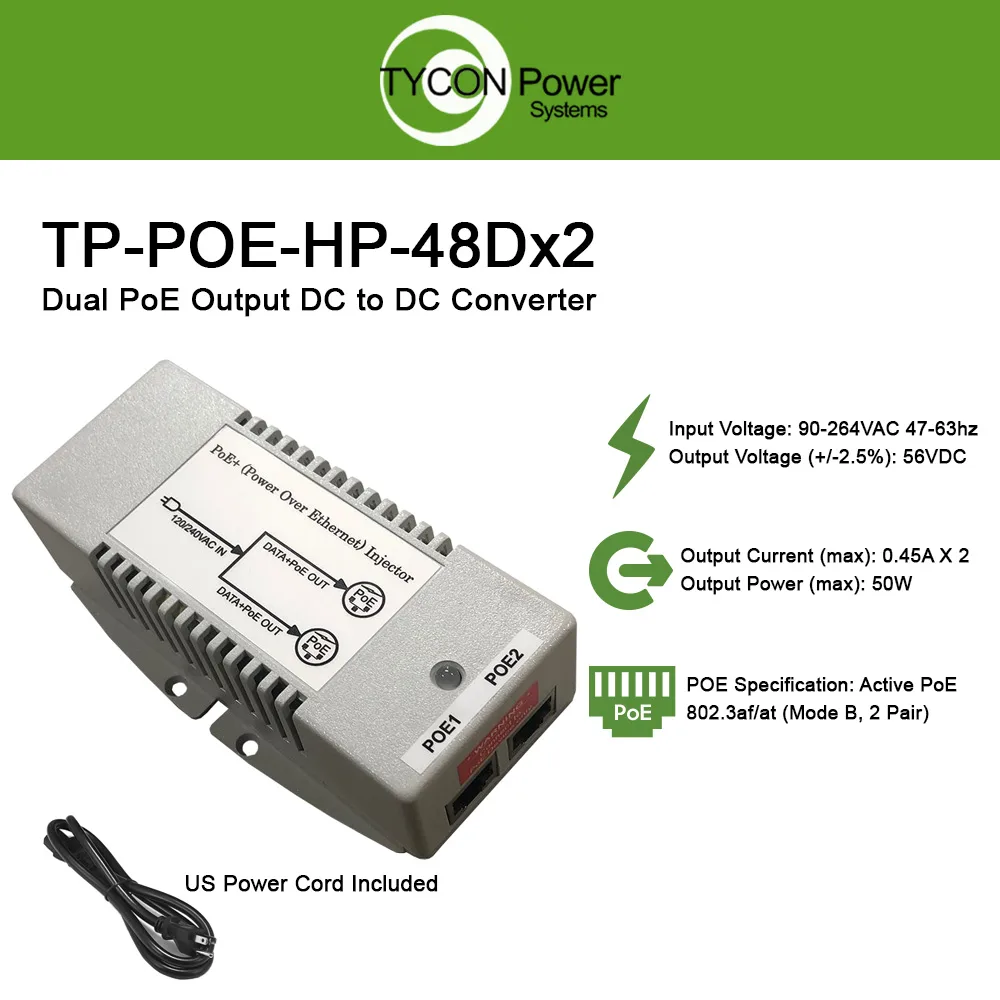

Dual-output PoE injector

The TP-POE-HP-48Dx2 is a high-power Power over Ethernet injector designed for installers who need to supply two compatible devices from one AC source. It delivers dual 802.3af/at outputs with a combined 50 W budget, splitting 25 W per port for wireless access points or IP cameras.

Single AC feed two devices

A standard removable North American power cord connects the unit to 120 or 240 VAC mains, eliminating the need for a separate PoE switch. The injector handles the data path internally so each connected device receives both power and network connectivity through a single cable run.

Isolated surge-protected design

Input and output voltages are isolated to prevent grounding or negative voltage issues across the installation. Built-in protections cover short circuit, overload and ESD or lightning surges on all eight wires of each data and PoE line.

Highlights

  • Powers two devices from one injector with dual 802.3af/at outputs
  • Delivers 50 W total or 25 W per port for high-power equipment
  • Accepts 120/240 VAC input with North American power cord included
  • Built-in surge protection on all eight wires guards against ESD and lightning
  • Isolated input and output voltage prevents grounding and negative-voltage issues

Specifications

BrandTycon Power Systems
ModelTP-POE-HP-48Dx2
DisclaimerNote: this ad is selling single units (not 2 pack)

Questions about this item

What is the total power budget the injector can sustain across both ports?

The unit delivers 50 W total, split as 25 W per port, so the combined draw cannot exceed 50 W under sustained load.

How much heat or fan noise should I expect when it runs continuously?

The injector has no fan and relies on passive cooling; it stays cool during all-day operation with no audible noise.

Which cables and devices must I already have to make the injector work?

You need a standard AC power cord for 120/240 V input, two Ethernet cables, and two 802.3af/at PoE devices such as wireless APs or IP cameras.
