Compact white PoE injector with two shielded RJ45 ports and AC power input

Tycon Power Systems

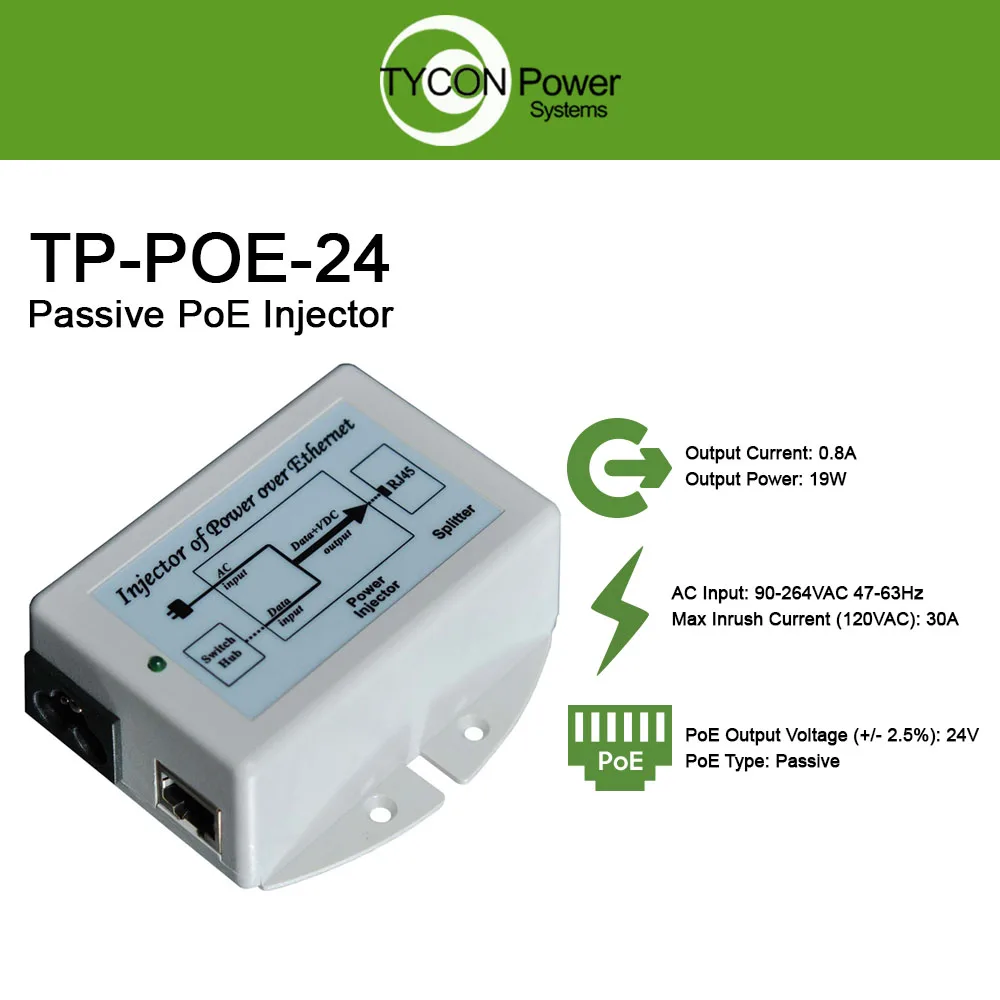

Tycon Power Systems TP-POE-24 24W PoE Injector wireless accessory

SKU CH-2S00-D3KMQ MPN TP-POE-24

A 24 W PoE injector delivering regulated DC power over Ethernet up to 100 m

  • TypePoE Injector
  • Delivers up to 24W to power remote devices
  • Surge protected data output safeguards connected equipment
  • Autoranging 90-264VAC input works worldwide
  • Supports Ethernet runs up to 100m (328 feet)
  • Regulated DC output with 5% load regulation

24 W PoE injector for remote devices

The TP-POE-24 is a midspan power source that adds Power over Ethernet to an existing data link. It accepts a 90–264 VAC supply and delivers up to 24 W of regulated DC voltage on pins 4,5 (V+) and 7,8 (V-). Surge, short-circuit, overload and overvoltage protection are built in. The unit supports cable runs up to 100 m.

Installers needing simple midspan power

This injector suits technicians who need to power a single PoE device such as a wireless access point or IP camera without a PoE switch. It is not for buyers who require 802.3af or 802.3at negotiation, Gigabit Ethernet passthrough, or more than 24 W of output power.

24 W maximum output power

The injector provides up to 24 W at 18 V, 24 V or 48–56 V DC with load regulation within 5 %. This single figure determines whether the unit can supply the connected device reliably.

Highlights

  • Delivers up to 24W to power remote devices
  • Surge protected data output safeguards connected equipment
  • Autoranging 90-264VAC input works worldwide
  • Supports Ethernet runs up to 100m (328 feet)
  • Regulated DC output with 5% load regulation

Specifications

BrandTycon
ModelTP-POE-24
TypePoE Injector

Questions about this item

How is the TP-POE-24 installed and what is the common wiring mistake?

Connect AC power (90-264VAC), plug the network cable into the shielded data-in RJ45, then run the output cable up to 100m to the remote device. The step often missed is using pins 4,5 for V+ and 7,8 for V-; reversing them will prevent the device from powering up.

What maintenance or replacement will the TP-POE-24 need over time?

The unit has no user-serviceable parts or filters. If the surge protection absorbs a large strike, the internal components may sacrifice themselves and the whole injector must be replaced. Otherwise it runs maintenance-free for years.

What limit appears first when the TP-POE-24 runs continuously at full load?

The 24W output ceiling is reached before any thermal or distance limit. At maximum draw the regulator holds voltage within 5%, but you cannot exceed 24W total; the 100m Ethernet distance and 90-264VAC input range remain unchanged.
