Compact metal PoE injector with dual shielded RJ45 ports

Tycon Power Systems

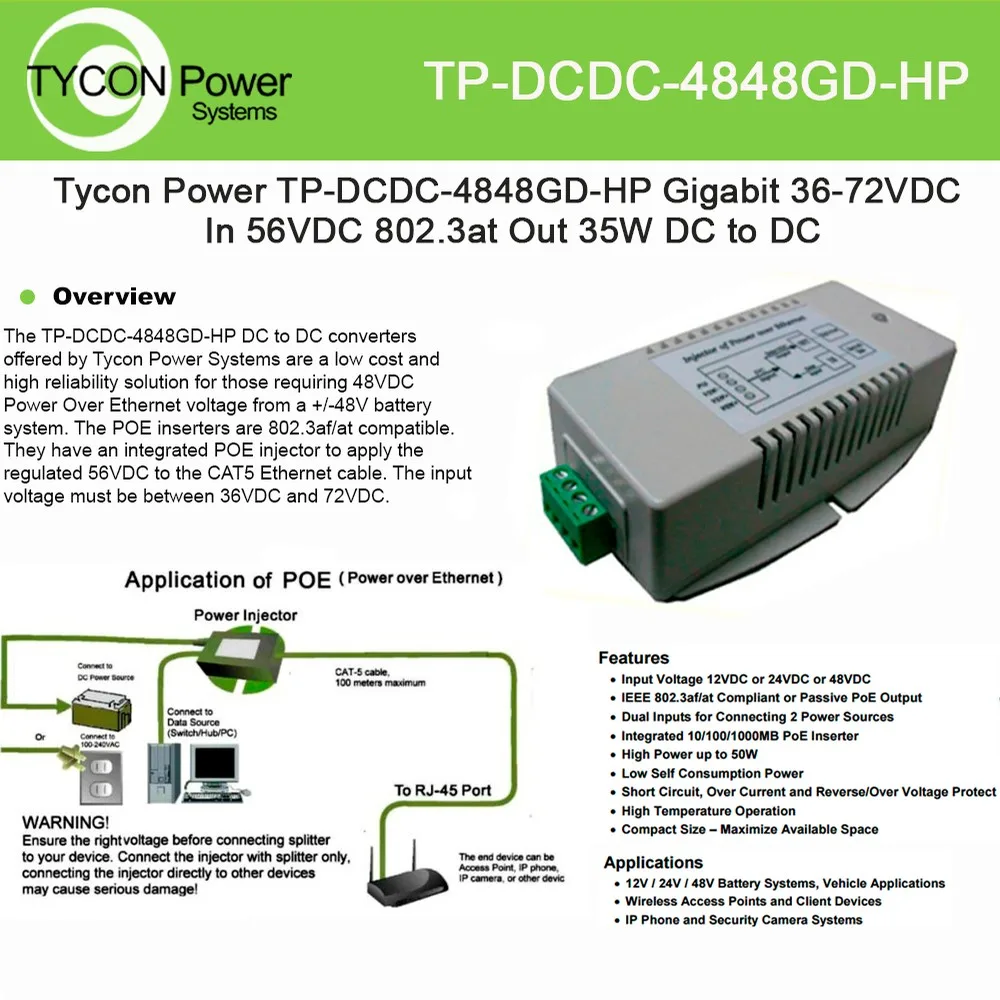

Tycon Power Systems TP-DCDC-4848GD-HP 36-72VDC 56V 35W PoE injector

SKU CH-QNNP-8Y5KS MPN TP-DCDC-4848GD-HP

Converts 36-72VDC input to 56VDC 35W PoE+ output for gigabit Ethernet devices

  • TypePoE Injector
  • Wide 36-72VDC input suits vehicle and battery systems
  • Delivers 56V 35W PoE+ for high-power access points and cameras
  • Dual DC inputs provide redundancy from two power sources
  • Gigabit 10/100/1000MB data pass-through maintains full network speed
  • Built-in short-circuit, over-current and voltage protection ensures safe operation

Power-over-Ethernet injector for 36–72 VDC systems

The TP-DCDC-4848GD-HP accepts a wide 36 to 72 VDC input and delivers regulated 56 VDC PoE+ output up to 35 W. It is built for installers powering wireless access points, IP phones or security cameras from 12 V, 24 V or 48 V battery banks. Dual power inputs allow connection of two sources for redundancy in vehicle or remote-site deployments.

Replaces separate DC-DC converter and PoE inserter

A single unit now handles both voltage conversion and 802.3 at-compliant insertion on the data line. The upgrade is worthwhile when existing gear requires 48 VDC PoE but only 12 V, 24 V or 48 V nominal battery voltage is available. Integrated short-circuit, over-current and reverse-voltage protection removes the need for external protection modules.

35 W headroom for Gigabit PoE+ devices

The injector supplies up to 35 W on pins 4, 5 (V+) and 7, 8 (V-) while passing 10/100/1000 Mbps data through shielded RJ45 jacks. It comfortably runs high-power access points and PTZ cameras that draw the full 802.3 at budget. Installations needing more than 35 W or voltages outside the 36–72 VDC window will require a different power architecture.

Highlights

  • Wide 36-72VDC input suits vehicle and battery systems
  • Delivers 56V 35W PoE+ for high-power access points and cameras
  • Dual DC inputs provide redundancy from two power sources
  • Gigabit 10/100/1000MB data pass-through maintains full network speed
  • Built-in short-circuit, over-current and voltage protection ensures safe operation

Specifications

BrandTycon
TypePoE Injector

Questions about this item

What DC voltage range must the power source provide for the 36-72VDC input?

The injector requires a DC source between 36 V and 72 V; it will not operate outside this window.

Which Ethernet pins carry the 56 V PoE output on the shielded RJ45 jack?

Power is delivered on pins 4 and 5 for positive and pins 7 and 8 for negative.

What protects the unit if a connected device draws more than 35 W?

Built-in over-current and short-circuit protection shuts down the output until the fault is cleared.
