Compact silver metal box with two shielded RJ45 ports and DC terminals

Tycon Power Systems

Tycon Power Systems TP-DCDC-2448GD-HP 18-36VDC In 56VDC 802.3af/at Out 35W

SKU CH-0AFG-XMKFS

Converts 18-36VDC battery power to 56VDC 802.3af/at PoE with integrated Gigabit injector for 35W output

  • Delivers 35W PoE from 18-36VDC battery systems
  • Integrated Gigabit 802.3af/at injector supplies 56VDC on unused Ethernet pins
  • Surge, short-circuit and overload protections safeguard connected equipment
  • Shielded RJ45 pass-through carries data while adding PoE power
  • High-reliability DC-to-DC converter designed for wireless AP deployments

Tycon 35W PoE Converter

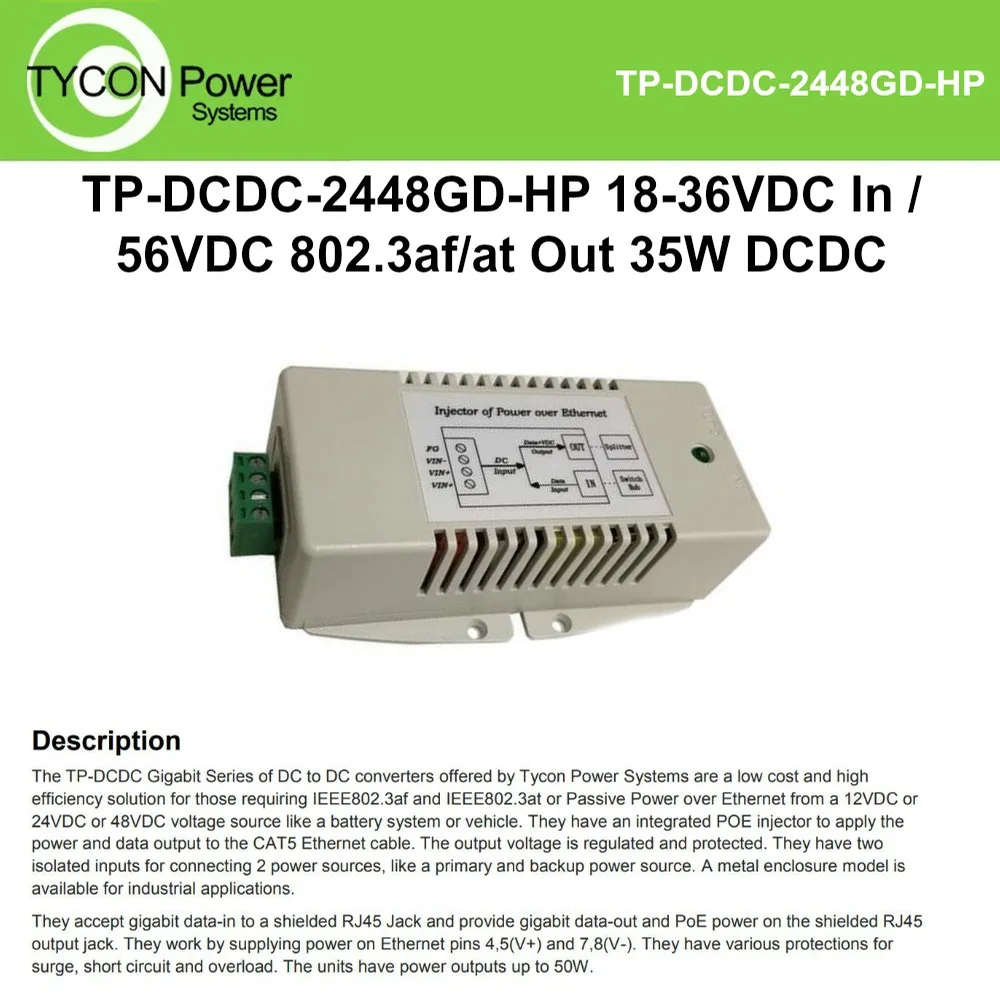

The Tycon TP-DCDC-2448GD-HP converts 18-36VDC battery input into regulated 56VDC Power over Ethernet output. It delivers up to 35W compliant with 802.3 af/at standards. An integrated Gigabit-compatible injector applies power to the spare pairs of a shielded CAT5 cable. The unit accepts data on one RJ45 jack and outputs both data and power on the other.

Sustained 35W output with protection

The converter maintains its full 35W rating continuously rather than only in short bursts. Built-in surge, short-circuit and overload protections defend the connected access point and the power source during prolonged operation. The regulated 56VDC output remains stable across the entire 18-36VDC input range. This makes it suitable for permanent installations where the load is constant.

802.3 af/at defines the power ceiling

The 802.3 af/at standard caps delivered power at the level this unit provides, so devices requiring more than 35W cannot be supported. Power is transmitted on Ethernet pins 4, 5, 7 and 8, limiting compatibility to equipment that accepts PoE on those conductors. The Gigabit data path passes through without bandwidth reduction, but the injector does not negotiate higher power classes.

Highlights

  • Delivers 35W PoE from 18-36VDC battery systems
  • Integrated Gigabit 802.3af/at injector supplies 56VDC on unused Ethernet pins
  • Surge, short-circuit and overload protections safeguard connected equipment
  • Shielded RJ45 pass-through carries data while adding PoE power
  • High-reliability DC-to-DC converter designed for wireless AP deployments

Specifications

BrandTycon Power Systems
ModelTP-DCDC-2448GD-HP

Questions about this item

Does the TP-DCDC-2448GD-HP run hot or draw much power when it operates 24/7?

It delivers 35W of regulated 56VDC PoE from an 18-36VDC source and includes overload protection, so heat and draw stay within that 35W envelope during continuous operation.

What must I already have to make the TP-DCDC-2448GD-HP work?

You need an 18-36VDC battery or power supply, a shielded CAT5 cable for the data-in port, and an 802.3af/at-compatible device to receive PoE on the output jack.

Will the TP-DCDC-2448GD-HP power my older 802.3af access point alongside newer 802.3at gear?

Yes, the converter outputs 56VDC compliant with both 802.3af and 802.3at standards, so legacy af devices and newer at devices can be powered from the same 35W supply.
