Small black rectangular circuit board with green components and adjustable knob visible

tuanyuan

tuanyuan XL4005 DSN5000 DC-DC step-down module 5A

SKU CH-XB6E-1QQPY

Adjustable step-down module converts 5 V–32 V input to 0.8 V–24 V at up to 5 A with 90 % efficiency

  • ColorBlack
  • Delivers up to 5 A peak current for high-power DIY projects
  • Adjustable output from 0.8 V to 24 V suits varied voltage needs
  • Up to 96 % conversion efficiency reduces heat and saves energy
  • Compact 43 × 21 × 14 mm footprint fits tight enclosures
  • Operates reliably from –40 °C to +85 °C for harsh environments

Compact step-down module for DIY power projects

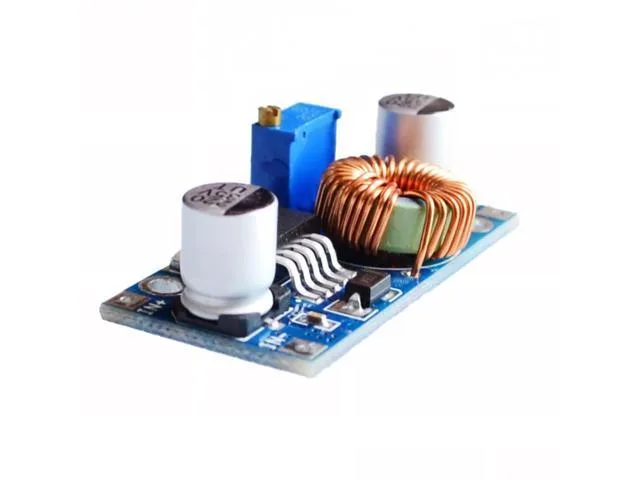

The XL4005 DSN5000 is a buck converter board rated for 5 A peak output. It accepts an input range of 5 V to 32 V and delivers an adjustable 0.8 V to 24 V output. Hobbyists building mobile power banks, car chargers or communications gear can use it as a compact voltage regulator.

Thermal behaviour and efficiency at load

Conversion efficiency reaches 90 % under typical conditions and can approach 96 % depending on the voltage differential. The supplier notes that operation above 3.5 A requires additional cooling; a heatsink allows sustained loads up to 75 W. Without extra cooling the board is intended for loads around 50 W.

Five-amp peak current defines the use case

The 5 A peak rating is the single figure that determines whether this module fits a project. Designs needing more than 4.5 A continuous current should plan for forced airflow or a larger heatsink. Builders whose load stays below that threshold can rely on the on-board regulation and short-circuit protection.

Highlights

  • Delivers up to 5 A peak current for high-power DIY projects
  • Adjustable output from 0.8 V to 24 V suits varied voltage needs
  • Up to 96 % conversion efficiency reduces heat and saves energy
  • Compact 43 × 21 × 14 mm footprint fits tight enclosures
  • Operates reliably from –40 °C to +85 °C for harsh environments

Specifications

ColorBlack

Questions about this item

How do I wire the XL4005 DSN5000 module and what polarity mistake should I avoid?

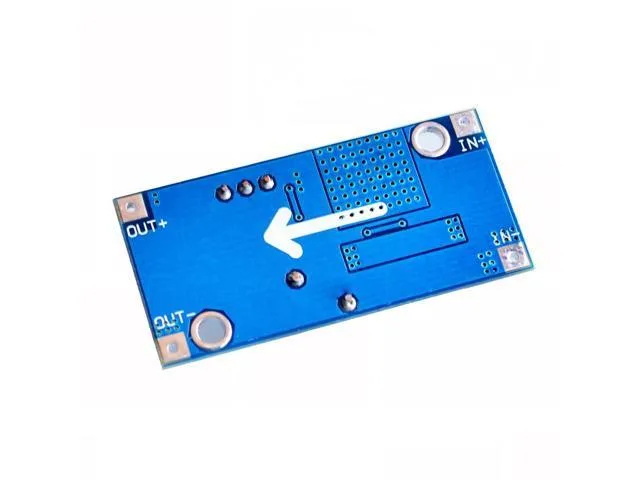

Connect the input terminals to a 5 V to 32 V source observing the marked polarity; reversing the supply will damage the IC. Adjust the onboard potentiometer to set the output between 0.8 V and 24 V, then verify with a multimeter before loading the circuit.

When will the XL4005 DSN5000 need a heatsink or fan replacement?

The module runs up to 50 W without extra cooling; above that, up to 75 W, a heatsink is required. If the heatsink fins become clogged with dust or the thermal paste dries out after prolonged use, clean or reapply paste to maintain safe temperatures.

At what load does the XL4005 DSN5000 hit its thermal limit first during continuous operation?

Sustained output above 3.5 A causes the board to reach its thermal ceiling before the 5 A peak rating; adding a heatsink shifts the limit higher, but the 75 W ceiling remains the hard boundary for continuous use.
