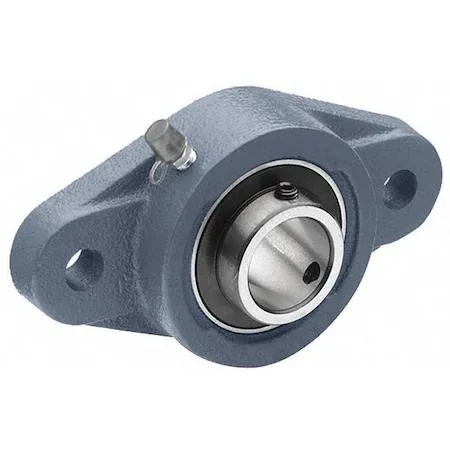

Blue cast iron rhombus flange bearing with two mounting holes

Tritan

Tritan UCFL210-32 2 Bolt Flange Bearing Radial Ball

SKU CH-AQ4Y-Q5JQK

Two-bolt flange bearing with a 2-inch cylindrical bore, cast-iron rhombus housing and double-sealed radial ball insert rated from -40 to 250 degrees F

  • TypeBearings, V-belts & Power Transmission Equipment
  • ColorBlue
  • Radial ball bearing handles high-speed rotation
  • Double-sealed closure keeps contaminants out
  • Cast iron rhombus housing provides rigid mounting
  • Two-bolt flange simplifies installation and alignment
  • Operates from -40 °F to 250 °F

Industrial Flange Bearing for Radial Loads

The Tritan UCFL210-32 is a two-bolt flange bearing designed for radial ball applications. It suits maintenance teams and OEM builders who need a fixed housing unit for shafts requiring reliable support in power transmission systems.

Cast Iron Rhombus Housing with Double Seals

The unit mounts via two holes on a rhombus-pattern cast iron housing measuring 7 3/4 in overall length and 4 17/32 in overall width. A cylindrical bore of 2 in accepts the shaft directly while the double-sealed closure retains the NLGI #2 equivalent lubricant and excludes contaminants.

Fixed Expansion Across Wide Temperature Range

The bearing operates from -40 Degrees F to 250 Degrees F without expansion compensation, making it suitable for sustained duty in environments where thermal cycling occurs. The alloy steel insert with a single row of rolling elements maintains consistent radial capacity throughout the temperature span.

Highlights

  • Radial ball bearing handles high-speed rotation
  • Double-sealed closure keeps contaminants out
  • Cast iron rhombus housing provides rigid mounting
  • Two-bolt flange simplifies installation and alignment
  • Operates from -40 °F to 250 °F

Specifications

BrandTRITAN
TypeBearings, V-belts & Power Transmission Equipment
ColorBlue

Questions about this item

At what temperature does the bearing reach its thermal limit during continuous operation?

The maximum operating temperature is 250 Degrees F, beyond which the bearing should not run continuously.

How much heat and noise should I expect when this bearing runs all day?

Cast iron housing and NLGI #2 equivalent lubricant keep heat and noise low during sustained use.

What mounting hardware must I already have to install this two-bolt flange bearing?

You need two bolts that match the 2 mounting holes on the rhombus housing.
