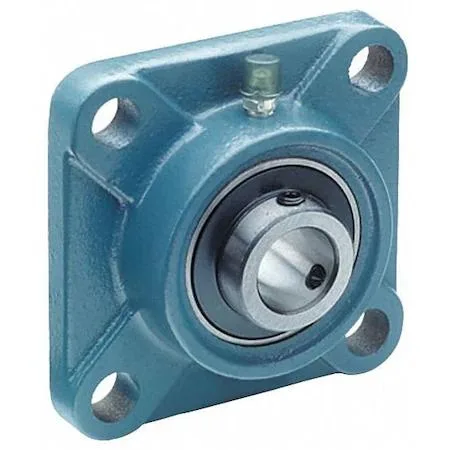

Blue cast-iron square flange bearing with four bolt holes

Tritan

Tritan UCF214-44 Flange Bearing collectible

SKU CH-BJEM-285SP

A cast-iron, four-bolt flange bearing with a 2-3/4" cylindrical bore and double-sealed radial ball insert

  • TypeBearings, V-belts & Power Transmission Equipment
  • ColorBlue
  • Double-sealed closure keeps contaminants out at 250 degrees F
  • Cast-iron housing handles heavy loads with four-bolt mounting
  • Alloy-steel radial ball insert runs smooth from -40 degrees F
  • Pre-lubricated with NLGI #2 equivalent for ready installation
  • Square flange design simplifies alignment on 5 63/64 in centers

Product Identity

This is a new Tritan UCF214-44 four-bolt flange bearing supplied as a sports memorabilia collectible. It features a cast-iron square housing with a 2-3/4 inch cylindrical bore and includes the UC214-44 radial ball insert made from alloy steel. The unit arrives double sealed with NLGI #2 equivalent lubricant already applied.

Build and Mounting Implications

The blue cast-iron housing provides rigid mounting through four bolt holes on a 5 63/64 inch center-to-center pattern with an overall height and length of 7 19/32 inches. Fixed expansion type means the bearing does not accommodate axial shaft float, so alignment must be precise during installation. Double seals protect the rolling elements from contaminants in dirty environments.

Thermal and Power Behaviour

Operating temperature range spans from -40 to 250 degrees Fahrenheit, allowing use in both freezing and high-heat conditions without relubrication intervals dictated by the factory fill. Sealed construction keeps drag torque low and noise minimal during normal rotation. No external power is required beyond the driven shaft.

Highlights

  • Double-sealed closure keeps contaminants out at 250 degrees F
  • Cast-iron housing handles heavy loads with four-bolt mounting
  • Alloy-steel radial ball insert runs smooth from -40 degrees F
  • Pre-lubricated with NLGI #2 equivalent for ready installation
  • Square flange design simplifies alignment on 5 63/64 in centers

Specifications

BrandTRITAN
TypeBearings, V-belts & Power Transmission Equipment
ColorBlue

Questions about this item

What bore diameter does the UCF214-44 flange bearing use?

The bearing has a 2-3/4 inch cylindrical bore that fits a matching shaft size.

What are the mounting hole centre-to-centre dimensions?

The square housing has four holes on a 5 63/64 inch centre-to-centre height.

How is the bearing insert secured during installation?

The UC214-44 insert is fixed-type; tighten the set screws on the inner ring after aligning the housing.
