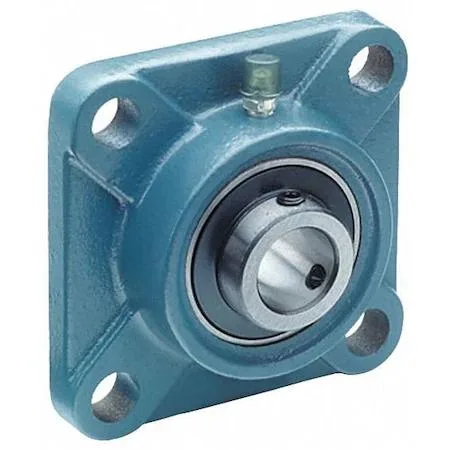

Blue square cast-iron flange bearing with four bolt holes

Tritan

Tritan UCF205-16 Flange Bearing collectible

SKU CH-63CP-21JZ0

A new 4-bolt cast-iron flange bearing with a 1-inch bore and double-sealed radial ball insert, rated from -40 to 250 degrees F

  • TypeBearings, V-belts & Power Transmission Equipment
  • ColorBlue
  • Brand-new industrial flange bearing ready for installation
  • Cast-iron housing with four-bolt pattern secures mounting
  • Alloy-steel radial ball insert handles heavy loads
  • Double-sealed closure keeps contaminants out at 250 °F
  • Lubricated with NLGI #2 equivalent for -40 °F to 250 °F range

Flange Bearing for 1" Shafts

This new Tritan UCF205-16 unit fits a one-inch cylindrical shaft with a four-bolt square housing. It is intended for maintenance teams and machinery builders who need a ready-to-mount radial ball bearing in cast iron.

Double-Sealed Alloy-Steel Insert

The UC205-16 insert is made from alloy steel and carries a double-sealed closure packed with NLGI #2 equivalent grease. That combination keeps contaminants out and lubricant in across a temperature span of minus 40 to 250 degrees F.

Direct Four-Bolt Mounting

Bolt centres measure 2 3/4 inches on a 3 3/4 inch square footprint, so the unit bolts straight onto prepared surfaces without adapters. Installers must verify shaft tolerance and alignment beforehand because the fixed expansion type does not accommodate axial float.

Highlights

  • Brand-new industrial flange bearing ready for installation
  • Cast-iron housing with four-bolt pattern secures mounting
  • Alloy-steel radial ball insert handles heavy loads
  • Double-sealed closure keeps contaminants out at 250 °F
  • Lubricated with NLGI #2 equivalent for -40 °F to 250 °F range

Specifications

BrandTRITAN
TypeBearings, V-belts & Power Transmission Equipment
ColorBlue

Questions about this item

How often should the NLGI #2 equivalent lubricant in the UC205-16 insert be replenished?

The double-sealed, fixed-expansion insert is lubricated for life with NLGI #2 equivalent grease; no scheduled replenishment is required under normal operating conditions.

Which specification caps continuous operation before the housing or seals degrade?

The maximum operating temperature is 250 degrees F; sustained running above this limit will accelerate seal and lubricant breakdown.

How much heat does the cast-iron housing dissipate when the bearing runs all day at load?

Cast-iron housing and double-sealed radial-ball insert operate continuously between -40 and 250 degrees F without supplemental cooling in typical industrial environments.
