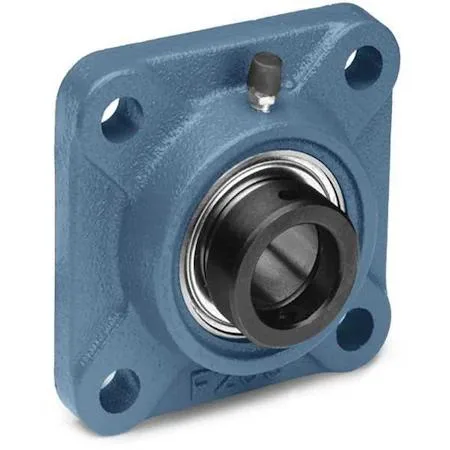

Blue cast iron square flange bearing with four bolt holes

Tritan

Tritan HCFU209-28 Flange Bearing collectible

SKU CH-9FCZ-WNZF9

A four-bolt flange bearing with a 1-3/4" cylindrical bore and double-sealed radial ball insert for fixed mounting

  • TypeBearings, V-belts & Power Transmission Equipment
  • ColorBlue
  • Reliable power transmission with 4-bolt flange mounting
  • Durable alloy steel insert handles heavy radial loads
  • Double-sealed closure keeps contaminants out for longer life
  • Wide operating range from -40 to 250 degrees F
  • Cast iron housing provides rigid support in demanding applications

Tritan HCFU209-28 Flange Bearing

The Tritan HCFU209-28 is a four-bolt flange bearing unit designed for power transmission applications. It features a cast iron square housing with a 1-3/4 inch cylindrical bore and a double-sealed radial ball insert made from alloy steel.

Maintenance teams needing a fixed expansion unit

This bearing suits installations where a fixed, non-expansion housing is required and operating temperatures stay between -40 and 250 degrees Fahrenheit. It is not for applications needing floating or expansion-type housings to accommodate axial shaft growth.

Factory-lubricated with NLGI #2 equivalent grease

The unit arrives ready to install and handles radial loads within the capacity of the included HC209-28 insert. It runs out of headroom when temperatures exceed the 250 degree Fahrenheit maximum or when shaft movement demands an expansion bearing style.

Highlights

  • Reliable power transmission with 4-bolt flange mounting
  • Durable alloy steel insert handles heavy radial loads
  • Double-sealed closure keeps contaminants out for longer life
  • Wide operating range from -40 to 250 degrees F
  • Cast iron housing provides rigid support in demanding applications

Specifications

BrandTRITAN
TypeBearings, V-belts & Power Transmission Equipment
ColorBlue

Questions about this item

What shaft diameter does the 1-3/4" bore fit?

The cylindrical bore accepts a 1-3/4 inch shaft directly, so no adapter sleeve is required for that size.

Will the 4-bolt square flange match the bolt pattern on my existing 4 9/64" centre-to-centre mounting plate?

Yes, the housing has four mount holes on a 4 9/64 inch centre-to-centre height that aligns with that pattern.

How can I confirm the double-sealed bearing is rotating freely after installation?

Turn the shaft by hand; it should spin smoothly without binding, and the NLGI #2 equivalent grease should show no leakage past the seals.
