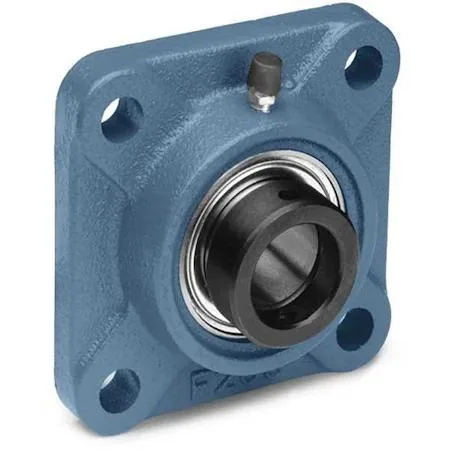

Blue four-bolt flange bearing, cast iron housing, double sealed

Tritan

Tritan HCFU208-24 Flange Bearing collectible

SKU CH-8J53-YDKB2

A new 4-bolt radial ball flange bearing with a 1-1/2 inch cylindrical bore, alloy steel insert and cast iron housing

  • TypeBearings, V-belts & Power Transmission Equipment
  • ColorBlue
  • Durable cast-iron housing withstands heavy loads
  • Double-sealed closure keeps contaminants out
  • Wide temperature range from -40 to 250 °F
  • Four-bolt square flange ensures secure mounting
  • Ready-to-install with HC208-24 bearing included

TRITAN HCFU208-24 Flange Bearing

This four-bolt flange bearing uses a radial ball insert made from alloy steel with a cylindrical bore of 1-1/2 inches. It suits maintenance teams and machinery builders who need a fixed, double-sealed unit for shaft support in power-transmission applications.

Cast iron housing with NLGI #2 lubricant

The cast iron square housing holds NLGI #2 equivalent grease and operates from -40 to 250 degrees Fahrenheit. Double seals retain lubricant and exclude contaminants, giving quiet, low-friction running in normal industrial use.

Square 4-bolt pattern with HC208-24 insert

Mounting holes sit on 4-inch centres and the overall height and length are 5 5/64 inches. The included HC208-24 insert is fixed, not expansion-type, so the unit suits applications where axial location is required and thermal growth is managed elsewhere.

Highlights

  • Durable cast-iron housing withstands heavy loads
  • Double-sealed closure keeps contaminants out
  • Wide temperature range from -40 to 250 °F
  • Four-bolt square flange ensures secure mounting
  • Ready-to-install with HC208-24 bearing included

Specifications

BrandTRITAN
TypeBearings, V-belts & Power Transmission Equipment
ColorBlue

Questions about this item

How is the 4-bolt flange bearing mounted and what alignment step is often missed?

Bolt the square housing to the frame using the four holes on a 4 in center-to-center pattern, then verify the shaft sits perpendicular to the mounting face before final torque so the 1 1/2 in bore runs true.

What maintenance will the double-sealed HC208-24 insert need over time?

The factory-fill NLGI #2 equivalent grease is sealed for life; if the seals stay intact no re-lubrication is required, but inspect seals periodically and replace the entire insert if leakage or noise appears.

Which limit appears first when the bearing runs continuously near its top rating?

The 250 Degrees F maximum operating temperature is the first hard limit; sustained loads that push the housing toward that temperature will degrade the grease and seals before the alloy-steel balls reach fatigue.
