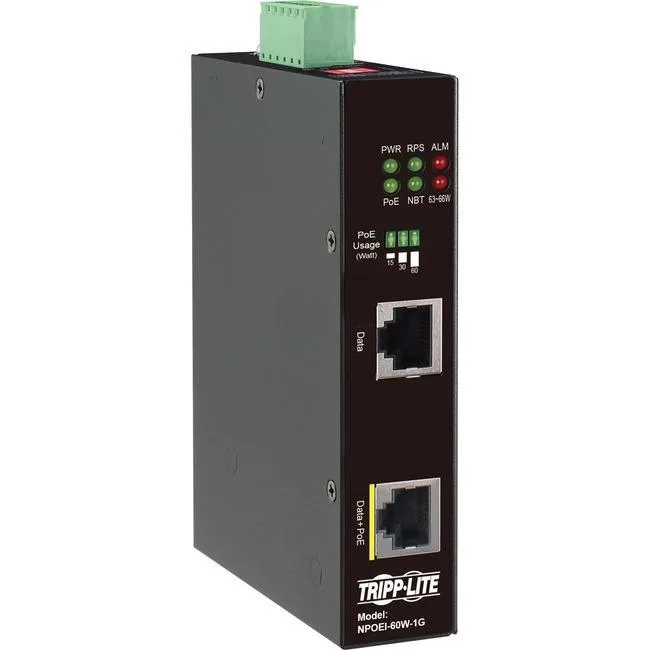

Compact metal PoE++ injector with dual RJ-45 ports and DIN-rail bracket

Tripp Lite

Tripp Lite NPOEI60W1G 60W PoE++ injector network switch

SKU CH-3RWX-BDS36 MPN NPOEI60W1G

Single-port PoE++ injector delivers 60W power and Gigabit data over existing cabling, operating from -40 to +75 °C with IP30-rated DIN-rail housing

  • Switch TypePoE Injector (Midspan)
  • Primary Ports1 x Ethernet Input, 1 x RJ-45 Output
  • PoE60W, PoE++ 802.3bt
  • Power24-57VDC Input
  • Dimensions9.2" x 7.2" x 2.4"
  • Weight0.8 lbs
  • Delivers 60W PoE++ power over existing Cat5e/6/6a cabling
  • Adds Gigabit Ethernet data and power without a PoE switch upgrade
  • Operates from -40F to +75F in IP30-rated industrial housing
  • Powers devices up to 328 feet away using single Ethernet cable
  • Accepts 24-57VDC input with DIN-rail mounting for flexible installation

Single-port 60W PoE++ injector

The Tripp Lite NPOEI60W1G adds IEEE 802.3bt power to an existing Gigabit Ethernet link so cameras, access points or VoIP phones can be installed without a PoE switch. It accepts 24-57VDC input and delivers up to 60W over Cat5e, Cat6 or Cat6a cable runs up to 328 feet. The unit is built for industrial environments with an operating range of -40F to +75F and an IP30-rated metal housing.

Thermals noise and power

The injector runs without a fan, so it adds no audible noise to a rack or cabinet. Heat is dissipated passively through the IP30 enclosure while the device forwards 10/100/1000 Mbps data and up to 60W of power. Protection circuits guard against short circuits, high voltage and overload conditions during normal operation. Power is supplied through a dual 24-57VDC terminal block rather than an AC outlet.

DIN rail mounting and connectors

A DIN rail kit and terminal block are included for quick attachment to standard industrial rails. One RJ-45 input port receives data from the network switch and one RJ-45 output port carries both data and PoE++ power to the powered device. The compact 9.2" x 7.2" x 2.4" form factor fits tight enclosures, though the single-port design means each additional device requires its own injector.

Highlights

  • Delivers 60W PoE++ power over existing Cat5e/6/6a cabling
  • Adds Gigabit Ethernet data and power without a PoE switch upgrade
  • Operates from -40F to +75F in IP30-rated industrial housing
  • Powers devices up to 328 feet away using single Ethernet cable
  • Accepts 24-57VDC input with DIN-rail mounting for flexible installation

Specifications

BrandTripp Lite
ModelNPOEI-60W-1G
Part NumberNPOEI-60W-1G
Switch TypePoE Injector (Midspan)
Primary Ports1 x Ethernet Input, 1 x RJ-45 Output
PoE60W, PoE++ 802.3bt
Power24-57VDC Input
Dimensions9.2" x 7.2" x 2.4"
Weight0.8 lbs
CertificationIP30
Temperature-40F to +75F
Package ContentsNPOEI-60W-1G PoE Injector, 24-57VDC Terminal Block, DIN Rail-Mounting Kit, Quick Start Guide
Shipping weight0.91 kg
Package size241 × 184 × 70 mm

Questions about this item

How do I mount the NPOEI-60W-1G on a DIN rail and what is the common mistake?

Snap the included DIN rail kit onto the housing, then connect the 24-57VDC terminal block before linking the RJ-45 input and output. The step often missed is tightening the terminal-block screws fully so the DC feed stays secure under vibration.

Which parts of the injector need replacement after extended use in the field?

The unit has no fan or moving parts, so only the RJ-45 ports and terminal block may wear. If a port fails, replace the whole injector; the DIN rail clips and terminal block are user-replaceable if damaged.

What thermal limit appears first when the injector runs at 60W continuously in a 75F ambient?

The housing is rated to 75F; sustained 60W output at that temperature leaves no margin, so the internal protection will trip before any other limit is reached.
