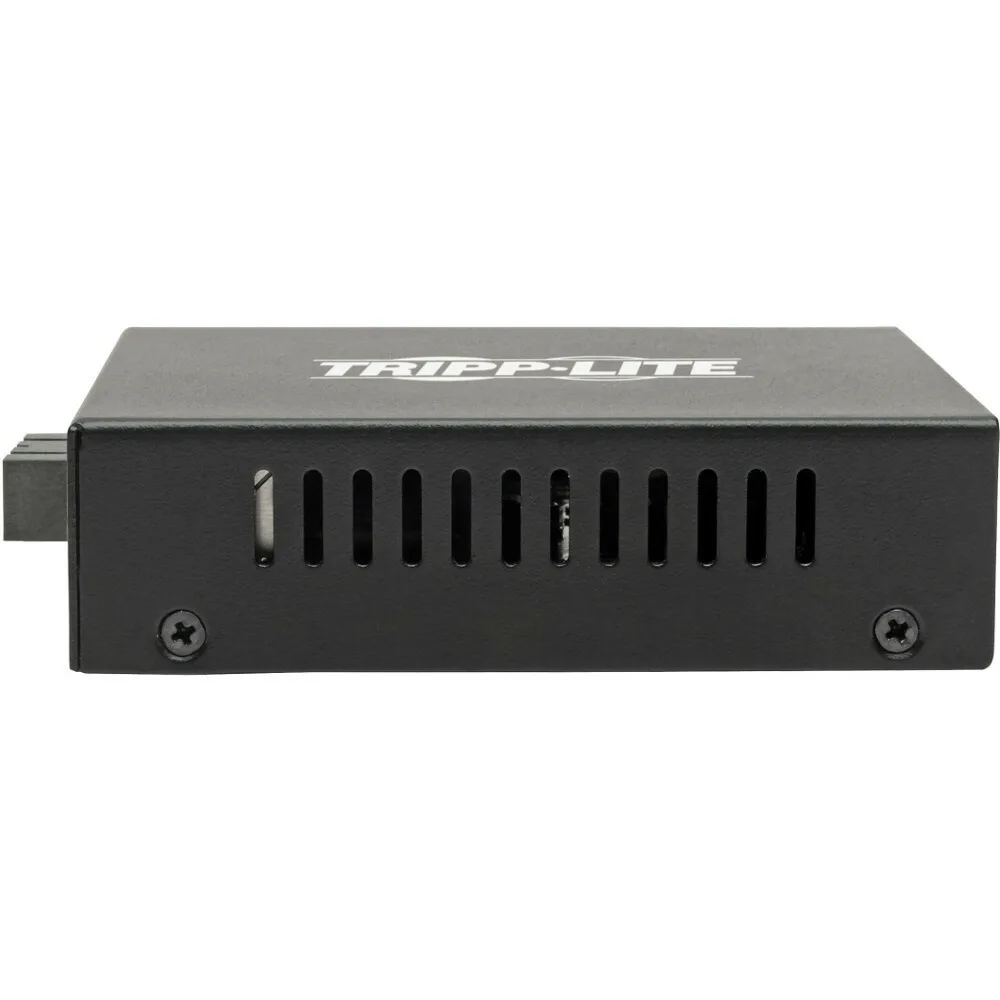

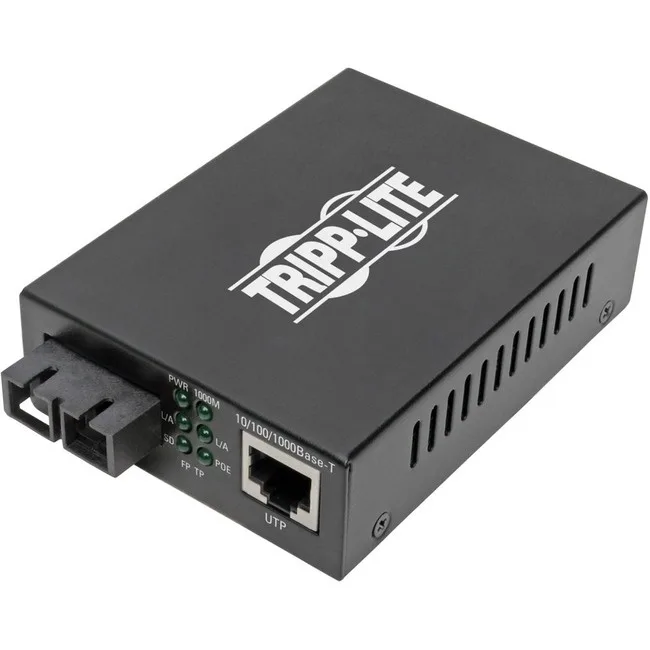

Small rectangular network transceiver with SC fiber connector and RJ45 port

Tripp Lite

Tripp Lite N785-P01-SC-MM2 SFP transceiver 1000Base-X 2 km SC multimode

SKU CH-GQN7-RS26J MPN N785-P01-SC-MM2

Extends a copper Gigabit Ethernet link up to 1.2 mi over SC multimode fiber while delivering 48 VDC PoE+ power to edge devices

  • FeatureNetwork Technology:10/100/1000Base-T Network Technology:1000
  • Package ContentsN785-P01-SC-MM2 Transceiver/Media Converter External Power S
  • Extends copper Gigabit Ethernet up to 2 km over SC multimode fiber
  • Delivers 48 VDC PoE+ power and 1000 Mbps data to edge devices
  • Auto-MDI/MDIX RJ45 port bridges diverse network equipment without manual crossover
  • Operates in full- or half-duplex for flexible link configuration
  • Includes external 100-240 V power supply with 3.6 ft cord and NEMA 5-15P plug

Network extension over multimode fiber

The Tripp Lite N785-P01-SC-MM2 is a network transceiver that extends a copper Gigabit Ethernet link up to 2 km over SC multimode fiber. It delivers both 1000 Mbps data and 48 VDC power to a remote PoE+ device using a single fiber run. An external power supply with a 3.6 ft cord and NEMA 5-15P plug is included.

Suited for remote PoE endpoints.

This unit suits installers who need to place a PoE+ camera, access point or VoIP phone beyond standard copper reach while supplying power locally. It requires a multimode fiber path with SC connectors and a matching transceiver at the far end. Buyers needing single-mode distances or a purely passive fiber link should look elsewhere.

Handles 2 km at 1000 Mbps with PoE+ headroom

The link comfortably carries full-duplex or half-duplex Gigabit traffic across the full 2 km span while feeding a Class 4 powered device. The 48 V 1.25 A supply sets the power budget, so devices drawing more than the PoE+ allowance will need a separate source. Auto-MDI/MDIX on the RJ45 port simplifies the copper-side connection.

Highlights

  • Extends copper Gigabit Ethernet up to 2 km over SC multimode fiber
  • Delivers 48 VDC PoE+ power and 1000 Mbps data to edge devices
  • Auto-MDI/MDIX RJ45 port bridges diverse network equipment without manual crossover
  • Operates in full- or half-duplex for flexible link configuration
  • Includes external 100-240 V power supply with 3.6 ft cord and NEMA 5-15P plug

Specifications

BrandTripp Lite
ModelN785-P01-SC-MM2
FeatureNetwork Technology:10/100/1000Base-T
Network Technology:1000Base-X

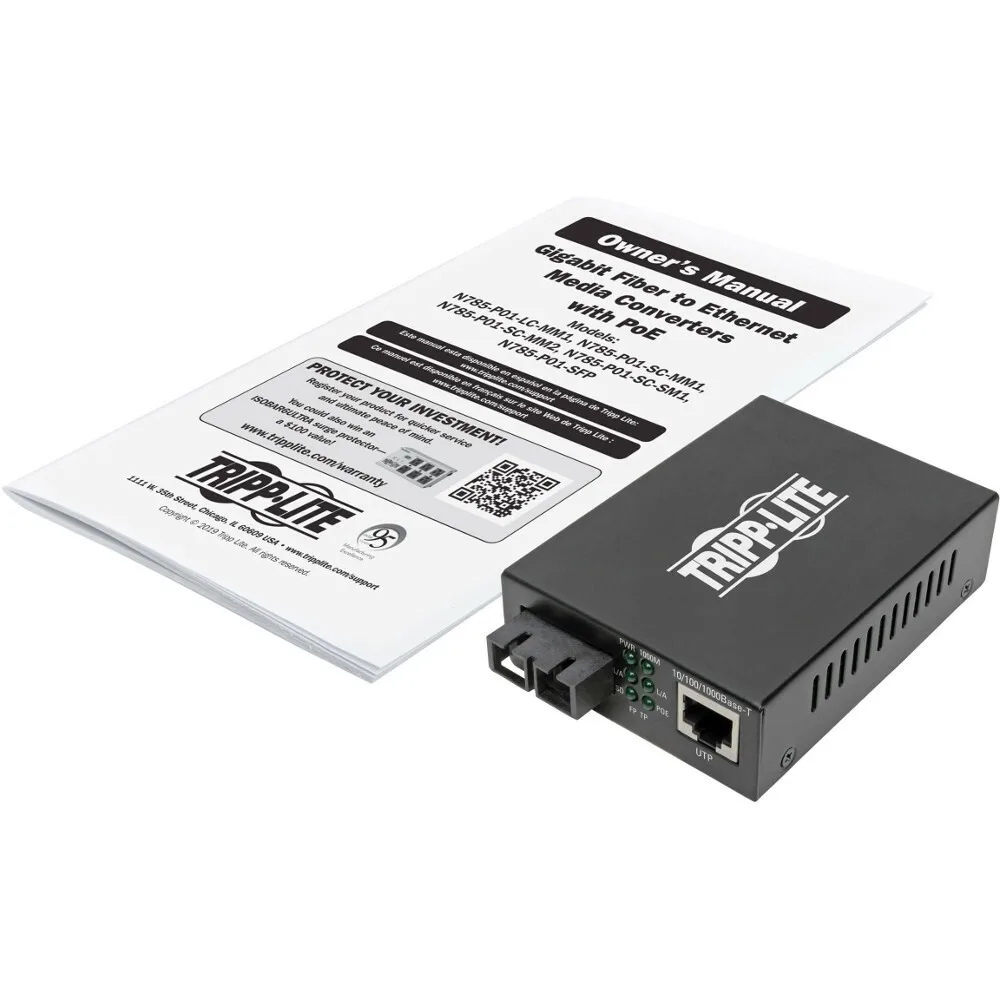

Package ContentsN785-P01-SC-MM2 Transceiver/Media Converter
External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
Owner's Manual
Shipping weight0.77 kg
Package size249 × 215 × 215 mm

Questions about this item

Does this unit need an AC outlet to supply 48 VDC over fiber?

Yes, the included external supply plugs into a 100–240 V AC outlet and delivers 48 V at 1.25 A over a 3.6 ft cord with a NEMA 5-15P plug.

Can the RJ45 port auto-negotiate with legacy 10/100 switches?

The RJ45 jack supports auto-MDI/MDIX and 10/100/1000Base-T, so it will link at the highest speed the connected device allows.

How do I confirm the 1000Base-X link is active after connecting SC multimode fiber?

Verify the link LED shows a steady 1000 Mbps connection and that the paired Tripp Lite N785-001-SC unit at the far end also reports full-duplex operation.
