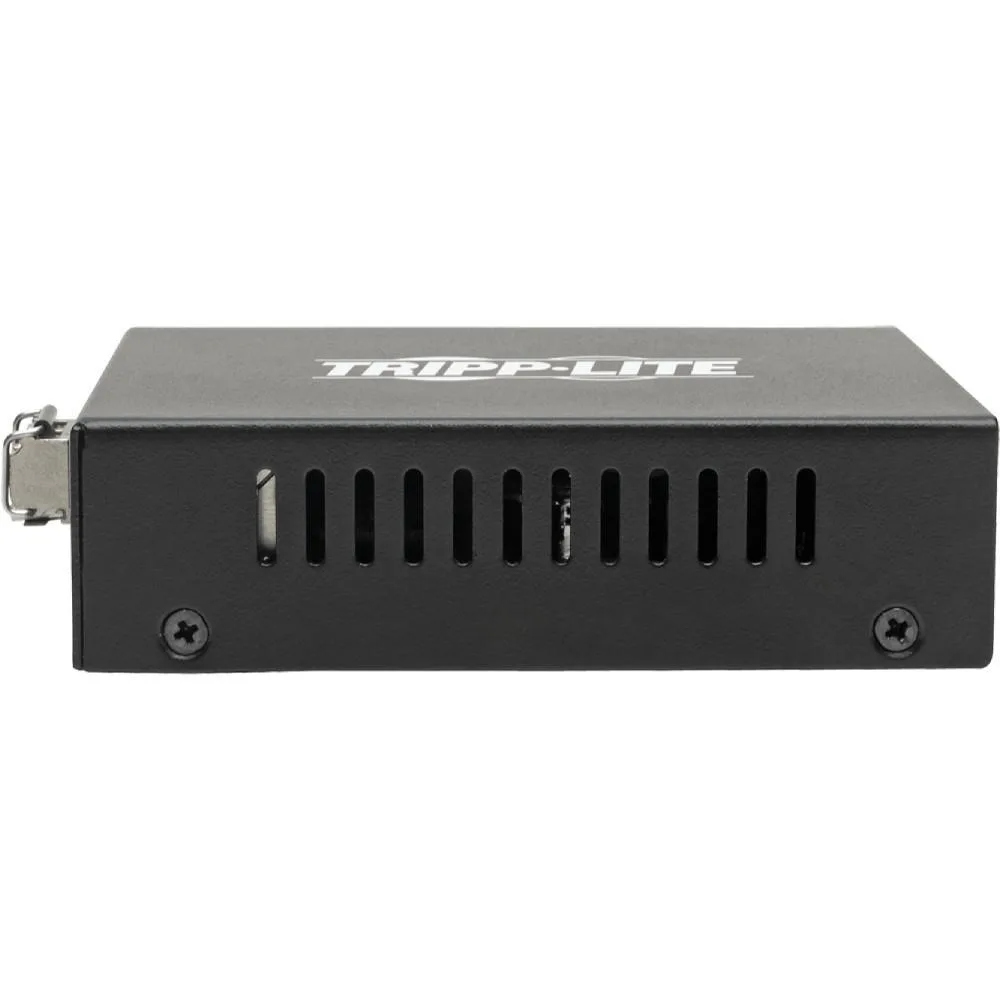

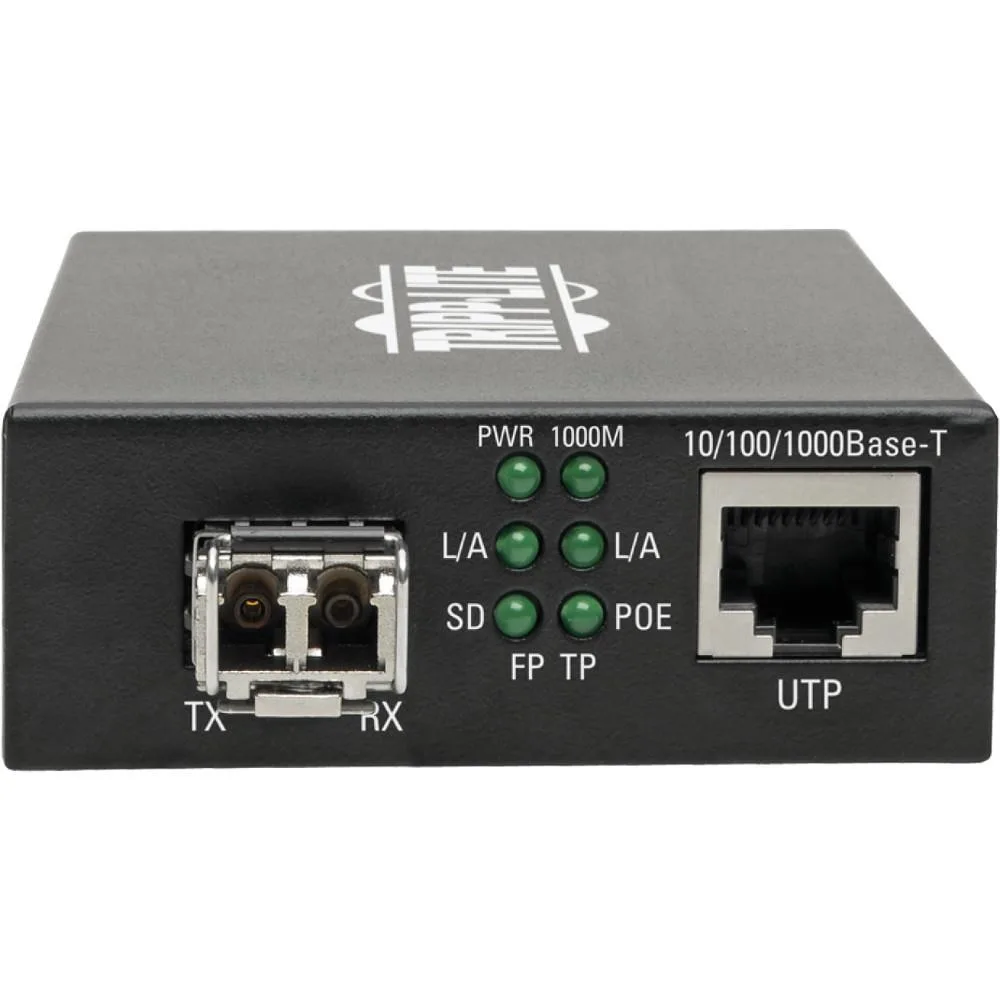

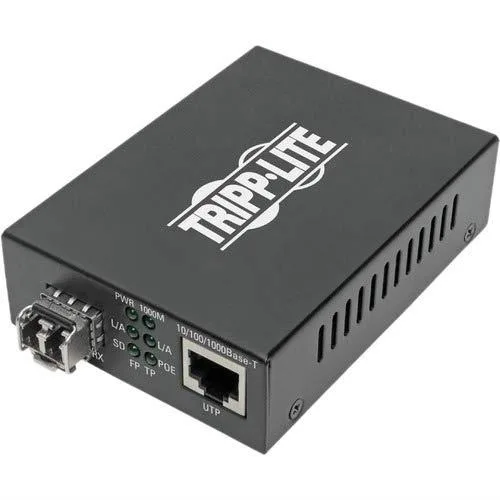

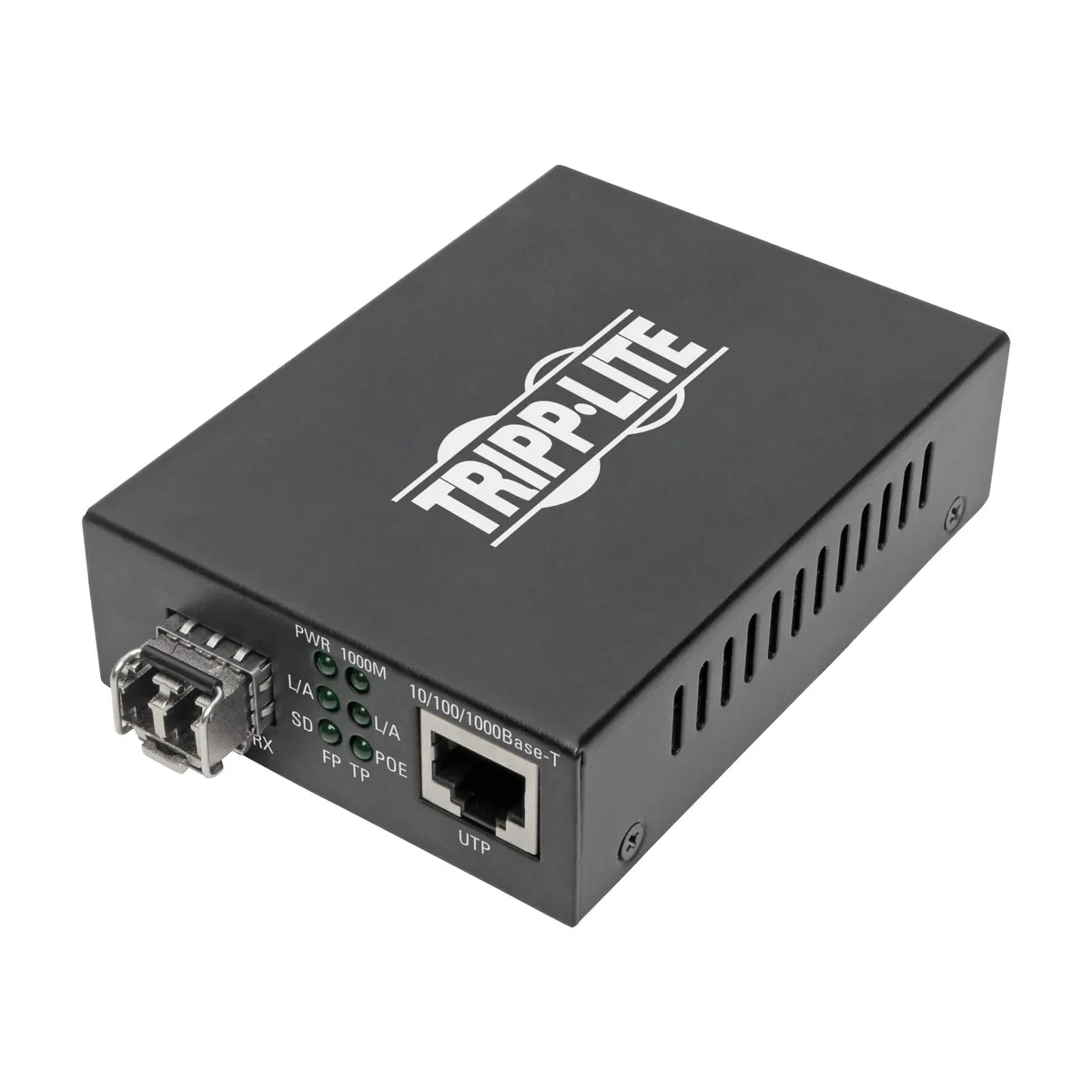

Tripp Lite SFP transceiver with LC ports and external power supply

Tripp Lite

Tripp Lite N785-P01-LC-MM1 SFP transceiver

SKU CH-R9N5-VBQRY MPN N785-P01-LC-MM1

Converts copper Gigabit Ethernet to LC multimode fiber up to 550 m while delivering 48 VDC PoE+ power to edge devices

  • FeatureNetwork Technology:10/100/1000Base-T Network Technology:1000
  • Package ContentsN785-P01-LC-MM1 Transceiver/Media Converter External Power S
  • Extends Gigabit copper links up to 550 m over LC multimode fibre
  • Delivers 48 VDC power plus 1000 Mbps data to remote PoE+ devices
  • Auto-MDI/MDIX RJ45 jack connects diverse network gear without crossover cables
  • Operates in full- or half-duplex mode for flexible link configuration
  • Includes 3.6 ft external power supply with NEMA 5-15P plug for 100-240 V input

Network media converter for PoE edge devices

The Tripp Lite N785-P01-LC-MM1 extends a copper Gigabit Ethernet link up to 550 m over LC multimode fiber while delivering 48 VDC power to a PoE+ device at the far end. It bridges 10/100/1000Base-T and 1000Base-X segments in a single compact unit.

Installation notes and common issues

Connect the external 48 V 1.25 A power supply to a 100-240 V mains outlet using the 3.6 ft NEMA 5-15P cord, then link the RJ45 jack and LC fiber cables; the RJ45 port auto-negotiates MDI/MDIX so crossover cables are not required. A frequent mistake is pairing this converter with a single-mode fiber run or exceeding the 550 m multimode distance, which will break the link.

Capacity and headroom

The converter transports 1000 Mbps full- or half-duplex data together with PoE+ power to one edge device such as a wireless access point or IP camera. It cannot supply power to multiple devices, does not support 10 Gbps speeds, and will not operate beyond the 550 m multimode fiber limit.

Highlights

  • Extends Gigabit copper links up to 550 m over LC multimode fibre
  • Delivers 48 VDC power plus 1000 Mbps data to remote PoE+ devices
  • Auto-MDI/MDIX RJ45 jack connects diverse network gear without crossover cables
  • Operates in full- or half-duplex mode for flexible link configuration
  • Includes 3.6 ft external power supply with NEMA 5-15P plug for 100-240 V input

Specifications

BrandTripp Lite
ModelN785-P01-LC-MM1
FeatureNetwork Technology:10/100/1000Base-T
Network Technology:1000Base-X
Package ContentsN785-P01-LC-MM1 Transceiver/Media Converter
External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
Owner's Manual
Shipping weight0.77 kg
Package size249 × 215 × 215 mm

Questions about this item

How can I verify the N785-P01-LC-MM1 is extending data and 48 VDC power correctly after installation?

Check that the RJ45 link LEDs show a 1000 Mbps connection and the powered edge device receives 48 VDC over the multimode fiber link up to 550 m.

What ships with the N785-P01-LC-MM1 and what must I purchase separately to complete the link?

The box includes the transceiver, an external 48 V 1.25 A power supply with a 3.6 ft NEMA 5-15P cord, and the owner's manual; the companion N785-001-LC-MM unit is sold separately.

Which version should I choose if I need to extend a Gigabit copper link 550 m over LC multimode fiber with PoE+?

Select the N785-P01-LC-MM1; it supports 10/100/1000Base-T and 1000Base-X over multimode LC fiber up to 550 m while delivering 48 VDC PoE+ power.
