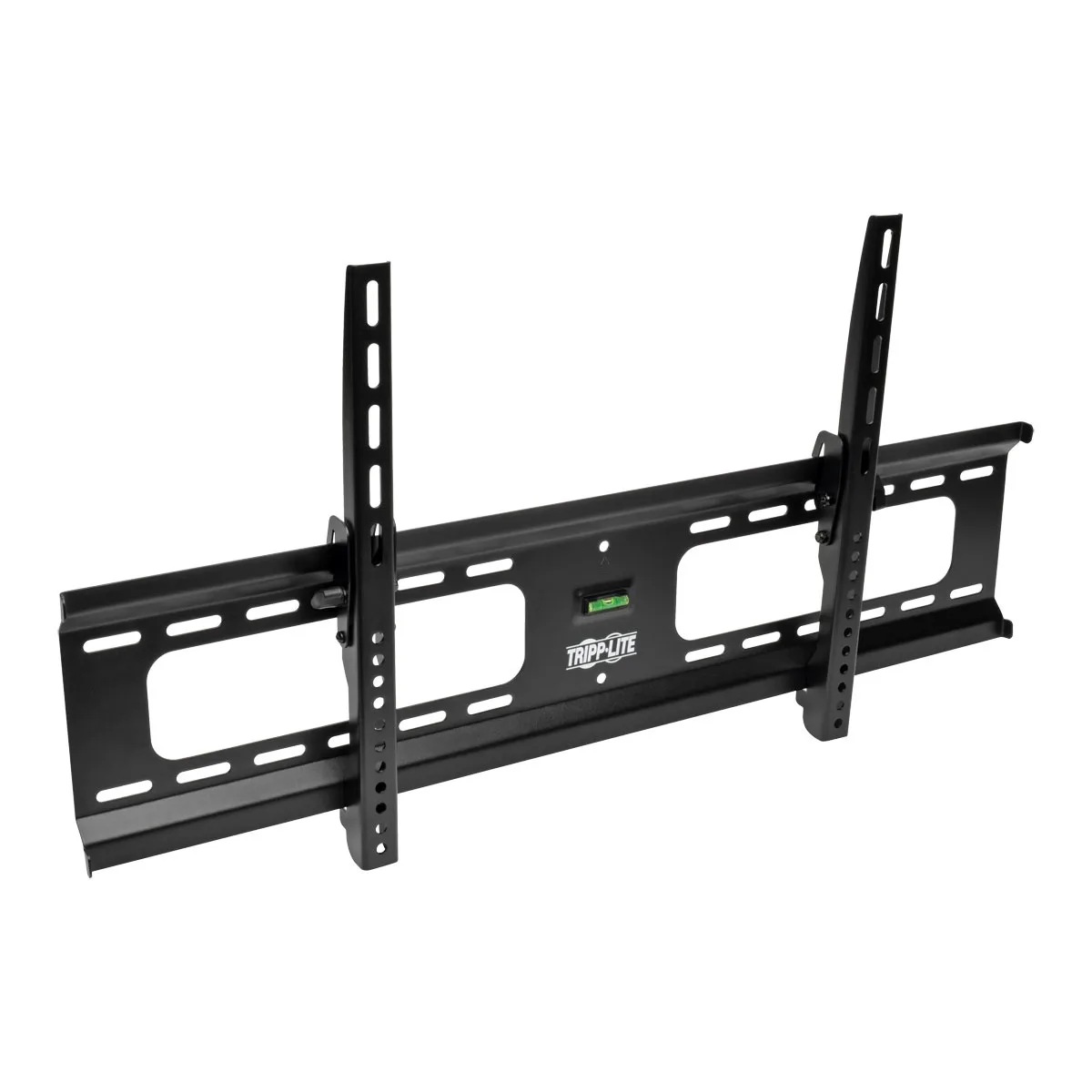

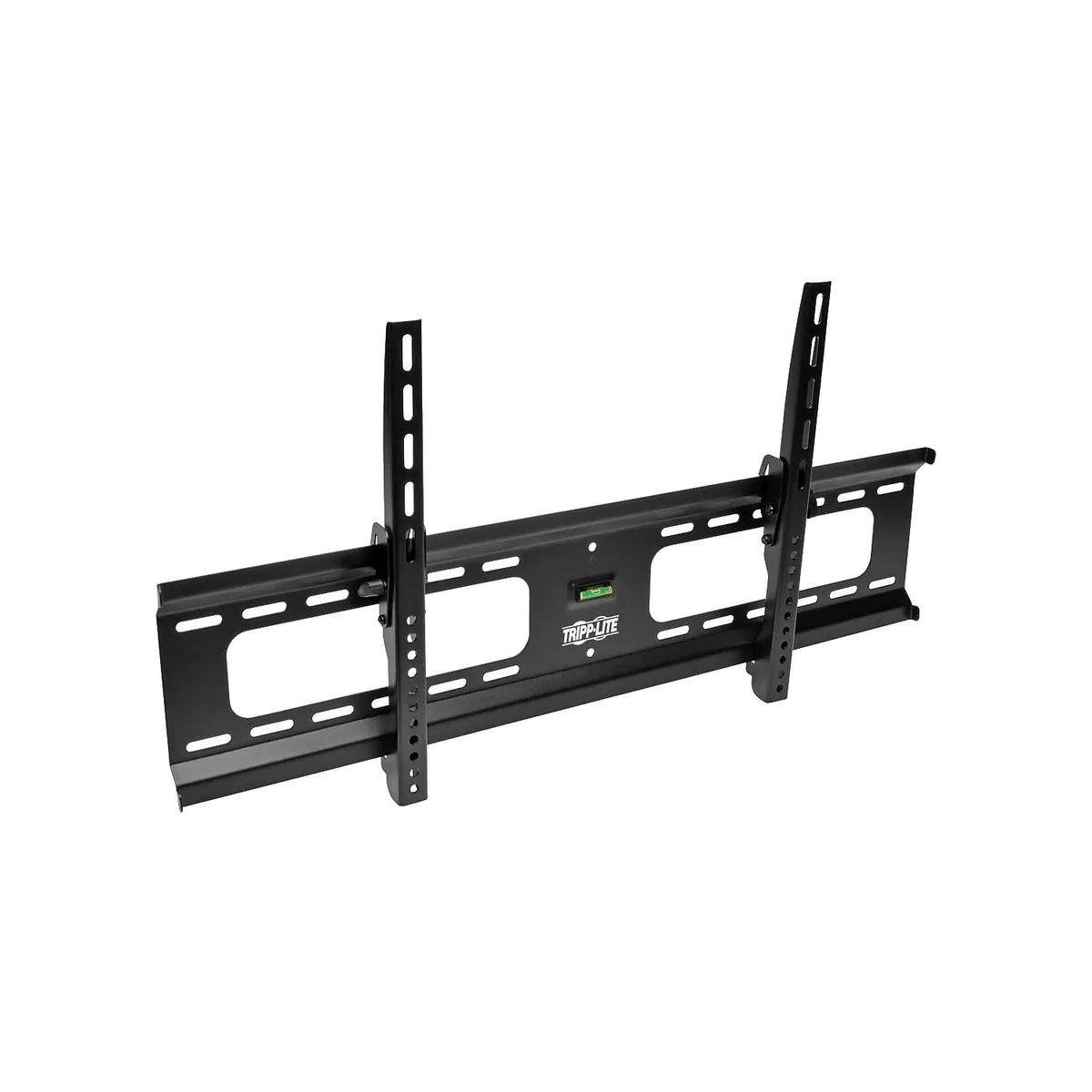

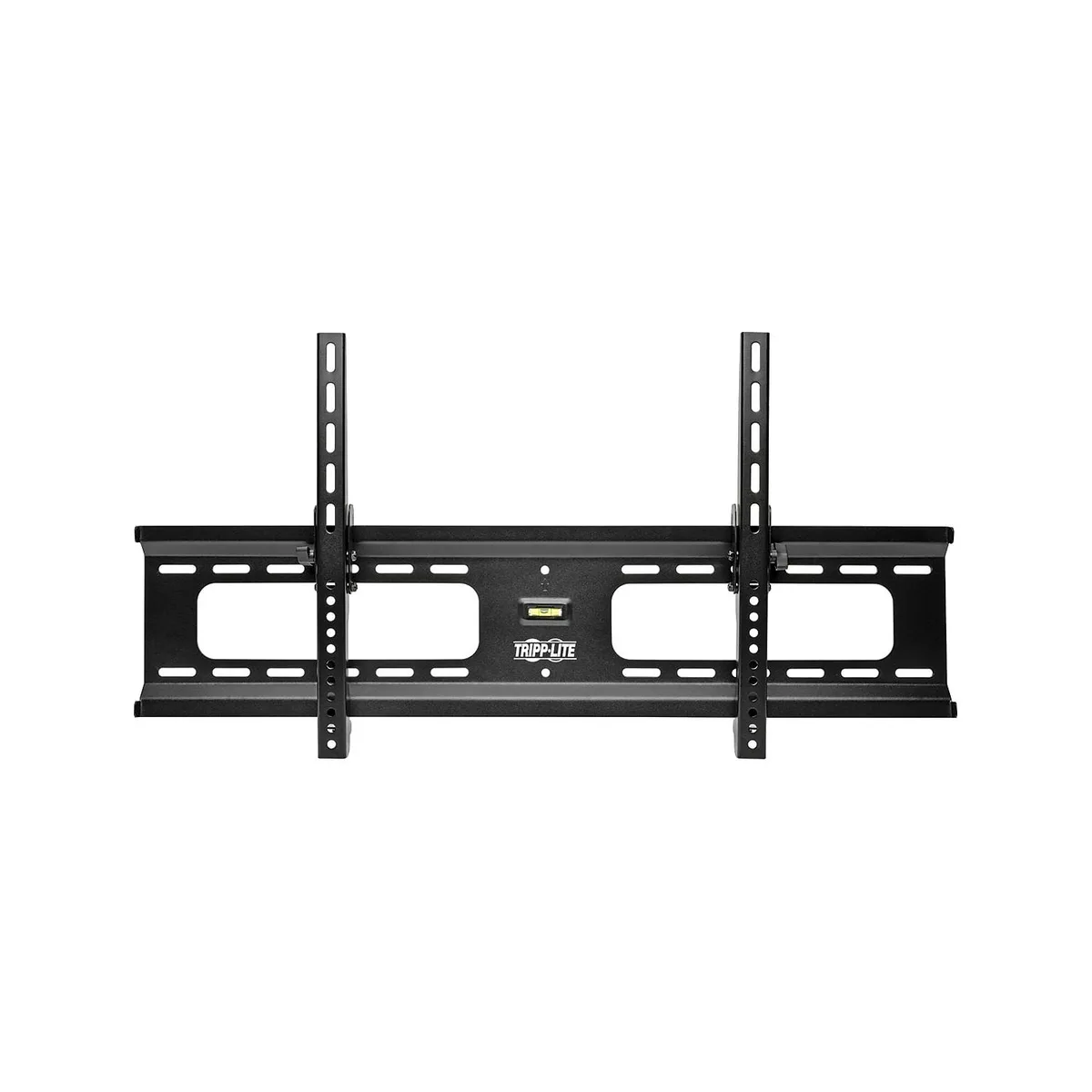

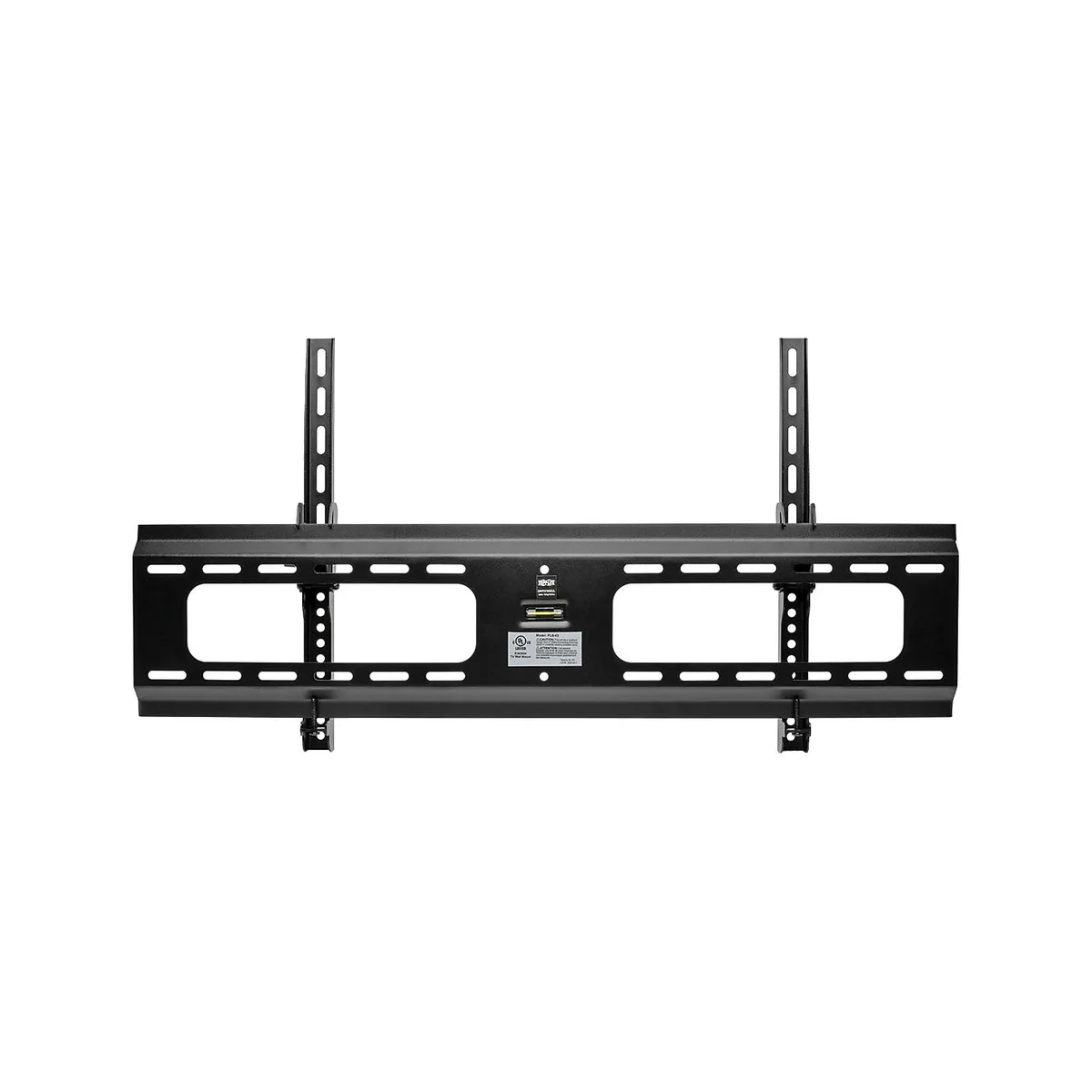

Black metal tilt wall mount with twin adjustment knobs and open back for cables

Tripp Lite

Tripp Lite DWT3780XUL tv mount 37-80 in 165 lb

SKU CH-4W67-A92BJ MPN DWT3780XUL

Heavy-duty tilt wall mount holds 37 to 80 inch flat or curved screens up to 165 lb with -10° to 0° tilt and VESA patterns from 200×200 to 800×400 mm, tested to UL 2442

  • ColorBlack
  • Height2.000
  • Width7.000
  • Weight1
  • Fits 37 to 80 inch flat or curved displays
  • Tilt adjustable from -10° to 0° for glare reduction
  • Supports up to 165 lb with all-metal frame
  • Tested to UL Standard 2442 for safety compliance
  • Compatible with VESA patterns from 200x200 to 800x400 mm

Heavy-Duty Tilt Wall Mount for Large Displays

The Tripp Lite DWT3780XUL is a VESA-compliant wall mount designed for flat-panel or curved-screen televisions and monitors measuring 37 to 80 inches. Its durable all-metal frame with a scratch-resistant powder-coated finish supports displays weighing up to 165 pounds. The mount accommodates multiple VESA hole patterns including 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm. It is tested in accordance with UL Standard 2442 for safety assurance.

Upgrading from Fixed or Lighter-Duty Mounts

This mount replaces fixed-position brackets that offer no glare control or lighter-duty arms rated for smaller screens. The jump is worthwhile when installing displays between 37 and 80 inches that require a -10° to 0° tilt range to reduce reflections from ambient light. It also suits installations where the display weight approaches 165 pounds, exceeding the capacity of standard residential mounts. Buyers needing full-motion articulation or support for screens larger than 80 inches should consider alternative solutions.

Installation Fit and Cable Access

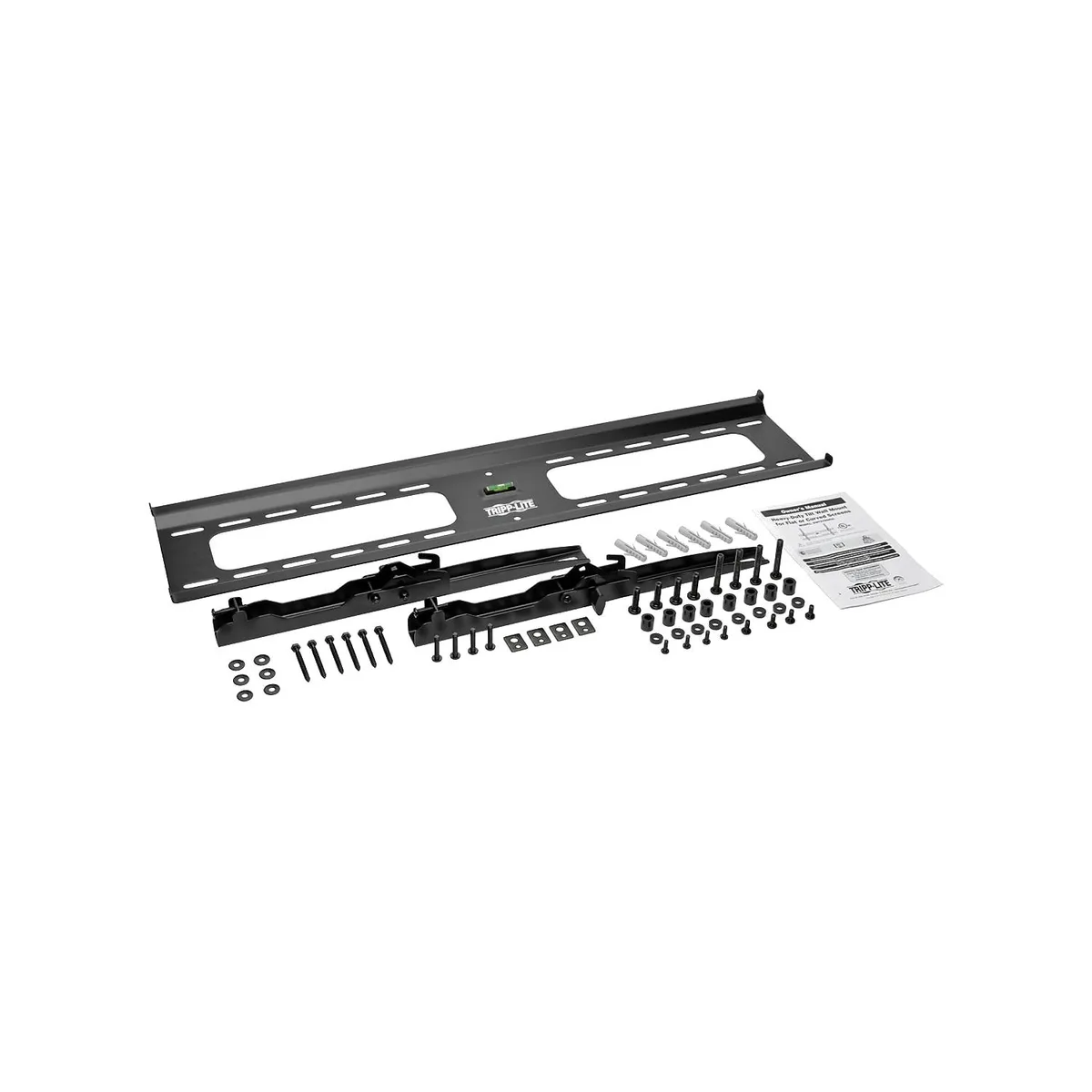

The open-back architecture provides clear access to cabling and connections after the display is mounted, simplifying initial setup and future device changes. A built-in bubble level on the wall plate ensures accurate leveling during installation, while easy-grip twin knobs allow tool-free tilt adjustment once the display is hung. Mounting hardware is included for the wall plate, though installers must verify the wall structure can bear the combined load. The low-profile design keeps the screen close to the wall for a clean appearance.

Highlights

  • Fits 37 to 80 inch flat or curved displays
  • Tilt adjustable from -10° to 0° for glare reduction
  • Supports up to 165 lb with all-metal frame
  • Tested to UL Standard 2442 for safety compliance
  • Compatible with VESA patterns from 200x200 to 800x400 mm

Specifications

BrandTRIPP LITE
ColorBlack
Height2.000
Width7.000
Weight1
Shipping weight62.19 kg
Package size890 × 230 × 65 mm

Questions about this item

What VESA hole patterns does the DWT3780XUL support?

The mount fits VESA patterns of 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.

Which step is commonly missed when installing the tilt wall mount?

Using the built-in bubble level on the wall plate before tightening the lag bolts ensures the display hangs straight.

How do I adjust the tilt angle after the TV is mounted?

Turn the easy-grip twin knobs on the wall plate to set the screen between -10° and 0° without removing the display.
