Two black DVI extender boxes with RJ45 ports, one transmitter and one receiver

Tripp Lite

Tripp Lite B140-101X DVI Cat5/6 v extender 150 ft 1080p 60Hz

SKU CH-BAS1-Q3B3H MPN B140-101X

Extends a DVI-D Single-Link signal up to 200 ft at 1024 x 768 or 150 ft at 1920 x 1080 at 60 Hz over Cat5e/6 cabling

  • Extender & Repeater TypeNon Wall Plate Extender
  • Distanceup to 200 ft. at 1024 x 768 (60Hz) up to 150 ft. at 1920 x 1
  • ColorBlack
  • LED IndicatorThe Green RJ45 LED on the local unit illuminates to indicate
  • System RequirementsComputer with DVI video card, and monitor with DVI input
  • SpecificationCable Type: DVI Display Style: Extender Connector A: DVI-D S
  • Extends DVI-D Single-Link video up to 150 ft at 1920 x 1080 60Hz
  • Transmits 1024 x 768 resolution signals up to 200 ft over Cat5e/6 cabling
  • Built-in Equalization control adjusts video image quality at the remote receiver
  • Includes transmitter, receiver, power supply, mounting hardware and screwdriver for setup
  • Plug-and-play operation requires no software or drivers across all operating systems

Pro A/V Extender Kit for DVI Signals

This kit contains a local transmitter and a remote receiver that extend a DVI-D Single-Link signal over Cat5e or Cat6 cabling. It supports resolutions up to 1920 x 1080 at 60Hz across distances of 150 ft, or 1024 x 768 at 60Hz up to 200 ft. The system is designed for professional A/V installations requiring long cable runs without signal degradation.

Sustained Signal Integrity Over Distance

The extender maintains a stable 60Hz refresh rate at the supported resolutions across the full rated cable length. A built-in Equalization control on the remote unit allows fine adjustment of the video image to compensate for cable attenuation during continuous operation. No software or drivers are required, ensuring consistent plug-and-play behaviour regardless of the host operating system.

Passive Cooling and External Power Supply

Both units operate without internal fans, relying on passive heat dissipation for silent performance in noise-sensitive environments. Power is delivered via an included external supply rated for 100-240V input and 5V 2A output, isolating the extender from source-device power fluctuations. The Green RJ45 LEDs on each unit confirm active link status and power reception during normal use.

Highlights

  • Extends DVI-D Single-Link video up to 150 ft at 1920 x 1080 60Hz
  • Transmits 1024 x 768 resolution signals up to 200 ft over Cat5e/6 cabling
  • Built-in Equalization control adjusts video image quality at the remote receiver
  • Includes transmitter, receiver, power supply, mounting hardware and screwdriver for setup
  • Plug-and-play operation requires no software or drivers across all operating systems

Specifications

BrandTripp Lite
ModelB140-101X
Extender & Repeater TypeNon Wall Plate Extender
Distanceup to 200 ft. at 1024 x 768 (60Hz)
up to 150 ft. at 1920 x 1080 (60Hz)
ColorBlack

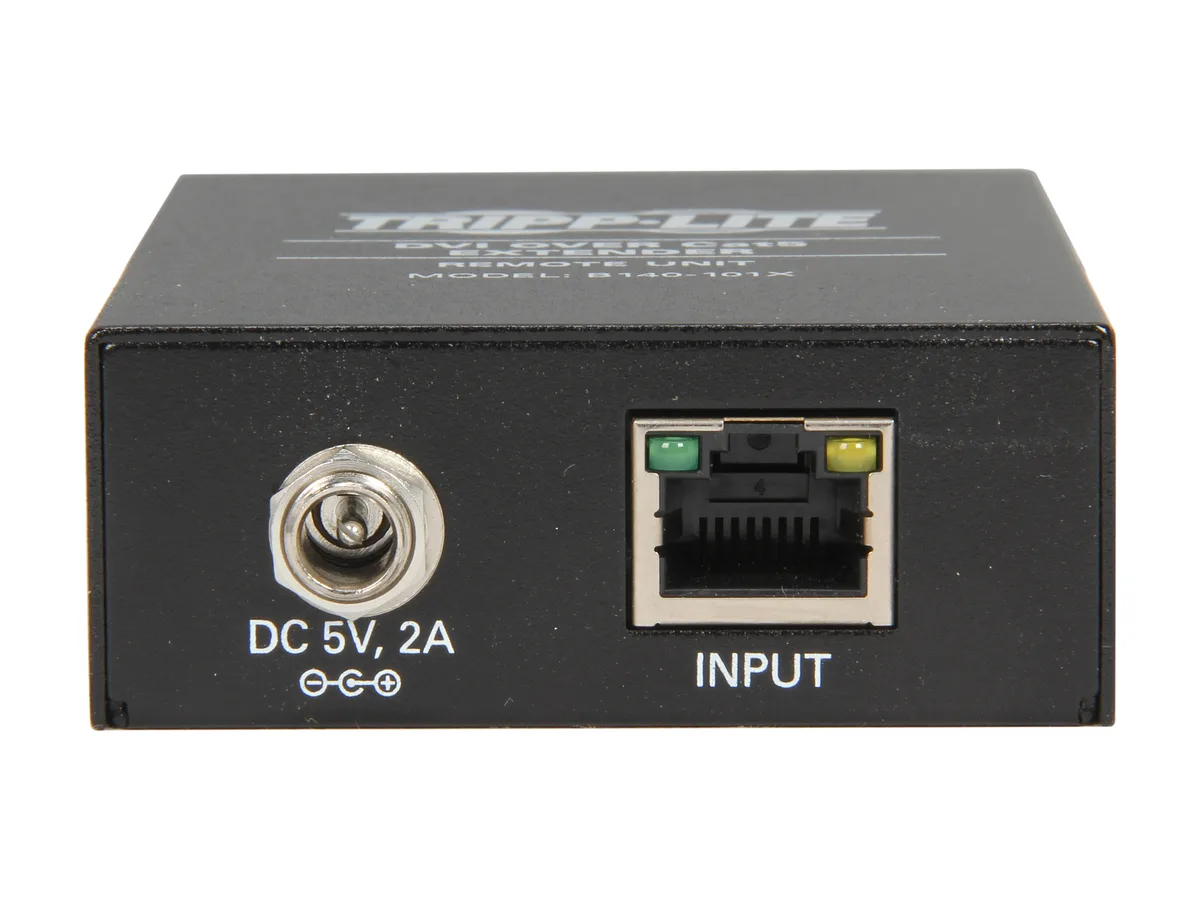

LED IndicatorThe Green RJ45 LED on the local unit illuminates to indicate it is connected to and receiving power from the source. The Orange RJ45 LED on the local unit does not illuminate. The Green RJ45 LED on the remote unit illuminates to indicate it is receiving power from the external power supply. The Orange RJ45 LED on the remote unit illuminates to indicate it is connected to the local unit and receiving a signal from the source.
System RequirementsComputer with DVI video card, and monitor with DVI input
SpecificationCable Type: DVI
Display Style: Extender
Connector A: DVI-D SINGLE LINK (MALE)
Connector B: X2) RJ45 (FEMALE)
Connector C: DVI-I (FEMALE)
FeatureKit comes with both local transmitter and remote receiver units.
Extend a DVI-D Single-Link signal up to 200 ft. at 1024 x 768 (60Hz), or up to 150 ft. at 1920 x 1080 (60Hz), when using 24Awg, solid wire Cat5e/6 cabling. (Tripp Lite N202-Series)

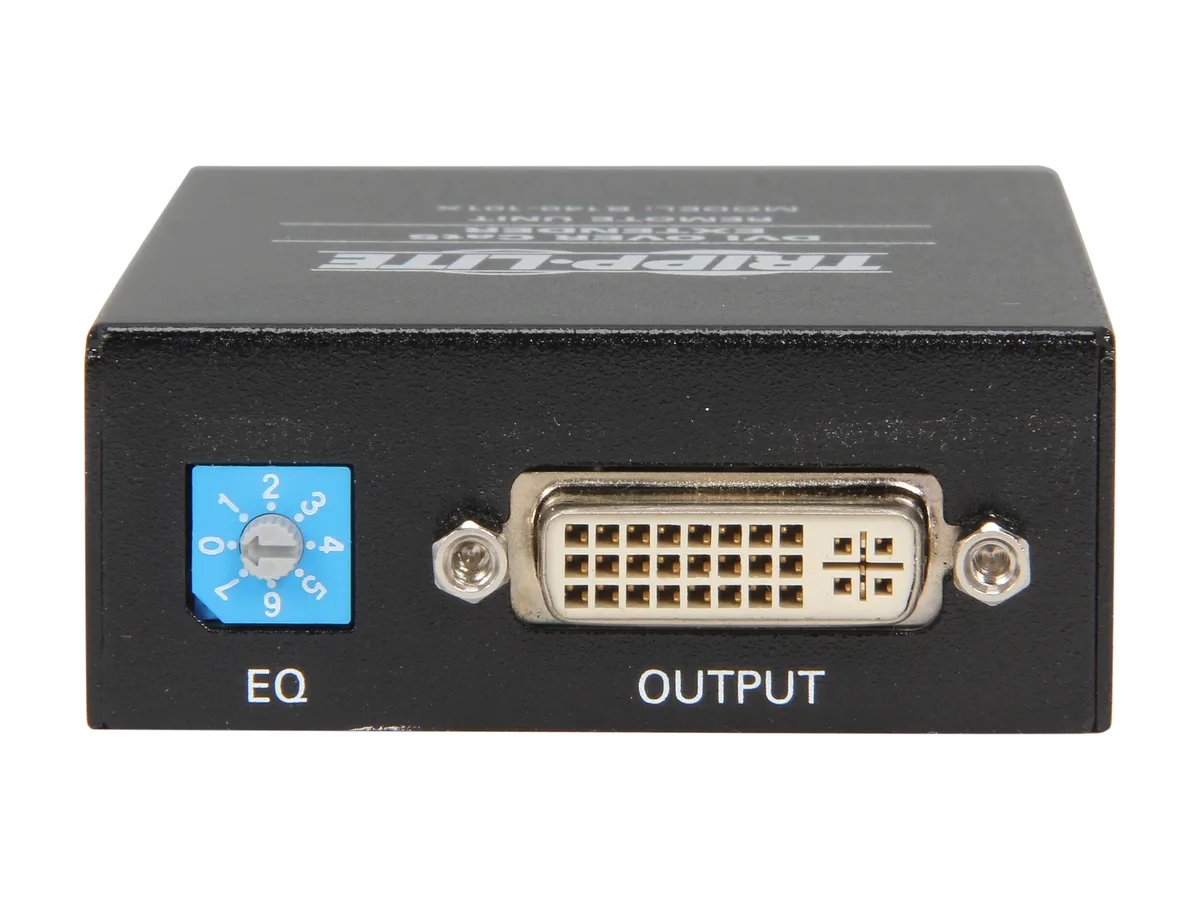

Remote unit features built-in Equalization setting that allows for adjustment of the video image.
Mounting hardware is included that allows the remote unit to be wallmounted, rackmounted or pole-mounted.
No software or drivers required.
HDCP and DDC compatible
Compatible with all operating systems.
Compliant with the Federal Trade Agreements
Weight1.22
Package ContentB140-101X local transmitter unit
B140-101X remote receiver unit
Screwdriver (used for Equalization control)
Mounting hardware
External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
Owner's manual
Shipping weight0.59 kg
Package size213 × 160 × 56 mm

Questions about this item

Does the transmitter or receiver run hot or draw much power when left on all day?

The kit ships with a 5 V, 2 A external power supply rated for 100-240 V, 50/60 Hz input, so draw is modest and heat is low during continuous use.

What cables and display connections must I already have to use this extender?

You need a computer with a DVI video card, a monitor with DVI input and solid 24 AWG Cat5e or Cat6 cable up to 150 ft for 1920 x 1080 at 60 Hz.

Will this work if I keep my existing DVI-I monitor and single-link DVI-D source?

The transmitter uses a DVI-D Single-Link male connector and the receiver provides a DVI-I female port, so your current single-link source and DVI-I display are compatible.
