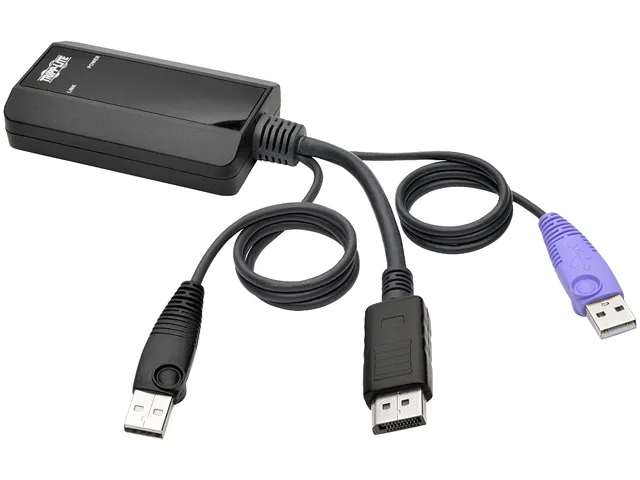

Tripp Lite DisplayPort USB server interface module, compact black enclosure

Tripp Lite

Tripp Lite B055-001-UDP DisplayPort USB Server Interface KVM Switch

SKU CH-BWZW-TXSEP MPN B055-001-UDP

Connects a DisplayPort USB server to a compatible KVM switch up to 164 ft away via Cat5e/6 cable while enabling Virtual Media and CAC support

  • TypeDisplayPort, USB
  • USB Featureswith USB support
  • FeaturesConvenient, Cost-Effective KVM Connection Connects DisplayPo
  • Package ContentsB055-001-UDP NetDirector DisplayPort USB Server Interface Un
  • Connects DisplayPort USB server to B064-IPG KVM via Cat5e/6
  • Enables Virtual Media access for remote server management
  • Supports Common Access Card authentication for secure environments
  • Extends server-to-KVM distance up to 164 ft (50 m)
  • Eliminates bulky cables to free rack space and improve airflow

Server Interface Module

The Tripp Lite B055-001-UDP connects a DisplayPort USB server to a Tripp Lite B064-IPG Series KVM switch using Cat5e/6 cable. It enables Virtual Media functionality and supports Common Access Card readers for secure authentication. This module replaces bulky direct-attach cables with a single network-style run.

Firmware Dependency

Operation requires the KVM switch to run firmware v1.0.071 or later. Without that version the server interface will not establish a link or pass Virtual Media and CAC signals. Verify the switch firmware before deployment to avoid compatibility issues.

Extended Cable Runs

The Cat5e/6 connection supports a maximum distance of 164 ft (50 m) between server and KVM switch. This allows the server to remain in a secured rack while the switch sits at a remote console. The lightweight cable eases routing through conduit and improves airflow in dense cabinets.

Highlights

  • Connects DisplayPort USB server to B064-IPG KVM via Cat5e/6
  • Enables Virtual Media access for remote server management
  • Supports Common Access Card authentication for secure environments
  • Extends server-to-KVM distance up to 164 ft (50 m)
  • Eliminates bulky cables to free rack space and improve airflow

Specifications

BrandTRIPP LITE
ModelB055-001-UDP
TypeDisplayPort, USB
USB Featureswith USB support
FeaturesConvenient, Cost-Effective KVM Connection
Connects DisplayPort USB server to Tripp Lite B064-IPG Series KVM switch with v1.0.071 or later firmware via Cat5e/6 cable
Allows server to access Virtual Media functionality
Supports Common Access Card (CAC)
Maximum distance between server and KVM switch of 164 ft. (50 m)
Eliminates Bulky KVM Cables
Frees precious space in server cabinet
Provides better ventilation and longer cable runs
More flexibility for running cable through conduit and other tight spaces
Plug-and-Play Convenience
No software or external power supply required
Ready for i
Package ContentsB055-001-UDP NetDirector DisplayPort USB Server Interface Unit
Shipping weight0.18 kg
Package size124 × 122 × 43 mm

Questions about this item

What does the 164 ft maximum distance mean for my server-to-KVM cable run?

You can place the server up to 164 ft (50 m) from the B064-IPG Series KVM switch using Cat5e/6 cable, allowing flexible rack layout and longer runs through conduit.

What KVM switch firmware and cable standard does this interface require?

It connects to a Tripp Lite B064-IPG Series KVM switch running firmware v1.0.071 or later via Cat5e/6 cable for DisplayPort, USB, Virtual Media and CAC support.

What physical space and power does the unit need in the cabinet?

The compact server interface unit mounts in the rack without an external power supply, freeing cabinet space and improving ventilation compared with bulky direct-attach KVM cables.
