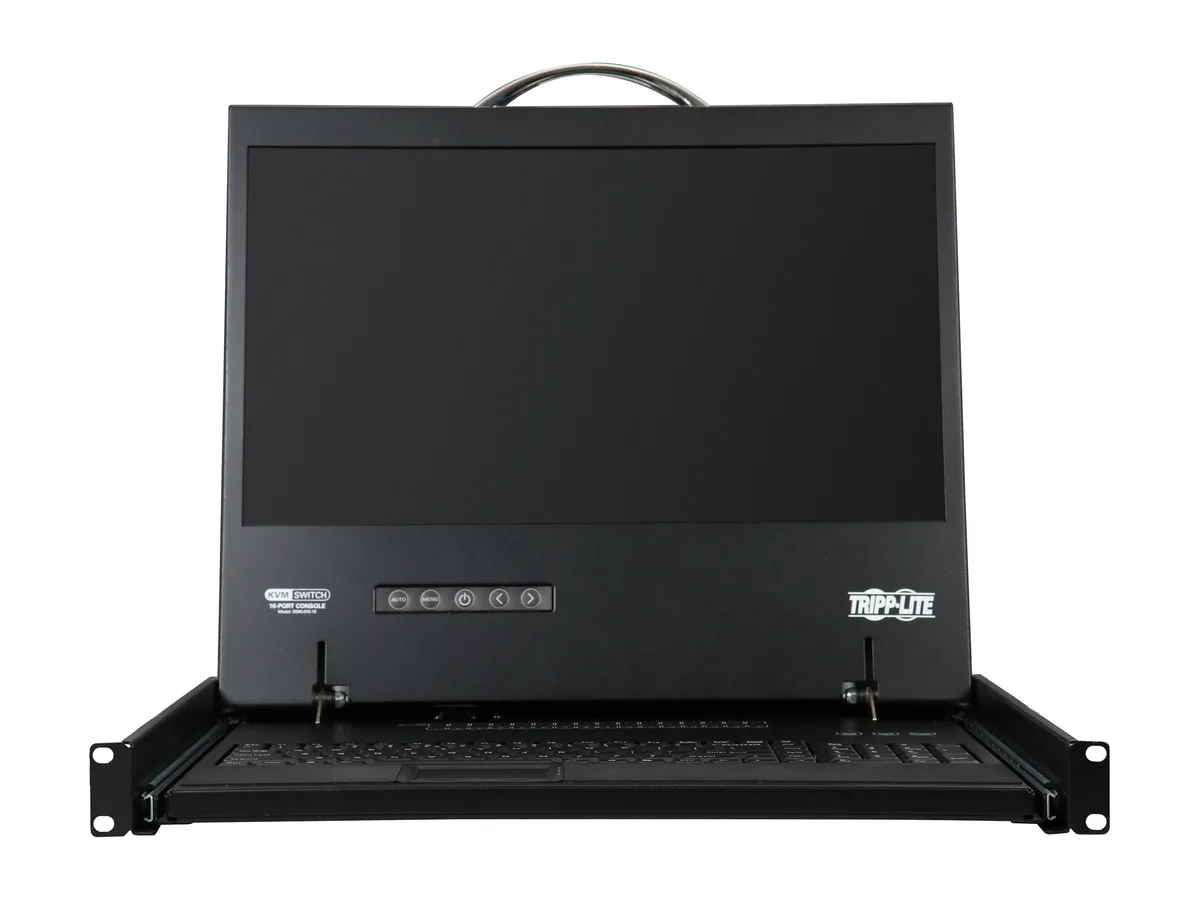

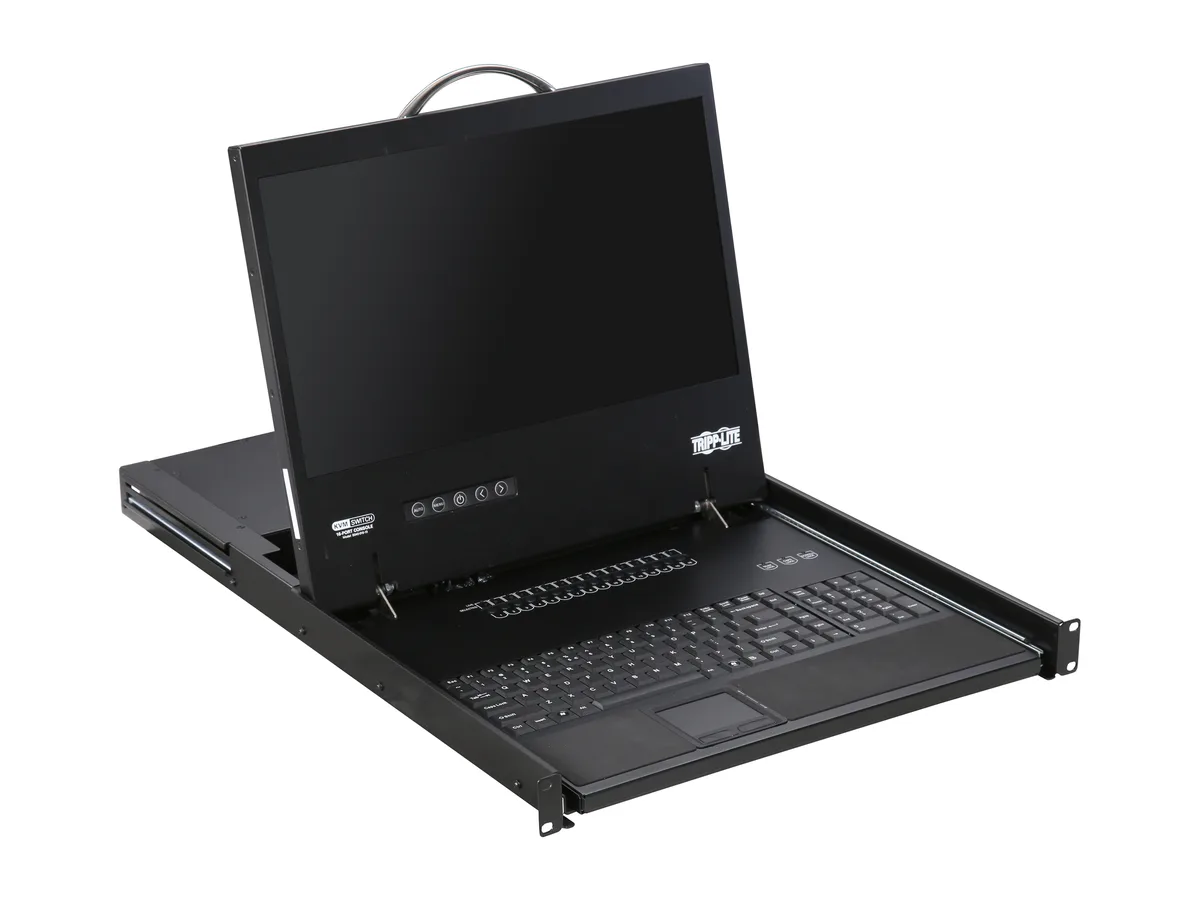

Tripp Lite 1U rack drawer with 19 inch LCD monitor keyboard touchpad and 16 port KVM switch

Tripp Lite

Tripp Lite B040-016-19 16-Port 1U Rack-Mount Console KVM Switch with 19" LCD

SKU CH-9W4M-9W431 MPN B040-016-19

A 1U rack drawer combines a 16-port KVM switch, 19-inch LCD, keyboard and touchpad for controlling up to 128 servers

  • TypeD-Sub, USB
  • PC Connectors16 x HD15F
  • Computer Connections16 Ports
  • PC SelectionPush Buttons/Hot Keys/OSD
  • Features16-port KVM Switch with built-in 19" Monitor, Keyboard, and
  • Weight34.00 lbs.

Computer Connections 16 Ports

  • 16-port KVM with integrated 19" LCD, keyboard and touchpad in a single 1U drawer
  • Controls up to 128 computers directly via 16 ports
  • Daisy-chain 15 additional switches for 256 total server connections
  • Supports video resolutions up to 1366 x 768
  • Works with PS/2 and USB systems using P780-series cables

Integrated 1U Console KVM

The Tripp Lite B040-016-19 combines a 16-port KVM switch with a 19" LCD monitor, keyboard and touchpad in a single 1U rack drawer. It is built for administrators who manage multiple servers from one location. The unit supports video resolutions up to 1366 x 768 for clear on-screen detail. TAA compliance makes it suitable for government procurement requirements.

Rack Integration and Expansion

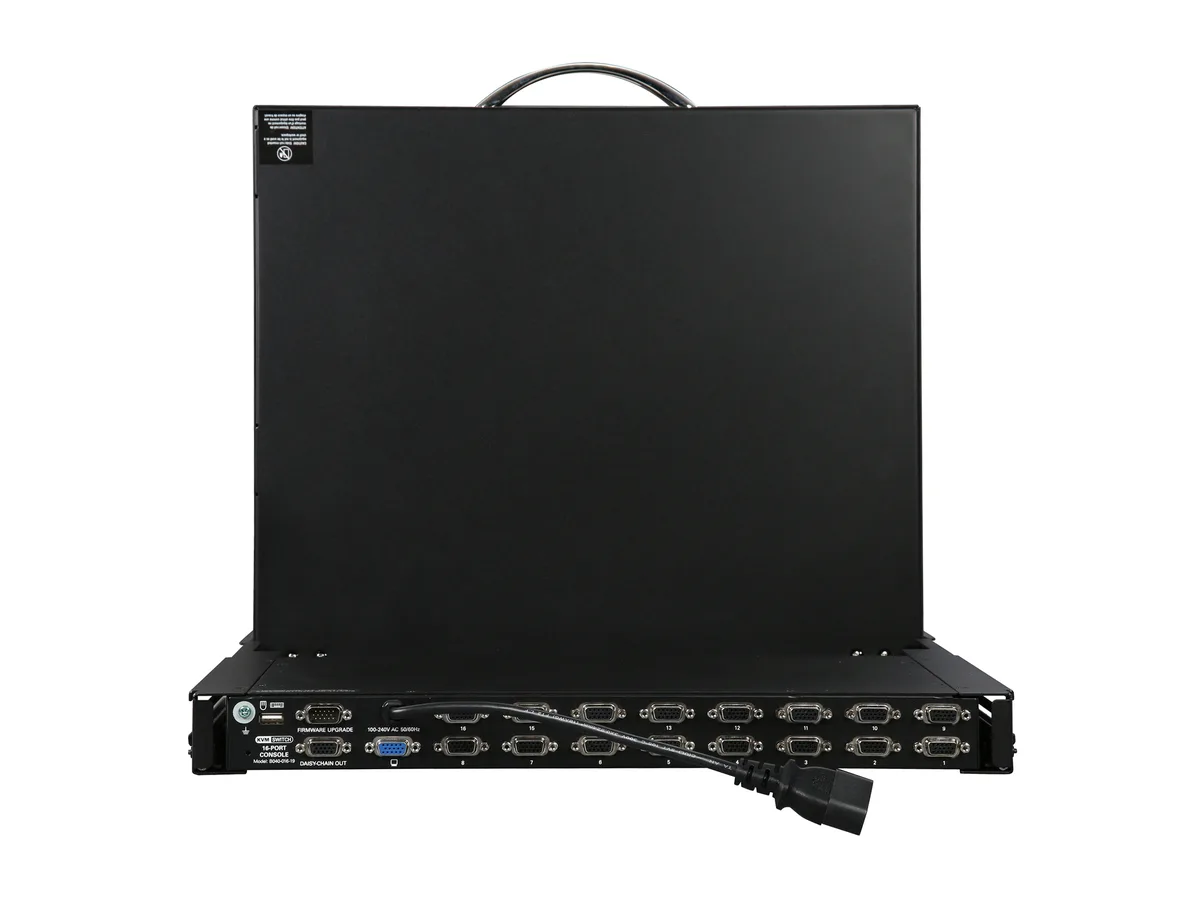

The drawer fits standard EIA 19" racks with depths from 29" to 42" and weighs 34.00 lbs. Sixteen HD15F ports connect directly to servers using Tripp Lite P780-series combo cables that accept both PS/2 and USB interfaces. An OSD menu and front-panel push buttons provide quick port selection without extra software. Daisy-chaining up to 15 additional B042-series switches extends control to 256 computers.

Capacity Limits and Headroom

Sixteen direct ports handle small-to-medium server rooms comfortably; the daisy-chain path raises the ceiling to 256 systems for larger deployments. The fixed 1366 x 768 panel caps maximum display resolution, so higher-resolution consoles will downscale. Buyers needing more than 256 managed nodes or native high-DPI output should evaluate alternative architectures.

Highlights

  • 16-port KVM with integrated 19" LCD, keyboard and touchpad in a single 1U drawer
  • Controls up to 128 computers directly via 16 ports
  • Daisy-chain 15 additional switches for 256 total server connections
  • Supports video resolutions up to 1366 x 768
  • Works with PS/2 and USB systems using P780-series cables

Specifications

BrandTRIPP LITE
ModelB040-016-19
TypeD-Sub, USB
PC Connectors16 x HD15F
Computer Connections16 Ports
PC SelectionPush Buttons/Hot Keys/OSD
Features16-port KVM Switch with built-in 19" Monitor, Keyboard, and Mouse
Connect and control up to 128 computers
Standard EIA 19" rackmounting
Use in racks from 29" to 42" deep
OSD menu for intuitive operation and easy control
USB and PS/2 mouse/keyboard support
Password protection and auto-logout features
Firmware upgradeable
Hot-swappable: disconnect and reconnect USB computers w/o reboot
Easy port selection via push buttons, hot keys, or On Screen Display

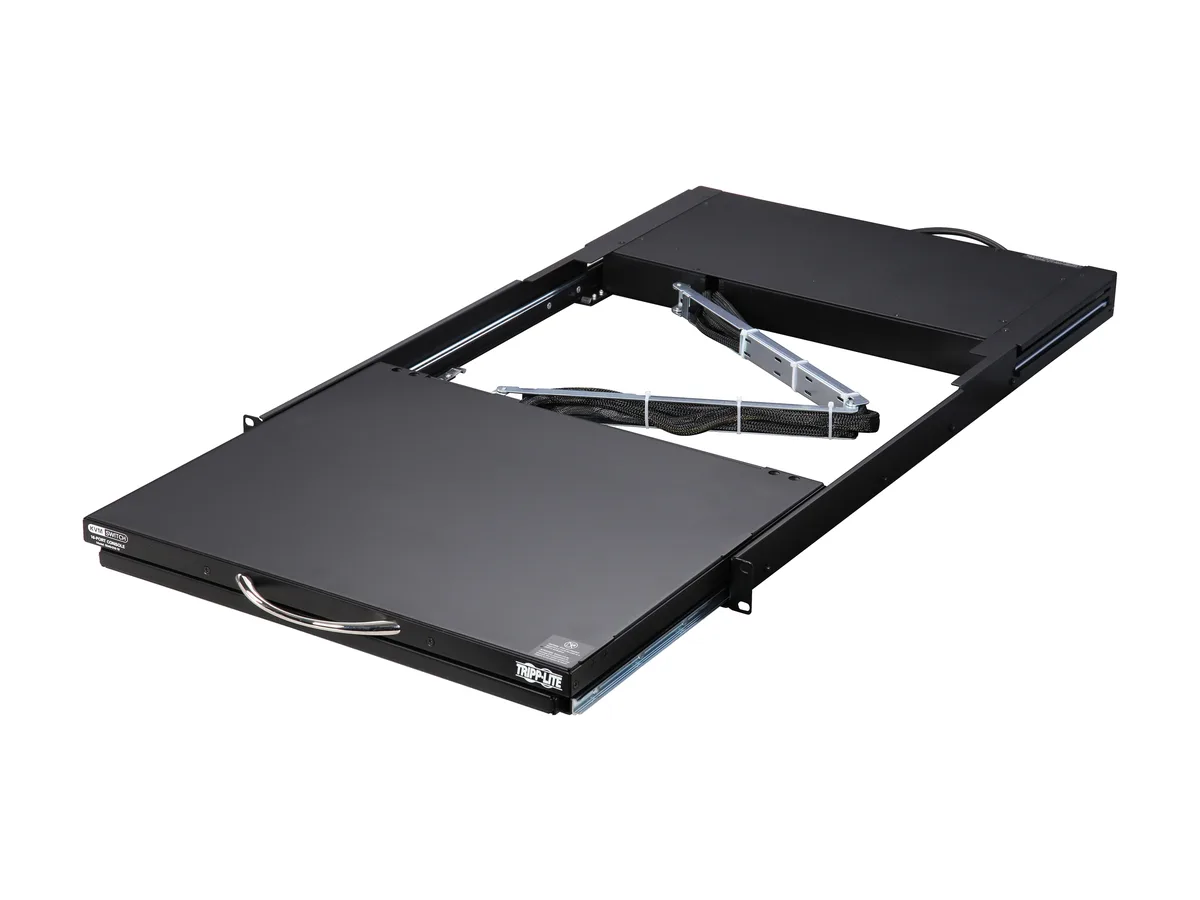

Rugged ball bearing slides offer long life usage
Super slim KVM cables for easy cable management offer USB and PS/2 connections at the
Weight34.00 lbs.
Package ContentsB040-016-19 1U rackmount console KVM switch with 19” LCD
4 ft. HD15 to DB9 firmware upgrade cable
6 ft. C13 to 5-15P power cord
External VGA port terminator
Rackmount hardware
CD with owner's manual
Quick start guide
Shipping weight18.44 kg
Package size828 × 602 × 165 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many servers can I reach through a single B040-016-19 before adding another switch?

You can manage 16 computers directly; daisy-chain up to 15 B042-series switches to reach 256 total.

Does the 19-inch LCD and keyboard drawer generate noticeable heat or fan noise during continuous operation?

The 1U drawer has no fan; heat output is low enough for standard 29- to 42-inch deep racks.

Which cable kits do I need to connect PS/2 or USB servers to the 16 HD15 ports?

Tripp Lite P780-series combo cable kits provide both PS/2 and USB connectors for each port.
