Tripp Lite

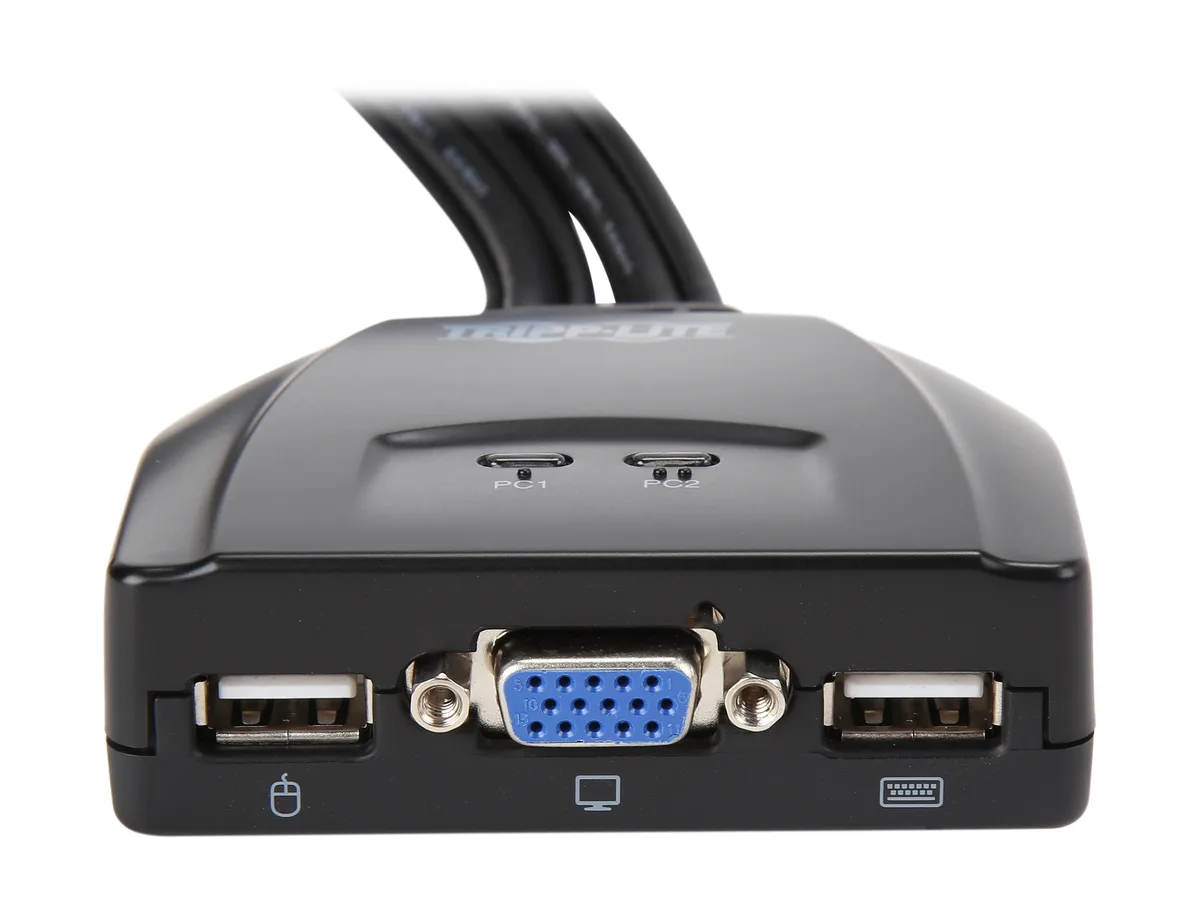

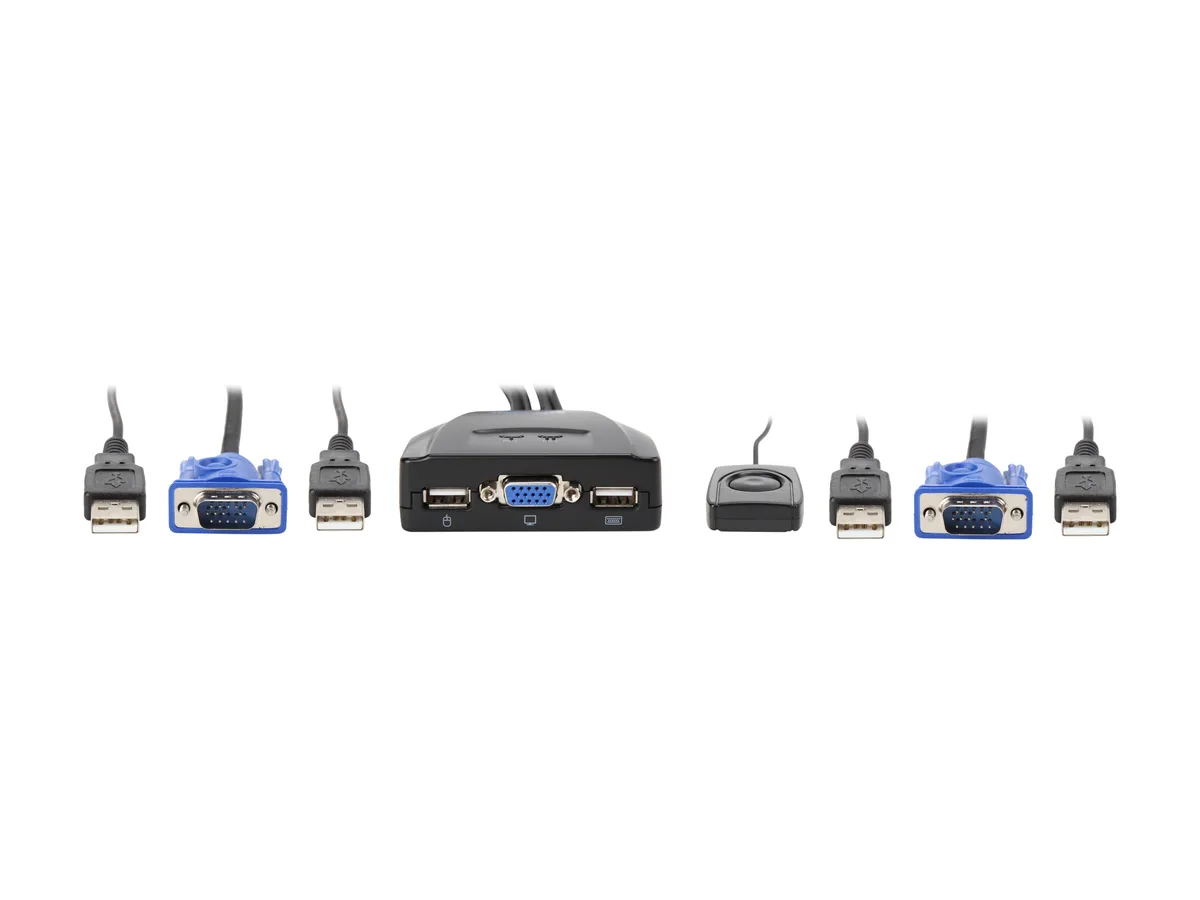

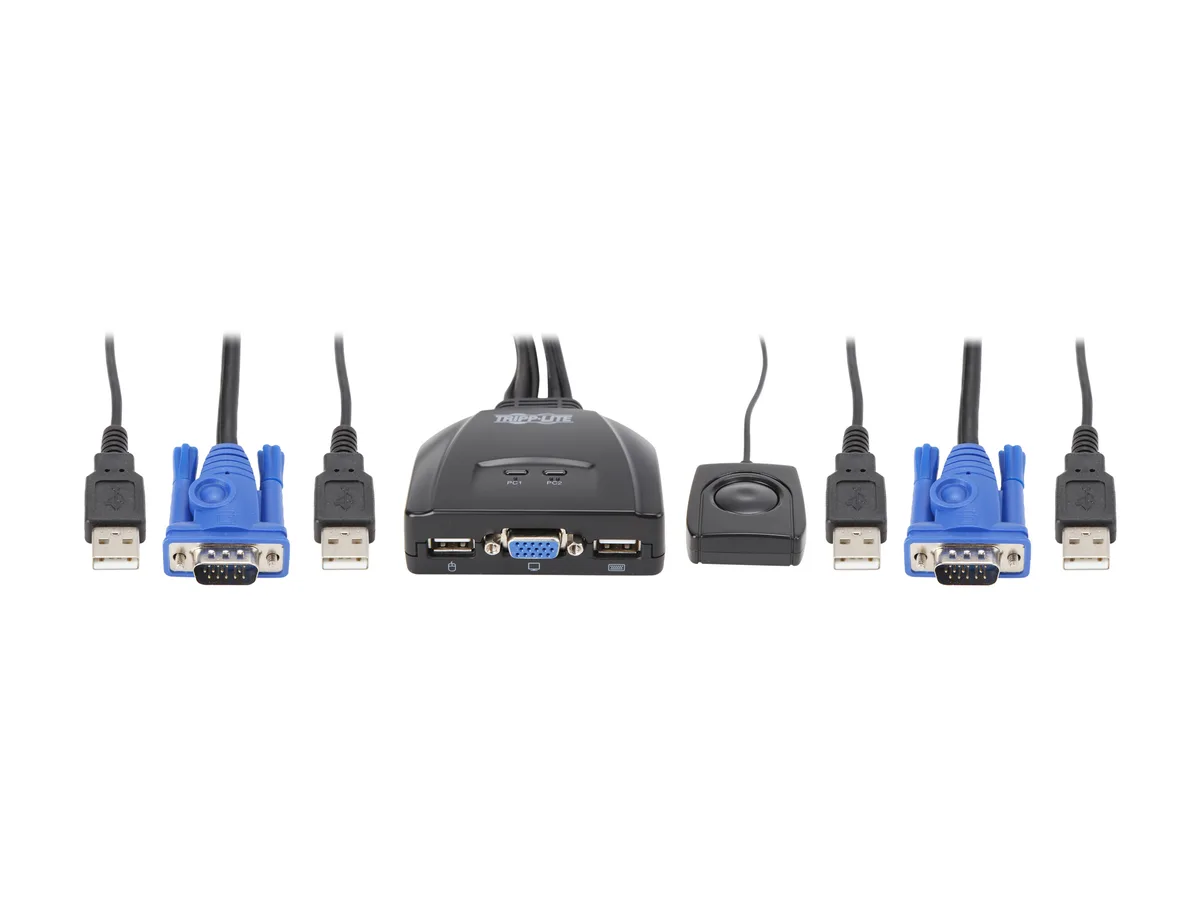

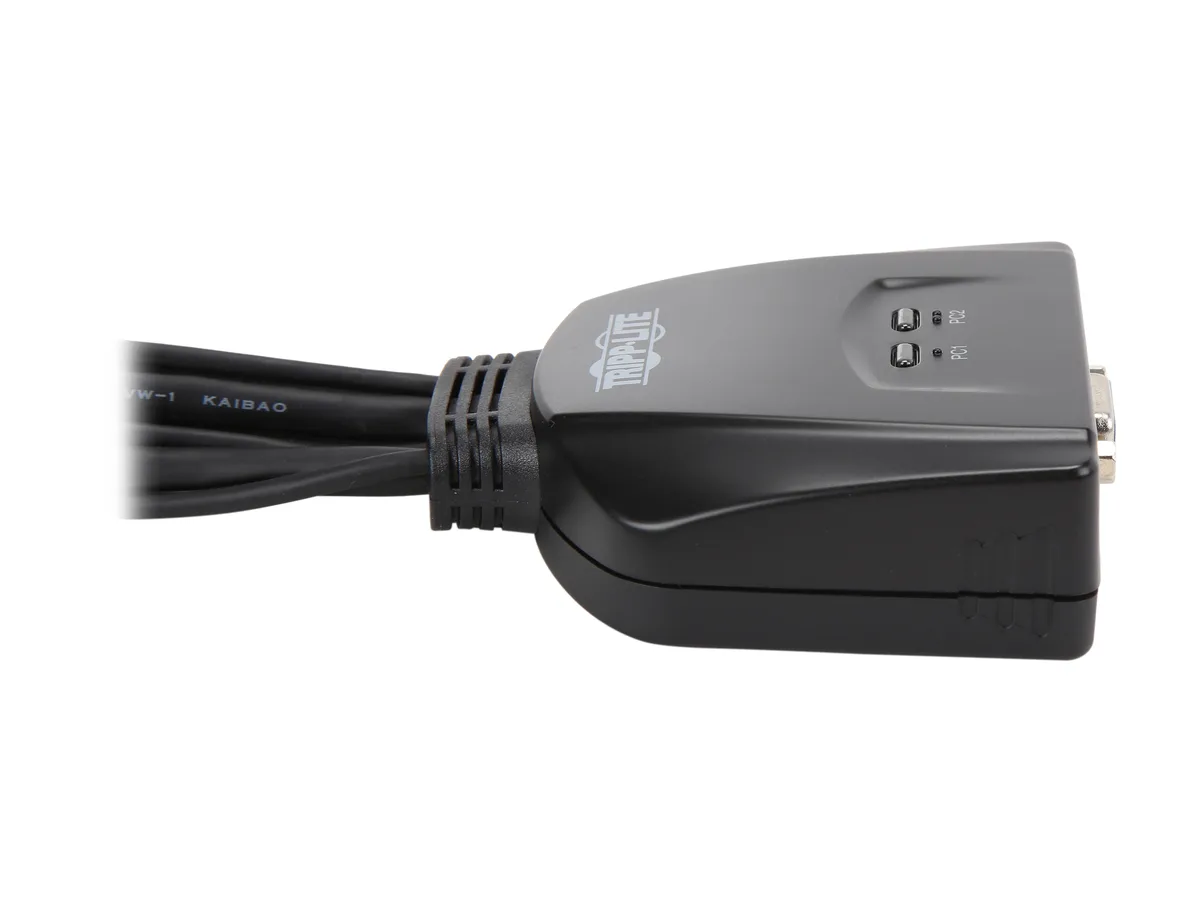

Tripp Lite B032-VU2 2-Port USB VGA KVM Switch Cable
Control two computers with one VGA monitor, USB keyboard and mouse using built-in cables and a remote selector for instant switching
- TypeUSB, VGA
- PC ConnectorsHD15 (FEMALE) 2 x USB A (FEMALE)
- Console Connectors2 x HD15 (MALE) 4 x USB A (MALE)
- Video Resolution2048 x 1536
- Monitors SupportedVGA, SVGA and Multi-Sync
- TemperatureOperating: 32 to 122 degree F (0 to 50 degree C) Storage: -4
- Control 2 computers with one monitor, keyboard and mouse
- Built-in 3 ft VGA and USB cables simplify setup
- Supports video resolutions up to 2048 x 1536
- Remote port selector enables quick switching
- No software, drivers or external power required
Compact Two-Port KVM for Home and Office
The Tripp Lite B032-VU2 lets you operate two computers using a single VGA monitor, USB keyboard and USB mouse. Built-in cables simplify the connection to each system. It suits home, office and multimedia setups where desk space and peripheral count need to stay low.
Passive Cooling Within Standard Temperature Range
The unit operates from 32 to 122 degree F (0 to 50 degree C) and stores safely from -4 to 140 degree F (-20 to 60 degree C). Humidity tolerance reaches 80 percent RH non-condensing. No fan or external power supply is required, so the switch runs silently and draws negligible power during normal switching.
Stable Video Through Extended Sessions
Video resolution holds up to 2048 x 1536 across sustained use without software or driver overhead. The remote port selector provides instant switching between computers for continuous workflow. A powered USB 1.1 hub can be added to the console mouse port to share printers, drives or webcams between both systems.
Highlights
- Control 2 computers with one monitor, keyboard and mouse
- Built-in 3 ft VGA and USB cables simplify setup
- Supports video resolutions up to 2048 x 1536
- Remote port selector enables quick switching
- No software, drivers or external power required
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B032-VU2 |
| Type | USB, VGA |
| PC Connectors | HD15 (FEMALE) 2 x USB A (FEMALE) |
| Console Connectors | 2 x HD15 (MALE) 4 x USB A (MALE) |
| Video Resolution | 2048 x 1536 |
| Monitors Supported | VGA, SVGA and Multi-Sync |
| Temperature | Operating: 32 to 122 degree F (0 to 50 degree C) Storage: -4 to 140 degree F (-20 to 60 degree C) |
| Humidity | 0 to 80% RH, Non-Condensing |
| Features | Access and Control 2 Computers with One Keyboard/Mouse/Monitor Recommended for home, office and multimedia applications Switch between computers using built-in remote port selector Supports video resolutions up to 2048 x 1536 Built-in 3 ft. VGA and USB cables Independent USB 1.1 Peripheral Sharing Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives Easy Plug-and-Play Setup and Use Compatible with Windows, Mac, Sun and Linux No external power supply, software or d |
| Weight | 1 |

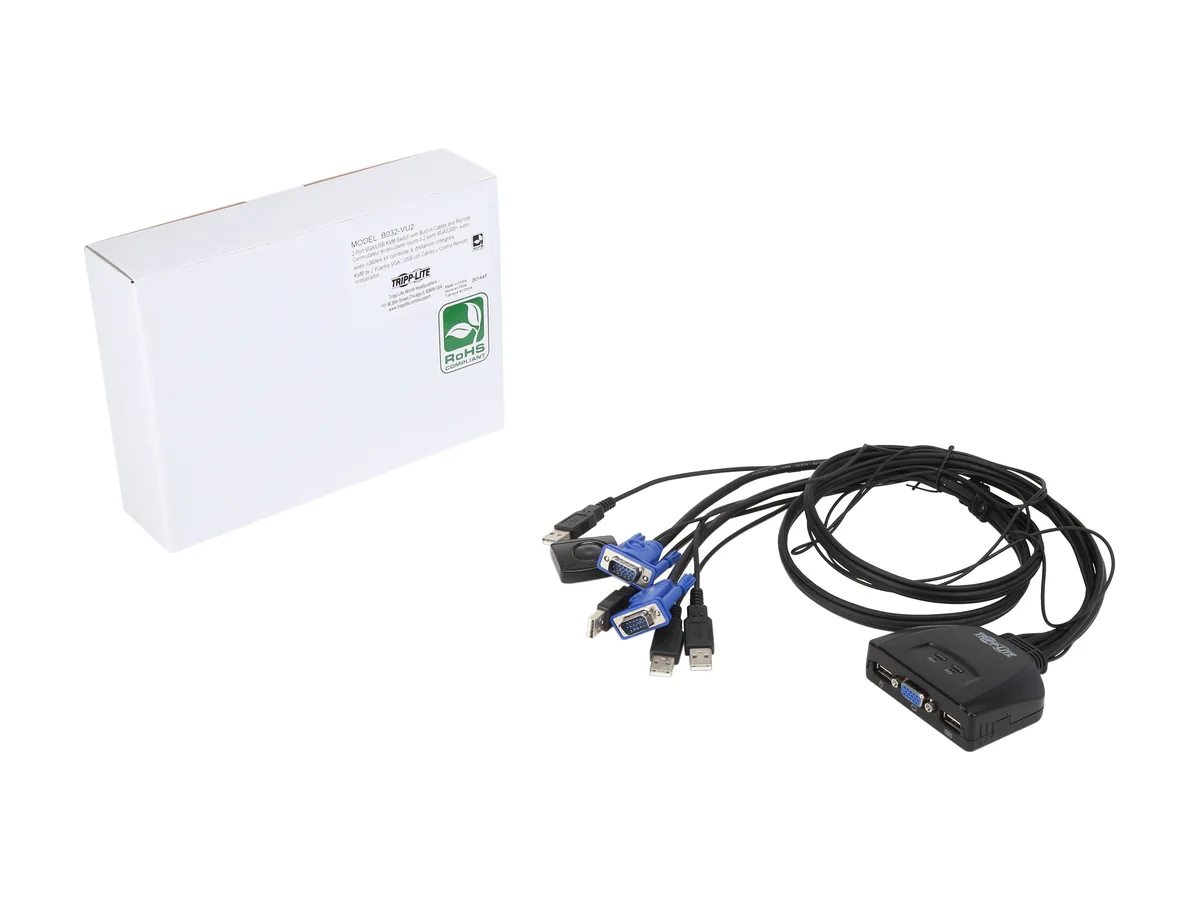

| Package Contents | B032-VU2 2-Port USB/VGA Cable KVM Switch Owner's manual |
| Shipping weight | 0.41 kg |
| Package size | 241 × 175 × 61 mm |
Questions about this item
How do I connect the built-in 3 ft cables to my two computers and the console ports for monitor, keyboard and mouse?
Plug the two HD15 male and four USB A male ends into the VGA, keyboard and mouse ports on each computer, then connect your monitor to the HD15 female console port and your keyboard and mouse to the two USB A female console ports; the remote selector switches between systems.
What ongoing maintenance or replacement will this KVM switch need over time?
No scheduled maintenance is required; the unit has no user-serviceable parts, no external power supply and no firmware, so only a cable failure or physical damage would prompt replacement.
What is the first limitation I will hit when running the switch continuously at high resolution?
The maximum supported video resolution is 2048 x 1536 and the operating temperature range tops out at 122 °F (50 °C), so sustained use in a hot enclosure or at resolutions above that limit will degrade the signal first.
