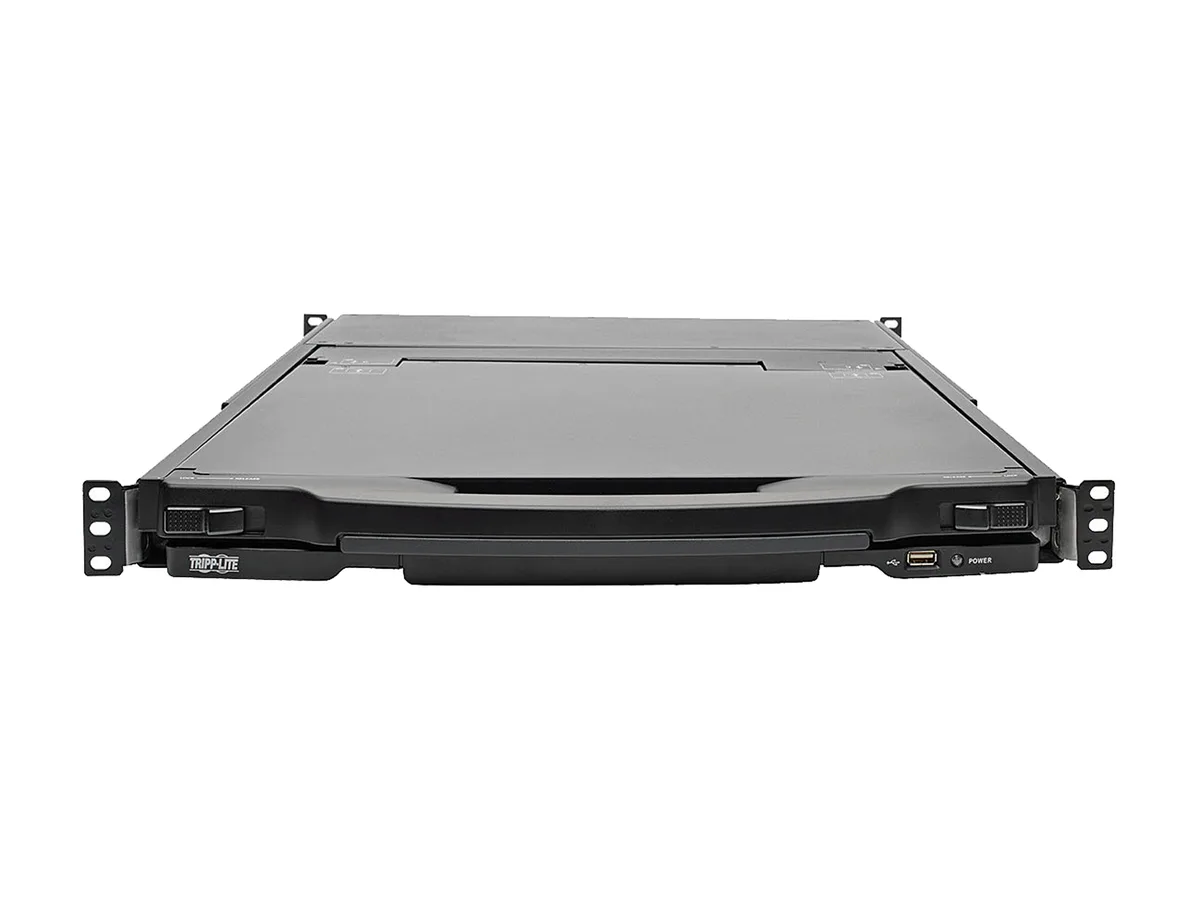

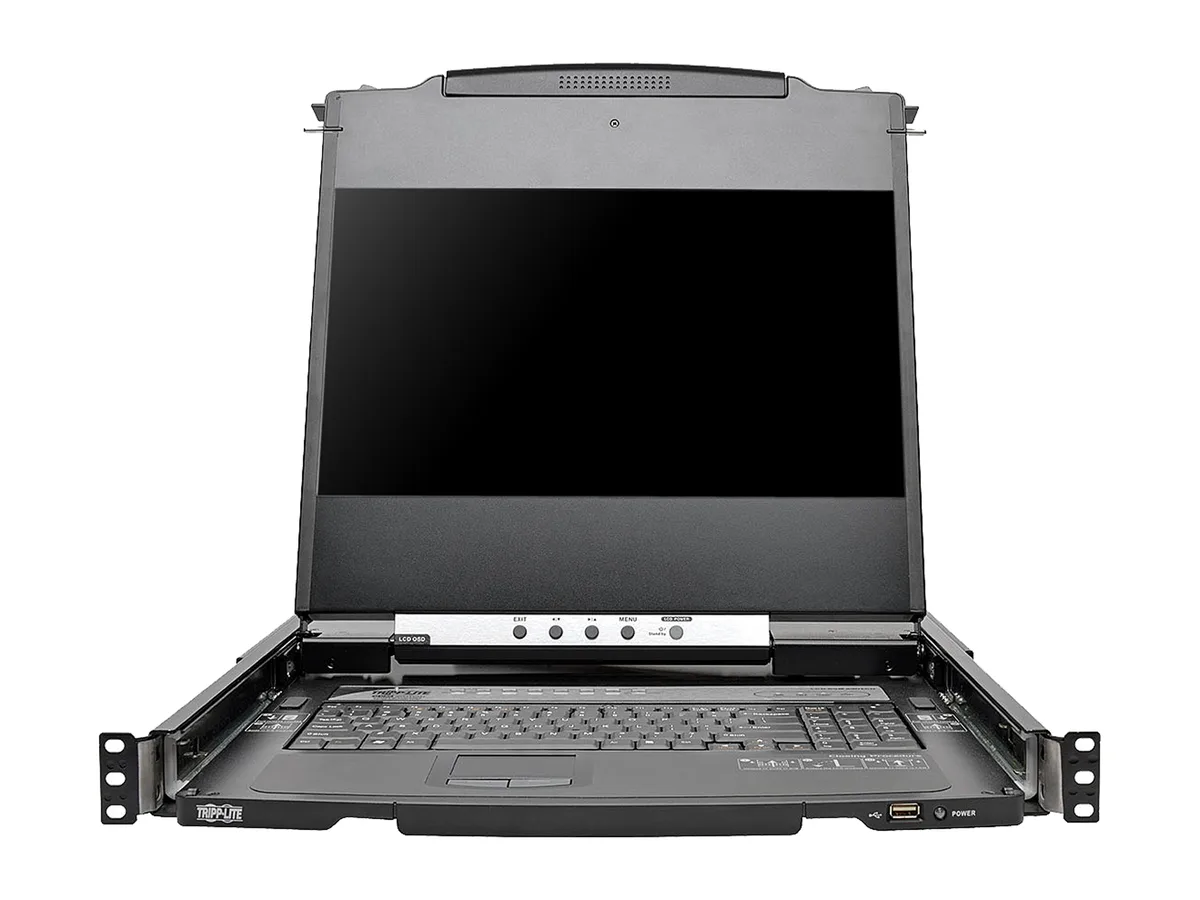

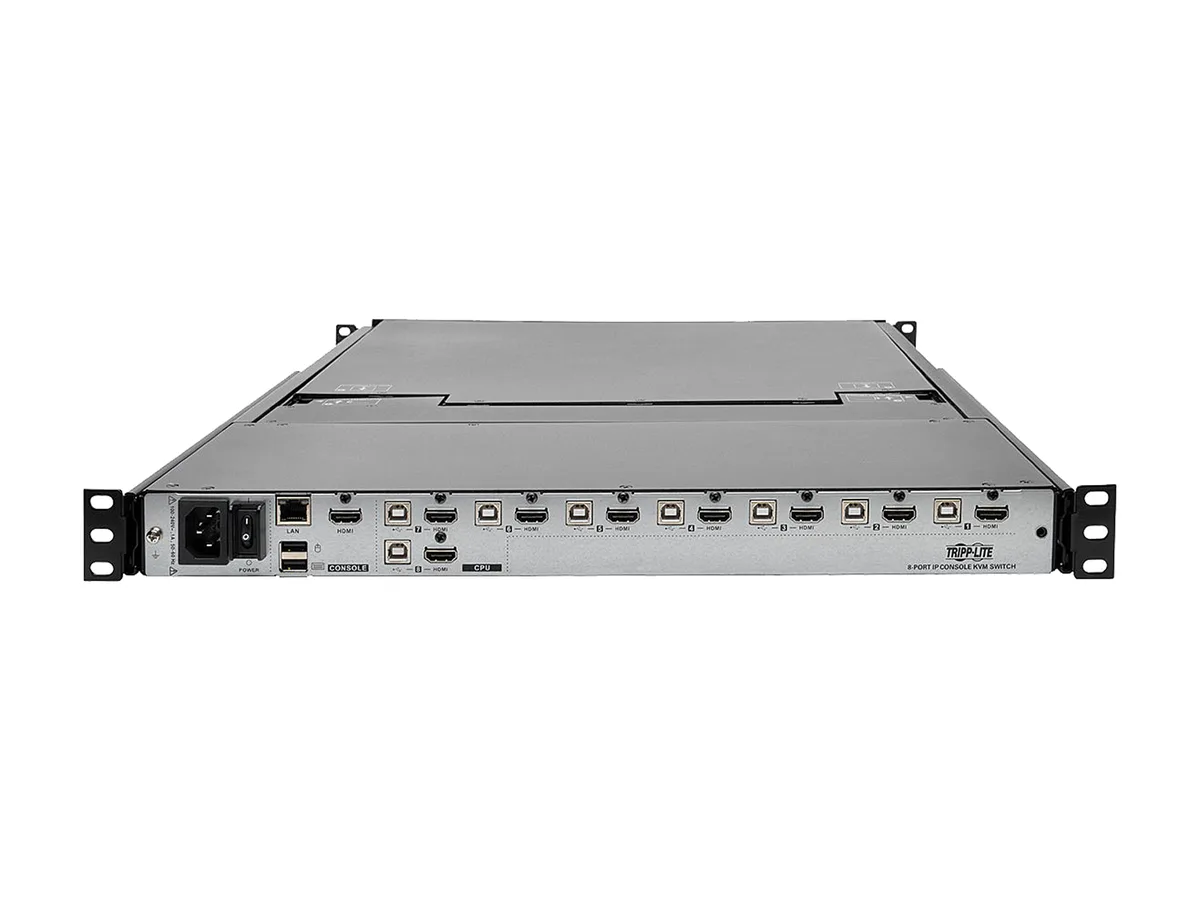

Rack-mount 1U drawer with 17-inch LCD, keyboard and touchpad, eight HDMI ports on rear

Tripp Lite

Tripp Lite B030-008-17-IP 8-Port 17" LCD KVM Switch

SKU CH-H5C5-M382G MPN B030-008-17-IP

A 1U rack-mount console with a 17" LCD controls eight HDMI servers locally or remotely over IP, supporting 1920 x 1080 resolution and up to 32 concurrent remote log-ins

  • TypeHDMI, USB
  • Computer ConnectionsComputer/Server Ports: 8 x HDMI FEMALE PC/Server Connections
  • AutoScan IntervalAutoscan (Y,N): Y Autoscan Duration: 1 - 255 Seconds
  • TemperatureStorage Temperature: -4 to 140 degree F (-20 to 60 degree C)
  • Humidity0% to 80%,Non-Condensing
  • Power FeaturesNominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V A
  • Control 8 servers from one 1U rack drawer with integrated 17" LCD
  • Access computers locally or remotely over LAN, WAN or Internet
  • Support up to 64 authorised users and 32 concurrent remote log-ins
  • Display video resolutions up to 1920 x 1080 on the built-in screen
  • Operate reliably across 100–250 V AC input without extra configuration

8-Port HDMI KVM with 17" LCD

This 1U rack-mount console combines an 8-port HDMI KVM switch with an integrated 17-inch LCD display and dual-rail drawer. It allows direct local control of up to eight servers or computers from a single keyboard, mouse and monitor. Remote access is available over LAN, WAN or the Internet for administrators who need to manage systems from anywhere. The unit supports video resolutions up to 1920 x 1080.

Verify HDMI and USB on each server

Each target system must provide an HDMI video output and a USB port for keyboard and mouse signals. The package includes two 6 ft HDMI cables and two 6 ft USB 2.0 A/B cables, so additional cables are required for the remaining six ports. Confirm that your rack can accommodate the 1.73-inch height, 18.90-inch width and 26.77-inch depth, and that the operating environment stays within 32 to 104 degree F with humidity up to 80 percent non-condensing. The power supply accepts 100 to 250V AC at 50 or 60 Hz with a maximum draw of 1 amp.

Replaces separate rack monitor and KVM

This console replaces a standalone rack-mount monitor, keyboard tray and separate KVM switch, consolidating them into one 1U drawer. The jump is worthwhile when you need to manage eight HDMI-connected servers locally and remotely while supporting up to 64 authorized users and 32 concurrent remote sessions. It is not suited for environments that require DisplayPort, VGA or DVI video inputs, or for setups needing more than eight directly connected systems.

Highlights

  • Control 8 servers from one 1U rack drawer with integrated 17" LCD
  • Access computers locally or remotely over LAN, WAN or Internet
  • Support up to 64 authorised users and 32 concurrent remote log-ins
  • Display video resolutions up to 1920 x 1080 on the built-in screen
  • Operate reliably across 100–250 V AC input without extra configuration

Specifications

BrandTRIPP LITE
ModelB030-008-17-IP
TypeHDMI, USB
Computer ConnectionsComputer/Server Ports: 8 x HDMI FEMALE
PC/Server Connections: USB
AutoScan IntervalAutoscan (Y,N): Y
Autoscan Duration: 1 - 255 Seconds
TemperatureStorage Temperature: -4 to 140 degree F (-20 to 60 degree C)
Operating Temperature: 32 to 104 degree F (0 to 40 degree C)
Humidity0% to 80%,Non-Condensing
Power FeaturesNominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Recommended Electrical Service: 100 - 250V
Maximum Input Amps: 1
Input Frequency: 50/60Hz
Input Current: 120V (0.26A) / 230V (0.17A)
FeaturesControl computers/servers locally or via LAN, WAN or Internet
Occupies just 1U of space in a rack-mountable, dual-rail drawer
Supports video resolutions up to 1920 x 1080
Allows up to 64 authorized users and 32 concurrent remote log-ins
Works with all major operating systems and browsers
Dimensions1.73" x 18.90" x 26.77"
Weight26.01 lbs.

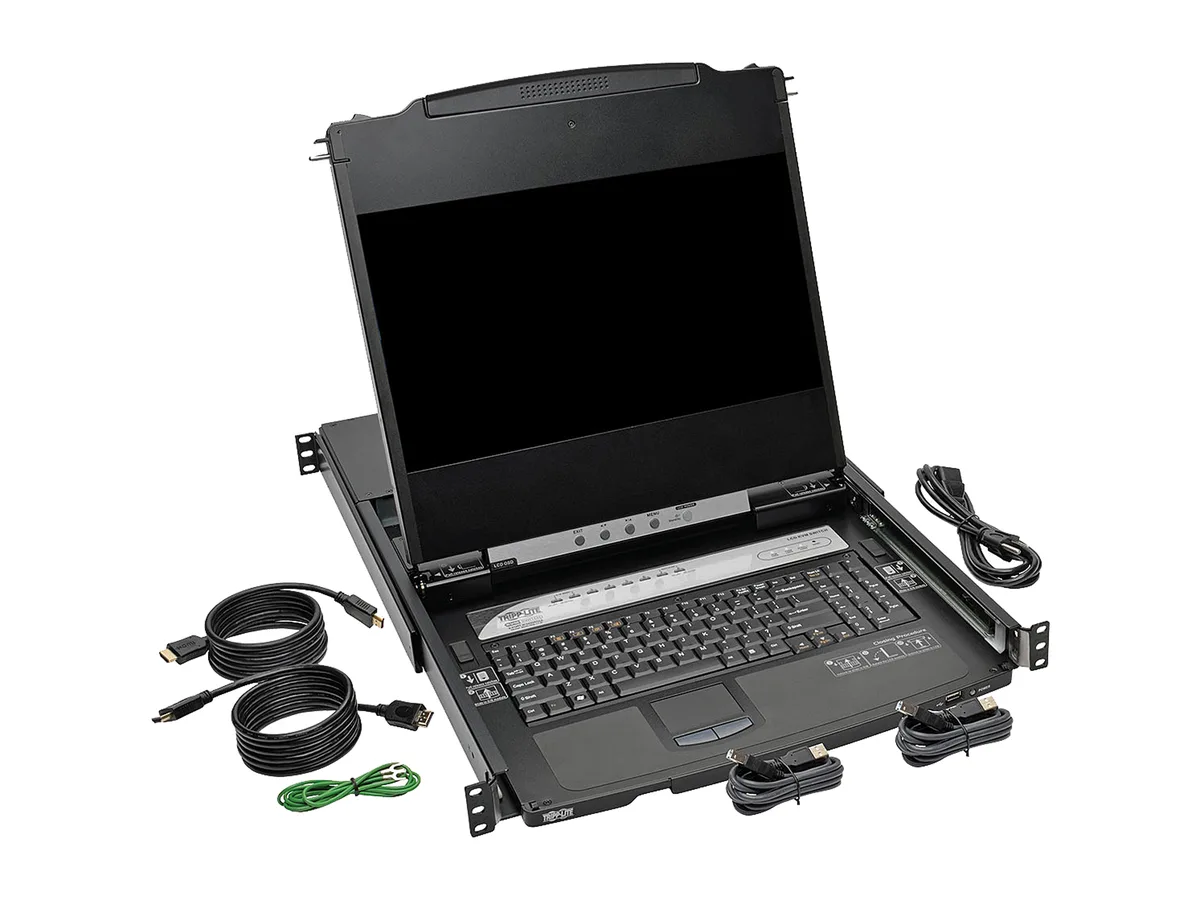

Package ContentsB030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch
2 x High-speed HDMI cables, 6 ft.
2 x USB 2.0 A/B cables, 6 ft.
C13 to NEMA 5-15P power cord
Mounting hardware
Owner’s manual
Shipping weight19.10 kg
Package size833 × 676 × 152 mm

Questions about this item

Does the B030-008-17-IP include cables to connect the 8 servers, or must they be purchased separately?

The package supplies two 6 ft HDMI cables and two 6 ft USB 2.0 A/B cables; the remaining six server connections require additional HDMI and USB cables.

Which video resolution should I expect when managing servers through the 17-inch LCD?

The integrated display supports up to 1920 x 1080, so that is the maximum resolution available locally or over IP.

How many administrators can simultaneously access the KVM over the network?

The unit allows up to 32 concurrent remote log-ins from the 64 authorised user accounts.
