Tripp Lite B024-H4U16 16-Port 4K HDMI/USB KVM Switch
A 1U rack-mount KVM switch controls 16 HDMI computers from one 4K 60 Hz console with USB 3.2 peripheral sharing and cascades to 256 systems
- TypeHDMI; Stereo Audio; USB 3.x
- Console ConnectorsNumber of Ports: 16 PC/Server Connections: HDMI Side A - Con
- Video ResolutionMax Supported Video Resolution: HDMI: 4096 x 2160 @ 60Hz
- LED IndicatorsOrange x16 (Selected Port); Green x1 (Power); Green x16 (USB
- TemperatureOperating Temperature Range: 32 to 104 F (0 to 40 C) Storage
- Humidity0 to 80% RH, Non-condensing
- True 4K 60 Hz video clarity with 4096 x 2160 resolution
- Control up to 256 computers by cascading two levels
- Share USB peripherals via built-in 2-port USB 3.2 Gen 1 hub
- Switch instantly using push buttons, hotkeys or on-screen display
- Works with Windows, Mac and Linux operating systems
16-Port 4K HDMI KVM Switch
The Tripp Lite B024-H4U16 connects 16 HDMI-enabled computers or servers to a single 4K monitor, keyboard and mouse. It supports video resolutions up to 4096 x 2160 at 60 Hz with 2.1-channel surround sound audio. A two-port USB 3.2 Gen 1 hub shares peripherals across all connected systems. The unit operates in temperatures from 32 to 104 F.
1U Rack-Mount With USB And Audio

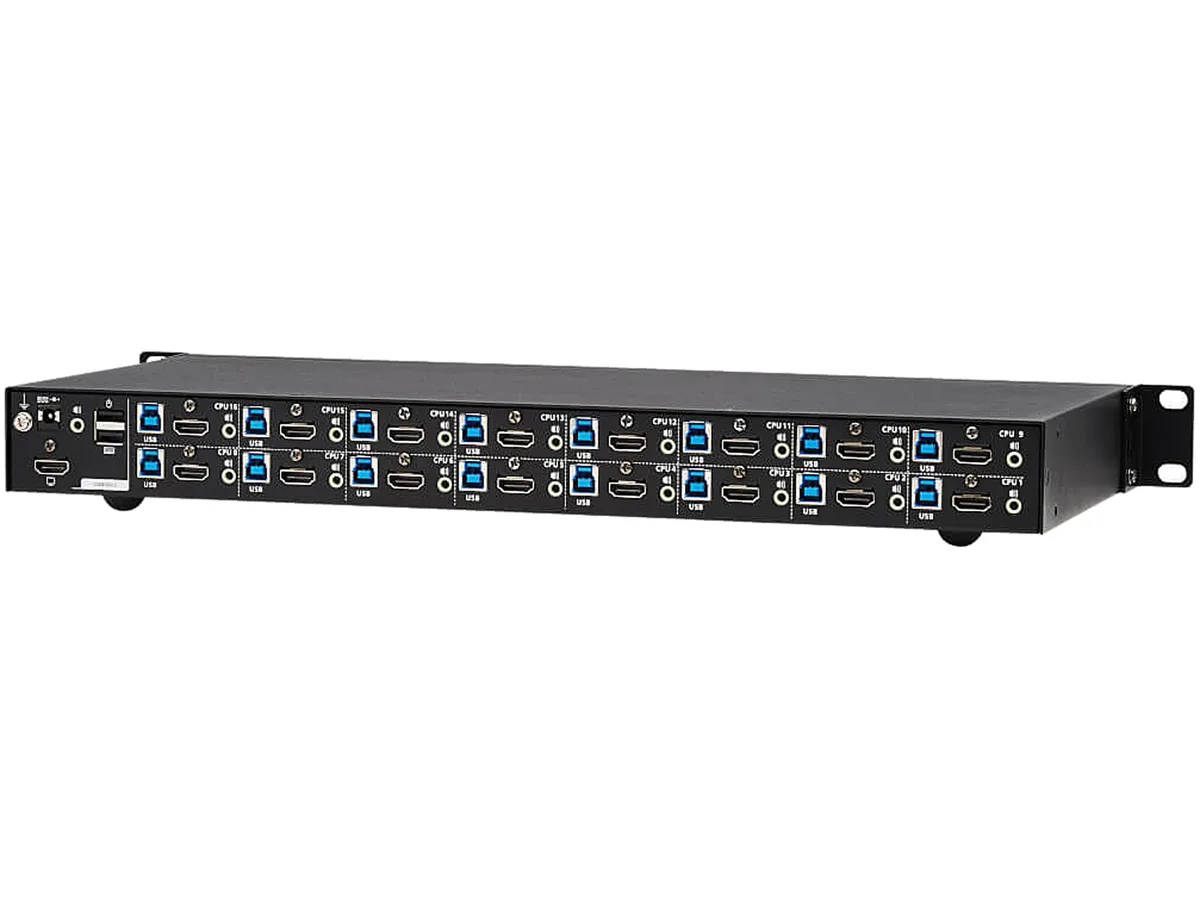

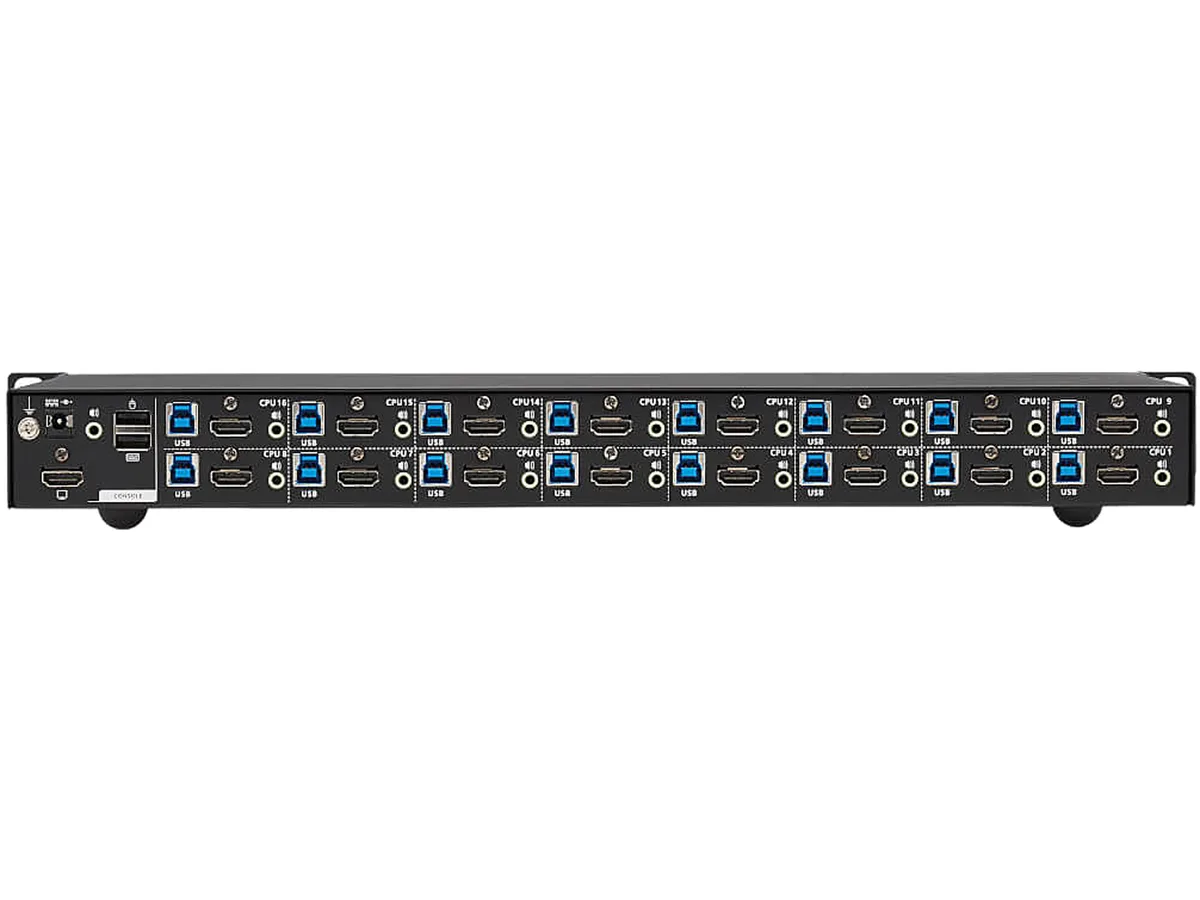

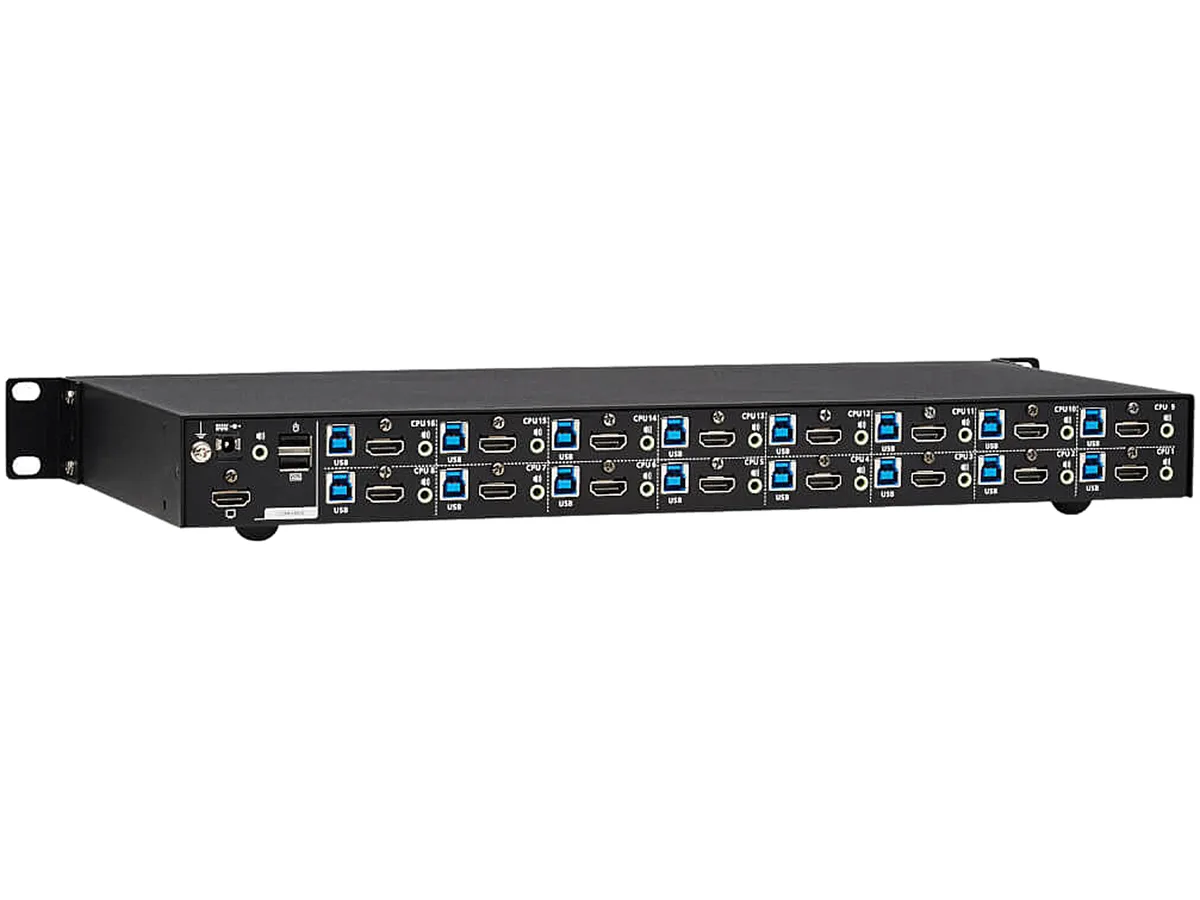

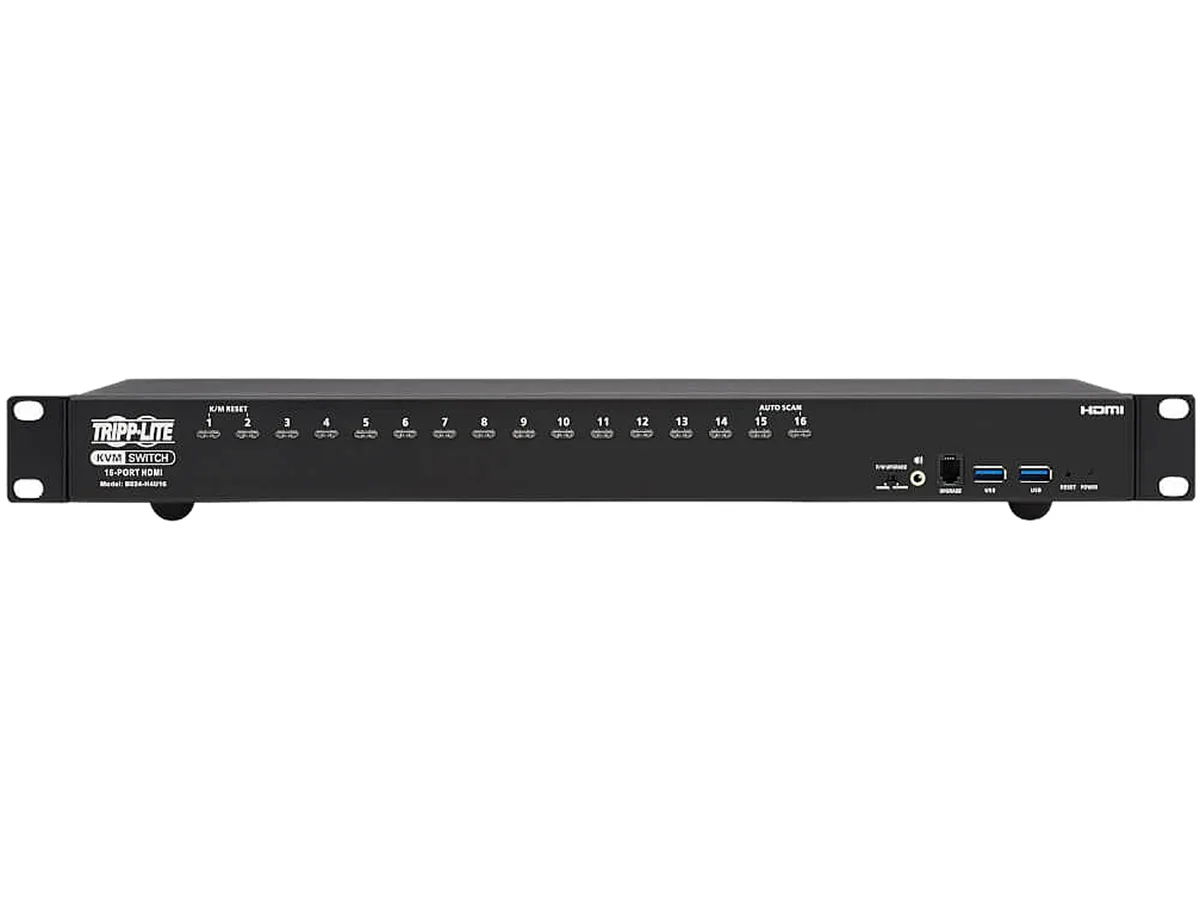

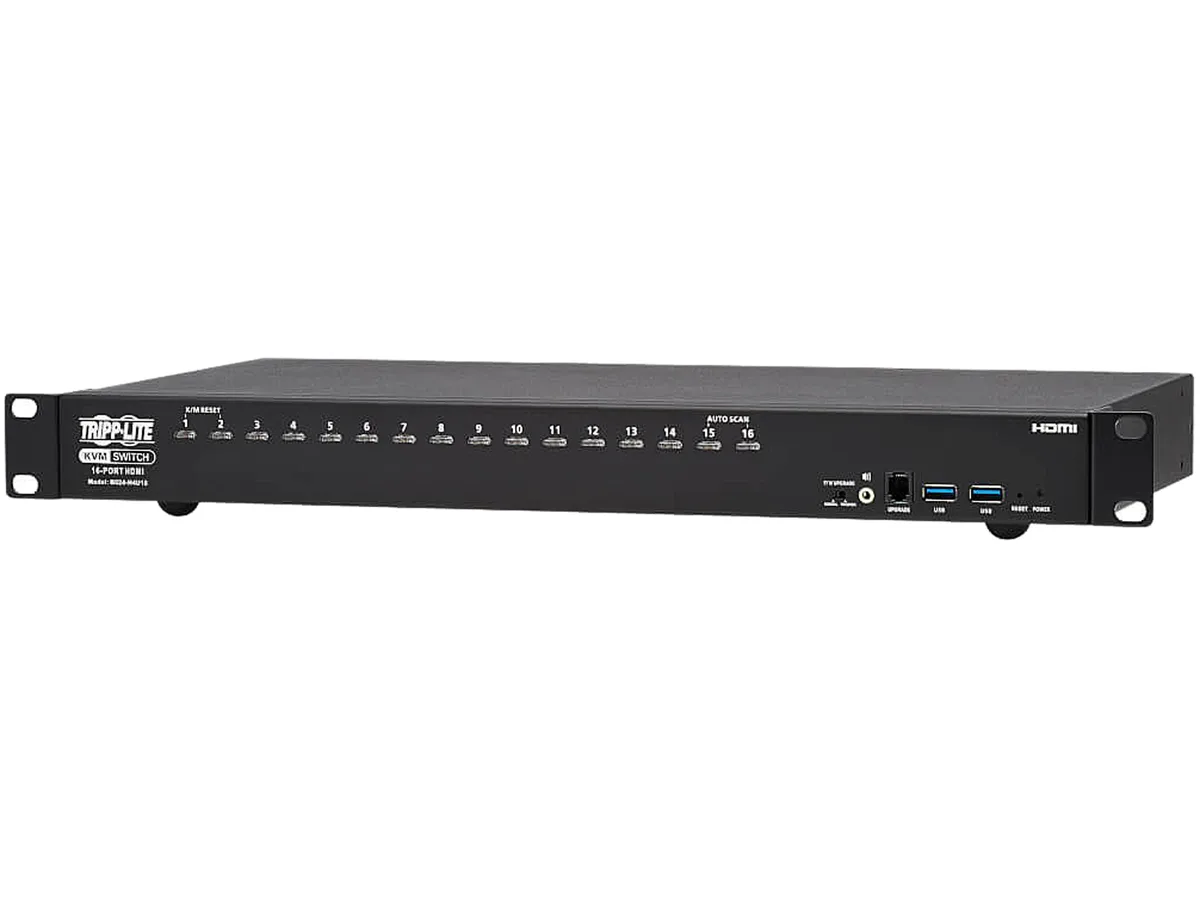

The steel chassis measures 17.02 by 8.44 by 1.73 inches and weighs 7.80 lbs for standard 1U rack installation. Front-panel LEDs show the selected port, power status and USB link activity for each of the 16 channels. Rear connectors include 16 HDMI, 16 USB-B and 16 3.5 mm audio ports for the computers, plus console HDMI, two USB-A and 3.5 mm audio. An external 12 V 5 A power supply with a 1.2 m cord is included.
Expands From Single-System Setups
This switch replaces direct cabling when administrators need to manage multiple servers from one console without moving between machines. Cascading two levels supports up to 256 computers from the same keyboard, monitor and mouse. Buyers who require DisplayPort or USB-C video inputs, or who need more than 16 simultaneous ports without cascading, should consider other solutions. The included 6 ft cable kits and firmware upgrade cable simplify initial deployment.
Highlights
- True 4K 60 Hz video clarity with 4096 x 2160 resolution
- Control up to 256 computers by cascading two levels
- Share USB peripherals via built-in 2-port USB 3.2 Gen 1 hub
- Switch instantly using push buttons, hotkeys or on-screen display
- Works with Windows, Mac and Linux operating systems
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B024-H4U16 |
| Type | HDMI; Stereo Audio; USB 3.x |
| Console Connectors | Number of Ports: 16 PC/Server Connections: HDMI Side A - Connector 1: HDMI (FEMALE) Side A - Connector 2: (2) USB A (FEMALE) Side A - Connector 3: 3.5MM (FEMALE) Side B - Connector 1: (16) HDMI (FEMALE) Side B - Connector 2: (16) USB B (FEMALE) Side B - Connector 3: (16) 3.5MM (FEMALE) Computer Keyboard and Mouse Interface: USB Computer Monitor Interface: HDMI |
| Video Resolution | Max Supported Video Resolution: HDMI: 4096 x 2160 @ 60Hz |
| LED Indicators | Orange x16 (Selected Port); Green x1 (Power); Green x16 (USB Link) |
| Temperature | Operating Temperature Range: 32 to 104 F (0 to 40 C) Storage Temperature Range: -4 to 140 F (-20 to 60 C) |
| Humidity | 0 to 80% RH, Non-condensing |
| Audio Features | 2.1-channel surround sound audio |
| Power Features | External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 1.4A External Power Supply Output Specs (V / A): 12V / 5A External Power Supply Cord Length (ft.): 4 External Power Supply Cord Length (m.): 1.2 DC Barrel Plug: OD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve Power Consumption (Watts): 9.77 External Power Supply Plug(s): BS 1363 UK; IEC-320-C14; NEMA 1-15P North America |
| Features | Connects 16 HDMI-Enabled Devices to a Single 4K Monitor, Keyboard and Mouse This rack-mount KVM switch lets you access, control, boot and reboot up to 16 computers or other devices with 4K HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to 16 4K media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All 16 computers share one 4K HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace. Connect up to 256 Computers to One Original Console |
| Dimensions | 17.02" x 8.44" x 1.73" |
| Weight | 7.80 lbs. |
| Package Contents | B024-H4U16 16-Port HDMI/USB KVM Switch, 1U (2) 4K HDMI/USB KVM cable kits, 6 ft. Firmware upgrade cable, 6 ft. External power supply (Input: 100–240V, 50/60 Hz, 1.4A; Output: 12V 5A) (3) International power cords (North America, Europe, U.K.) (4) Rubber feet Rack-mounting hardware Quick Start Guide |
| Shipping weight | 5.62 kg |
| Package size | 499 × 324 × 133 mm |
Questions about this item
What video resolution does the HDMI interface support at 60 Hz?
The HDMI ports deliver up to 4096 x 2160 at 60 Hz for true 4K clarity.
What rack space and depth does the unit need?
It occupies 1U of rack height and measures 17.02 inches wide by 8.44 inches deep.
How do you connect the external power supply and what voltage does it provide?
Plug the 100–240 V input supply into mains; the unit outputs 12 V at 5 A over a 1.2 m cord.
