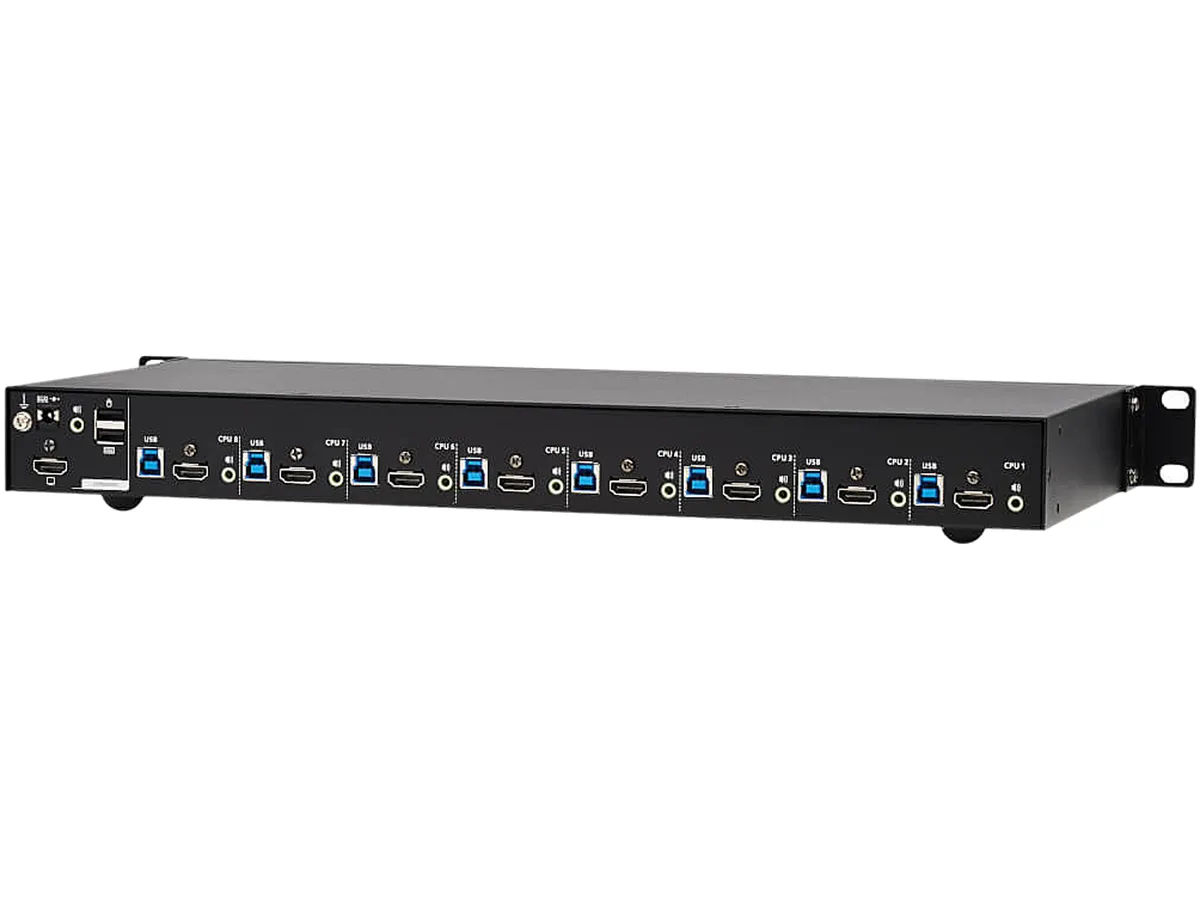

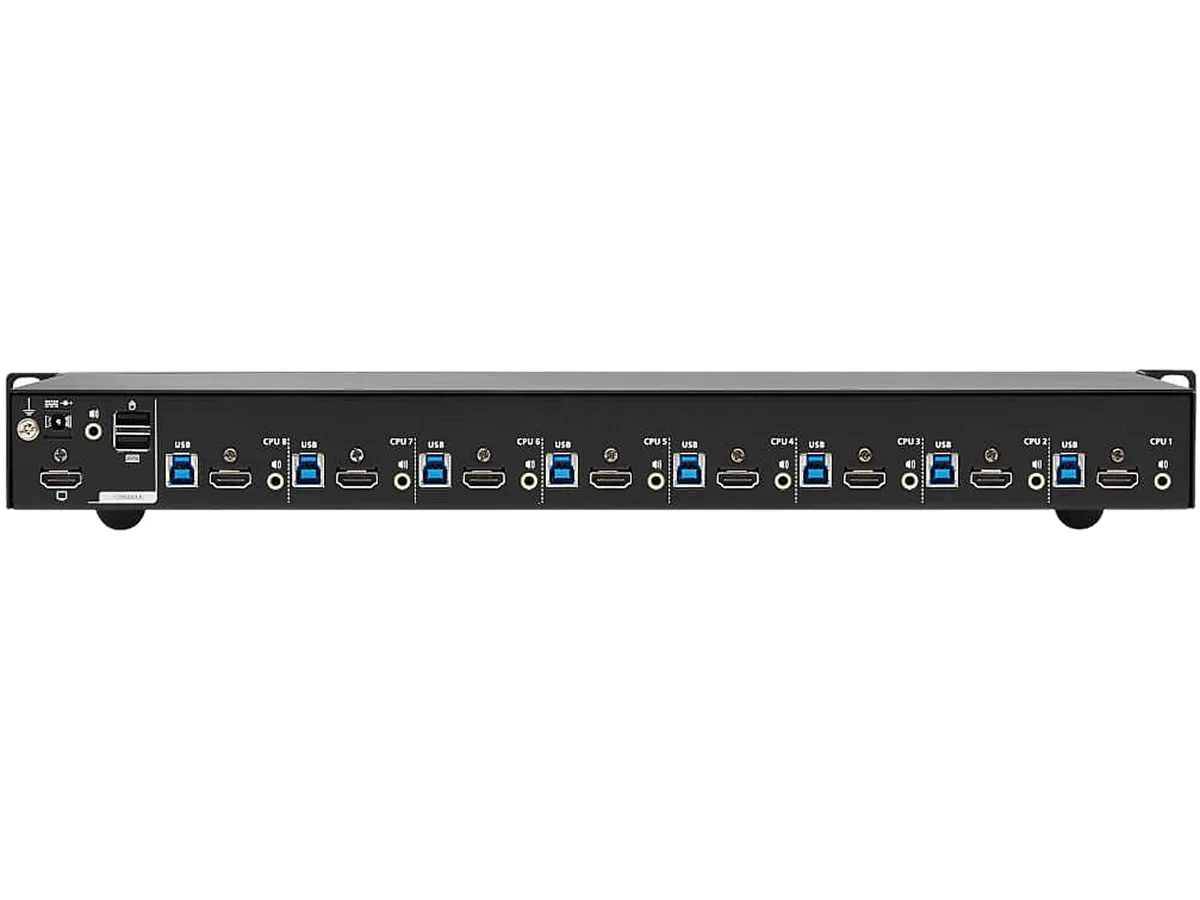

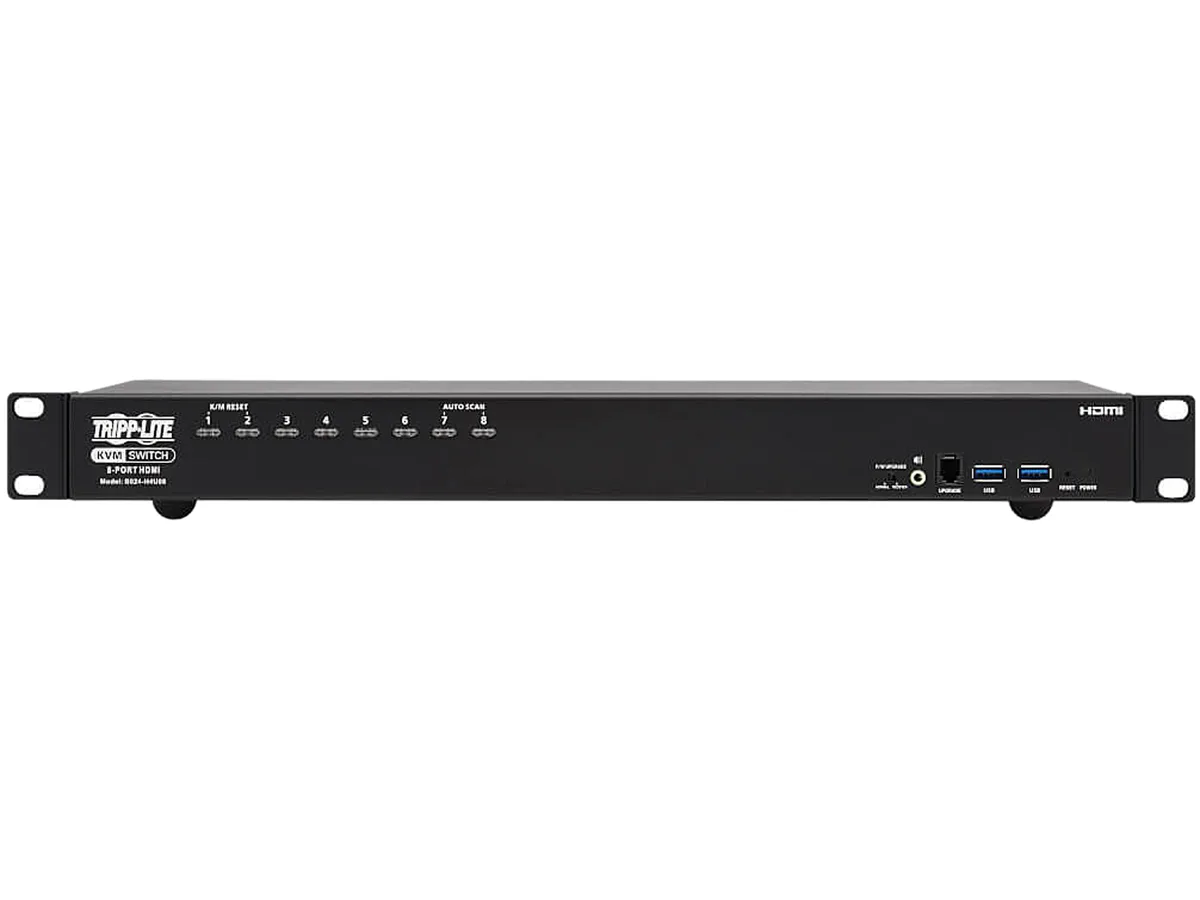

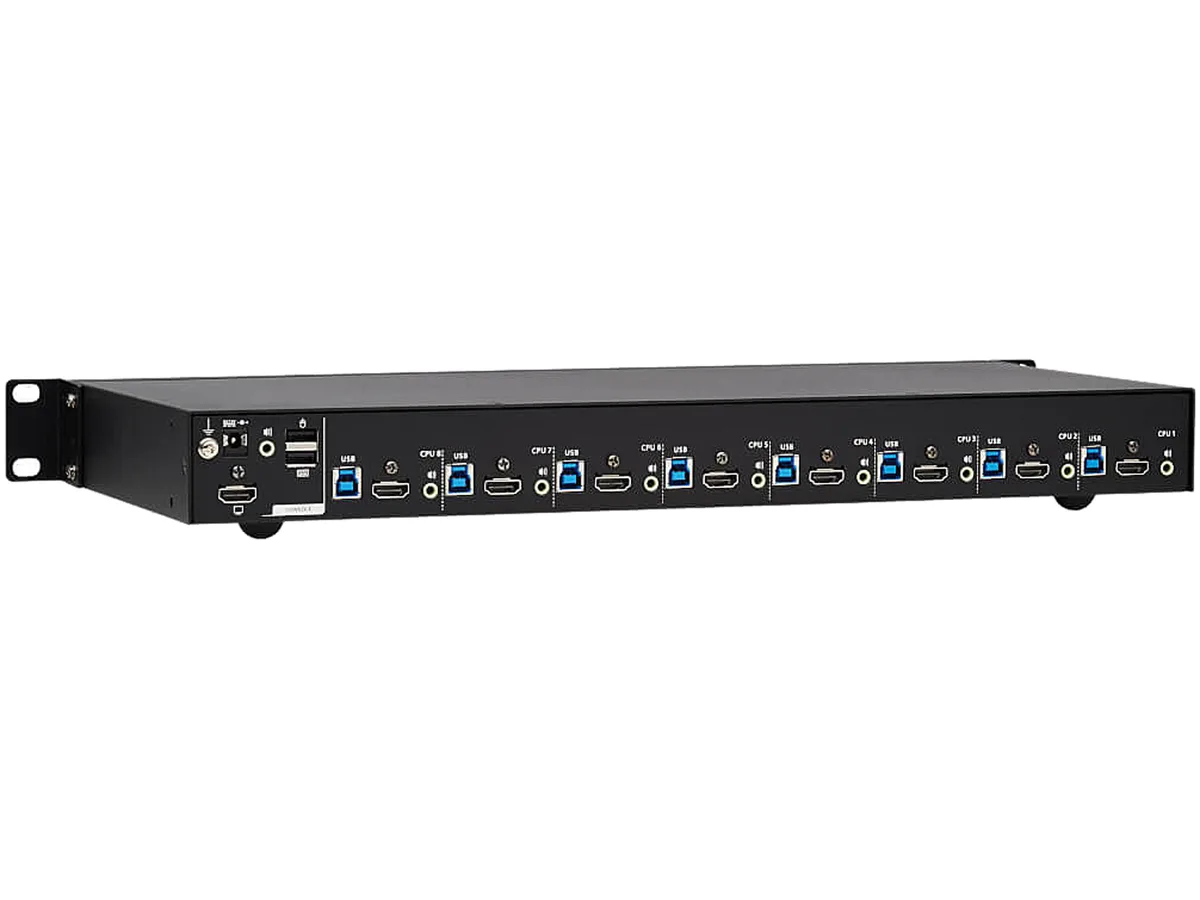

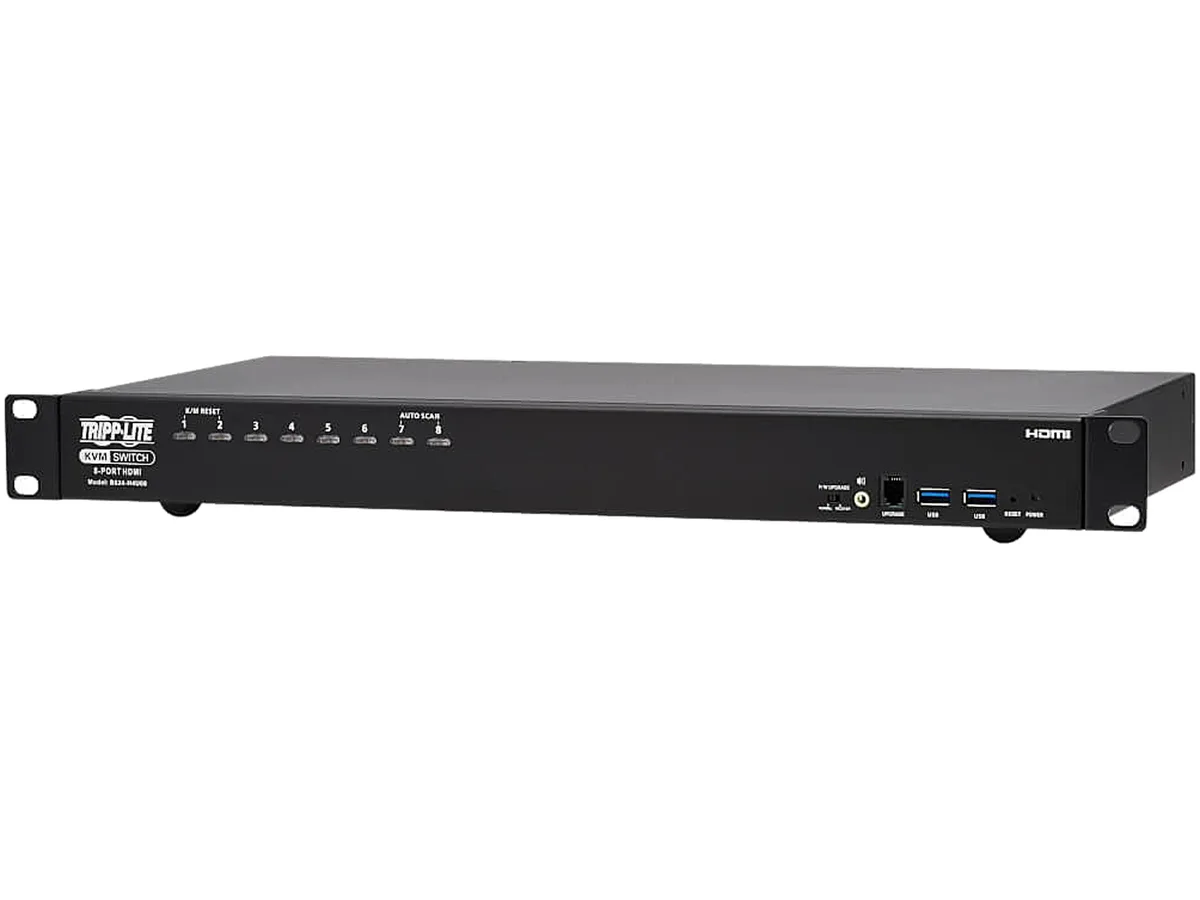

Black 1U rack-mount metal box with eight front port LEDs and rear HDMI USB audio ports

Tripp Lite

Tripp Lite B024-H4U08 8-Port 4K HDMI/USB KVM Switch

SKU CH-Y8PB-1ZAN6 MPN B024-H4U08

An 8-port 4K HDMI/USB KVM switch with 2.1-channel audio and 1U rack-mount design

  • Console ConnectorsNumber of Ports: 8 PC/Server Connections: HDMI Side A - Conn
  • Video ResolutionMax: HDMI: 4096 x 2160 @ 60Hz
  • LED IndicatorsOrange x8 (Selected Port); Green x1 (Power); Green x8 (USB L
  • TemperatureOperating Temperature Range: 32 to 104 F (0 to 40 C) Storage
  • Humidity0 to 80% RH, Non-Condensing
  • Audio Features2.1-channel surround sound audio
  • Control up to eight computers from one 4K monitor, keyboard and mouse
  • View 4K video at 4096 x 2160 resolution and 60 Hz refresh rate
  • Share USB peripherals and 2.1-channel audio across all connected systems
  • Rack-mountable 1U design fits standard server cabinets
  • External 12 V 5 A power supply with international cords included

8-Port 4K HDMI KVM Switch

The Tripp Lite B024-H4U08 connects up to eight HDMI-equipped computers or servers to a single 4K monitor, USB keyboard and mouse. It supports video resolutions up to 4096 x 2160 at 60 Hz with 2.1-channel surround sound audio. The 1U rack-mount chassis fits standard server cabinets for data-centre or lab deployments.

Bundled Cable Kits and Power Supply

Two 6 ft 4K HDMI/USB KVM cable kits are included so two systems can be connected immediately. A 6 ft firmware upgrade cable allows future updates without extra hardware. The external 12 V 5 A power supply operates on 100-240 V input and ships with three international power cords for worldwide use.

Suits Multi-System Rack Administrators

IT staff managing up to eight servers from one console will benefit from the front-panel port LEDs and push-button switching. Buyers needing control of more than eight devices or requiring DisplayPort, USB-C or IP-based remote access should consider alternative KVM solutions.

Highlights

  • Control up to eight computers from one 4K monitor, keyboard and mouse
  • View 4K video at 4096 x 2160 resolution and 60 Hz refresh rate
  • Share USB peripherals and 2.1-channel audio across all connected systems
  • Rack-mountable 1U design fits standard server cabinets
  • External 12 V 5 A power supply with international cords included

Specifications

BrandTRIPP LITE
ModelB024-H4U08
Console ConnectorsNumber of Ports: 8
PC/Server Connections: HDMI
Side A - Connector 1: HDMI (FEMALE)
Side A - Connector 2: (2) USB A (FEMALE)
Side A - Connector 3: 3.5MM (FEMALE)
Side B - Connector 1: (8) HDMI (FEMALE)
Side B - Connector 2: (8) USB B (FEMALE)
Side B - Connector 3: (8) 3.5MM (FEMALE)
Computer Keyboard and Mouse Interface: USB
Computer Monitor Interface: HDMI
Video ResolutionMax: HDMI: 4096 x 2160 @ 60Hz
LED IndicatorsOrange x8 (Selected Port); Green x1 (Power); Green x8 (USB Link)
TemperatureOperating Temperature Range: 32 to 104 F (0 to 40 C)
Storage Temperature Range: -4 to 140 F (-20 to 60 C)
Humidity0 to 80% RH, Non-Condensing
Audio Features2.1-channel surround sound audio
Power FeaturesExternal Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 1.4A
External Power Supply Output Specs (V / A): 12V / 5A
External Power Supply Cord Length (ft.): 4
External Power Supply Cord Length (m.): 1.2
DC Barrel Plug: OD: 5.5 x 2.5 x 9.5mm, Positive Pin, Negative Sleeve
Power Consumption (Watts): 9.77
External Power Supply Plug(s): BS 1363 UK; IEC-320-C14; NEMA 5-15P North America
FeaturesConnects 8 HDMI-Enabled Devices to a Single 4K Monitor, Keyboard and Mouse
This rack-mount KVM switch lets you access, control, boot and reboot up to eight computers or other devices with 4K HDMI ports at the same time. In addition to desktop and notebook computers, the switch also connects up to eight 4K media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All eight computers share one 4K HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.
Connect up to 512 Computers to One Original
Dimensions17.02" x 8.44" x 1.73"
Weight6.85 lbs.
Package ContentsB024-H4U08 8-Port HDMI/USB KVM Switch, 1U
(2) 4K HDMI/USB KVM cable kits, 6 ft.
Firmware upgrade cable, 6 ft.
External power supply (Input: 100–240V, 50/60 Hz, 1.4A; Output: 12V 5A)
(3) International power cords (North America, Europe, U.K.)
(4) Rubber feet
Rack-mounting hardware
Quick Start Guide
Shipping weight5.18 kg
Package size499 × 324 × 133 mm

Questions about this item

Does the external power supply need periodic replacement?

The unit ships with a 12V 5A external power supply that uses a 5.5 x 2.5 x 9.5 mm DC barrel plug; keep a spare of the same rating if continuous uptime is critical.

What thermal limit appears first during all-day operation?

Operating temperature is rated 0 to 40 °C (32 to 104 °F); exceeding this range will trigger protection before any other limit.

How much heat and noise does the switch produce when running 24/7?

The device has no fan and draws up to 60 W from the 12V 5A supply, so it runs silently with only modest warmth inside the 1U chassis.
