Tripp Lite
Tripp Lite B022-U16-IP 16-Port 1U Rack-Mount IP KVM Switch
A 1U rack-mount KVM switch with built-in IP remote access for controlling up to 16 computers or servers over LAN, WAN or the Internet
- TypeKVM Switchbox
- Computer Connections16 Ports
- Video Resolution2048 x 1536
- USB Featureswith USB support
- FeaturesNumber of Local Users Supported:1 Number of Remote Users Sup
- DimensionsHeight:1.7" x Width:17" x Depth:6"
- Control 16 servers from anywhere with built-in IP remote access
- Support up to 64 secure user accounts for team collaboration
- Monitor multiple ports simultaneously using Panel Array Mode
- Connect via USB or PS/2 for broad compatibility
- Fit in standard racks with 1U 17-inch form factor
NetDirector 16-Port IP KVM Switch
The Tripp Lite NetDirector B022-U16-IP is a 16-port KVM switch designed for 1U rack-mount installation. It provides IP-based remote access so administrators can control up to 16 servers from anywhere over LAN, WAN or the Internet. The switch supports a maximum video resolution of 2048 x 1536 and works with both USB and PS/2 server connections.
Suited for single-admin remote management
This unit supports one local user and one remote user simultaneously, with capacity for up to 64 secure user accounts. It fits operations that need centralised control of multiple servers without a dedicated console at each rack. Teams requiring concurrent remote sessions for several administrators, or environments that need multi-user collaboration features, should look at a different solution.
16-port capacity with built-in IP access
The defining specification is the 16 computer connections combined with a single network port for IP remote access. Panel Array Mode allows monitoring of multiple ports at once. Buyers who need more than 16 server connections or who require additional network ports for redundant management paths should consider alternative models.
Highlights
- Control 16 servers from anywhere with built-in IP remote access
- Support up to 64 secure user accounts for team collaboration
- Monitor multiple ports simultaneously using Panel Array Mode
- Connect via USB or PS/2 for broad compatibility
- Fit in standard racks with 1U 17-inch form factor
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B022-U16-IP |
| Type | KVM Switchbox |
| Computer Connections | 16 Ports |
| Video Resolution | 2048 x 1536 |
| USB Features | with USB support |

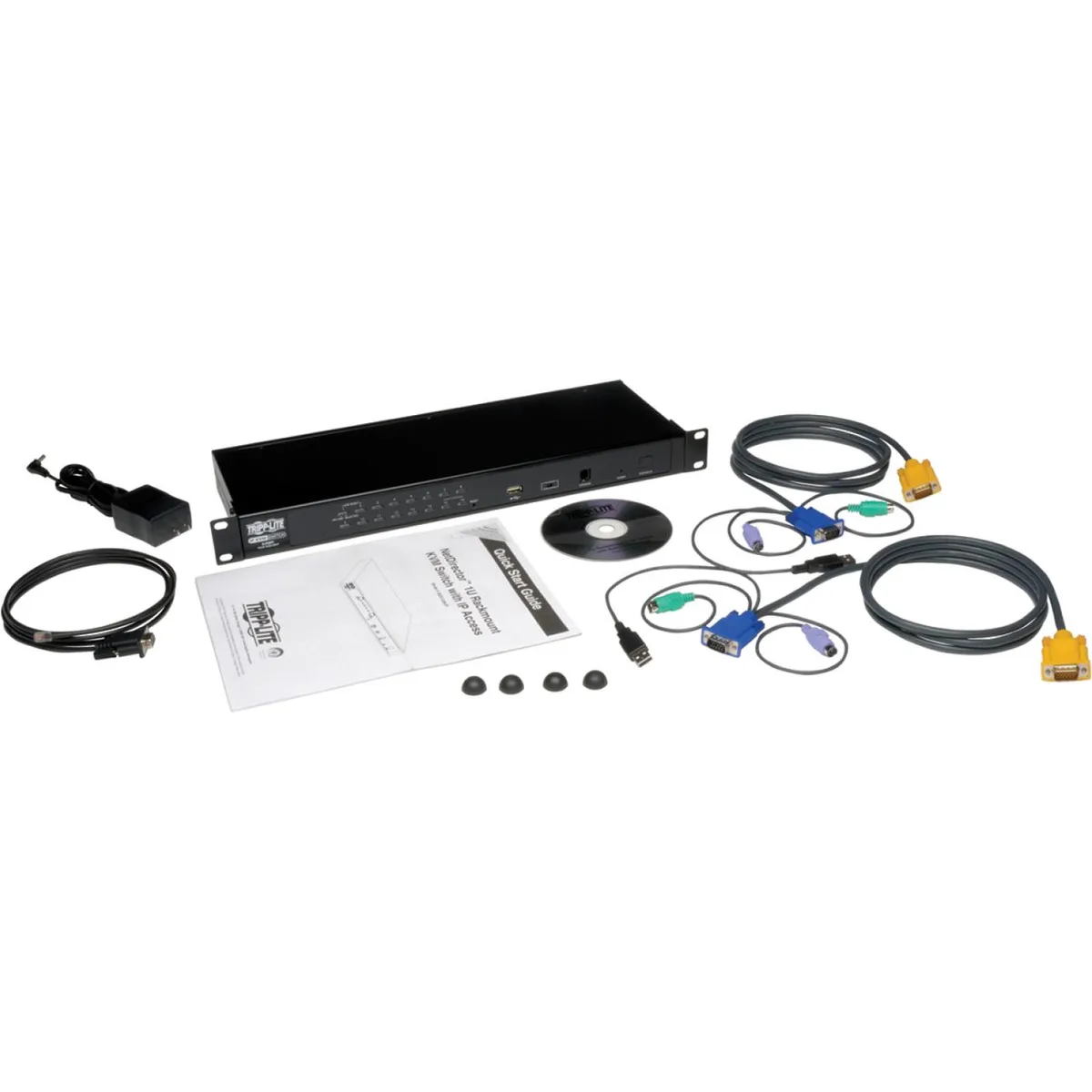

| Features | Number of Local Users Supported:1 Number of Remote Users Supported:1 Number of Network (RJ-45) Ports:1 Number of USB Ports:1 Form Factor:Rack-mountable Product Line:NetDirector Package Contents: NetDirector 16-Port 1U Rack-Mount IP KVM Switch 2 x USB/PS2 Combo KVM Cable Kits, 6-Ft. Length USB/PS2 COmbo Console Cable Kit RJ11-to-DB9 Firmware Upgrade Cable Mounting Hardware External Power Supply Rubber Feet CD with Owner'S Manual And Device Files Quick Start Guide |
| Dimensions | Height:1.7" x Width:17" x Depth:6" |
| Weight | 6.50 lb |
| Shipping weight | 3.18 kg |
| Package size | 541 × 234 × 117 mm |
Questions about this item
How many computers can I connect to this single KVM switch?
The unit provides 16 ports, so you can connect up to 16 computers or servers directly.
What is the maximum video resolution supported when accessing servers remotely?
The switch handles video up to 2048 x 1536, which is the highest resolution available over the IP session.
Does the single network port limit remote bandwidth or simultaneous users?
One RJ-45 port carries the IP traffic; it supports one remote user at a time alongside the local user.
