Tripp Lite B021-000-19-SH 1U 19-in LCD KVM Switch
1U rack console with 19-inch LCD, 104-key keyboard, touchpad and USB 2.0 pass-through for 19- to 30-inch deep cabinets
- TypeD-Sub
- Computer ConnectionsShort Depth
- Video Resolutionmax native 1366 x 768 resolution
- FeaturesMounts in 19" to 30" deep cabinets Full 19" LCD display scre
- Dimensions1.75" (H) x 17.25" (W) x 19" (D)
- 1U rack console saves space with 19" LCD, keyboard and touchpad in 1.75" height
- depth design fits cabinets from 19" to 30" deep for flexible mounting
- Native 1366 x 768 resolution gives clear text and video on integrated display
- USB 2.0 pass-through port allows flash drive or CAC reader without extra cabling
- Auto-sensing 100-240V external AC adapter powers unit worldwide with included 6-ft cable
1U 19-in LCD KVM Console

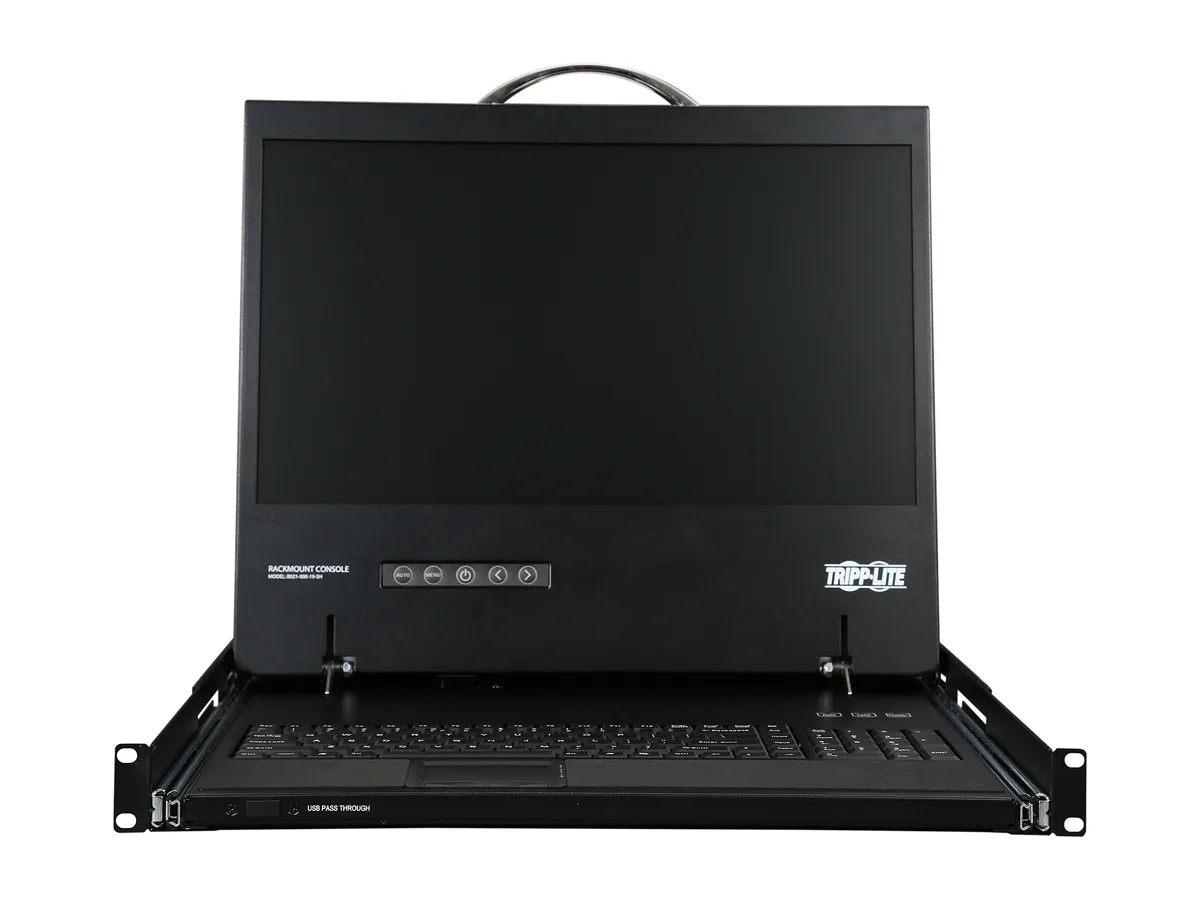

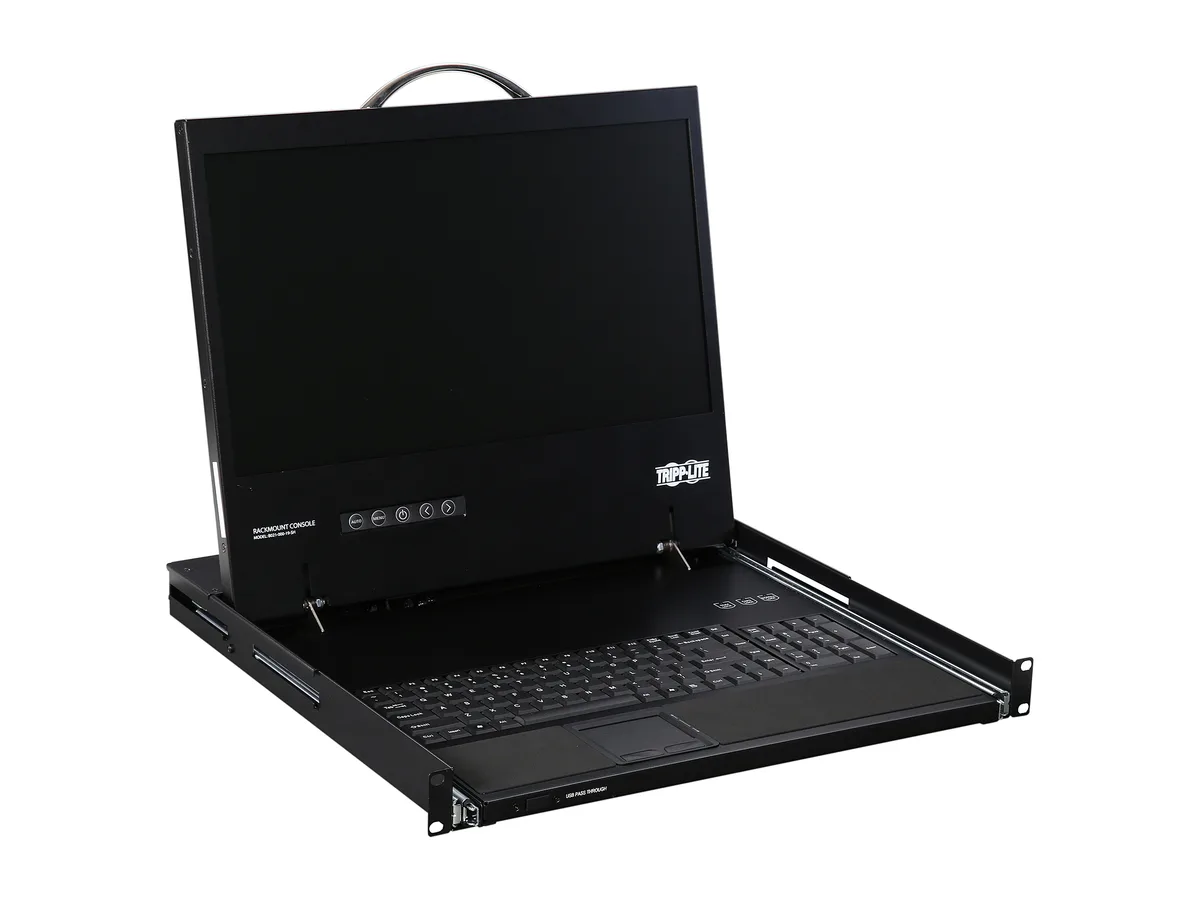

The Tripp Lite B021-000-19-SH is a 1U rack-mount console with an integrated 19-inch LCD display, 104-key keyboard and touchpad. It is designed for administrators who need local server access within a standard rack footprint. The short-depth chassis fits cabinets from 19 to 30 inches deep. The unit includes a 6-ft external auto-sensing AC adapter operating from 100 to 240V.
Compatibility Check
Verify that your rack depth falls between 19 and 30 inches to accommodate the sliding rails. Confirm the target servers or KVM switches provide PS/2 or USB keyboard and mouse ports matching the included 6-ft PS/2 cable kit and supplied PS/2-to-USB adapter. Ensure the video source can output at the panel's maximum native resolution of 1366 x 768 over a D-Sub connection. The console draws up to 1.5A from the AC adapter.
Build and Daily Use

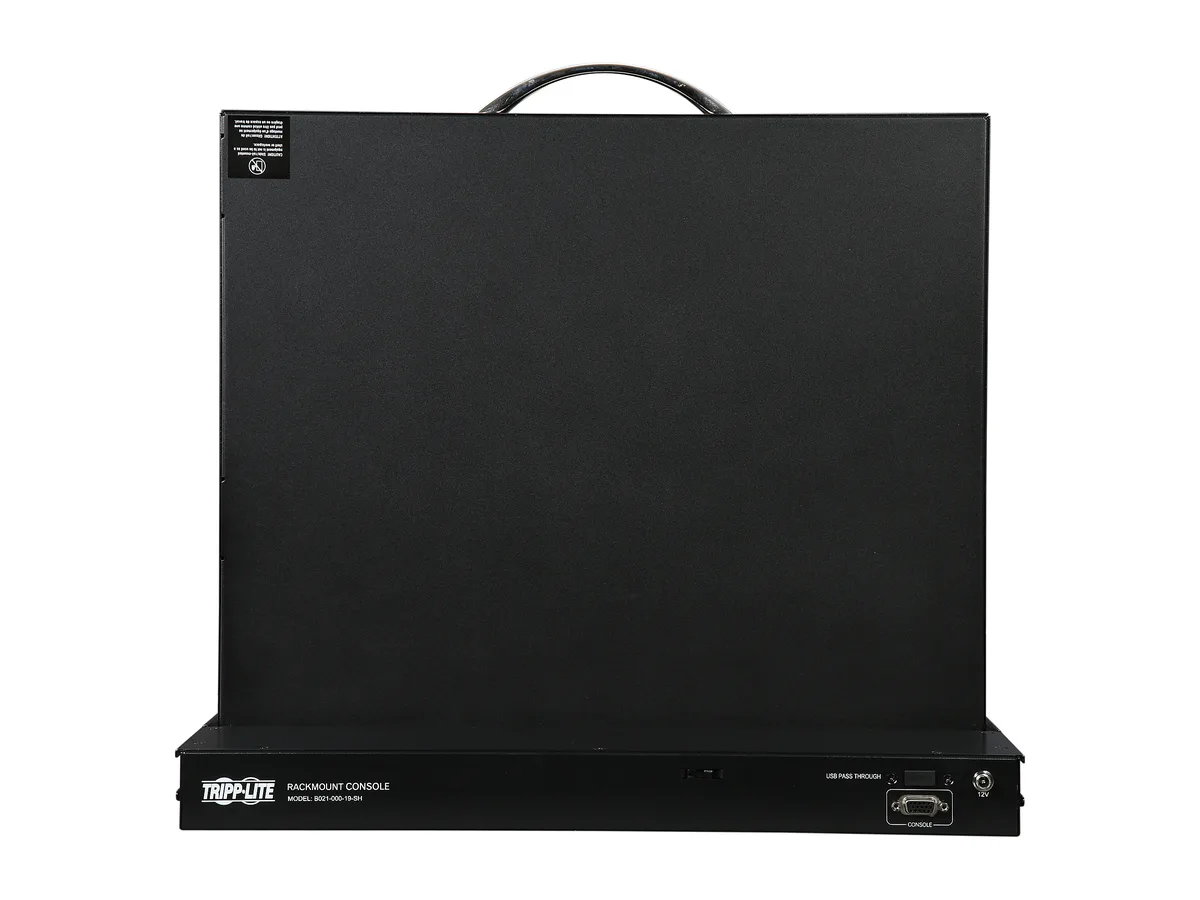

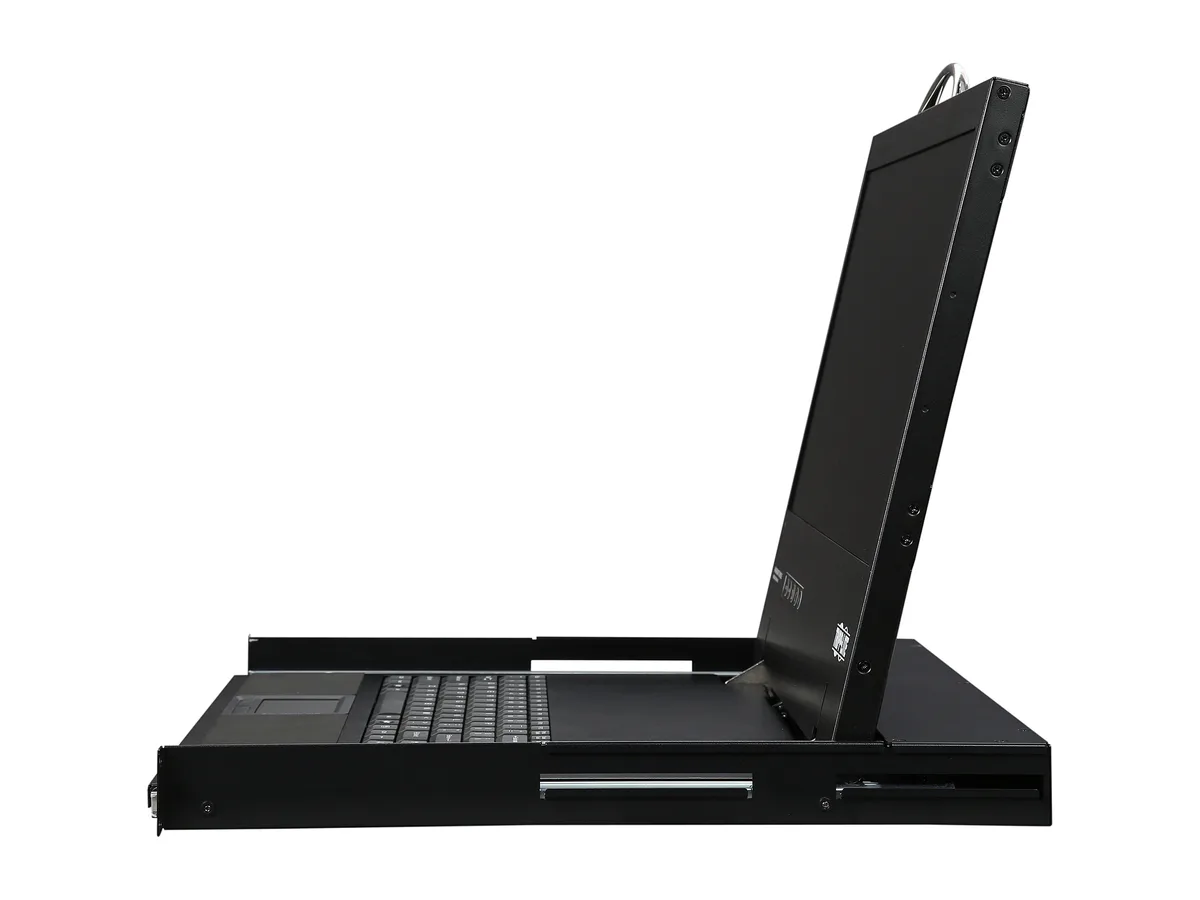

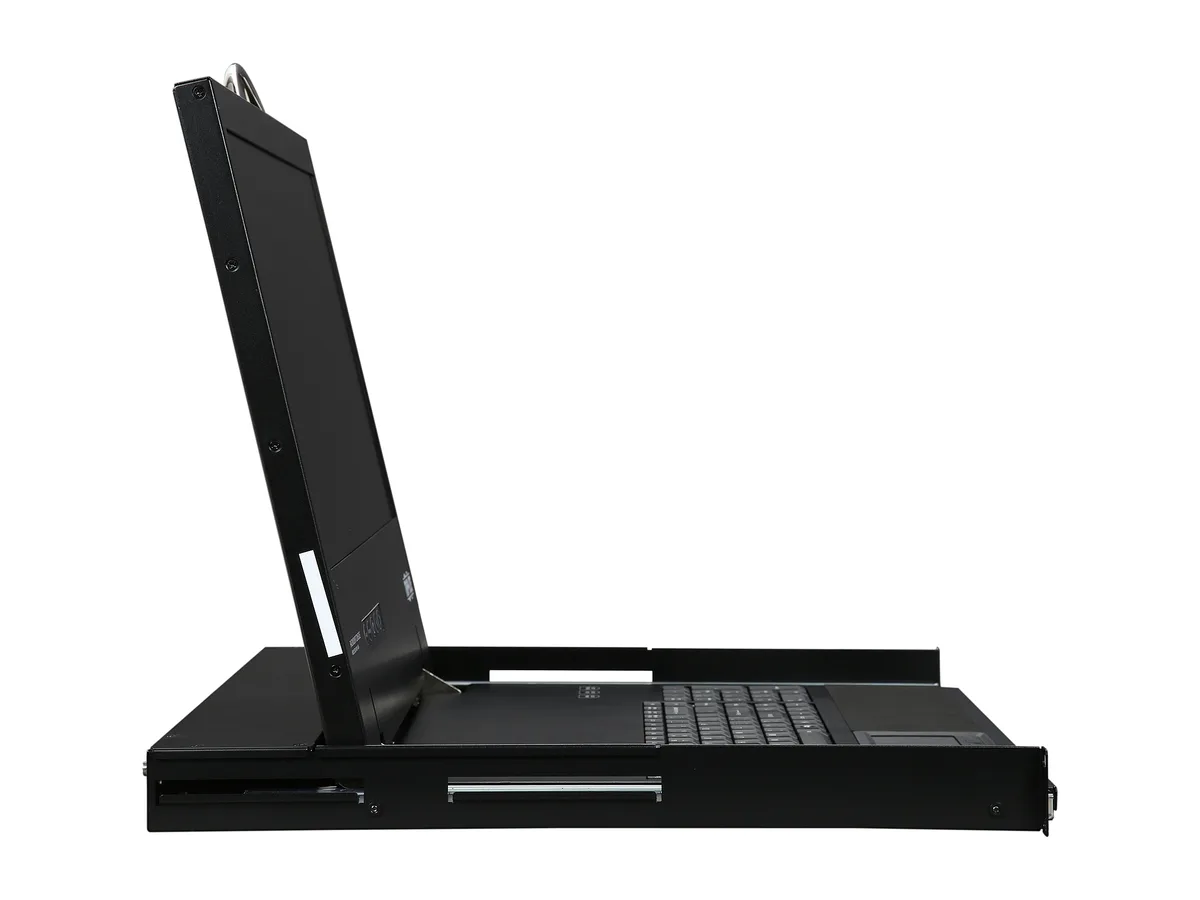

Single-rail ball-bearing slides allow the console to extend smoothly for use and retract to 1.75 inches high when closed. The 17.25-inch wide front panel matches standard 19-inch rack width. A USB 2.0 pass-through port on the front provides convenient access for flash drives or CAC card readers without reaching the rear of the rack. The integrated design eliminates separate monitor, keyboard and mouse cabling at the rack face.
Highlights
- 1U rack console saves space with 19" LCD, keyboard and touchpad in 1.75" height
- depth design fits cabinets from 19" to 30" deep for flexible mounting
- Native 1366 x 768 resolution gives clear text and video on integrated display
- USB 2.0 pass-through port allows flash drive or CAC reader without extra cabling
- Auto-sensing 100-240V external AC adapter powers unit worldwide with included 6-ft cable
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B021-000-19-SH |
| Type | D-Sub |
| Computer Connections | Short Depth |
| Video Resolution | max native 1366 x 768 resolution |
| Features | Mounts in 19" to 30" deep cabinets Full 19" LCD display screen, 104-key keyboard, touchpad 100-240V Auto Sensing External AC Adapter, 6-ft. Single rail, ball bearing slides |
| Dimensions | 1.75" (H) x 17.25" (W) x 19" (D) |
| Shipping weight | 15.33 kg |
| Package size | 605 × 597 × 152 mm |
Questions about this item
Does the B021-000-19-SH include the cables needed to connect a PS/2 server, or must I buy them separately?
The console ships with a 6-ft PS/2 cable kit and a PS/2-to-USB adapter, so a PS/2 server can be connected without extra cables.
Should I choose the 19-inch LCD model or a different screen size for a 1U rack slot?
This model provides a 19-inch 1366 x 768 LCD in a 1.75-inch-high 1U chassis; no other screen size is offered for this part number.
What does the 1366 x 768 native resolution mean when the console is driving a server desktop?
The 19-inch panel displays 1366 x 768 pixels natively; higher server resolutions will be scaled to fit this grid.
