Tripp Lite B020-U08-19KTAA 8-Port 1U Rack Console KVM Switch 19" LCD
Eight-port rack-mount KVM switch with integrated 19-inch LCD, keyboard and touchpad in a 1U chassis
- TypeUSB, PS/2
- Computer Connections(x8) HD18 (Female)
- Video Resolution1280 x 1024
- PC SelectionPush Buttons/Hot Keys/OSD
- TemperatureOperating Temperature: 32 Degrees F to 120 Degrees F (0 to 5
- Humidity0 to 80% RH, Non-condensing
- Control 8 servers from one 1U rack drawer
- Built-in 19-inch LCD shows 1280 x 1024 video
- Front-panel buttons, hot-keys and OSD for quick switching
- Includes eight 6-ft USB/PS2 combo cable kits
- TAA compliant for government procurement
8-Port Rack Console with 19" LCD

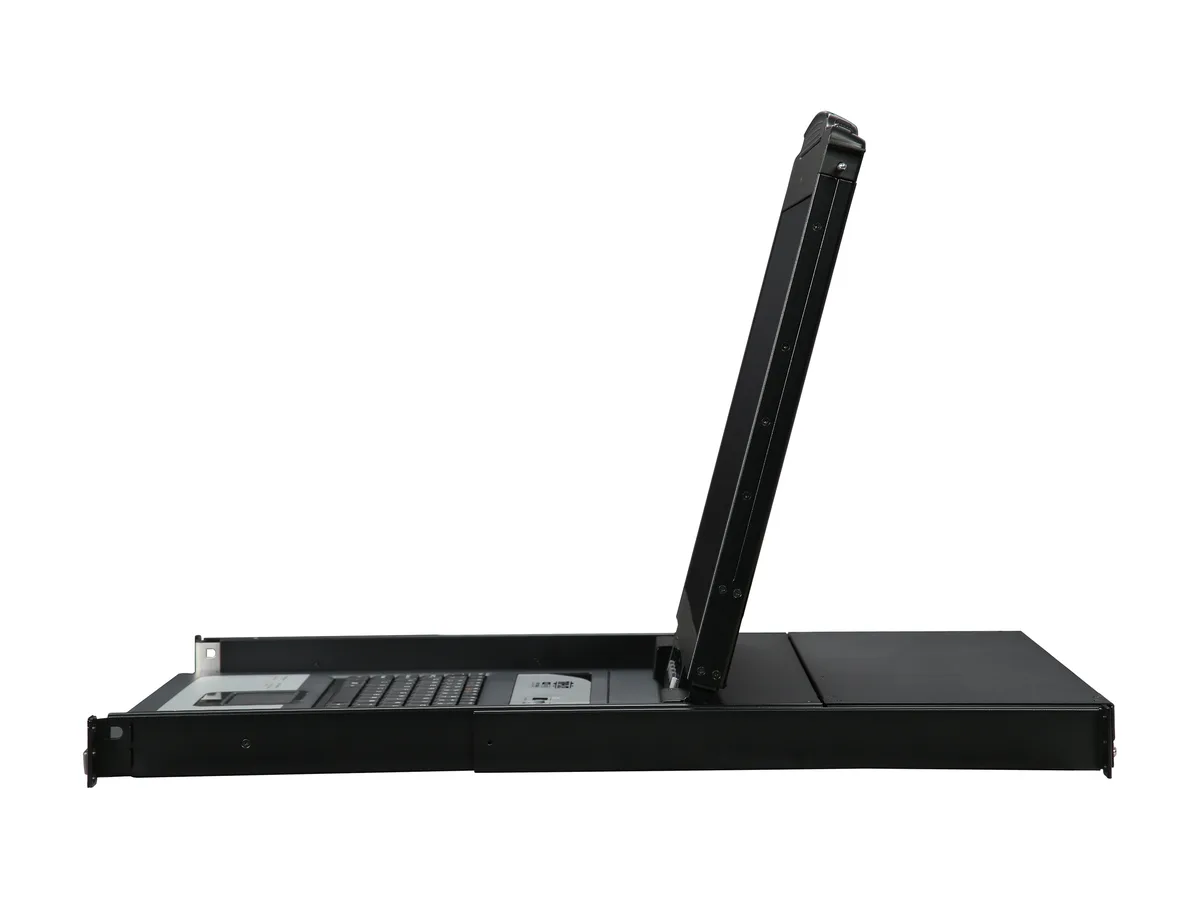

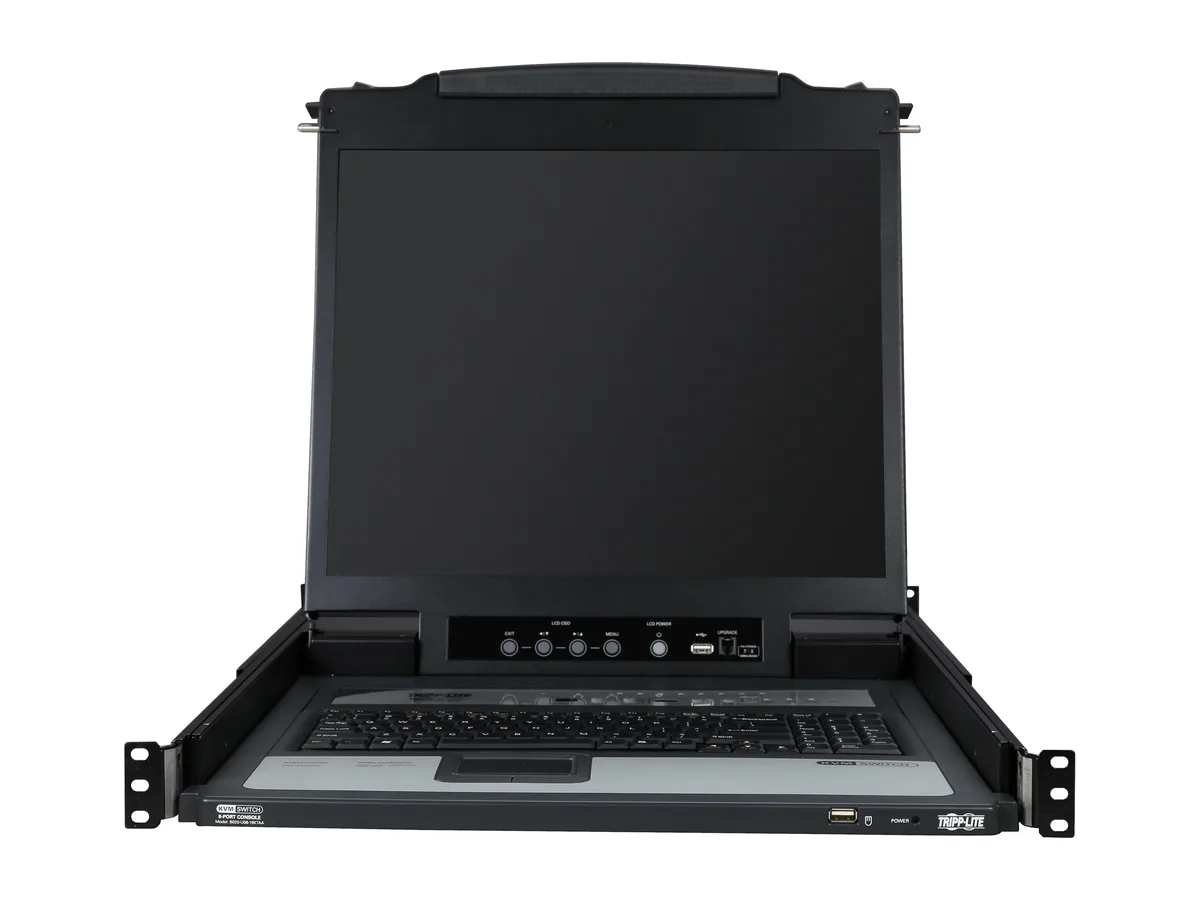

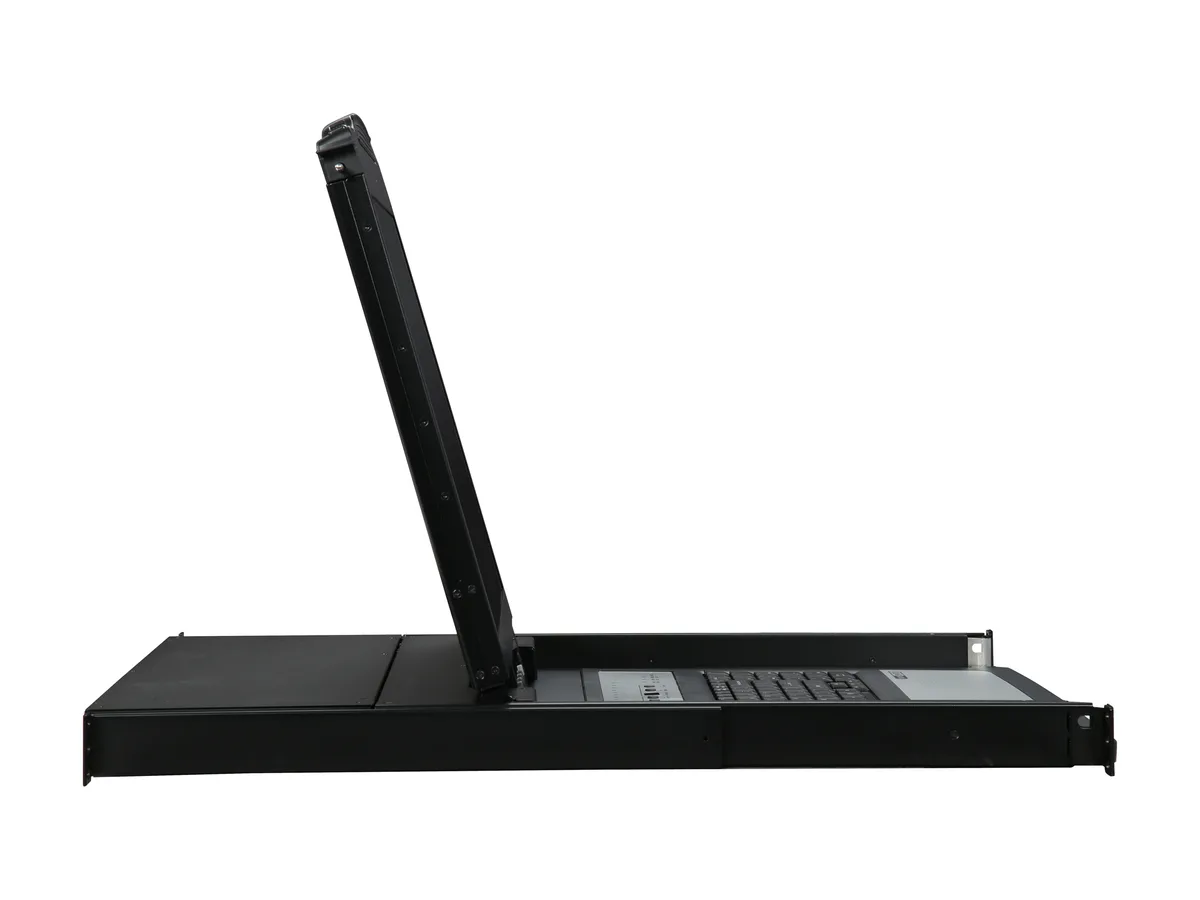

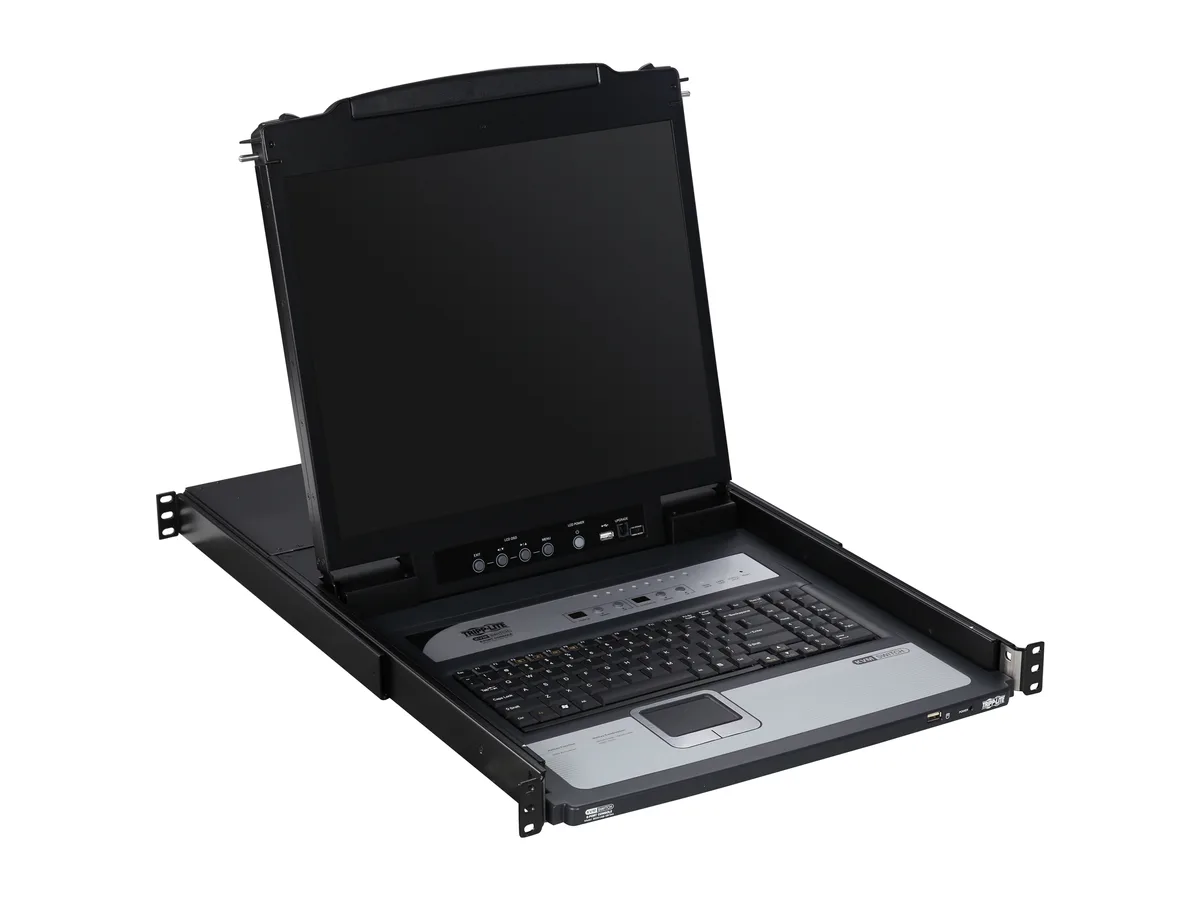

The Tripp Lite B020-U08-19KTAA integrates an 8-port KVM switch, 19-inch LCD, keyboard and touchpad into a single 1U rack-mount drawer. It targets administrators who need local control of up to eight servers from one console without consuming extra rack height. The unit ships with eight 6-foot USB/PS2 combo cable kits and a console cable kit for immediate deployment.
Video Resolution 1280 x 1024
The built-in LCD supports a maximum resolution of 1280 x 1024, which determines the sharpest image each connected server can display at the console. If any managed system requires a higher native resolution, text and UI elements will be scaled or cropped on this panel. Verify the output capability of every target server against this limit before installation.
Operating Temperature 32 Degrees F to 120 Degrees F
The switch is rated for continuous operation between 0 and 50 Celsius in non-condensing humidity up to 80 percent. In a densely populated rack with restricted airflow, internal temperatures can approach the upper bound during extended sessions, so adequate cabinet ventilation is required to maintain reliability. Storage tolerances extend from -20 to +60 Celsius for offline periods.
Highlights
- Control 8 servers from one 1U rack drawer
- Built-in 19-inch LCD shows 1280 x 1024 video
- Front-panel buttons, hot-keys and OSD for quick switching
- Includes eight 6-ft USB/PS2 combo cable kits
- TAA compliant for government procurement
Specifications
| Brand | TRIPP LITE |
|---|---|
| Series | NETDIRECTOR |
| Model | B020-U08-19KTAA |
| Type | USB, PS/2 |
| Computer Connections | (x8) HD18 (Female) |
| Video Resolution | 1280 x 1024 |
| PC Selection | Push Buttons/Hot Keys/OSD |
| Temperature | Operating Temperature: 32 Degrees F to 120 Degrees F (0 to 50 C) Storage Temperature: -4 Degrees F to 140 degrees F (-20 to +60 C) |
| Humidity | 0 to 80% RH, Non-condensing |
| Features | Connections: Included Cable (Side A) - Connector 1: HD18 Male Included Cable (Side B) - Connector 1: HD15 Male Included Cable (Side B) - Connector 2: PS/2 Male Included Cable (Side B) - Connector 3: PS/2 Male Included Cable (Side B) - Connector 4: USB A Male Other Ports - Port 1: USB A for Optional USB Keyboard/Mouse connection Other Ports - Port 2: USB A for USB peripheral connection (e.g. Flash drive) Remote Console Port: PS2/USB Combo Console Cable Kit w/VGA, (x2) PS2 & (x2) USB Female connectors 1U rackmount console with built-in 8-Port KVM switch, 19" LCD screen, keyboard, and t |
| Dimensions | 27" x 17" x 1.75" |
| Weight | 30.6 lbs. |
| Package Contents | - B020-U08-19KTAA 1U rackmount console with built-in 8-Port KVM switch, 19" LCD, keyboard, and touchpad - (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits - USB/PS2 combo console cable kit - RJ11 to DB9 firmware upgrade cable - C13 to 5-15P power cord - CD with owner's manual - Quick start guide - Grounding wire - Rackmount hardware |
| Shipping weight | 20.09 kg |
| Package size | 836 × 683 × 145 mm |
Questions about this item
What resolution will I actually see on the built-in 19-inch LCD when I switch between servers?
The integrated display is limited to 1280 x 1024, so every connected system will be shown at that resolution regardless of its own video output capability.
The computer ports are HD18 — what does that mean for the cables I must use?

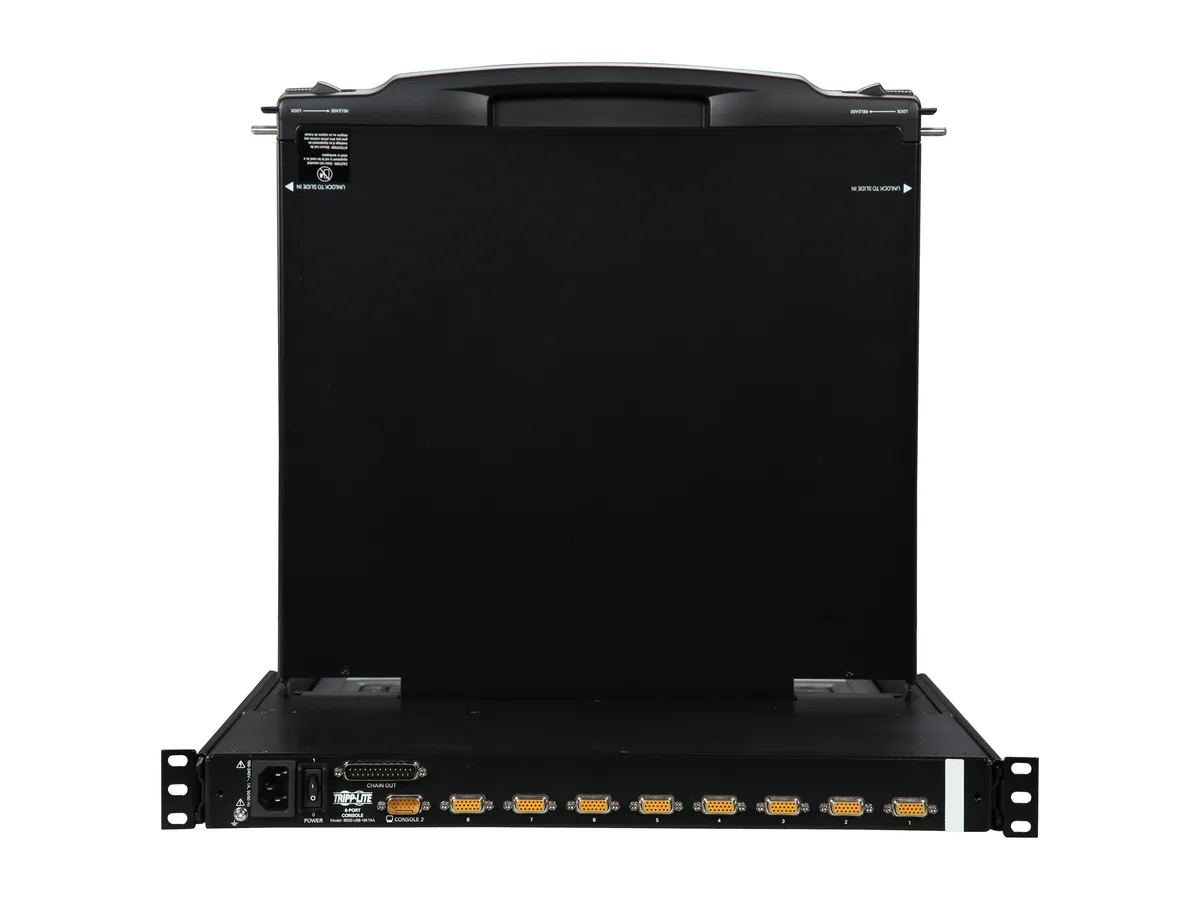

Each of the eight HD18 female ports accepts the supplied 6 ft combo cable, which splits into HD15 video plus dual PS/2 connectors for keyboard and mouse on the server side.
Will this 1U console fit in a standard 19-inch rack without extra brackets?
Yes, the unit measures 27 x 17 x 1.75 inches and is designed to mount directly in a 19-inch rack using the included hardware.
