Tripp Lite
Tripp Lite B006-VUA4-K-R 4-Port KVM Switch
Controls four computers from one VGA monitor, keyboard, mouse, audio and two USB 2.0 ports, with OSD, hotkeys and rack-mount brackets
- TypeD-Sub, USB, PS/2
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video ResolutionUp to 2048 x 1536, DDC2B
- PC SelectionPush Buttons/Hot Keys/OSD
- FeaturesControl up to 4 computers from a single VGA monitor and USB
- Control 4 computers from one VGA monitor and keyboard/mouse
- Switch KVM, audio and USB independently with pushbuttons, hotkeys or OSD
- Share speakers and microphone via 3.5 mm jacks across all connected PCs
- Share USB 2.0 peripherals through built-in 2-port hub
- Rack-mountable 19 in design fits server cabinets or desktop use
Four-Port KVM with Audio and USB Hub

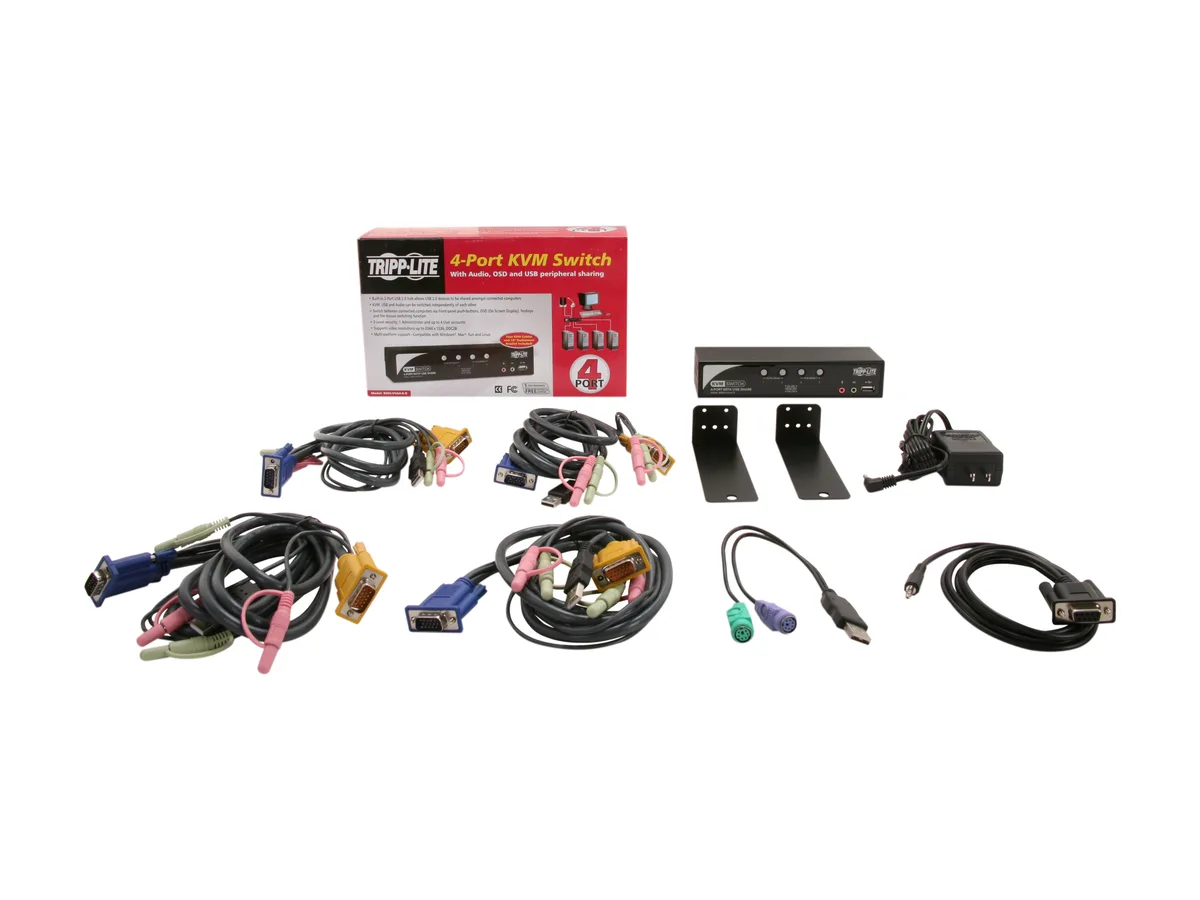

The Tripp Lite B006-VUA4-K-R lets you operate up to four computers from one VGA monitor, keyboard and mouse. It accepts both USB and PS/2 host connections and includes two 4 ft and two 6 ft USB KVM cable kits. A built-in two-port USB 2.0 hub shares peripherals such as printers or storage across the connected systems. The unit fits a standard 19 in rack or sits on a desktop.
Independent Switching for Console, Audio and USB

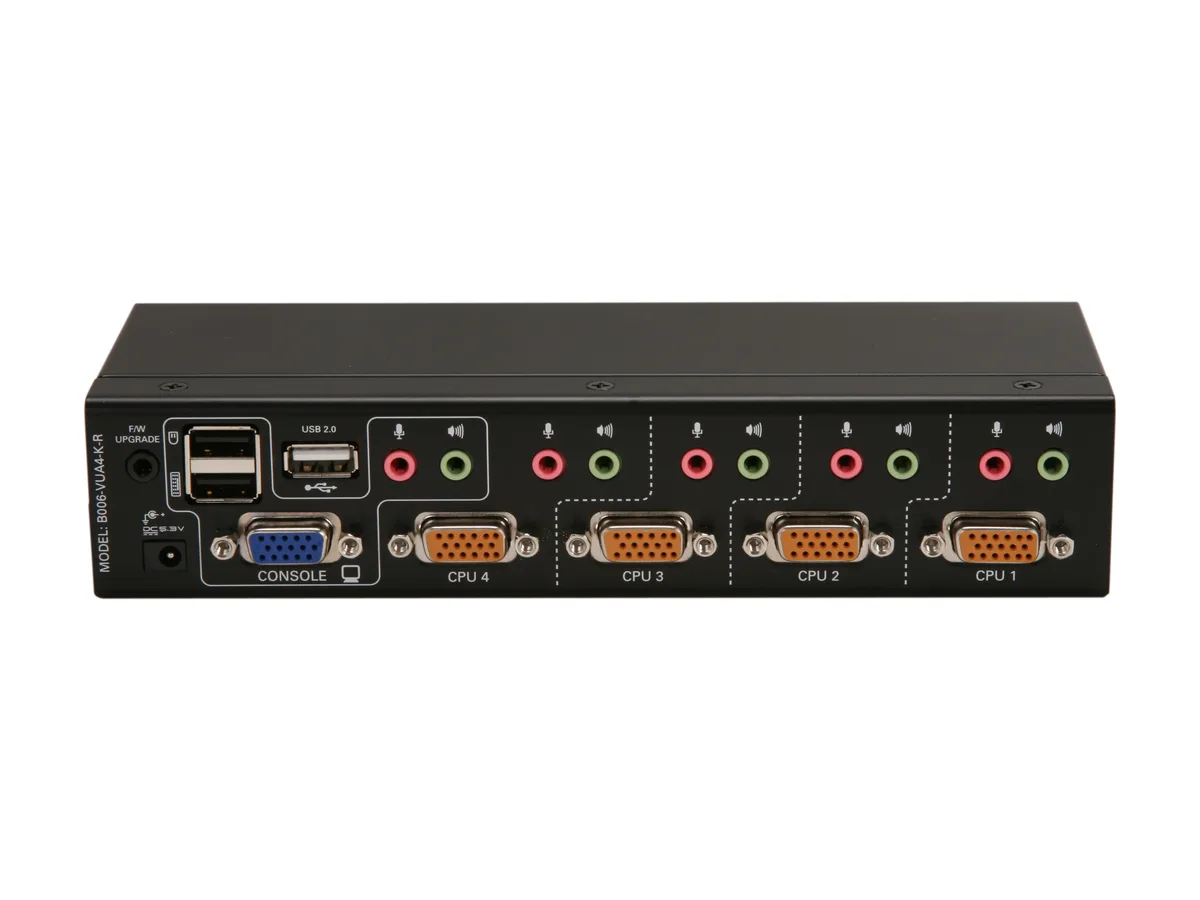

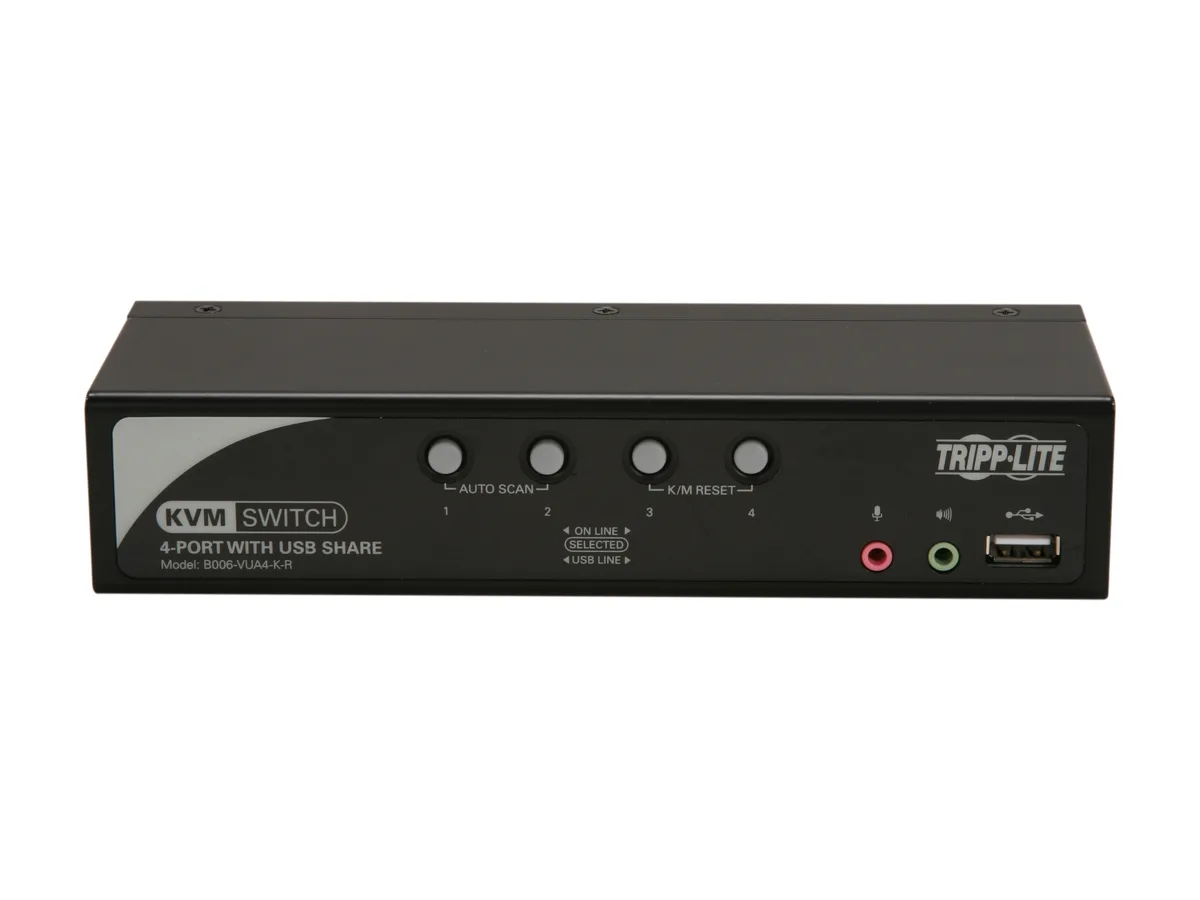

Each computer link carries VGA video up to 2048 x 1536 with DDC2B support and 3.5 mm speaker plus microphone jacks. You can route the KVM focus, audio stream and USB hub to different computers simultaneously. Switching is handled by front push buttons, hot-key sequences, an on-screen display in English, Japanese or German, auto-scan mode or a double-click of the mouse scroll wheel. The OSD provides an administrator account and up to four user accounts.
Passive Desktop or Rack Unit with No Active Cooling
The switch draws power from the attached USB cables and has no internal fan, so it adds no audible noise or measurable heat to the workspace. Its metal enclosure measures 1.6 x 7.9 x 2.75 in and weighs 4.82 lb, making it a compact, passive component in a server cabinet or on a desk. Longer 10 ft cable kits are available separately if the standard lengths do not reach.
Highlights
- Control 4 computers from one VGA monitor and keyboard/mouse
- Switch KVM, audio and USB independently with pushbuttons, hotkeys or OSD
- Share speakers and microphone via 3.5 mm jacks across all connected PCs
- Share USB 2.0 peripherals through built-in 2-port hub
- Rack-mountable 19 in design fits server cabinets or desktop use
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B006-VUA4-K-R |
| Type | D-Sub, USB, PS/2 |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | Up to 2048 x 1536, DDC2B |
| PC Selection | Push Buttons/Hot Keys/OSD |
| Features | Control up to 4 computers from a single VGA monitor and USB or PS/2 keyboard/mouse Package includes two 4ft and two 6ft USB KVM cable kits. P756-010 10ft USB KVM cable kits are availabe separately if a longer distance is required. P757-010 PS/2 KVM cable kits are available to connect PS/2 computers. Built-in 2-Port USB 2.0 hub allows USB peripherals to be shared amongst computers connected via USB KVM cable kits Built-in 3.5mm jacks allow for speaker and microphone audio to be shared amongst the connected computers KVM console, Audio and USB can be switched independently of each othe |
| Dimensions | 1.6" x 7.9" x 2.75" |
| Weight | 4.82 |
| Shipping weight | 2.72 kg |
| Package size | 286 × 171 × 102 mm |
Questions about this item
How do I install the four included USB KVM cable kits and the optional PS/2 kits, and which step is most often missed?
Connect each computer using the two 4 ft and two 6 ft USB KVM cable kits, or P757-010 PS/2 kits for PS/2 systems; the step most often missed is plugging the 3.5 mm speaker and microphone cables into each computer so the shared audio jacks on the switch actually pass sound.
What maintenance or replacement will this KVM switch need later?
The only items likely to need replacement are the supplied USB KVM cable kits or optional P756-010 10 ft USB kits if they become damaged; the switch itself has no user-serviceable parts, no fan, and no batteries to change.
What limit appears first when I run all four ports continuously at the maximum 2048 x 1536 resolution?
The VGA video bandwidth of the switch caps sustained use at 2048 x 1536 across all four ports; pushing higher resolutions or refresh rates will degrade the signal before any thermal or USB 2.0 hub limit is reached.
