Tripp Lite
Tripp Lite B005-HUA4 4-Port HDMI/USB KVM Switch 4K 60 Hz
Controls four HDMI computers from one 4K 60 Hz monitor with shared USB keyboard, mouse and peripherals via hotkeys, buttons or IR remote
- TypeHDMI, USB
- PC Connectors4 x HDMI Female 4 x USB 3.0 B Female 8 x 3.5mm Female
- Console Connectors1 x HDMI Female 4 x 3.5mm Female 2 x USB 3.0 A 2 x USB A
- Computer Connections4 Ports
- Monitor Connections1 Port
- Video Resolution4K x 2K (4096 x 2160) @ 60 Hz
- Control 4 computers from one monitor and keyboard
- True 4K 60 Hz video via HDMI 2.0
- HDR signal pass-through for richer colours
- Dual USB 3.0 hub shares peripherals at 5 Gbps
- Switch instantly by button, hotkey or IR remote
Four-Port HDMI KVM Switch for Multi-Computer Control
The Tripp Lite B005-HUA4 lets a single HDMI monitor, USB keyboard and mouse manage four HDMI-enabled computers or media devices. It supports true 4K resolution at 60 Hz with HDR and HDCP 2.2 pass-through. Front push buttons, hotkeys, mouse gestures and the included IR remote provide instant switching between connected sources.
Connectivity and Shared Peripherals

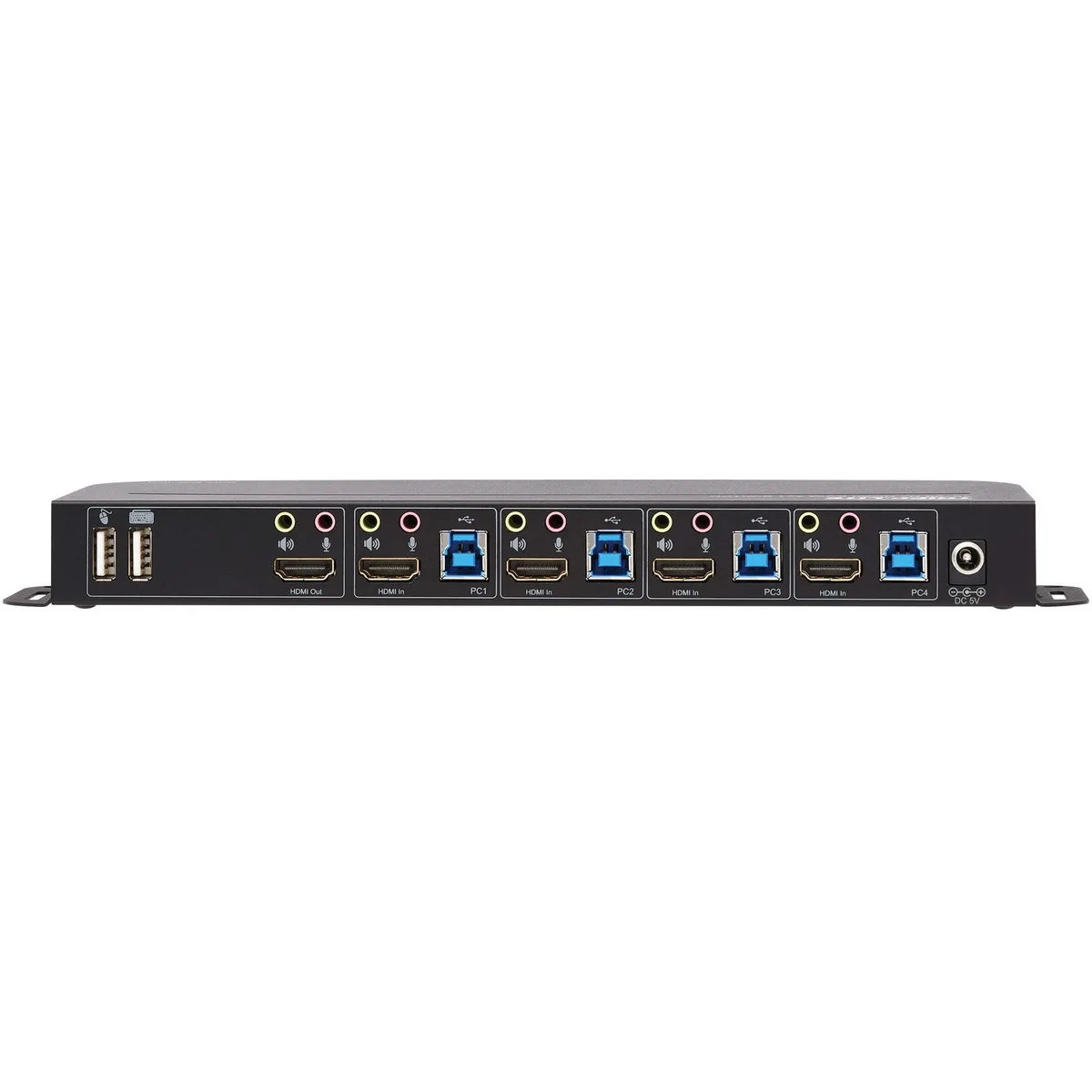

Each computer connects through one HDMI cable and one USB 3.0 Type-B cable; the console side uses one HDMI output and two USB 3.0 Type-A ports plus two USB 2.0 Type-A ports for shared peripherals. An external 5 V 3 A power adapter is included, and mounting brackets allow rack or surface installation. Audio switching is handled via 3.5 mm jacks on both the computer and console sides.
Replaces Separate Keyboards, Mice and Monitor Inputs
This switch removes the need for four separate keyboard-and-mouse sets and frees monitor inputs for other uses. It is not suited for users who require DisplayPort or USB-C video inputs, or for setups needing more than four computer connections. The jump is worthwhile when desk space is limited and 4K 60 Hz HDR fidelity must be maintained across all sources.
Highlights
- Control 4 computers from one monitor and keyboard
- True 4K 60 Hz video via HDMI 2.0
- HDR signal pass-through for richer colours
- Dual USB 3.0 hub shares peripherals at 5 Gbps
- Switch instantly by button, hotkey or IR remote
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B005-HUA4 |
| Type | HDMI, USB |
| PC Connectors | 4 x HDMI Female 4 x USB 3.0 B Female 8 x 3.5mm Female |
| Console Connectors | 1 x HDMI Female 4 x 3.5mm Female 2 x USB 3.0 A 2 x USB A |
| Computer Connections | 4 Ports |
| Monitor Connections | 1 Port |
| Video Resolution | 4K x 2K (4096 x 2160) @ 60 Hz |
| PC Selection | Hotkey; Mouse; Pushbutton; Remote Selector |
| USB Features | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Application | Share a keyboard, mouse and HDMI display with 4 computers Connect 4 gaming consoles, media centers or other A/V devices for a home theater system with true 4K resolution Save money and space by sharing USB peripherals, such as a printer and external hard drive, between 4 connected computers |
| Features | Controls 4 HDMI-enabled desktop or notebook computers using one centralized HDMI monitor and USB keyboard/mouse. Supports true 4K @ 60 Hz video resolutions as specified in HDMI 2.0 Carries High Dynamic Range (HDR) signals for expanded color accuracy Dual USB 3.0 hub ports let you share USB peripherals among connected computers Push buttons, hotkeys and included IR remote allow easy toggling between computers Works with all major operating systems, including Windows, macOS and Linux |

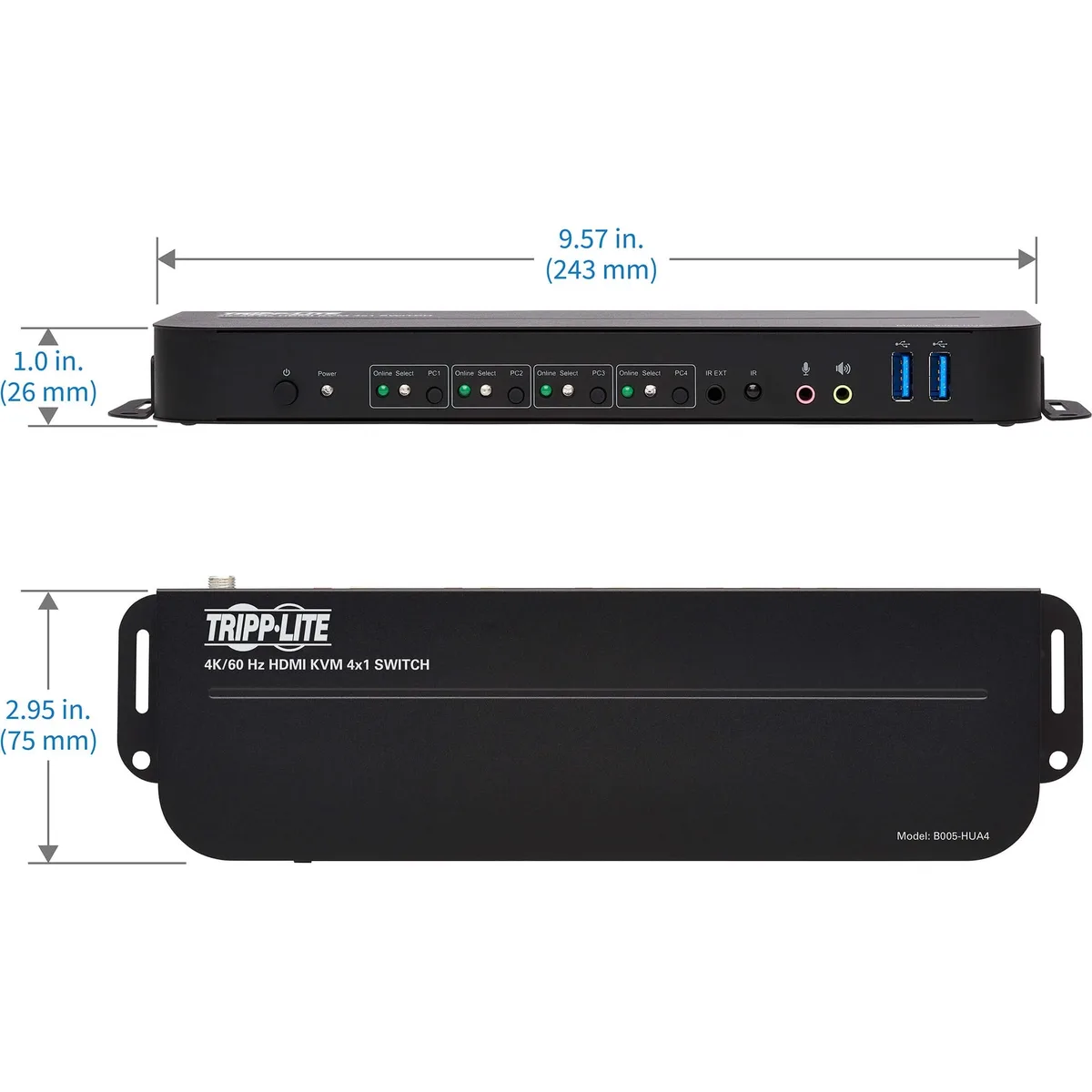

| Dimensions | 1.02" x 9.57" x 2.95" |

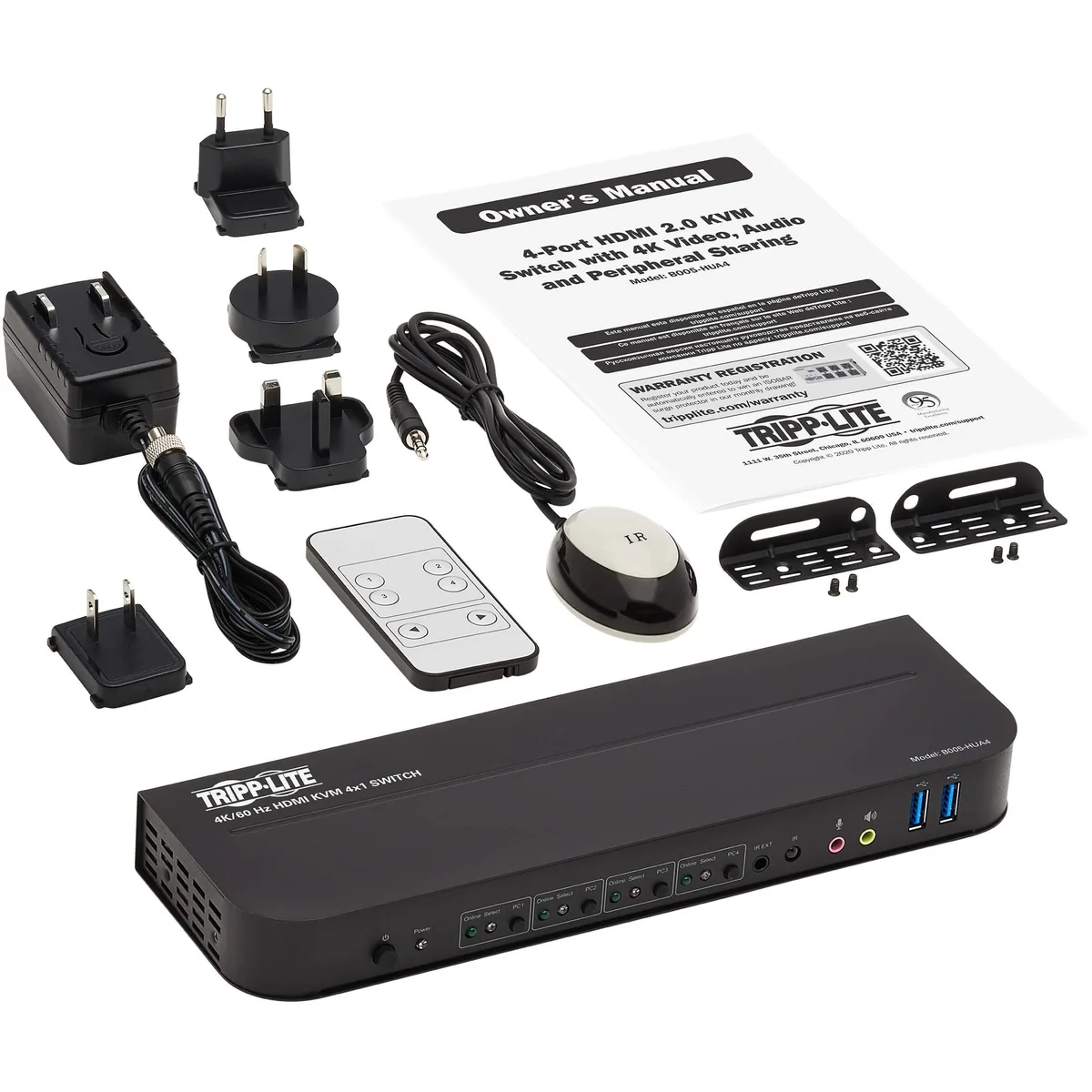

| Package Contents | B005-HUA4 4-Port HDMI/USB KVM Switch IR extender IR remote control External power supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 3A) Mounting brackets Owner’s manual |
| Shipping weight | 1.00 kg |
| Package size | 254 × 102 × 51 mm |
Questions about this item
Does the 5 Gbps USB 3.0 hub share bandwidth across all four computers?
The dual USB 3.0 A ports provide up to 5 Gbps each and are switched with the active computer, so only the selected system uses the bandwidth at any moment.
How much heat does the unit produce when left running 24/7?
The external 5 V 3 A power supply handles conversion outside the chassis, so the switch itself stays cool during continuous operation.
Which cables must I already have to connect four PCs and one monitor?
You need four HDMI cables and four USB 3.0 B-to-A cables for the computer links, plus one HDMI cable for the monitor.
