Tripp Lite B005-DPUA4 4-Port DisplayPort/USB KVM Switch 4K 60 Hz
Controls four DisplayPort computers with one keyboard, mouse and 4K 60 Hz monitor via push buttons, hotkeys or IR remote
- TypeDisplayPort, USB
- PC Connectors8 x 3.5mm 4 x DisplayPort 4 x USB 3.0 Type-B
- Console Connectors4 x 3.5mm 1 x HDMI 1 x DisplayPort 2 x USB-A 3.0 2 x USB-A 2
- Computer Connections4 Port DisplayPort
- Monitor Connections2 Ports
- Video Resolution4K x 2K (4096 x 2160) @ 60 Hz (HDMI and DisplayPort)
- Control four computers with one monitor and keyboard/mouse using DisplayPort or HDMI output
- View 4K 60 Hz video with HDR colour accuracy on a shared display

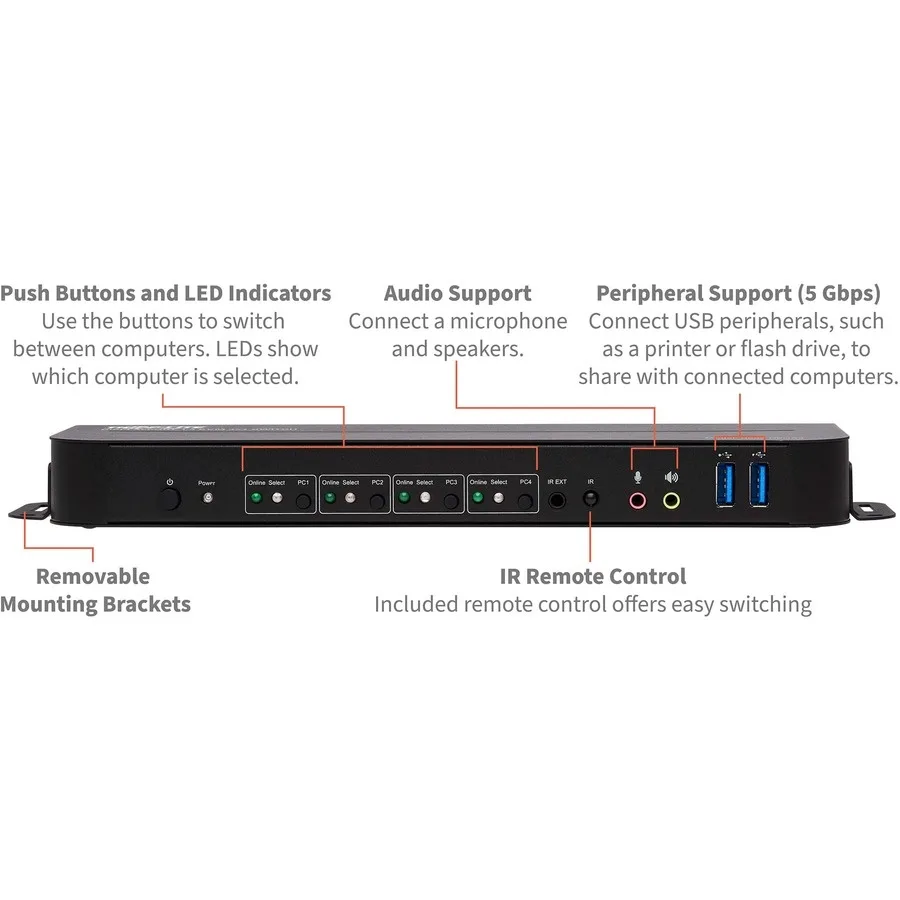

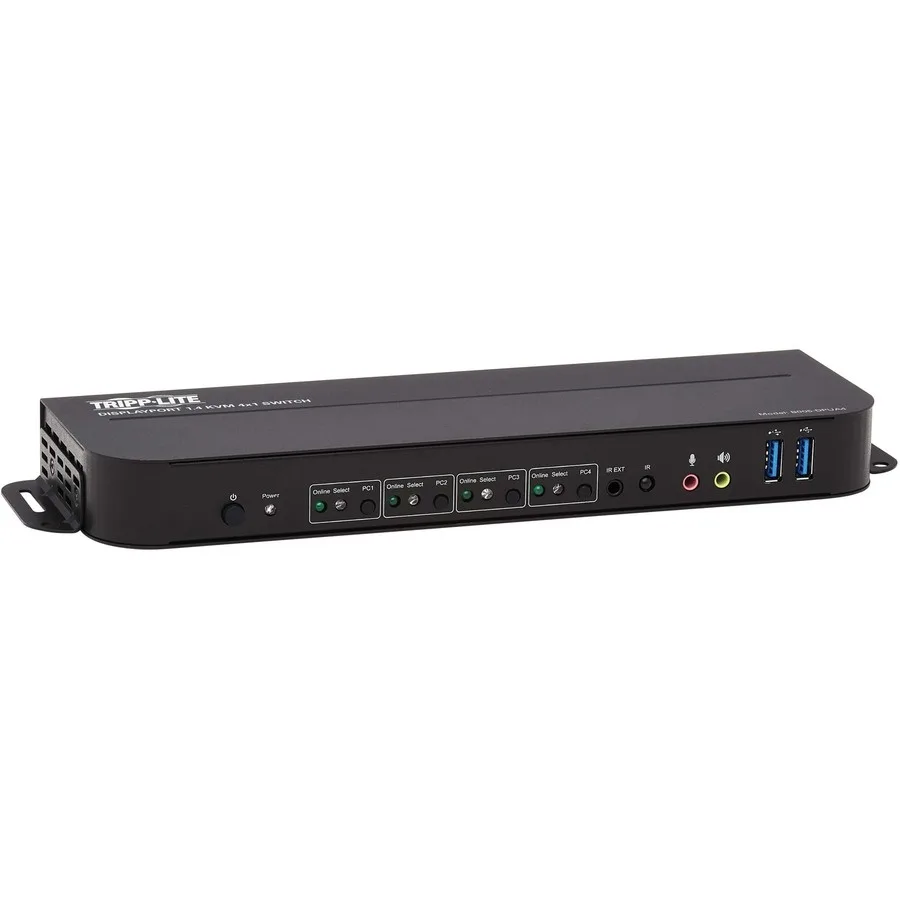

- Switch systems instantly via push buttons, hotkeys or the included IR remote
- Share USB 3.0 and 2.0 peripherals across all connected computers with dual hub ports
- Connect an HDMI monitor directly thanks to dual-mode DisplayPort++ compatibility
Centralised control for four DisplayPort systems
This KVM switch lets one DisplayPort or HDMI monitor, a USB keyboard and a USB mouse serve four DisplayPort-enabled desktops or notebooks. It also supports media players, game consoles and other A/V sources that output DisplayPort video. The unit carries 4K at 60 Hz with HDR and HDCP 2.2 for colour-accurate switching.
Replaces separate cables and multiple peripherals
Instead of swapping four sets of video leads, keyboards and mice, the switch consolidates everything into a single console. The upgrade is worthwhile when desk space is limited or when workflow demands instant switching between several computers without re-plugging devices. Dual-mode DisplayPort++ lets the same monitor port accept either DisplayPort or HDMI cables.
Straightforward rack or desktop mounting with few
Mounting brackets and an external 5 V 3 A power supply are included; the switch draws 0.6 A from 100–240 V mains and operates from 0 to 45 °C. Selection works by push button, hotkey, mouse gesture or the supplied IR remote and extender. Ensure each computer uses a DisplayPort 1.4 source and that USB 3.0 cables are kept within spec to avoid bandwidth drops.
Highlights
- Control four computers with one monitor and keyboard/mouse using DisplayPort or HDMI output
- View 4K 60 Hz video with HDR colour accuracy on a shared display
- Switch systems instantly via push buttons, hotkeys or the included IR remote
- Share USB 3.0 and 2.0 peripherals across all connected computers with dual hub ports
- Connect an HDMI monitor directly thanks to dual-mode DisplayPort++ compatibility
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B005-DPUA4 |
| Type | DisplayPort, USB |
| PC Connectors | 8 x 3.5mm 4 x DisplayPort 4 x USB 3.0 Type-B |
| Console Connectors | 4 x 3.5mm 1 x HDMI 1 x DisplayPort 2 x USB-A 3.0 2 x USB-A 2.0 |
| Computer Connections | 4 Port DisplayPort |
| Monitor Connections | 2 Ports |
| Video Resolution | 4K x 2K (4096 x 2160) @ 60 Hz (HDMI and DisplayPort) |
| PC Selection | Hotkey; Mouse; Pushbutton; Remote Selector |
| Temperature | 32 to 113° (0 to 45°C) |
| Humidity | 10% to 85% RH (No Condensation) |
| Power Features | 100-240V, 50/60Hz, 0.6A |
| USB Features | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps) |
| Application | Share a keyboard, mouse and screen with up to 4 computers Connect up to 4 gaming consoles, media centers or other A/V devices for a home theater system with 4K resolution Save money and space by sharing USB peripherals, such as a printer and external hard drive, among 4 connected computers |
| Features | Controls 4 DisplayPort-enabled desktop or notebook computers using one centralized DisplayPort or HDMI monitor and USB keyboard/mouse. Supports 4K @ 60 Hz video resolutions as specified in HDMI 2.0 Carries High Dynamic Range (HDR) signals for expanded color accuracy Dual-mode DisplayPort (DP++) support allows connection of a local HDMI display Dual USB 3.0 hub ports let you share USB peripherals among connected computers Push buttons, hotkeys and included IR remote allow easy toggling between computers |
| Dimensions | 1.02" x 9.57" x 2.95" |
| Weight | 1.11 lbs. |
| Package Contents | B005-DPUA4 4-Port DisplayPort/USB KVM Switch IR extender IR remote control External power supply (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5V 3A) Mounting brackets Owner’s manual |
| Shipping weight | 0.68 kg |
| Package size | 254 × 127 × 51 mm |
Questions about this item
What desk space do I need to mount the 1.02 x 9.57 x 2.95 inch chassis?

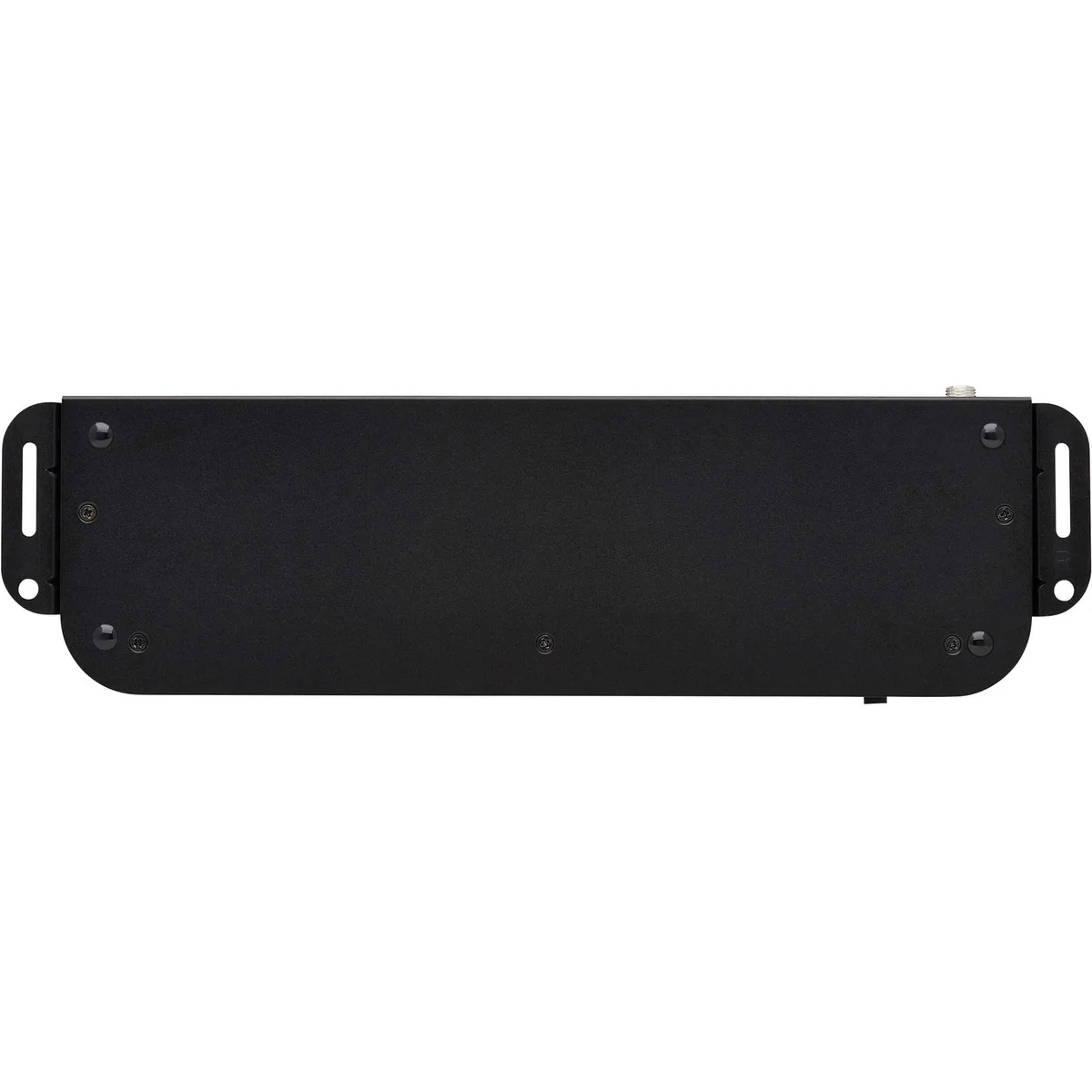

The unit measures 1.02 inches high, 9.57 inches wide and 2.95 inches deep; mounting brackets are included for under-desk or rack installation.
Which cables must I connect to each computer for video, USB and audio switching?

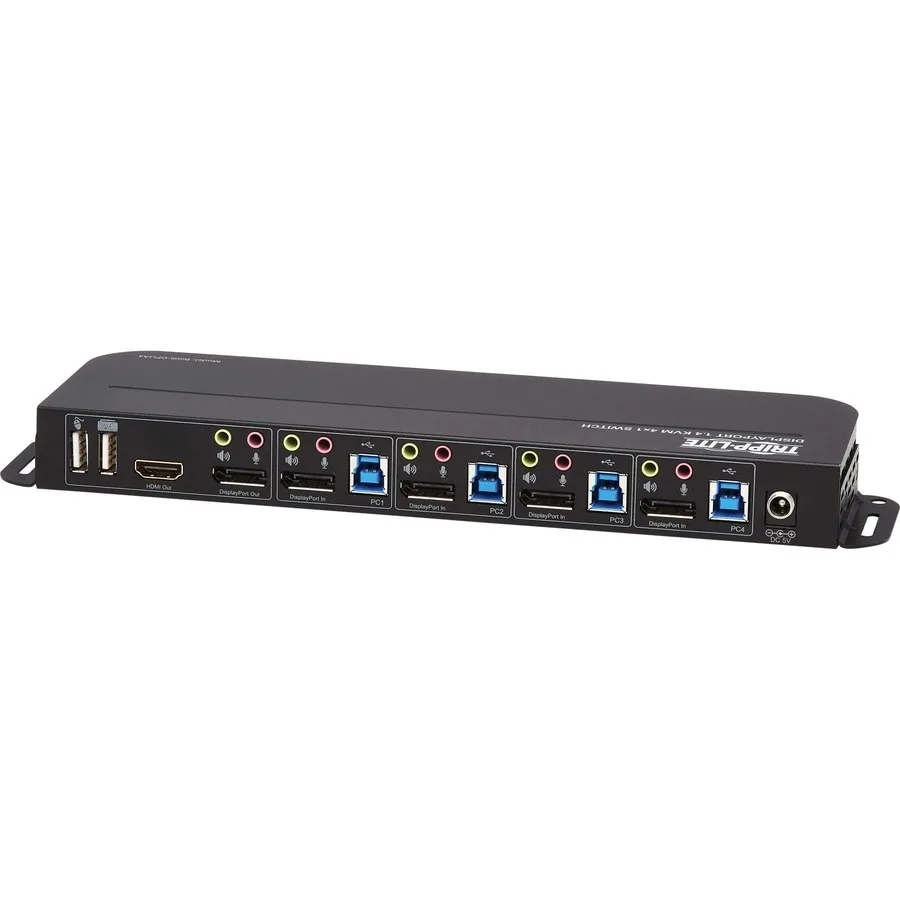

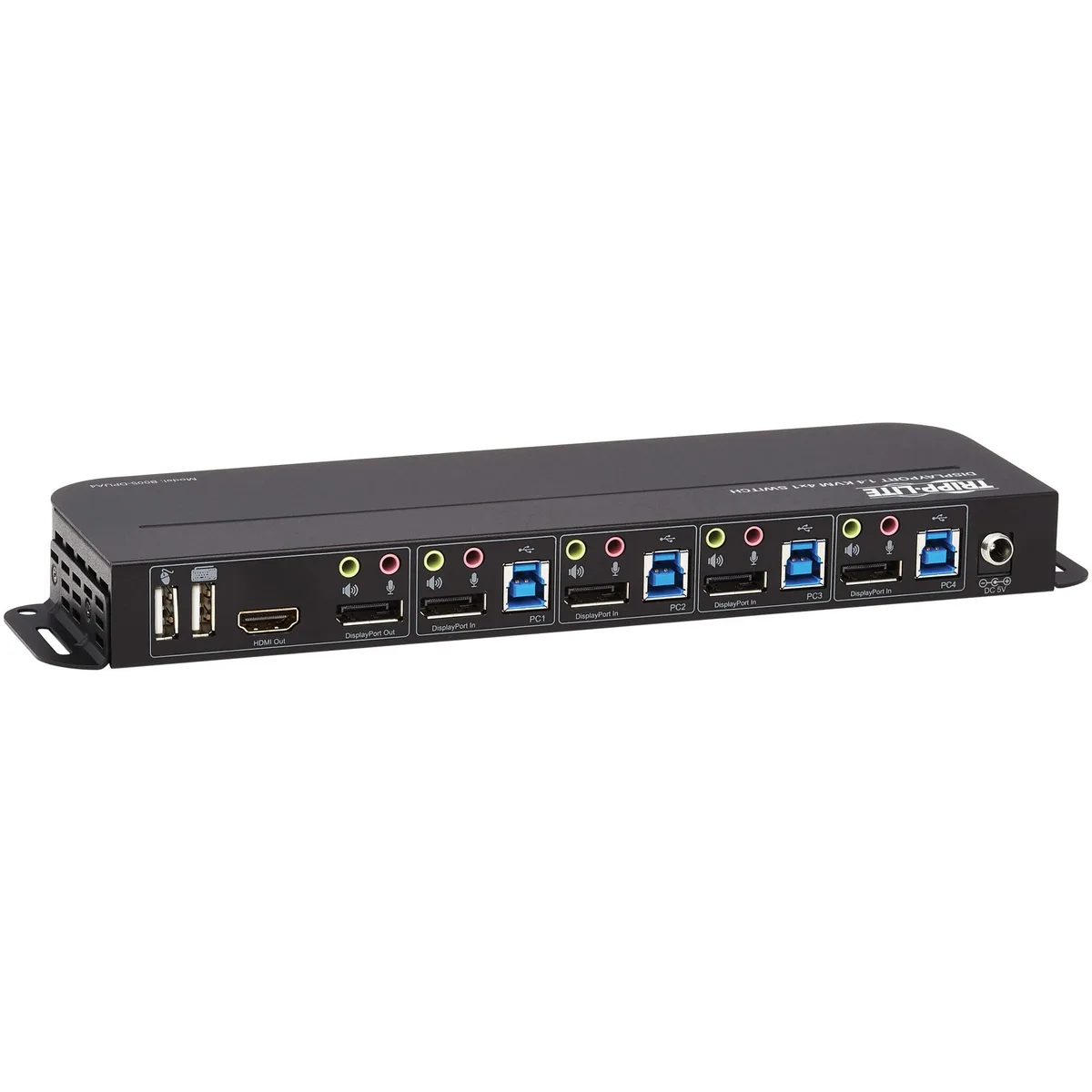

Run one DisplayPort cable, one USB 3.0 Type-B cable and one 3.5 mm audio cable from each computer to the corresponding rear ports.
When should I replace the external 5 V 3 A power supply?
Replace it if the switch loses video or USB connectivity across all ports and the front LEDs remain dark while mains power is present.
