Tripp Lite
Tripp Lite B002-HD2AC4 4-Port Secure KVM Switch HDMI to DisplayPort Dual Monitor
Secure four-port KVM switches between isolated computers with dual DisplayPort monitors at 3840 x 2160 resolution
- TypeKVM Switchbox
- Computer Connections4 Ports
- Video Resolution3840 x 2160
- USB Featureswith USB support
- FeaturesNumber of Local Users Supported:1 Number of HDMI Ports:2 Num
- DimensionsHeight:2.7" x Width:12.6" x Depth:6.7"
- Switches four isolated computers securely
- NIAP PP3.0 certified for high-assurance environments
- CAC port enables smart-card authentication
- Dual 4K monitors at 3840 x 2160
- Eleven USB ports connect keyboards, mice and peripherals
Secure 4-Port KVM Switch
The Tripp Lite B002-HD2AC4 is a NIAP Protection Profile 3.0 certified KVM switch that lets one user control four isolated computers with different security classifications. It converts HDMI sources to dual DisplayPort monitors at resolutions up to 3840 x 2160 at 30 Hz. Eleven USB ports and a dedicated Common Access Card reader port support smart card and biometric authentication devices.
Upgrade From Basic Switches
This unit replaces uncertified KVMs when mandatory access protection and peripheral isolation are required for government or defence networks. The jump is justified when handling classified or sensitive data across separate security domains. It is not suited for environments that do not require NIAP validated hardware or where single-monitor configurations are sufficient.
Dual Monitor Interface Limits
Dual DisplayPort output is limited to 3840 x 2160 at 30 Hz, which may restrict high-refresh-rate workflows. HDMI source inputs must match the switch resolution and timing capabilities. The external 12V 2A power supply with NEMA 1-15P plug is required for operation. No audio or video format conversion beyond the stated HDMI to DisplayPort path is provided.
Highlights
- Switches four isolated computers securely
- NIAP PP3.0 certified for high-assurance environments
- CAC port enables smart-card authentication
- Dual 4K monitors at 3840 x 2160
- Eleven USB ports connect keyboards, mice and peripherals
Specifications
| Brand | TRIPP LITE |
|---|---|
| Model | B002-HD2AC4 |
| Type | KVM Switchbox |
| Computer Connections | 4 Ports |
| Video Resolution | 3840 x 2160 |
| USB Features | with USB support |

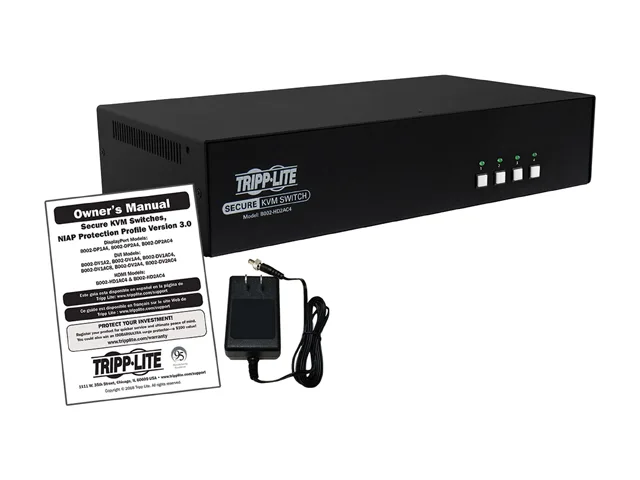

| Features | Number of Local Users Supported:1 Number of HDMI Ports:2 Number of USB Ports:11 Package Contents: B002-HD2AC4 Secure 4-Port NIAP PP3.0-Certified HDMI-to-DisplayPort KVM Switch External Power Supply w/NEMA 1-15P Plug & 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.8A; Output: 12V 2A) Owner's Manual |
| Dimensions | Height:2.7" x Width:12.6" x Depth:6.7" |
| Weight | 3 lb |
| Shipping weight | 1.81 kg |
| Package size | 384 × 384 × 283 mm |
Questions about this item
What desk space does the 2.7 by 12.6 by 6.7 inch chassis need?
The unit measures 2.7 inches high, 12.6 inches wide and 6.7 inches deep and weighs 3 lb, so allow that footprint plus cable bend radius on a flat surface or shelf.
How is the external 12 V 2 A supply connected, and what step is often missed?
Plug the NEMA 1-15P cord into a 100-240 V outlet, attach the barrel jack to the switch, then power on the four computers; forgetting to power the switch first causes no video on the DisplayPort monitors.
When will the external power supply need replacement?
The 12 V 2 A brick is the only field-replaceable part; plan to swap it if the switch loses power while the AC cord and outlet test good.
